316 stainless steel tensioning fittings for 1/8'' 3/16'' cable
- Item No.: Cable tensioner T807
- Material: stainless steel 304(V2A)/316(V4A)
- Finish: satin brushed or mirror polished
- Cable diameter: dia 3mm stainless steel wire rope
- Application: wood, steel post;
- Sample available for testing quality
- Origin: Shenzhen, China

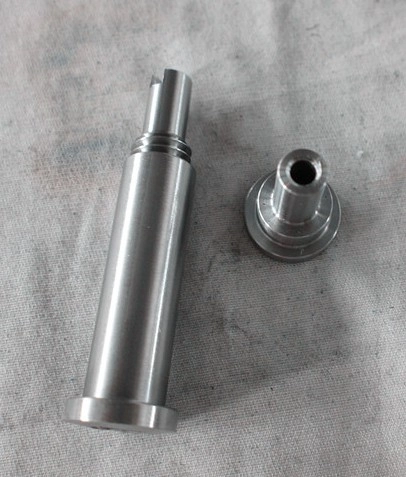

316 stainless steel tensioning fittings for 1/8'' 3/16'' cable
T807 threaded receiving, swage fitting, tensioning for level applications
best suit for diameter 1/8'' 3/16'' wire rope

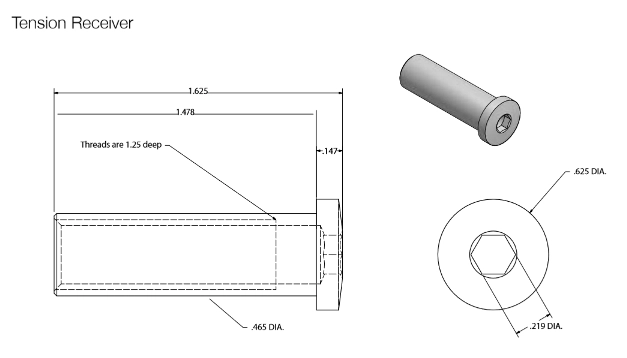

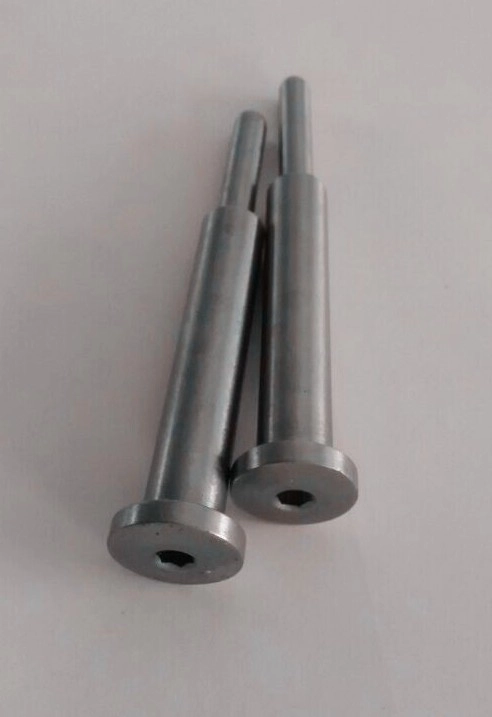

Tension receiver:

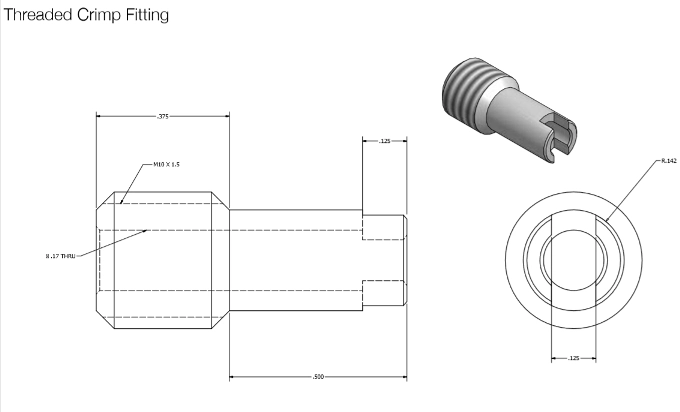

Threaded Crimp Fitting:
Fixed End Fitting:
No visible fittings
The threaded receiver is highly reliable and cost effective while being almost entirely concealed within the newel for a very aesthetically pleasing appearance.
Drill the end newel posts and slide the receiver inside.
The receiver is demale-threaded to accept the male-threaded swaging stud that is attached to the cable.
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
These can be used for a variety of applications. Sail boats and yachts, cable railing, and for shade sails.
1) Material: stainless steel 316 or stainless steel 304
2) Surface finish: highly polished or satin brushed
3) Standard: Metric and UNF
4) Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
5) Delivery: by sea, by air or by express service
6) Price term: FOB or CIF
7) Sizes: from 3mm to 6mm or as per your requests
8) Type: Swaged countersunk head end, swaged flathead end and swaged domehead end
9) Packing: clean poly bags and cartons and pallets or as per requests
10) For more swage adjuster, please email us for full catalogue
These can be used for a variety of applications. Sail boats and yachts, cable railing, and for shade sails.
1) Material: stainless steel 316 or stainless steel 304
2) Surface finish: highly polished or satin brushed
3) Standard: Metric and UNF
4) Customer design: our experienced engineer team can developed the products and manufacture in accordance with samples, drawings or only ideas
5) Delivery: by sea, by air or by express service
6) Price term: FOB or CIF
7) Sizes: from 3mm to 6mm or as per your requests
8) Type: Swaged countersunk head end, swaged flathead end and swaged domehead end
9) Packing: clean poly bags and cartons and pallets or as per requests
10) For more swage adjuster, please email us for full catalogue
Contact us for more information:
HP/WhatsApp/WeChat: +8613686807796
E-mail: sales03@launch-china.cn
E-mail: sales03@launch-china.cn
