Round Mini 25mm Stainless Steel Handrail for Swimming Pool Fence(5.8M)
- Round Mini 25mm Stainless Steel Handrail (5.8M)
- Polish or Satin finish
- Slimline stylish profile – ‘Nanorail’ - caps over 12mm thick glass
- 1.2mm wall thickness
- 14 x14mm glazing pocket: silicone onto glass or use in conjunction with glazing rubber
- Stainless Steel 316L - low carbon stainless
Round Mini 25mm Stainless Steel Handrail (5.8M)
Specifications:
Material
Stainless steel 304L/316L
Surface treatment
Satin brushed or Mirror polished
Dimension
25*21mm, groove 14*14mm
Product name
Slimline stylish profile – ‘Nanorail’ - caps over 12mm thick glass
For glass thickness
10-12mm
Length per piece
5.8 meters
Stock
Yes
Material test report
Available
Fittings
Plastic channel
180 Degree connector
90 Degree connector
Wall to rail joiner
End cap
Slotted end cap
Horizontal swivel joiner
Vertical swivel joiner
Packing
Bubble bag & 6 pcs/bundel, or 1 pc/Carboard tube
Standard
Australia & New Zealand safety standard
Product images for Round Mini 25mm Stainless Steel Handrail (5.8M)
Electro plating in Gold and Black color
Round Mini 25mm Stainless Steel Handrail (5.8M)

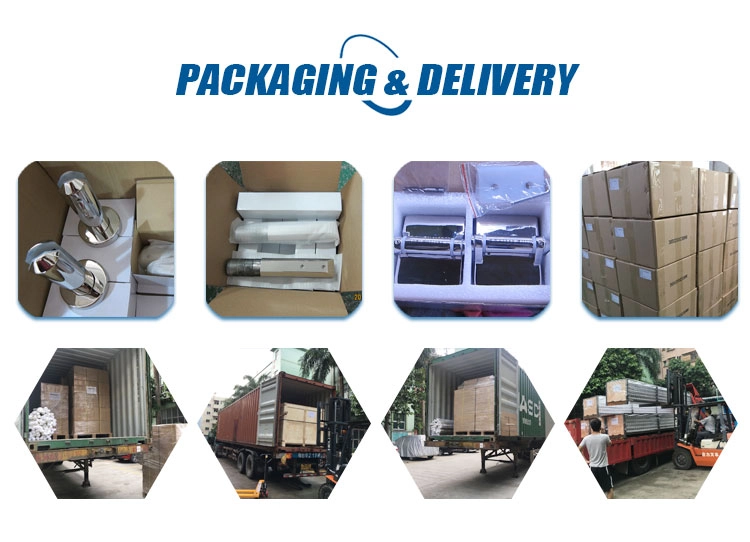

2. Packaging :
1).Cardboard Tube Packaging
Each piece slot handrail covered with plastic sleeves, then put into a cardboard tube, 5 pcs into a bundle.
2).Bubble Bag Packaging
Each piece slot handrail covered with plastic sleeves, then 6 pcs with woven bag packed into a bundle, then the bundle reapck with outer bubble bag.
3. Project photos for your reference:
Application: stainless steel handrail design for stairs
stainless steel handrail staircase
stainless steel swimming pool handrail
stainless steel handrail for balcony railing designs
