Stainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass SystemStainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass SystemStainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass System

Stainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass System

  • Product name: Glass standoff, glass standoff clamp, stainless steel standoff
  • Material: Stainless steel 304/316
  • Surface treatment: Satin brushed or mirror polished
  • Dimension: 50*12mm cap, 50*30mm body, M12*120 bolt
  • Mounting plate size: 200*100*10(mm)
  • Silicon rubber gasket: included
  • For glass thickness: 10-19mm glass panels
  • Type: heavy duty
Stainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass System

Product Name

 Stainless Steel Standoff Clamp, Juliet Balcony And Bolted Glass System

  Model No.
  SF-50T
Material
Stainless Steel 304/316
Finish
Mirror polished, or satin prushed
Glass standoff size
50x12mm cap,50x44mm body,200*100*10 base
For glass thickness
12-19mm, or as per customers' requirements
Drilled Glass Hole
Diameter 14mm required in glass
Net weight
3236g/piece
Mounting
wooden, steel or concrete substrate
MOQ
One piece
Sample
Available
OEM & ODM service
Acceptable
Application
Indoor and outdoor staircases design,balcony railing,deck frameless glass railing, Juliet balcony design, floating staircase
Factory Inspection
Available

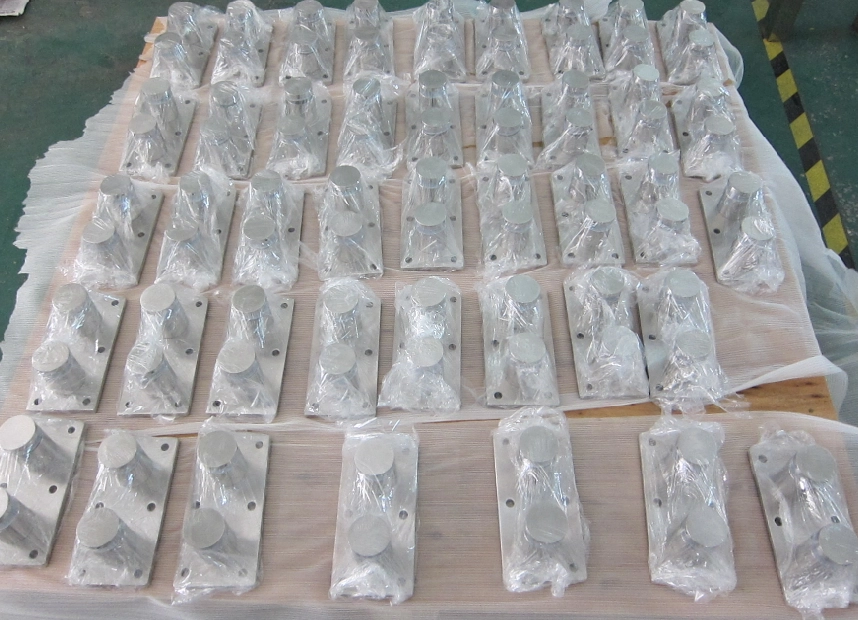

Standoff packing
One piece into one bubble bag, then into one white box, 12 pieces into one cardboard carton
or packing as per customers' requorements

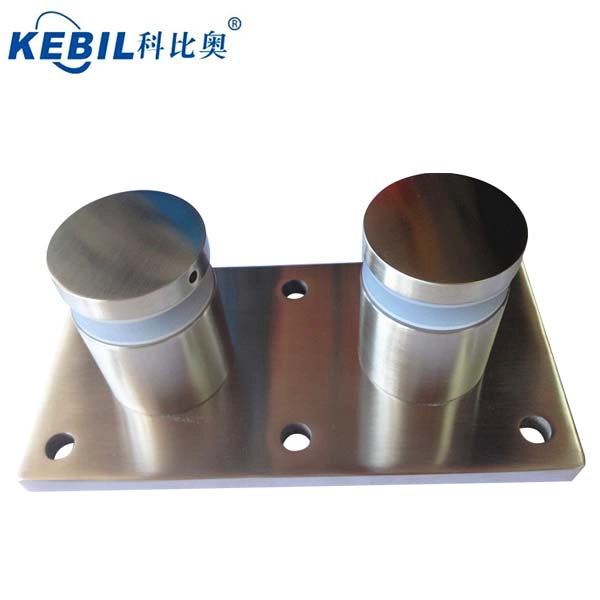

Product Show:



Technical Drawing:

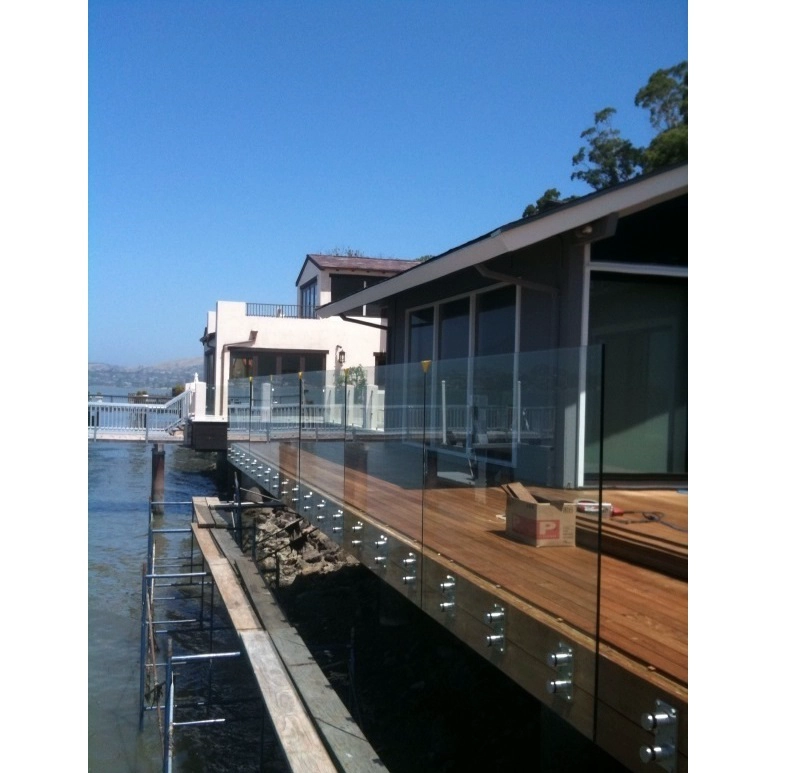

Project Photos:


OTHER TYPES GLASS RAILING STANDOFFS AVAILABLE:
Dia 50mm Glass Standoff in Mirror / Satin Finish Model SF-50:

With concrete bolt & wood screw Model SF-50W:


Technical drawing:


Project Photos:
outdoor and indoor glass standoff, frameless standoff glass railing design, stainless steel glass standoff bracket, glass standoff pin
