Stainless steel 316 wire rope terminal for wooden handrail poleStainless steel 316 wire rope terminal for wooden handrail poleStainless steel 316 wire rope terminal for wooden handrail pole

Stainless steel 316 wire rope terminal for wooden handrail pole

  • material: stainless steel 304 or 316
  • finish: satin brushed or mirror polish;
  • fit cable: 3/4/5/6mm diameter cable
  • cable type: 1x19, 7x19;
  • 1 set includes left piece and right piece
  • Position: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Stainless steel 316 wire rope terminal for wooden handrail pole

material: stainless steel 304(for indoor) or 316(for outdoor)
finish: satin brushed or mirror polish;
fit cable: 3/4/5/6mm diameter cable
cable type: 1x19, 7x19;
cable fixing tool: hydraulic plier;

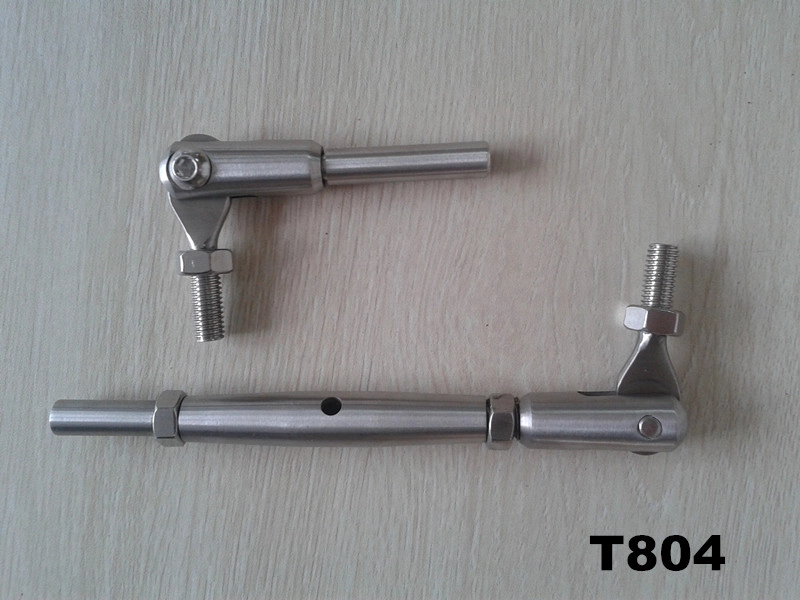

T804 cable tensioner/ wire rope turnbuckles;

cable/ wire rope size: 3-6mm(1/8'' to 1/4'')

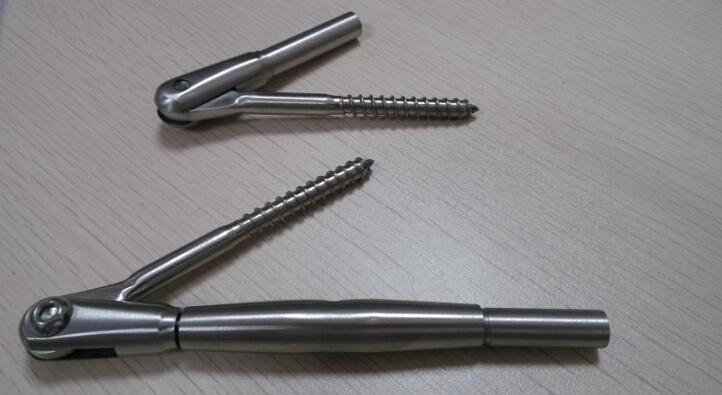

with lag bolt for wood post;

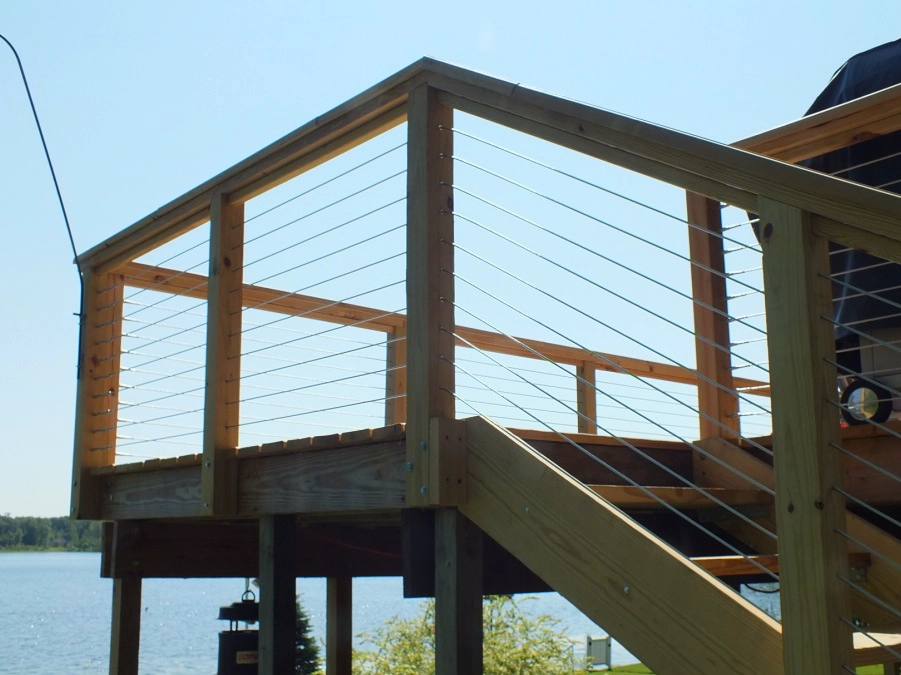

Project in Michigan, USA

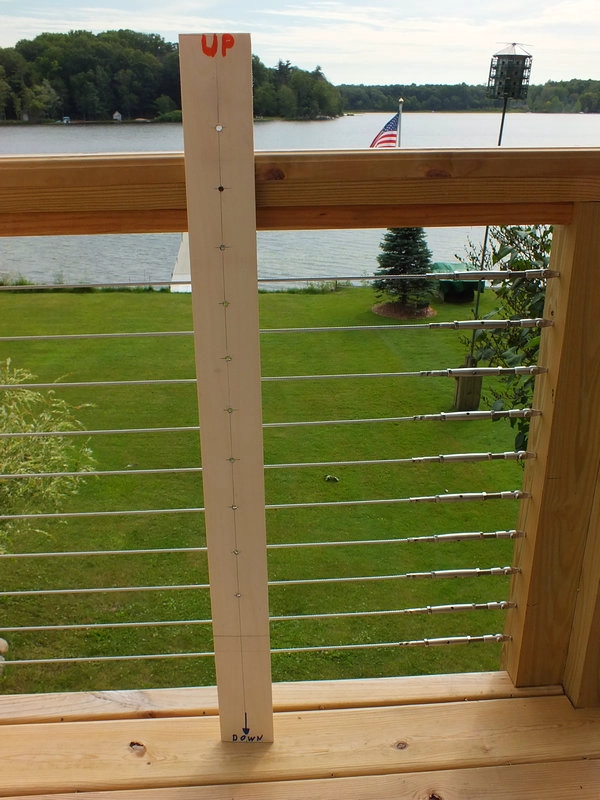

For easy and accurate installation, you may need a template to work with you--said from our customer, he DIY the project as below;


For staircase part

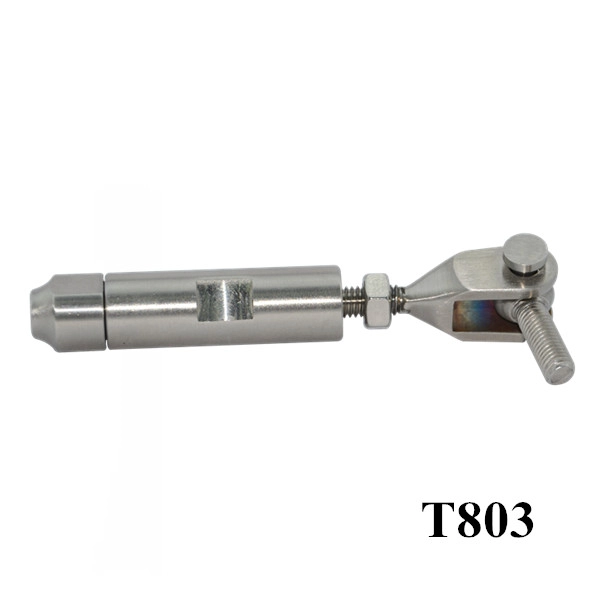

T803, highly recommended type, popular in USA, Canada
Click the picture below for more information;

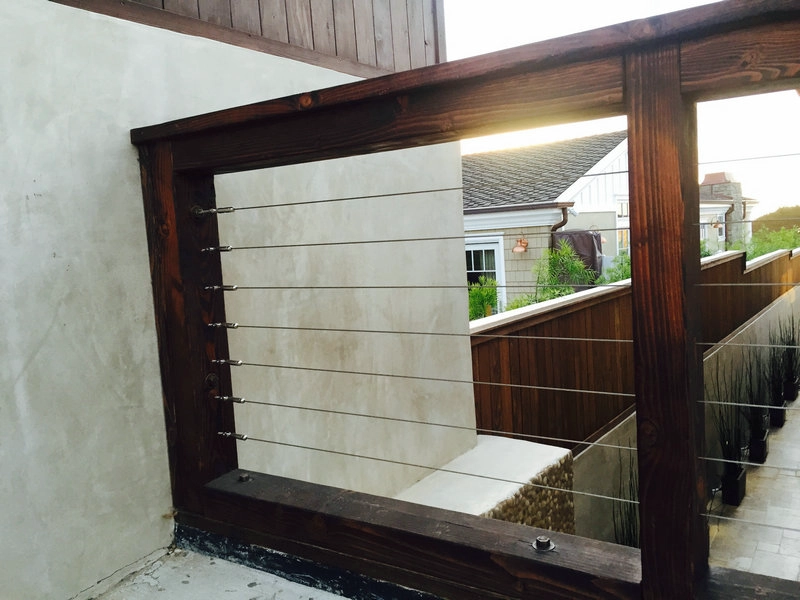

Project in L.A California


Both T804 and T803 are no problem for wood post and steel post, depends on your project design.
Cable tensioners, good choice for your home decoration at balcony, deck, staircase, porch and so on.
