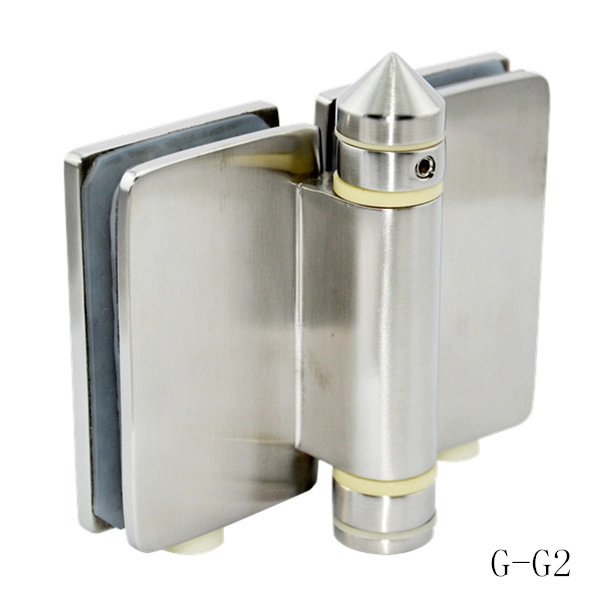

glass pool gate hinge,glass door hinge,self close hinge

glass pool gate hinge,glass door hinge,self close hinge

  • glass door hinge
  • Hinge model:G-G2
  • Hinge type:glass to glass
  • hinge screw holes: 4*14mm diameter
  • suitable glass thickness:8mm,10mm,12mm
  • Design: self close spring hinge
  • Description: for frameless or semi-frameless glass pool gate or pool glass door
New design glass door hinge is so popular in Australia and Canada now! This design is heavy duty and much stronger than normal hinge in market.

We have 3 models for your choice:
  1. glass to glass hinge G-G2; most often used model
  2. glass to wall or glass to square post hinge G-W2; most popular model
  3. glass to round hinge G-P2; suit for semi-frameless gate
Please check below hinge photos:

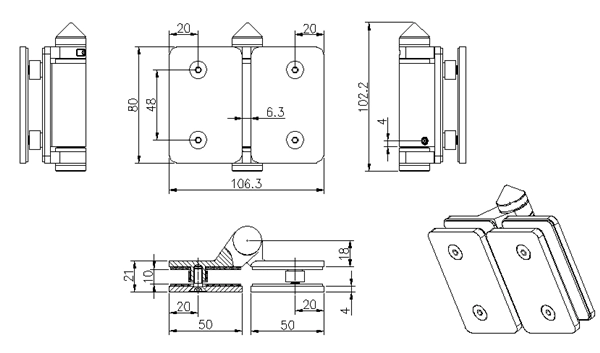

Please check below hinge drawing with dimension:

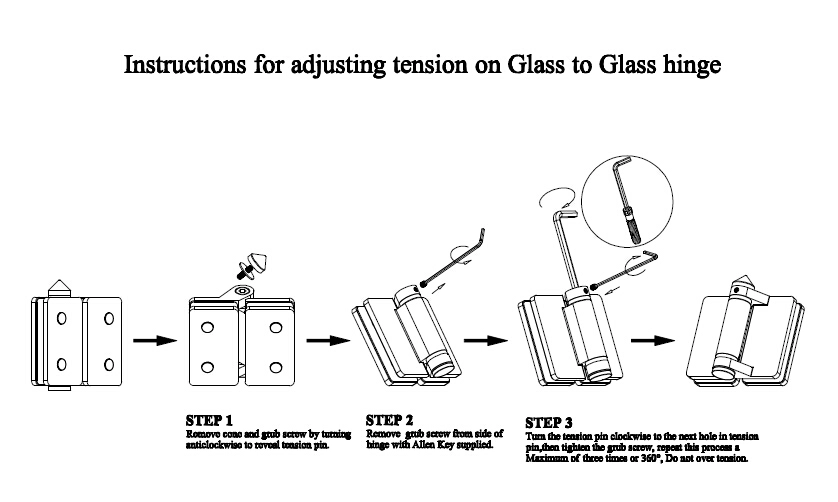

Please check following hinge using instruction:

More choice as follows:
