new model hinge glass to glass hinge for swimming pool fence gate

new model hinge glass to glass hinge for swimming pool fence gate

  • Pool Gate Glass Spring Hinge
  • Model: Glass to Glass Hinge
  • Model No.: G-G2
  • Pool Gate Hardware Kit includes 1 X Magnetic latch and 2 X Self-closing hinges ,all screws and free installation tools
  • Marine grade STAINLESS STEEL 316 made with a fantastic great MIRROR or SATIN polish finish.
  • Suits 8mm/10mm/12mm toughened glass gate

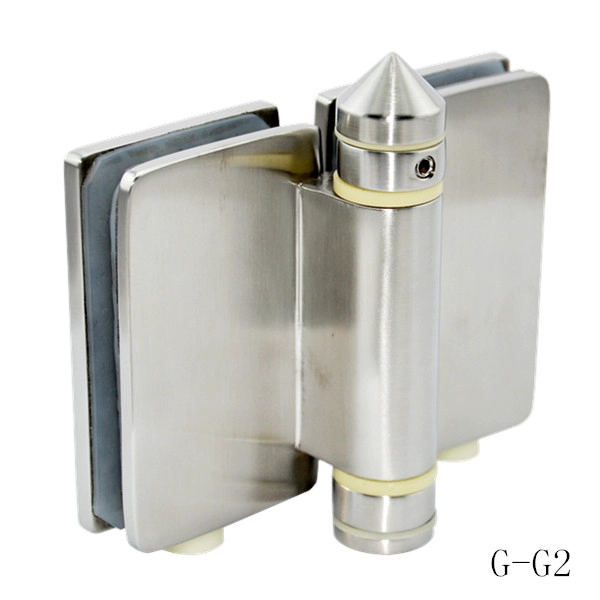

  • Model G-G2 Glass to Glass Pool Gate Hinge
  • 2 of self-closing spring hinge to suit Glass application
  • 1 of glass to glass hinge 80mm WIDTH
  • 1 of glass to glass hinge 106.3mm LENGTH
  • 1 of glass to glass hinge 21mm THIKCNESS
  • Distance between two screws 48mm
  • Distance from screw to hinge edge: 20mm

Hinge description:

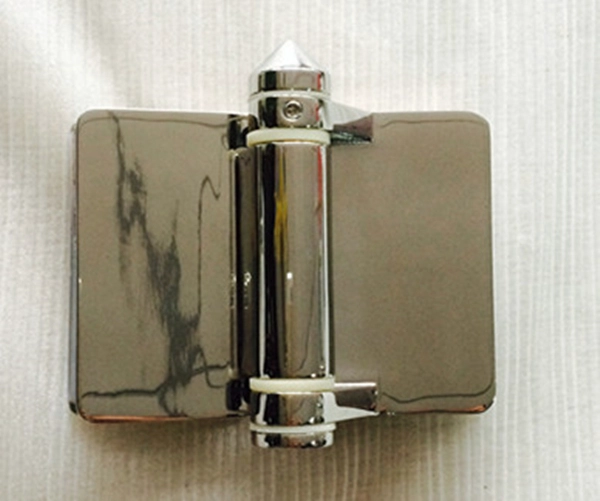

Pool Gate Glass Spring Hinge
Model: Glass to Glass Hinge

Model No.: G-G2
Pool Gate Hardware Kit includes 1 X Magnetic latch and 2 X Self-closing hinges ,all screws and free installation tools.
Marine grade STAINLESS STEEL 316 made with a fantastic great MIRROR or SATIN polish finish.
Suits 8mm/10mm/12mm toughened glass gate

Model G-G2 Glass to Glass Pool Gate Hinge
2 of self-closing spring hinge to suit Glass/ Glass application



G-G2 Hinge dimension:

1 of glass to glass hinge 80mm WIDTH

1 of glass to glass hinge 106.3mm LENGTH

1 of glass to glass hinge 21mm THIKCNESS

Distance between two screws 48mm

Distance from screw to hinge edge: 20mm

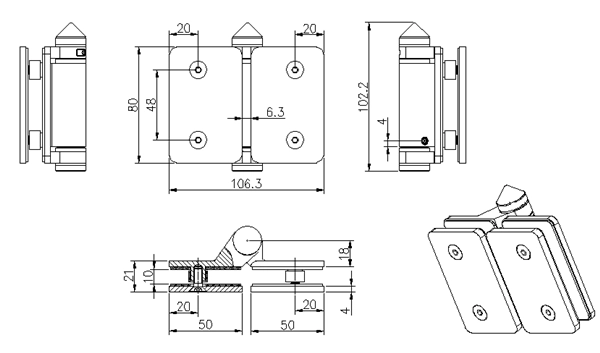

Please refer to below dimension drawing:




G-G2 Hinge technical information:
Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate, will fit onto 10/12mm fixed glass

1 of glass to glass hinge with 2 SCREWS GAP 42 mm

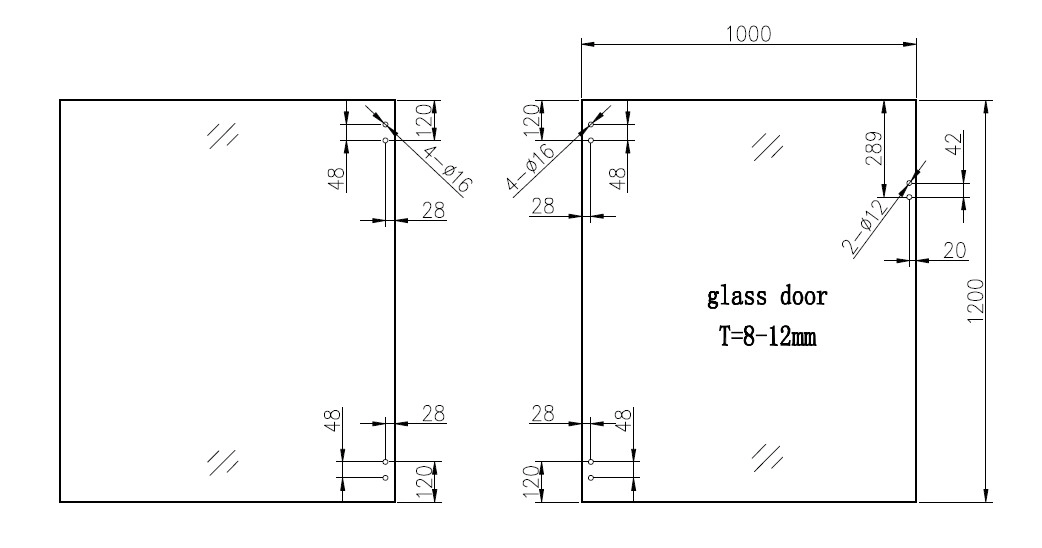

Pool gate glass panel hole – 20mm in from glass edge, 42mm apart.
Glass to gate gap 18mm, suits 8/10/12mm toughened glass gate

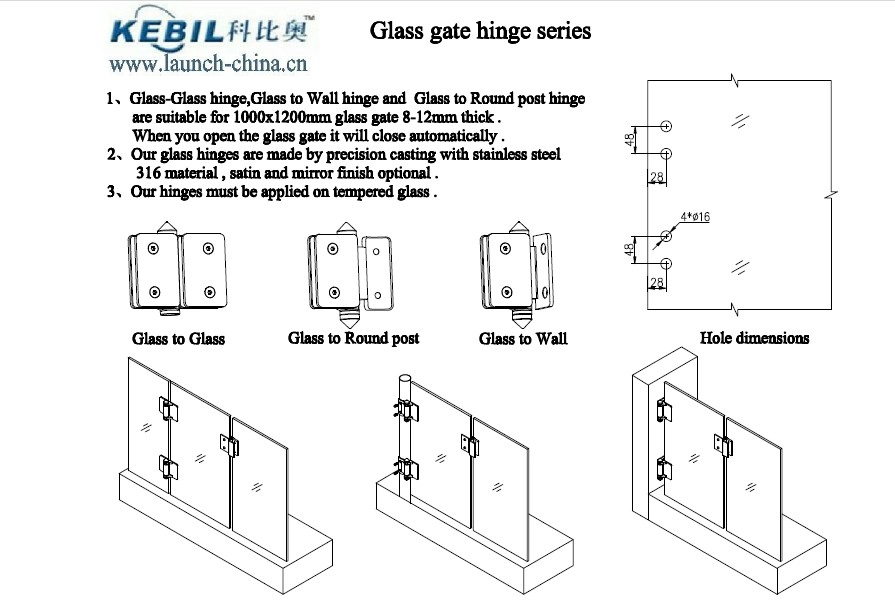

please download here for the technical drawing:




For Glass Pool Gate Hinge & InstallationPlease see below vedio link:

https://www.youtube.com/watch?v=DKZlF0cAt1M

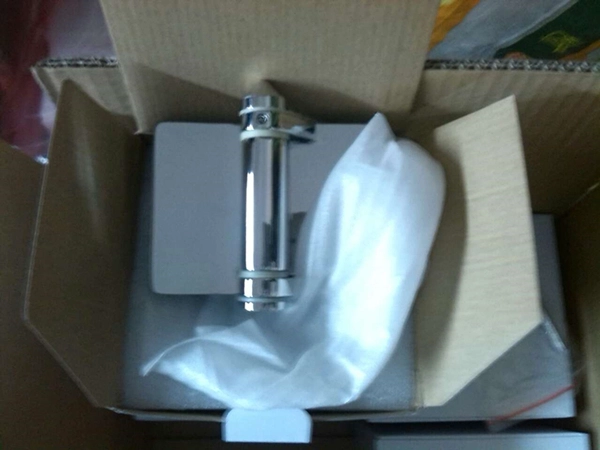

For Glass Pool gate hinge PackagingPlease below packaging photos:
