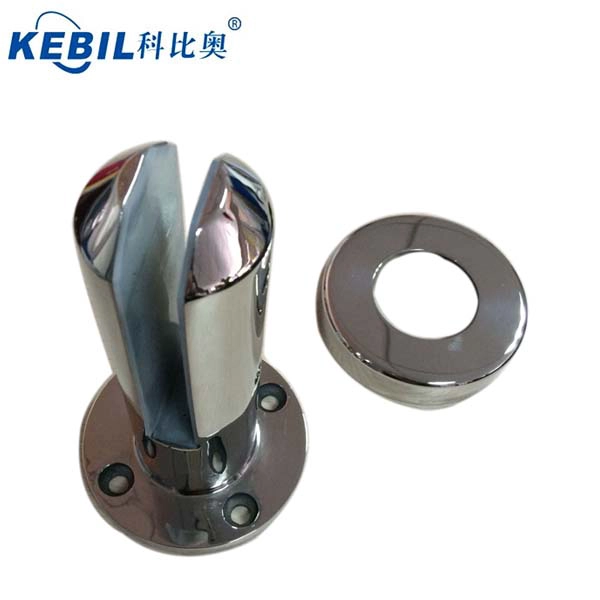

round base plate glass spigot for balcony frameless glass fencing

  • Model No.: RBM-2
  • Material: stainless steel 316,316L, duplex 2205
  • Finish: mirror or satin polished
  • For glass thickness: 10-13.52mm
  • Size: 168mm height
  • To hold 1500mm wide glass, hight ≤1200mm
  • Weight: 1.7kg
  • Payment: T/T, PayPal, Western Union
  • Seaport: Shenzhen seaport
Model RBM-2, round base plate spigot is very popular design in Australia, NZ, Norway, Canada. It is used as support brackets to hold 10-13.52mm tempered glass panels for swimming pool fencing, or balconies.

Specifications :
-stainless steel 316,316L , duplex 2205
-satin or mirror polished
-for 10-13.52mm tempered glass
- round base plate spigot
-AS/NZS standard
-168mm height
-Weight : 1.7kg
-Fitting included : cover,screws,rubber gaskets
-Application : 2 spigots support 1 glass panel

Different Models of spigot available :
- Square base plate spigot SBM
-Round base plate spigot RBM
-Square core drill spigot SCM
-Round core drill spigot RCM
-Square core drill spigot with added length SCM-1
-Round core drill spigot with added length RCM -1

Packing Details :
plastic bag+small white box+carton
1 spigot into a plastic bag, then into a white box ;
10 or 12 spigots into a carton

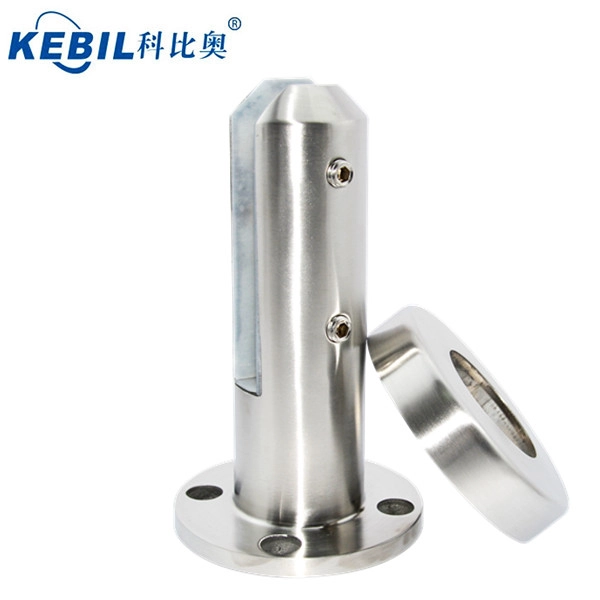

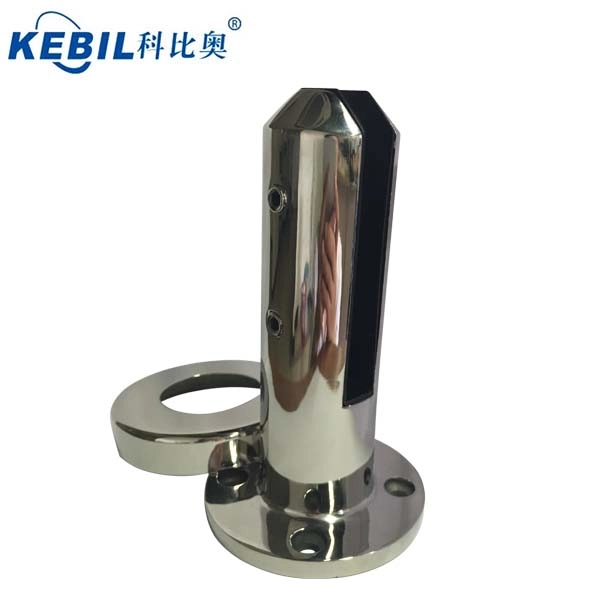

Products details

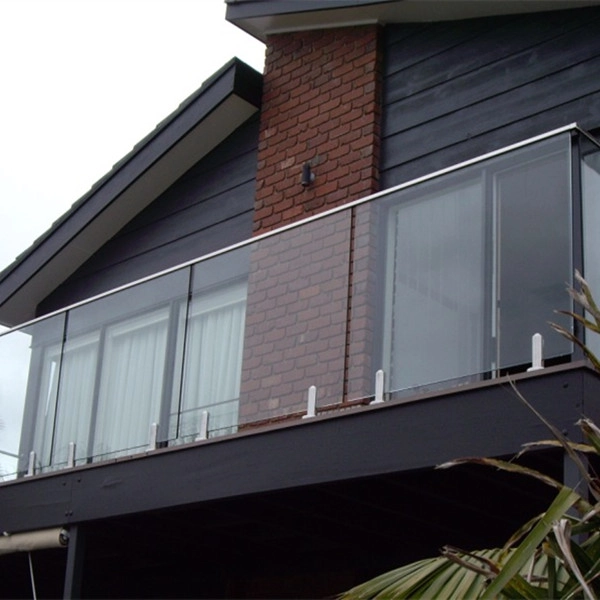

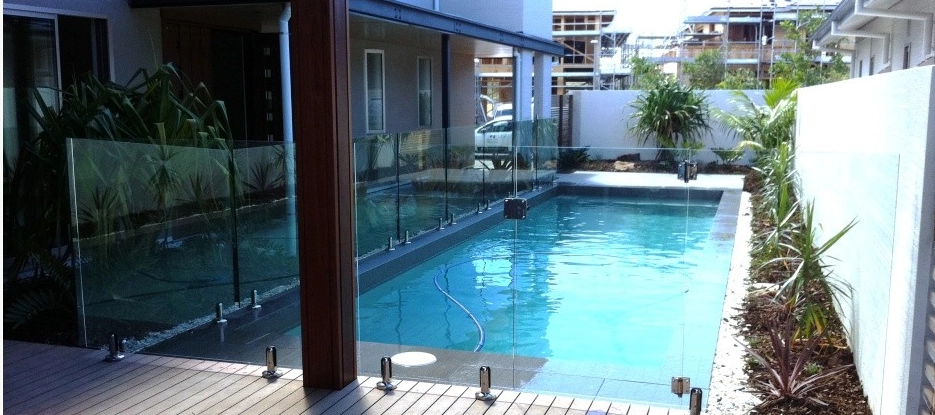

Project photos

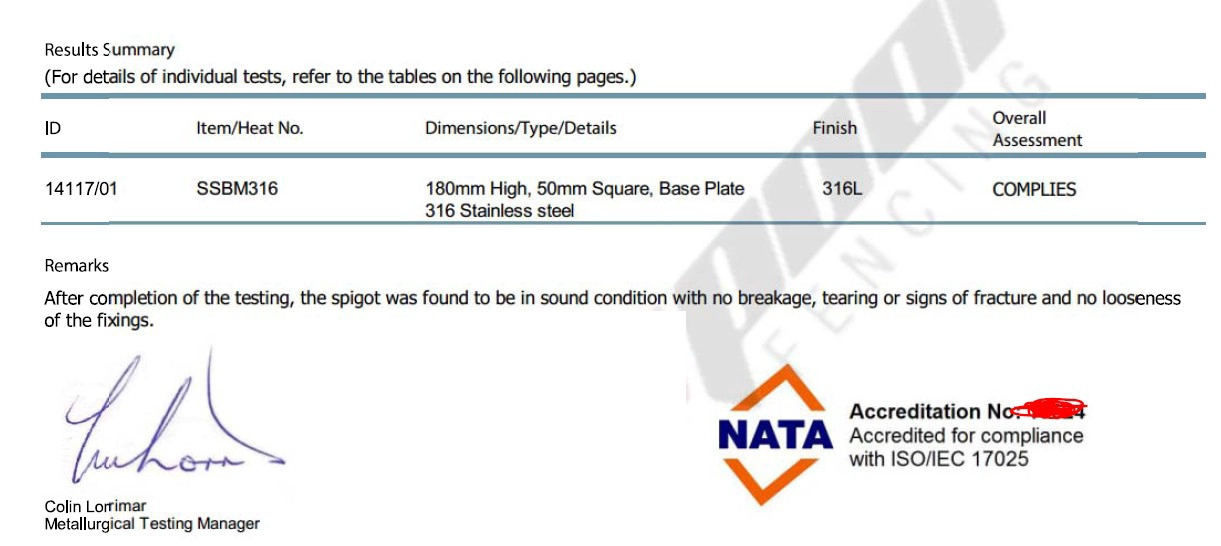

Strength test report

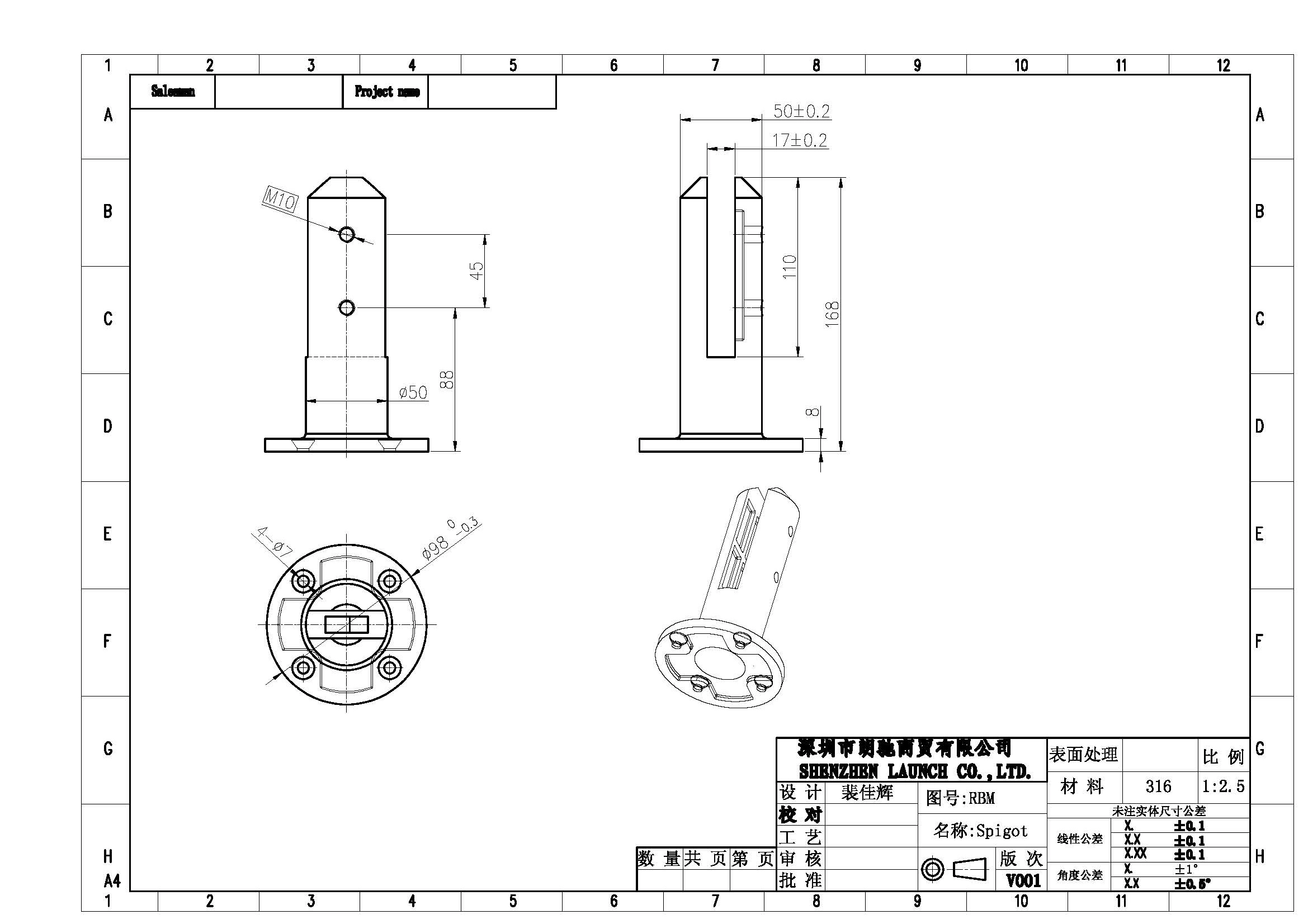

Dreawing


Certification
