stainless steel 316 marine grade glass panel holder standoff

stainless steel 316 marine grade glass panel holder standoff

  • 1.Material: Stainless steel 316/304
  • 2.Finish: Satin or mirror polished
  • 3.Model No.SF-30, SF-50, SF-50T

stainless steel 316 marine grade glass panel holder standoff

Glass panel holder description:

  • Material: Stainless steel 304/316
  • Finish: Satin or mirror polished
  • For glass thickness: 6-19mm thickness
  • Solid, high quality, rubber gasket included
  • Model No.SF-30: 30*10mm cap , 30*25mm body , M8*100 bolt, mount to concrete / M8*50 bolt, mount to wood .
  • Model No.SF-50: 50*12mm cap , 50*30mm body , M12*120 bolt, mount to concrete / M12*72 bolt, mount to wood .
  • Model No.SF-50Tone set includes two pieces of standoffs and one piece of stainless steel plate 200x100mm size .

Stainless steel standoff Model No. & project photos:

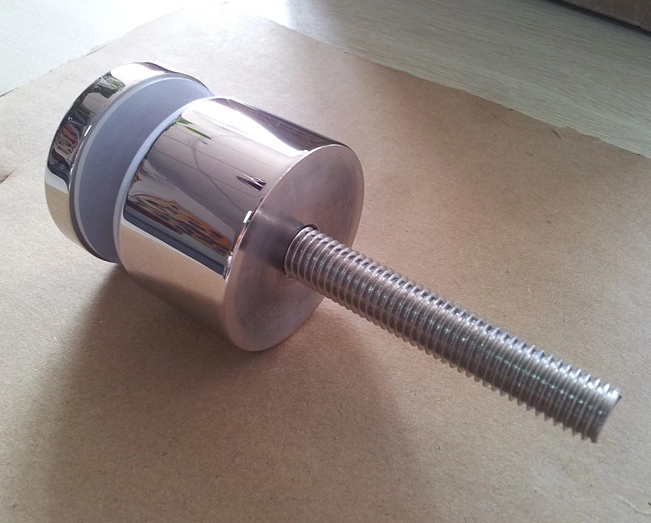

1. Model No. SF-30 glass panel holder .


Stainless steel 316 standoff Lag screw type.

balcony glass railing profile standoff pin stainless steel railing bracket

2. Model No. SF-50 glass panel holder .

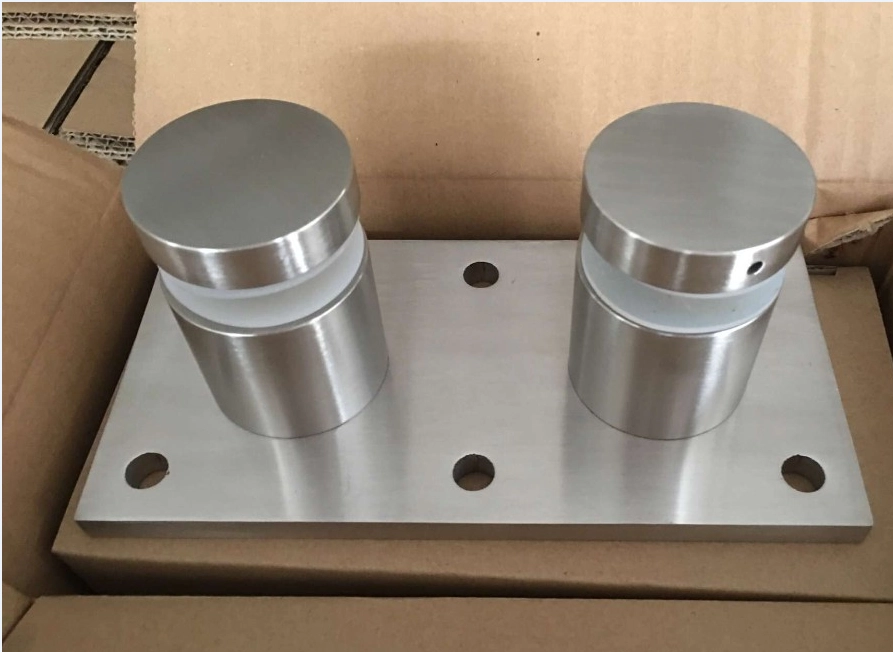

3. Model No. SF-50T glass panel holder .

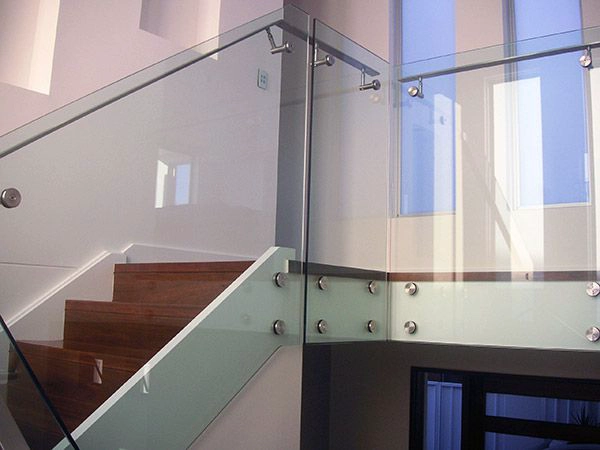

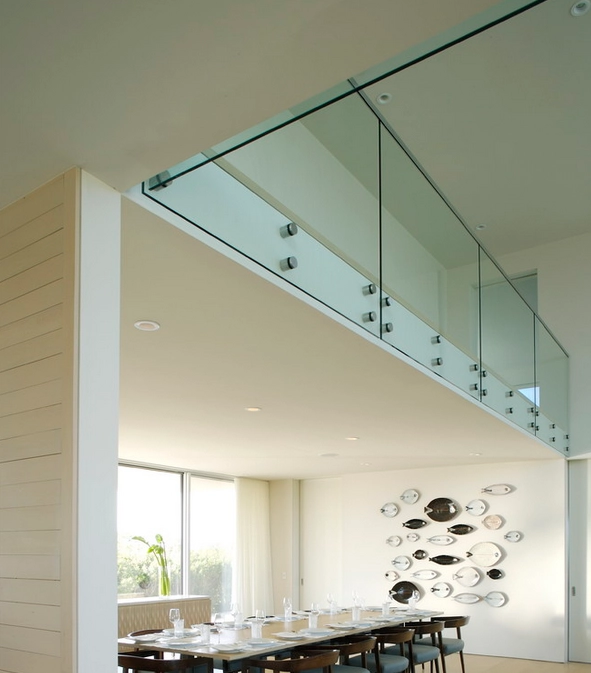

4. stainless steel 316 marine grade standoff glass panel holder glass fastener hardware project photos:
