stainless steel 316 standoff glass support brackets glass fastener hardware

stainless steel 316 standoff glass support brackets glass fastener hardware

  • 1.Material: Stainless steel 316/304
  • 2.Finish: Satin or mirror polished
  • 3.Model No.SF-30, SF-50, SF-50T

stainless steel 316 standoff glass support brackets glass fastener hardware

Glass support brackets description:

  • Material: Stainless steel 304/316
  • Finish: Satin or mirror polished
  • For glass thickness: 6-19mm thickness
  • Solid, high quality, rubber gasket included
  • Model No.SF-30: 30*10mm cap , 30*25mm body , M8*100 bolt, mount to concrete / M8*50 bolt, mount to wood .
  • Model No.SF-50: 50*12mm cap , 50*30mm body , M12*120 bolt, mount to concrete / M12*72 bolt, mount to wood .
  • Model No.SF-50Tone set includes two pieces of standoffs and one piece of stainless steel plate 200x100mm size .

Stainless steel standoff Model No. & project photos:

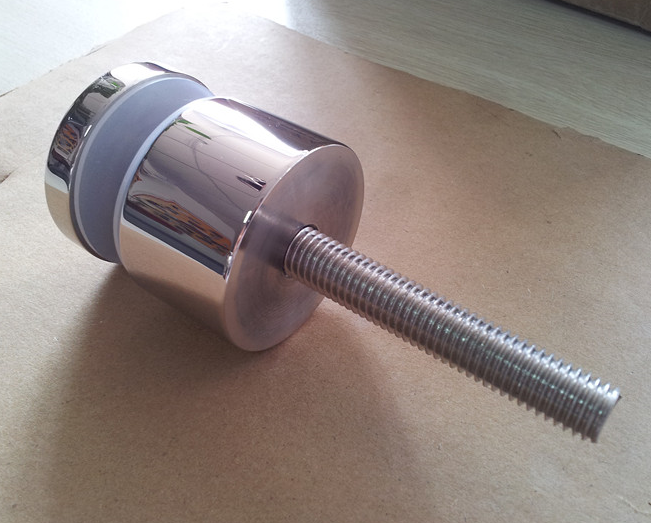

1. Model No. SF-30 glass support brackets .


Stainless steel 316 standoff Lag screw type.

balcony glass railing profile standoff pin stainless steel railing bracket

2. Model No. SF-50 glass support brackets .

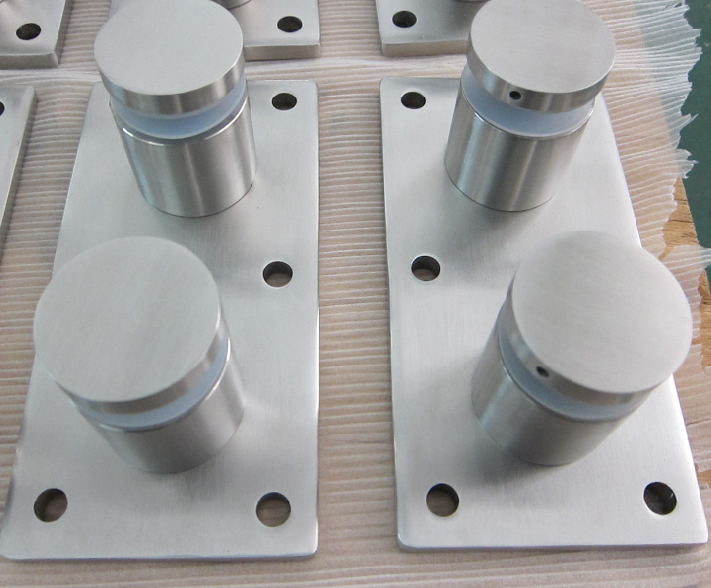

3. Model No. SF-50T glass support brackets .

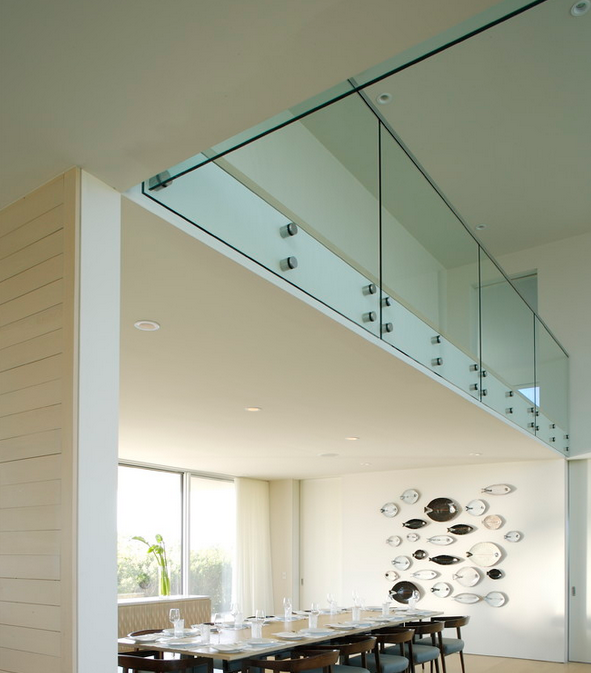

4. stainless steel 316 standoff glass support brackets glass fastener hardware project photos:


1). stainless steel 316 standoff glass support brackets glass fastener hardware deck glass railing design


2).stainless steel 316 standoff glass support brackets glass fastener hardware staircase glass railing design


3).stainless steel 316 standoff glass support brackets glass fastener hardware indoor corridor glass railing design
