stainless steel tubing with slot for 12mm glass

stainless steel tubing with slot for 12mm glass

  • Material: stainless steel 304/316/316L
  • Finish: Mirror or satin
  • For 10-12mm thickness tempered glass
  • 5.8 meter per length , or as per your requirement cut into section .
stainless steel tubing with slot for 12mm glass , used for frameless glass railing systems .

square stainless steel tubing with slot :
 Material  316L  STAINLESS STEEL
 Finish  brushed or polished
 size   20x25mm , 1.2mm thick
 length  5.8m per length
 slot size  14*14mm , for 10-12mm glass
 Fittings included  plastic channels , connectors and end caps

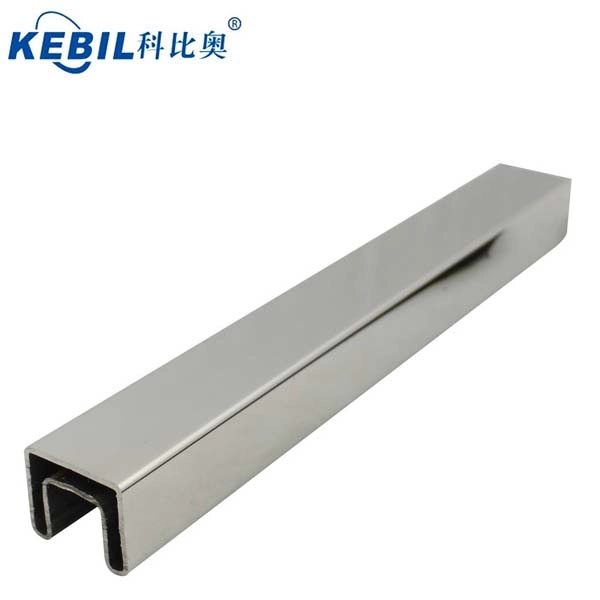

photo for square tubing with slot

180 degree connector for square slot tubing

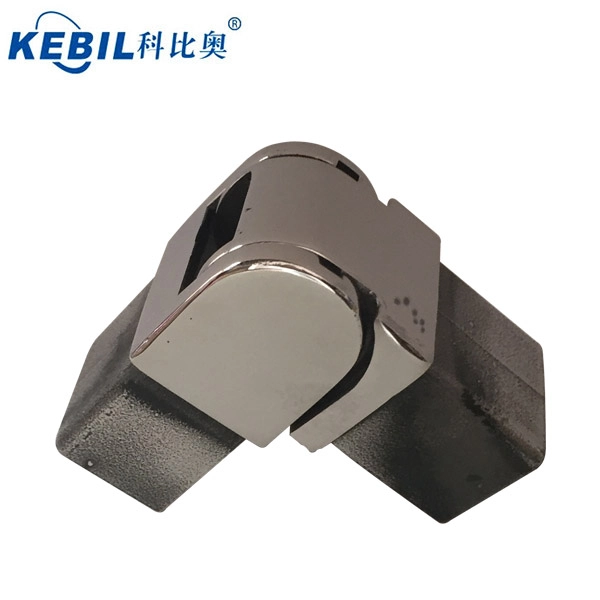

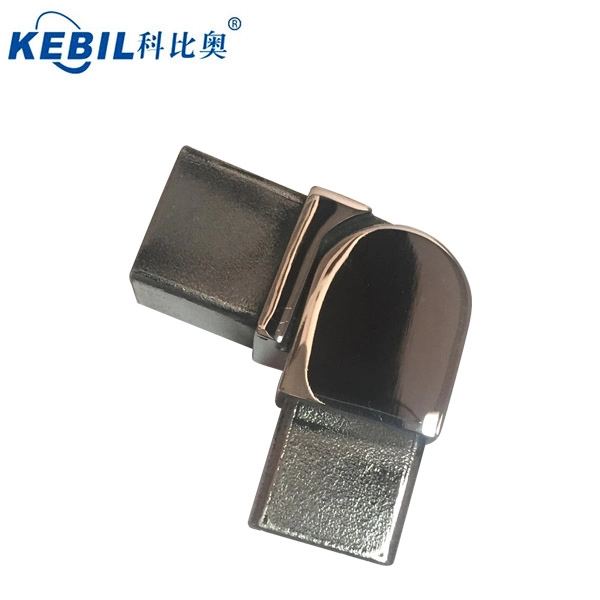

90 degree connector

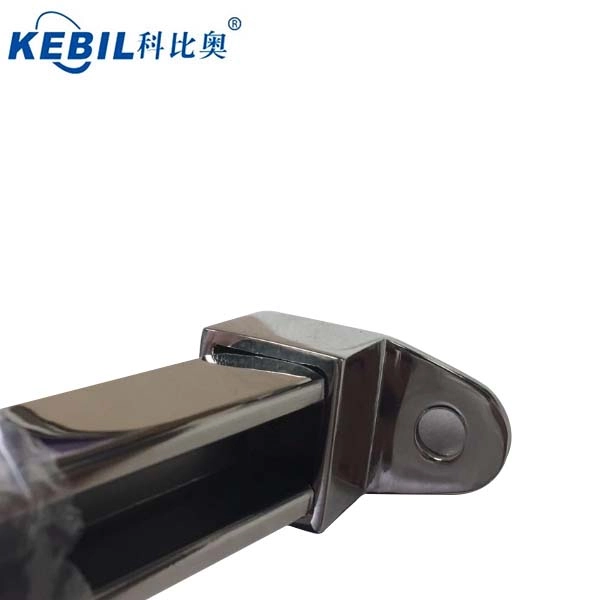

wall to rail connector

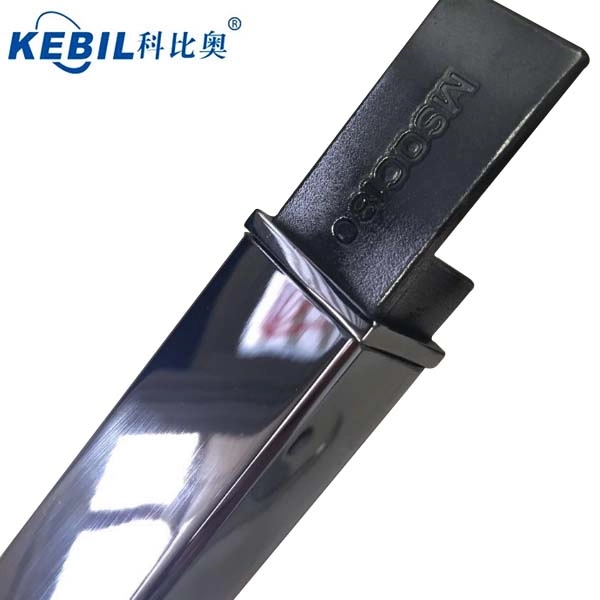

end cap

adjustable connectors .

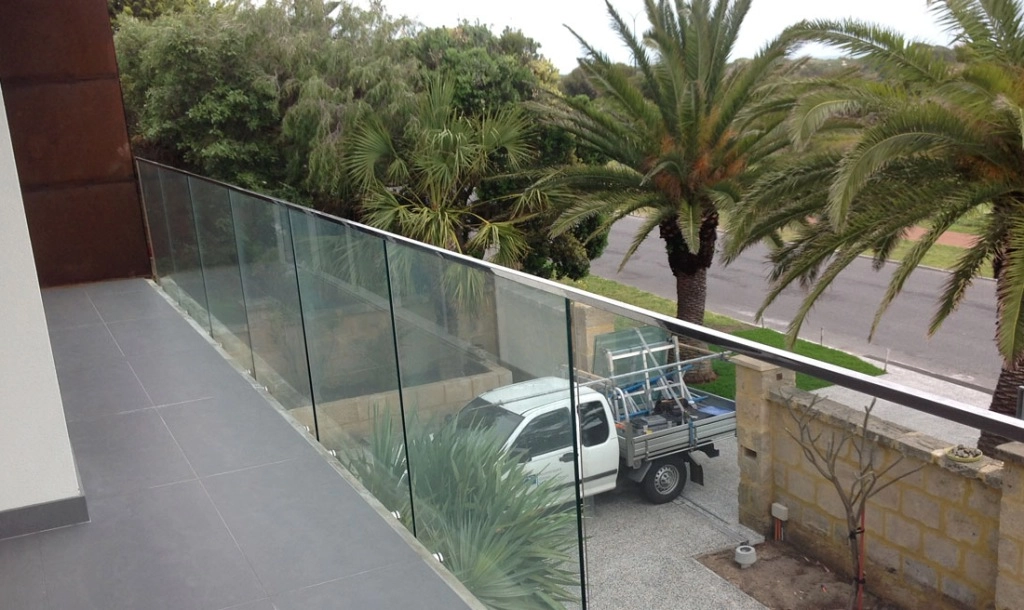

stainless steel slot tubing can be used on balcony , running on top of railings .

Glass panels are fastened by glass standoff brackets .


stainless steel slot tubing for frameless balcony railing , glass supported by glass spigots .
