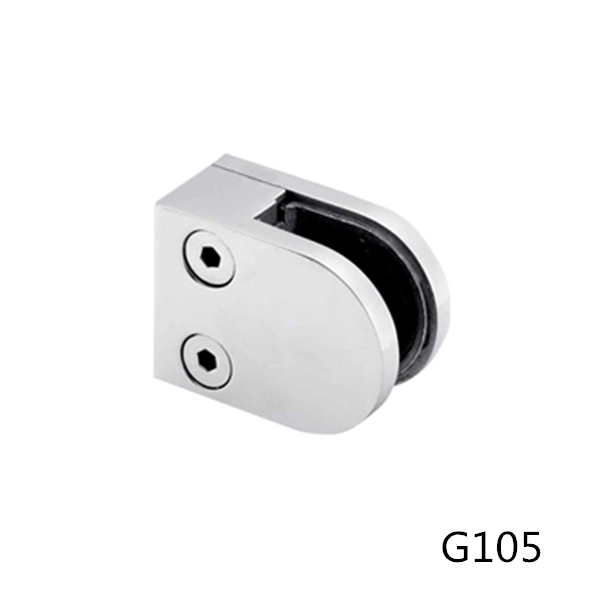

widely used glass panel clamp D clamp with flat back fixed on the wall

widely used glass panel clamp D clamp with flat back fixed on the wall

  • Model: G105
  • glass clamp with flat back for square post or wall fixing
  • to suit 12mm thick tempered glass
  • D type clamp
  • stainless steel polished or stainless steel brushed surface
  • satin or mirror finish
  • dimension:54*45*28*14mm
  • weight:236g
widely used glass panel clamp D clamp with flat back fixed on the wall
Model: G105
glass clamp with flat back for square post or wall fixing
to suit 12mm thick tempered glass
D type clamp
stainless steel polished or stainless steel brushed surface
satin or mirror finish
dimension:54*45*28*14mm
weight:236g

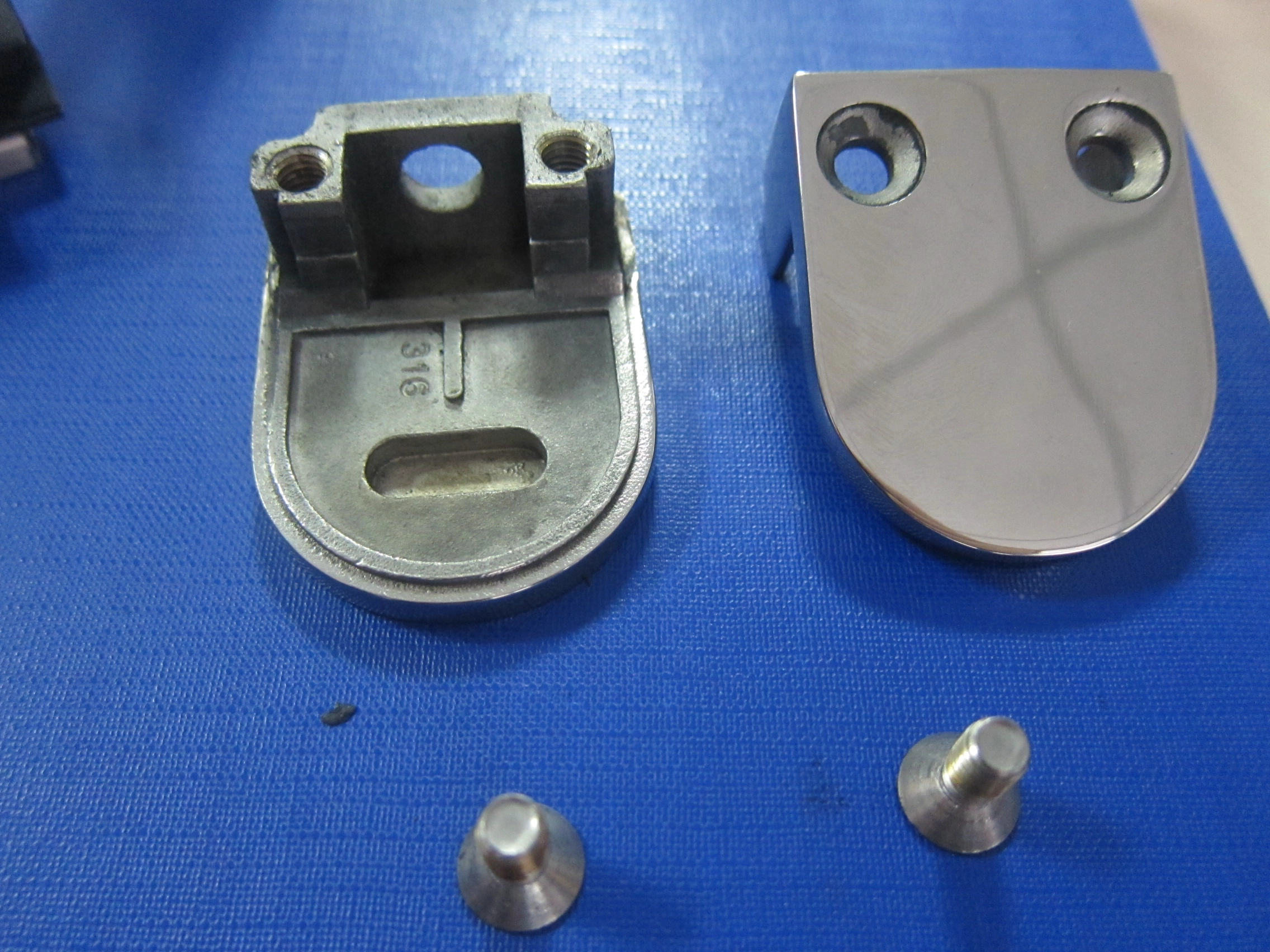

for satin finish, please check below photo:

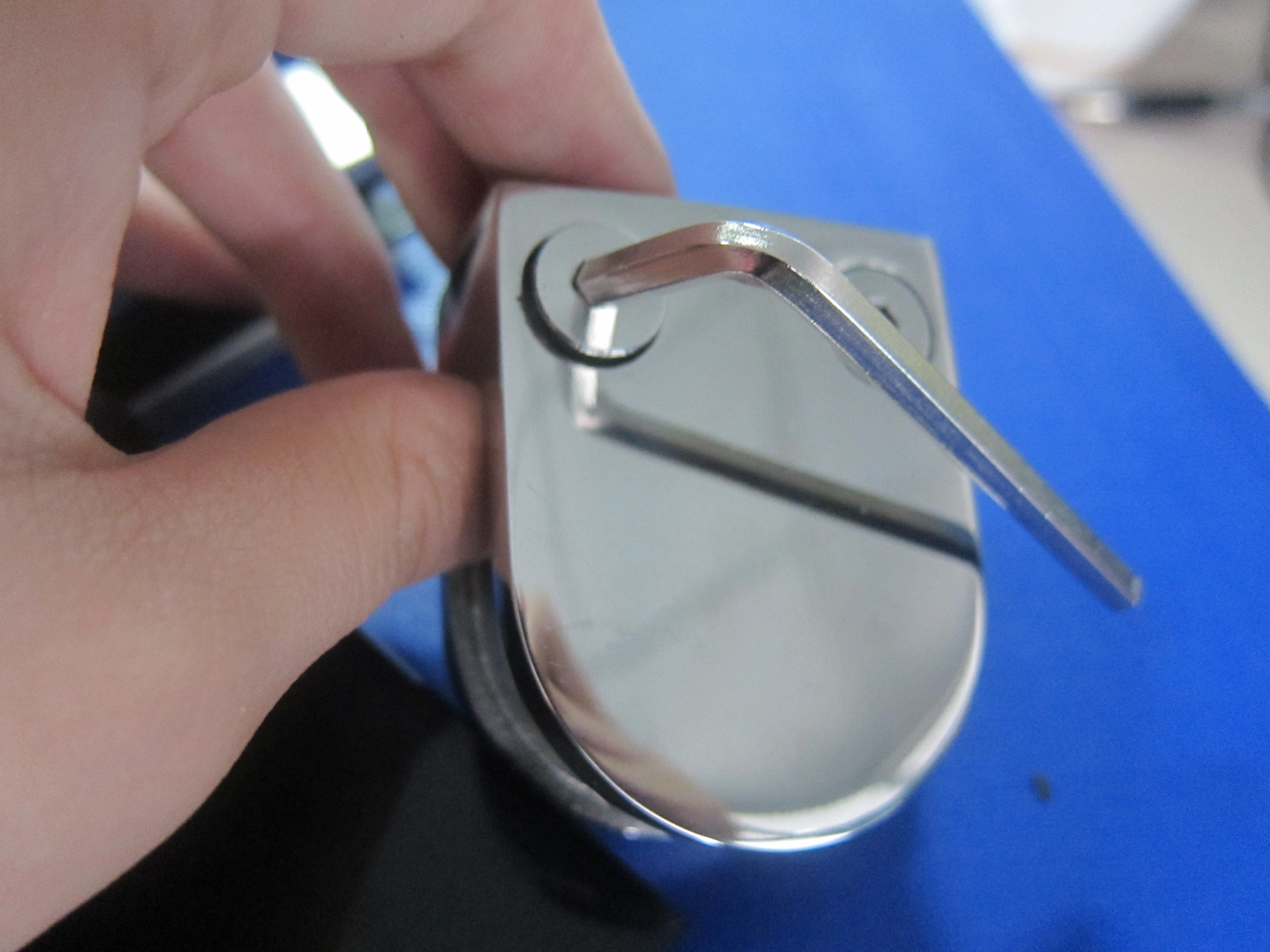

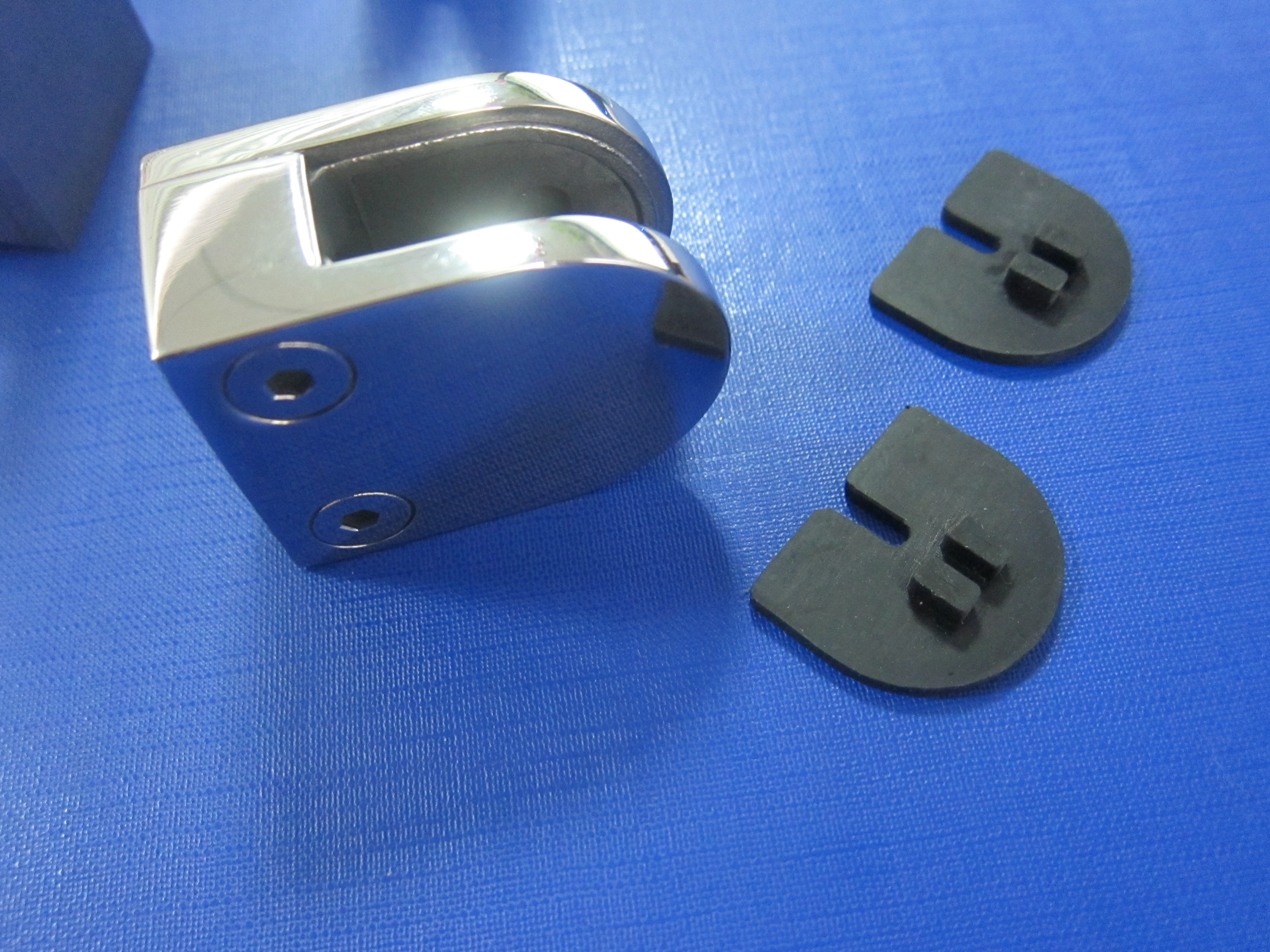

for mirror finish, please check below photo:

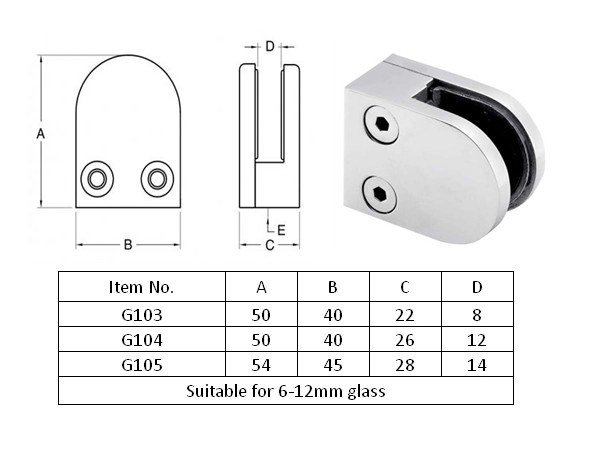

for dimension drawing, please see below photo:

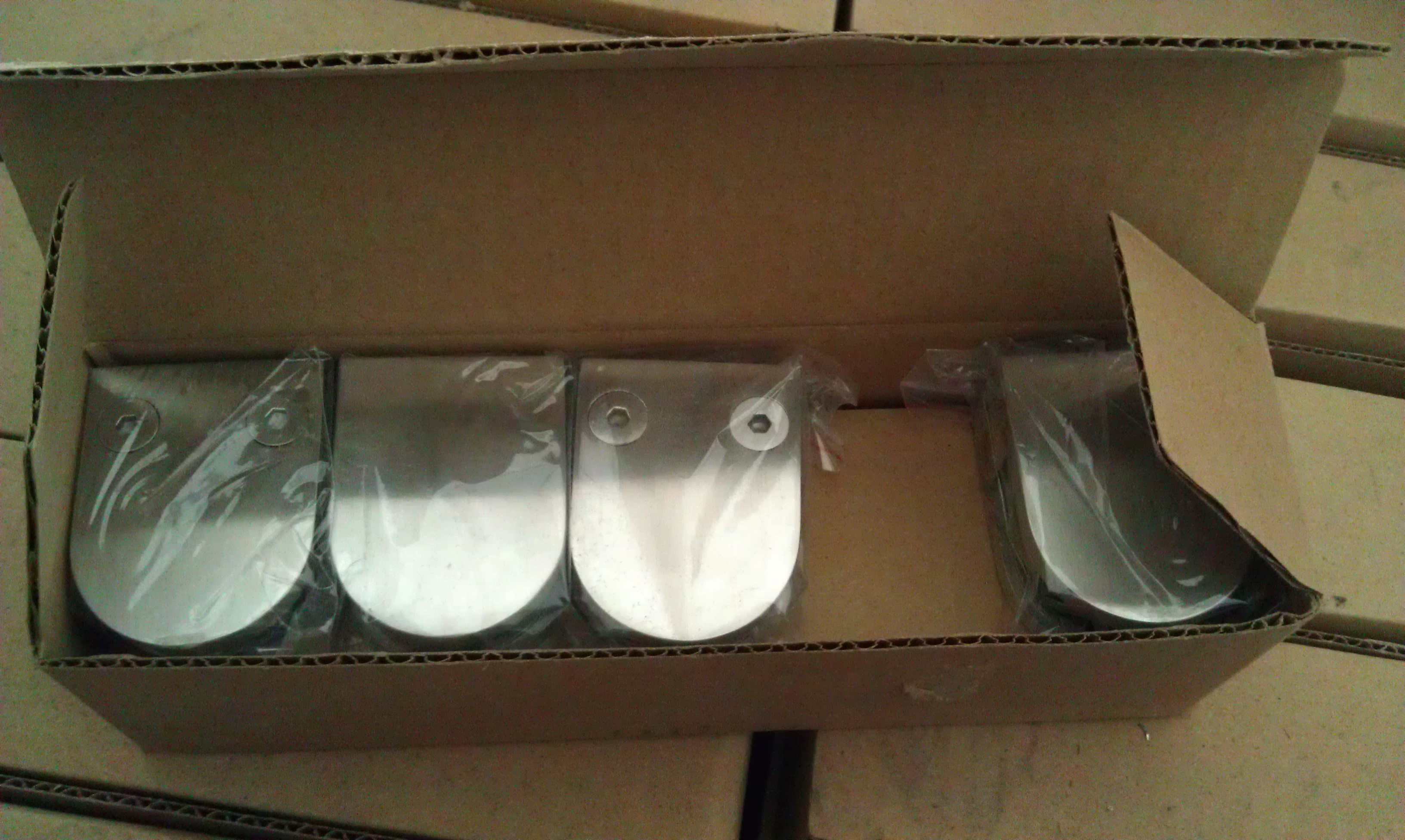

for packaging photo,please review below:

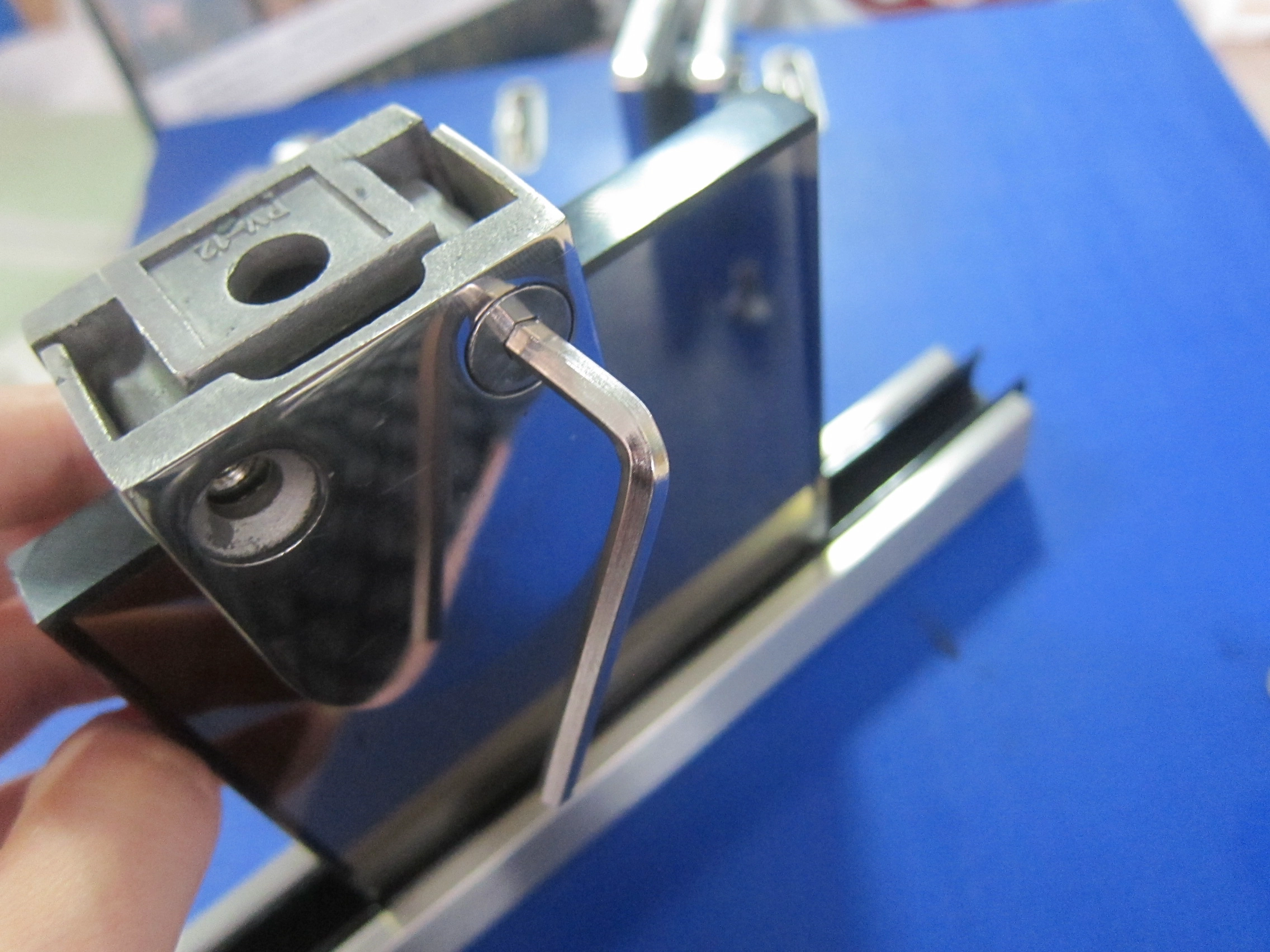

for installation photo, please check here:
