Sheet metal glass to round post hinge for glass door safety frameless glass railingSheet metal glass to round post hinge for glass door safety frameless glass railingSheet metal glass to round post hinge for glass door safety frameless glass railing

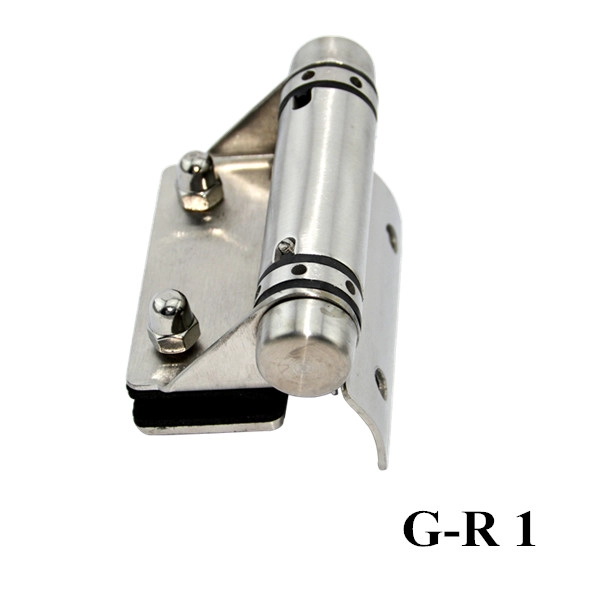

Sheet metal glass to round post hinge for glass door safety frameless glass railing

  • Material: stainless steel 316L
  • Finish: mirror/satin
  • For glass to 50.8mm round post
  • For glass thickness: 8-10mm
  • Sheet metal thickness: 2.5mm
  • Can hold ≤20kg glass door.
  • Payment: T/T, PayPal, Western Union
  • Origin: Shenzhen
Description
--Glass to round post door spring hinge
--Model No.:G-R1
--For glass to 50.8mm diameter stainless steel/aluminum post
--Manufacture method:stamping
--Can hold ≤ 20KG glass (1000x1000x8mm glass )
--Sheet metal thickness: 2.5mm
--Packaging: one pc into one plastic bag, then into one box. 12 pcs into one carton.
--MOQ: one pc
--Delivery: by air/by sea
--Application:safe pool fence glass door,glass railing,baclony design railing, glass to stainless steel round post,glass to aluminum round post
--For both commerical and modern house home design
--For both wholesale and retail (We are factory)
--Sample is always available

Product Details

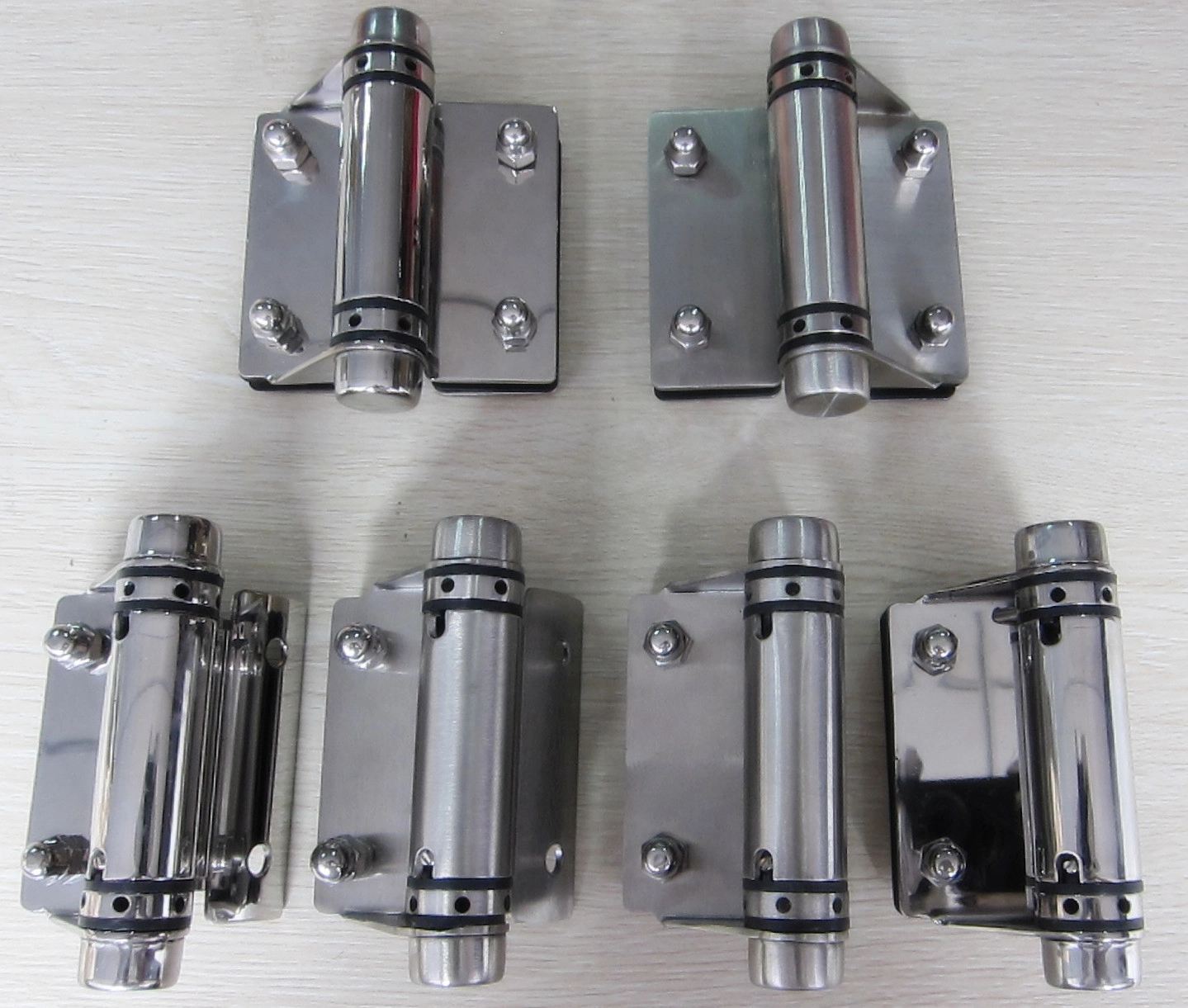

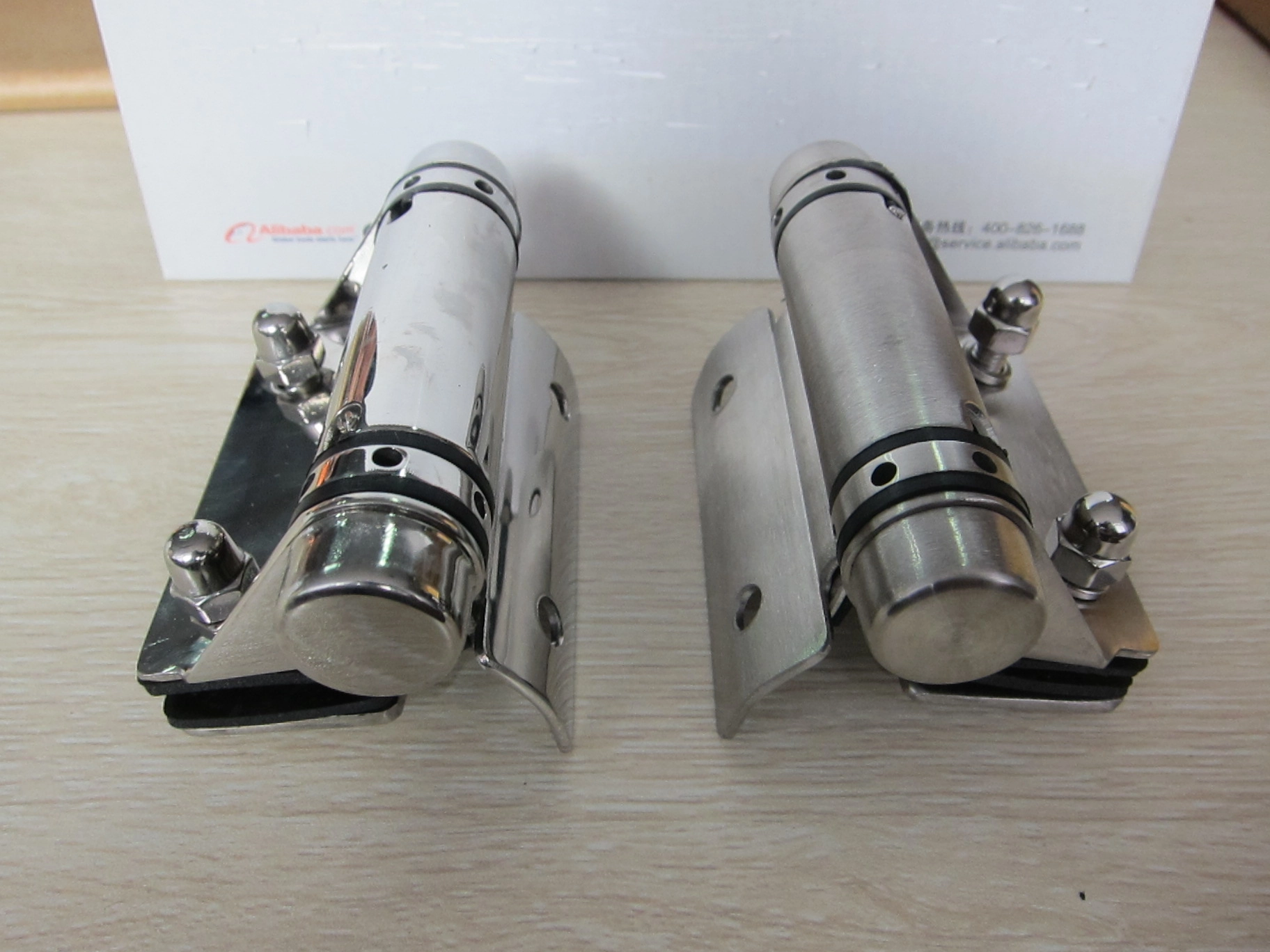

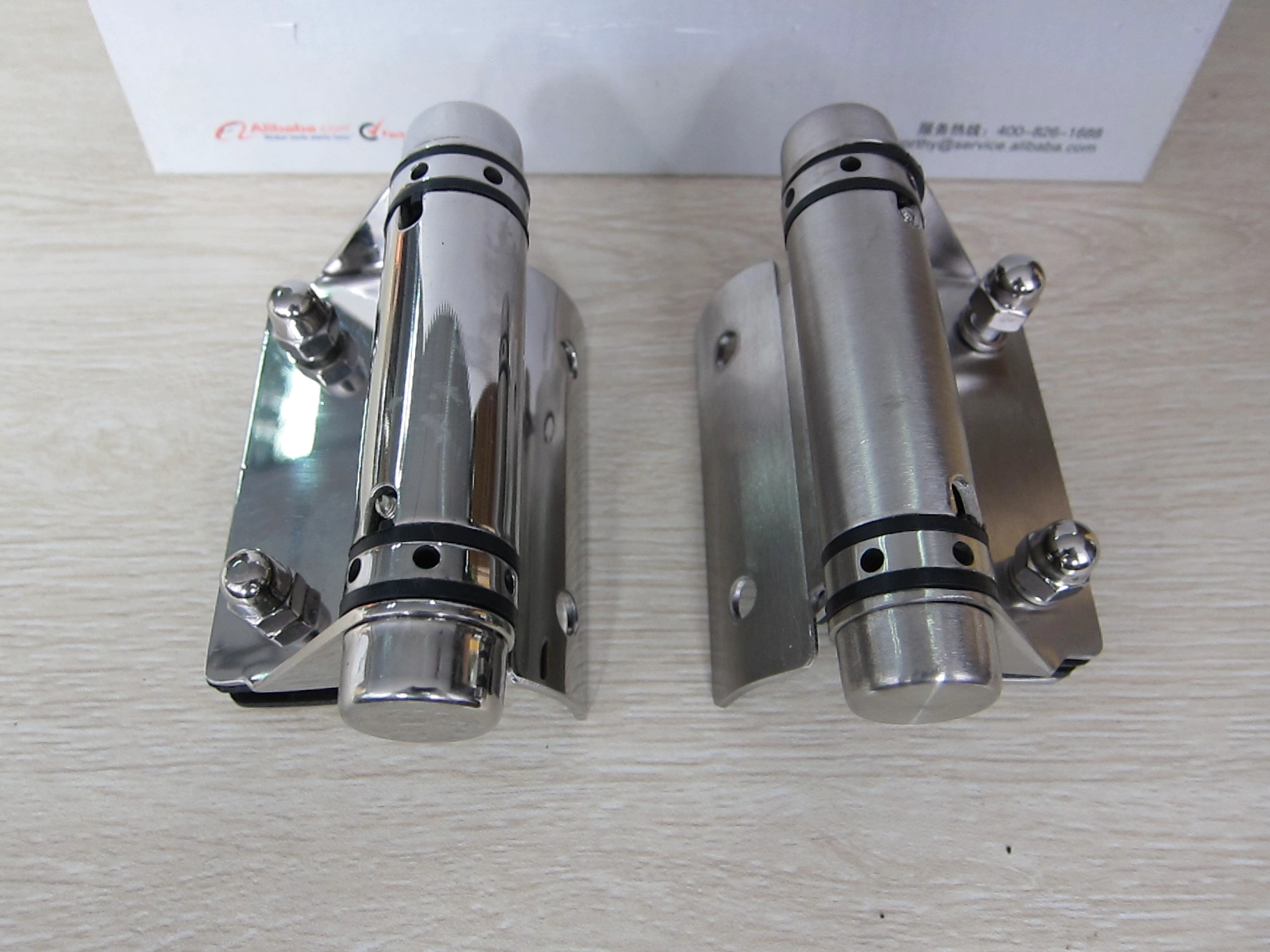

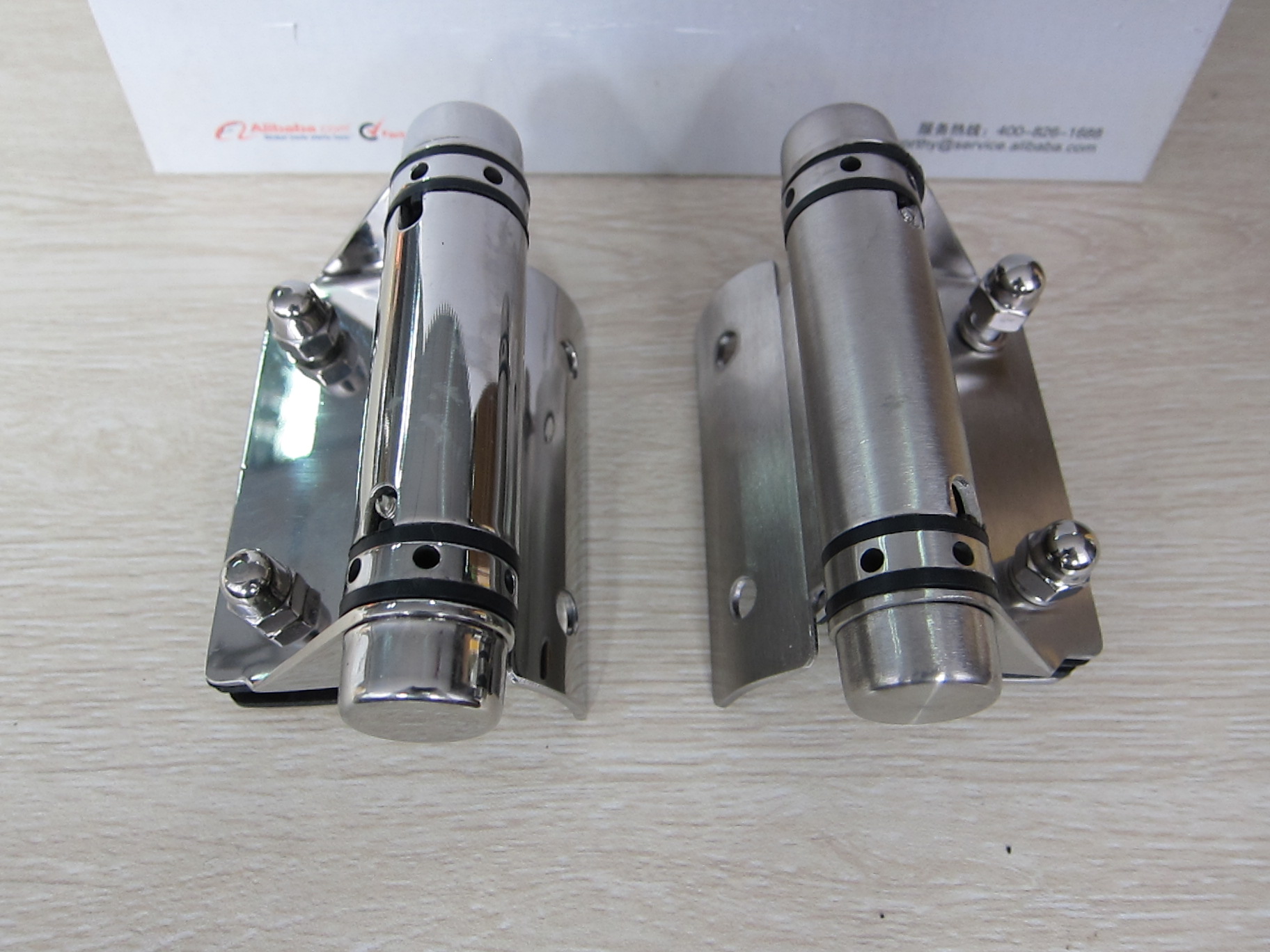

Mirror & sarin finish


Drilled glass hole drawing

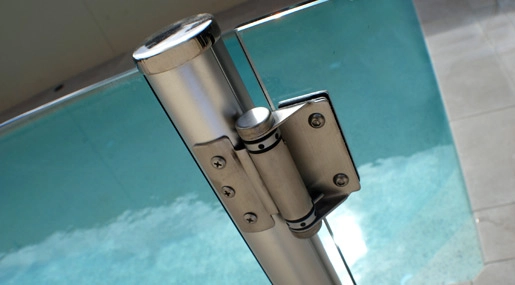

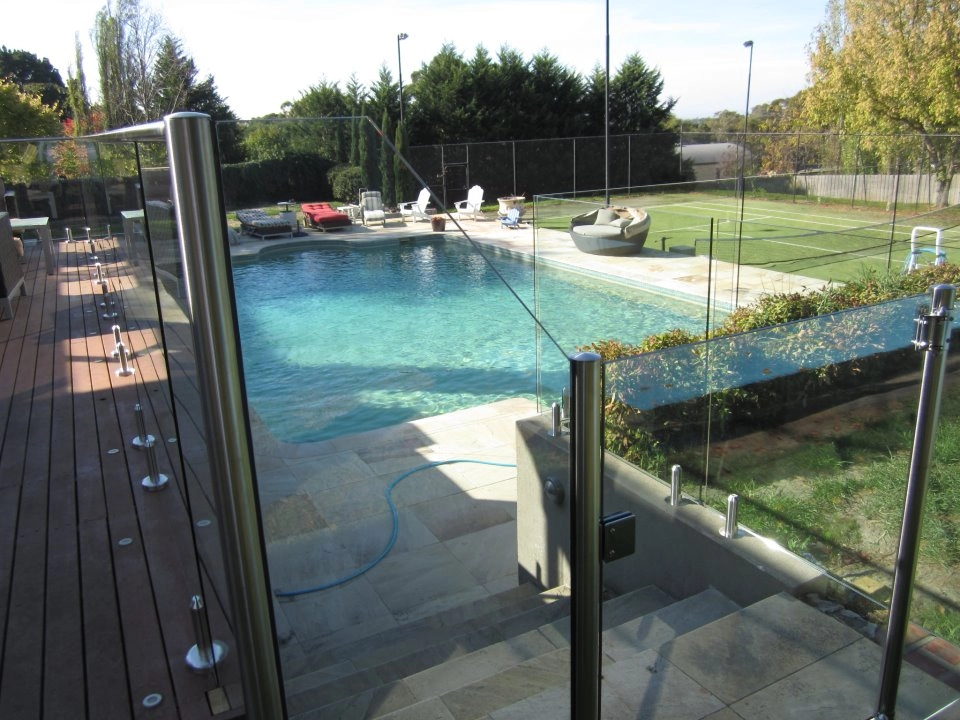

Project
Glass hinge is usually matched with glass spigot and glass latch



For more beautful pool fence project photos, go here

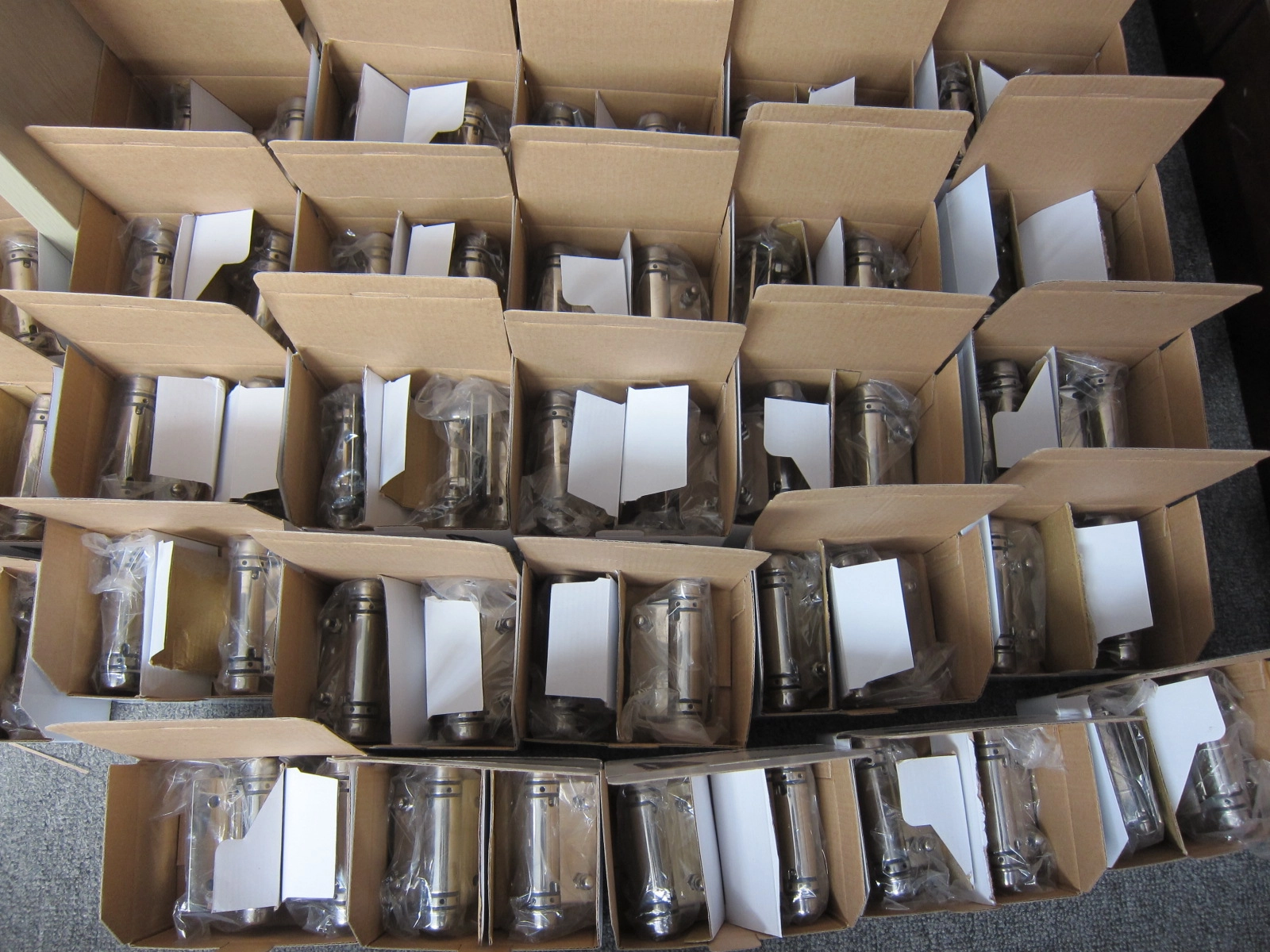

Packing & Delivery
--One pc into one plastic bag, then into one box.
--Regular lead time: 10-15 days after payment. It is according to quantity.
--Shipping time: 5-7 days by express. 15-20 days by sea.
