base mount 50mm standoff bracket for balcony glass railingbase mount 50mm standoff bracket for balcony glass railingbase mount 50mm standoff bracket for balcony glass railingbase mount 50mm standoff bracket for balcony glass railing

base mount 50mm standoff bracket for balcony glass railing

  • base plate size 100*200mm , 10mm thick
  • 50mm diameter
  • M12 bolt
  • 316 stainless steel
  • brushed or polished
  • for balcony glass railings
  • MOQ 10 pcs
  • shenzhen sea port
316 stainless steel base mount 50mm standoff bracket for balcony glass railing systems .

Specifications :
1. material : outdoor use 316 stainless steel
2. brushed or polished
3. 50mm diameter
4. 50*12mm cap , 50*30mm body
5.with M12 bolt
6. base plate size 200*100*10mm

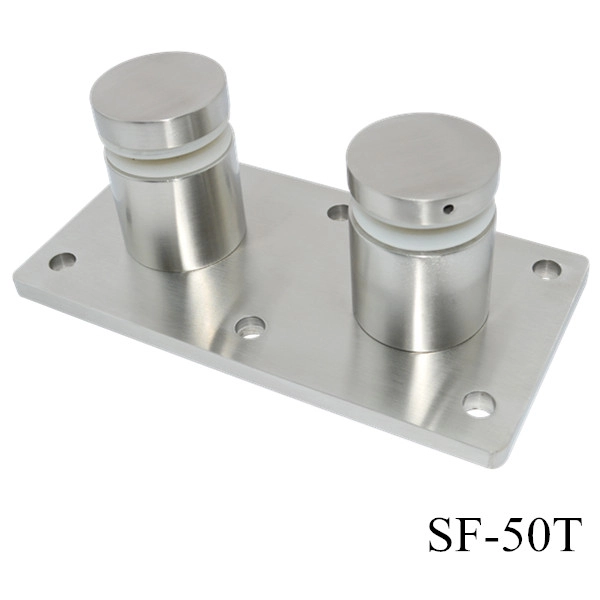

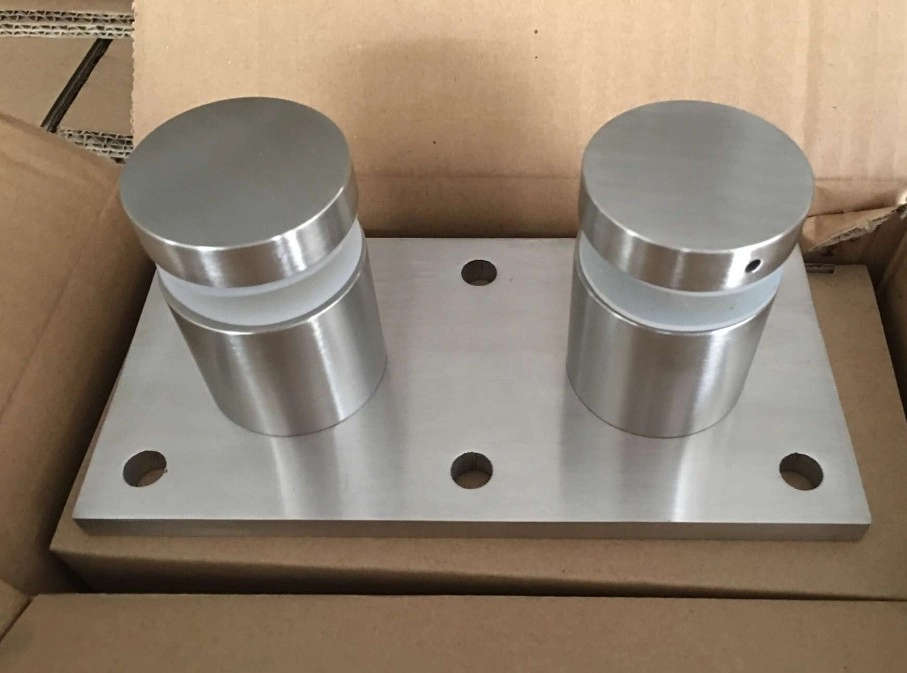

photo for base mount 50mm standoff bracket

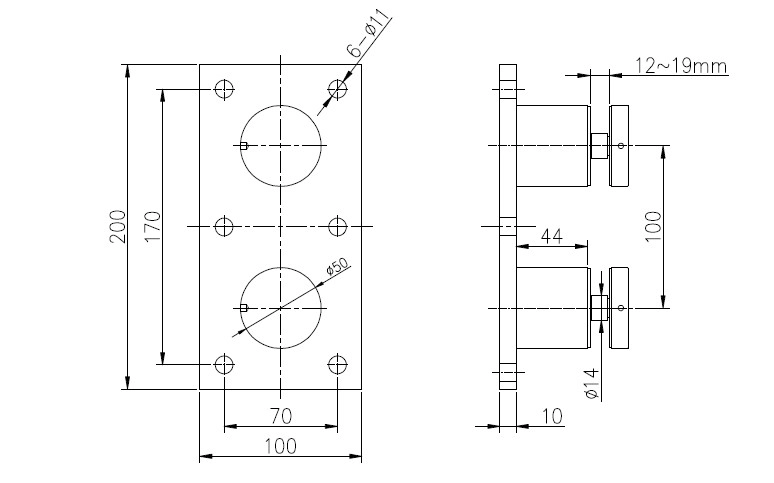

dimensions for base mount 50mm standoff bracket

For more standoff models please click here .

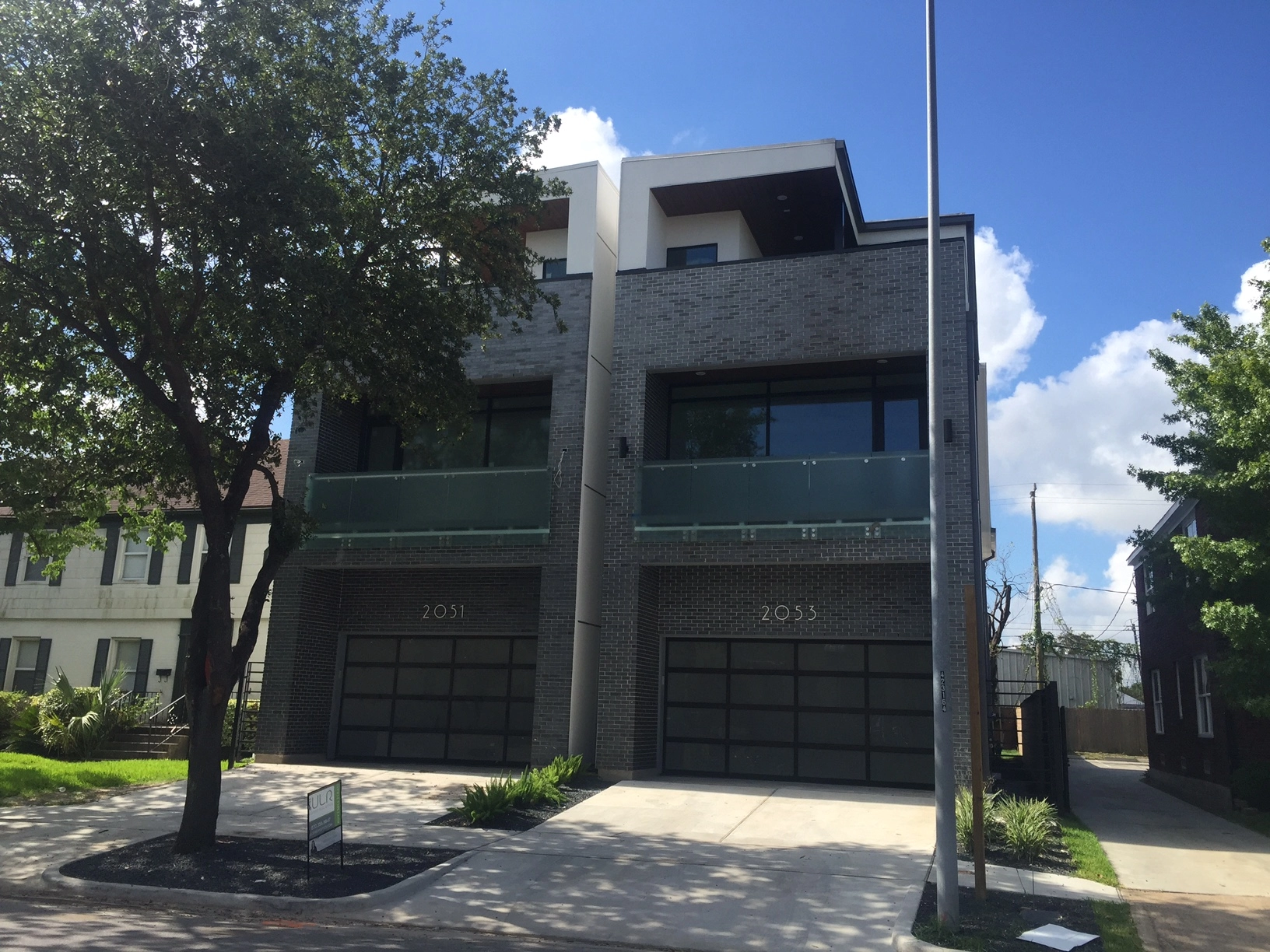

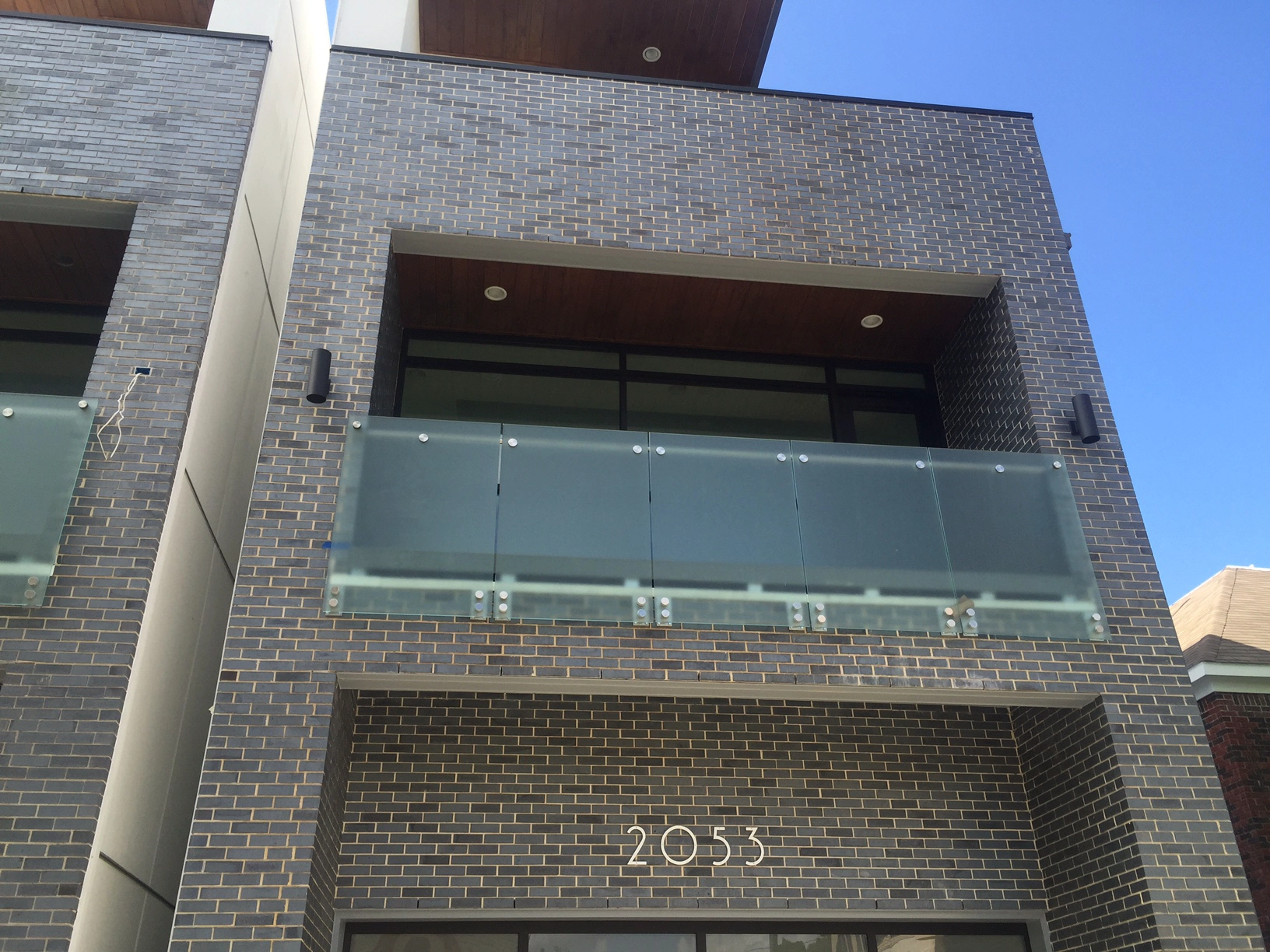

Installation photos for base mount 50mm standoff bracket

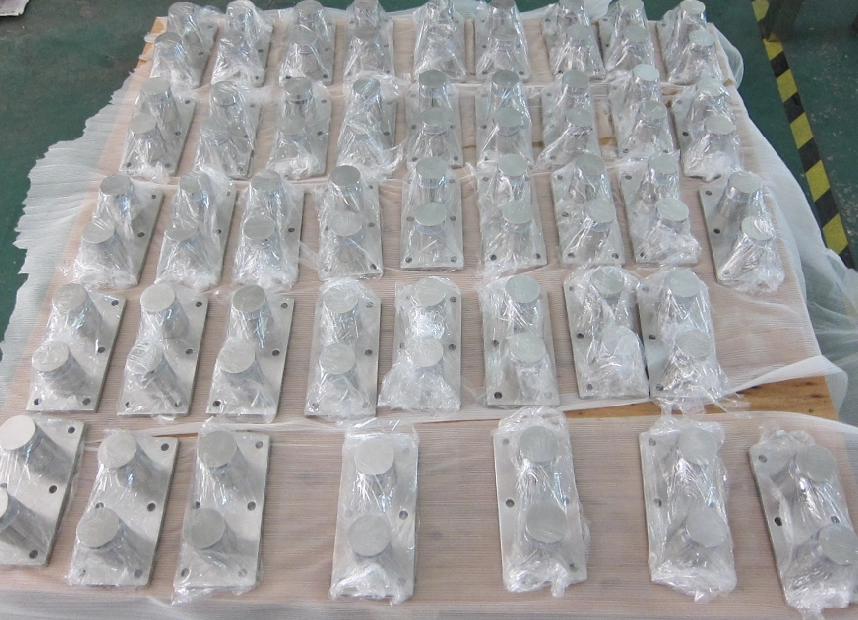

How do we pack the base plate standoff ?
- 1 pc into a plastic bag , into into a small box
- 4 pcs into a carton




Feel free to send us inquiry to get a quote !
