outdoor and indoor frameless glass standoff railing design stainless steel glass standoff bracket for glass, SF50

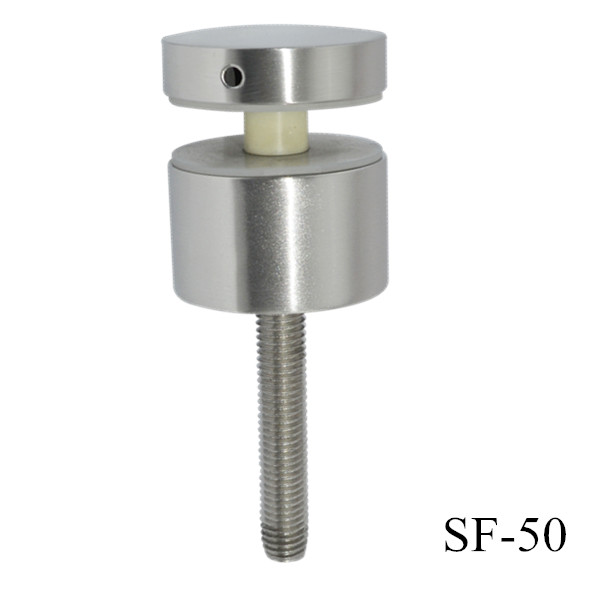

- Glass rail standoff bracket (model no. SF-50) mounted into concrete, for 10-19mm tempered glass ,
- detailed information about standoff glass railing design

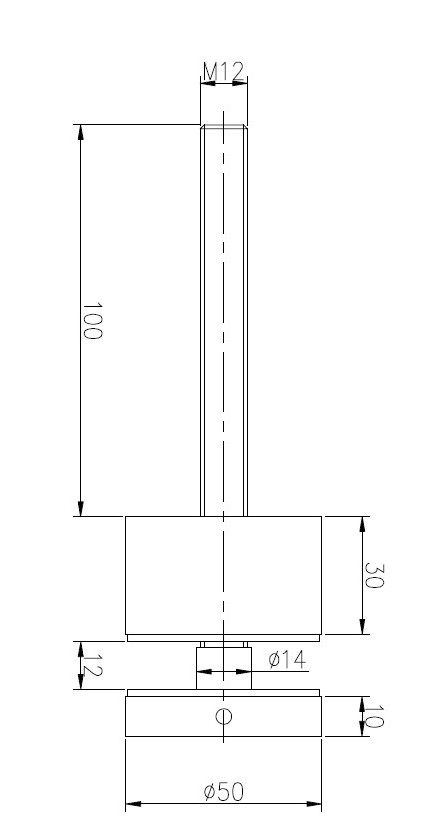

- 1.specification of glass standoff:
- cap:50*10mm,body:50*30mm,M12*120 thread bolt.silicon rubber gasket included
- 2.OEM design is available
- 3.for 10-19mm tempered glass
- 4.net weight:0.6kg
- 5.material:stainless steel 304/316
- 6.finish:satin brushed and mirror finish
- 7.easy for installation
- 8.normal glass panels size: 1200 x 1100 x 12mm

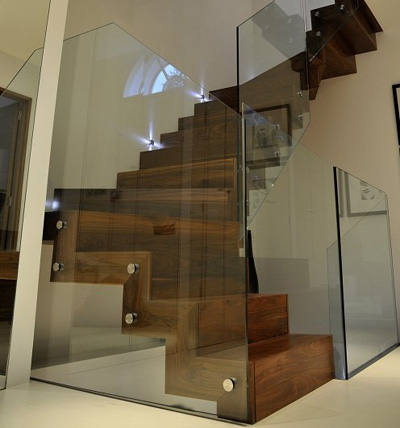

Glass standoff pin is used as the glass holder at the edge of the balcony, staircase, steps, terrace, deck etc by holding the glass stand and stable.
The advantage of this product is modern design, clear view, higher class and stable safety. You will see from the picture below:
Click the picture for more models

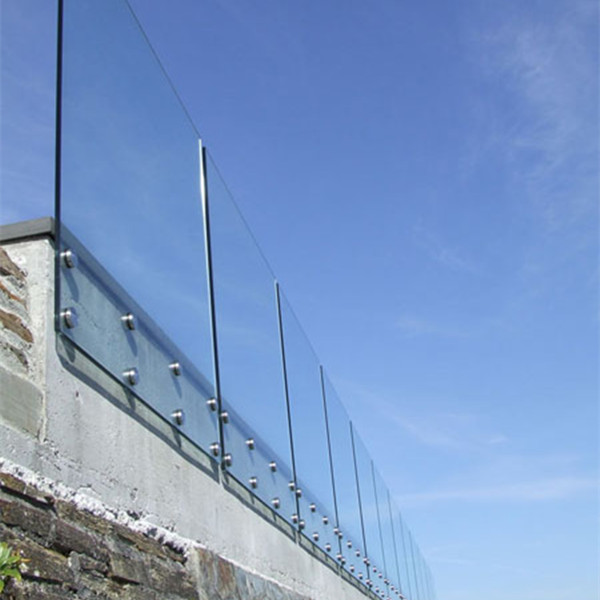

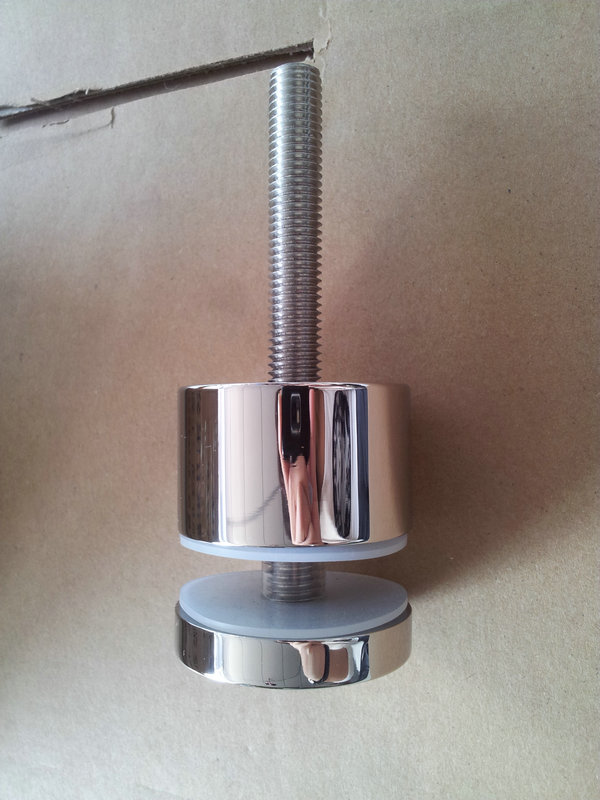

Mounted to concrete :

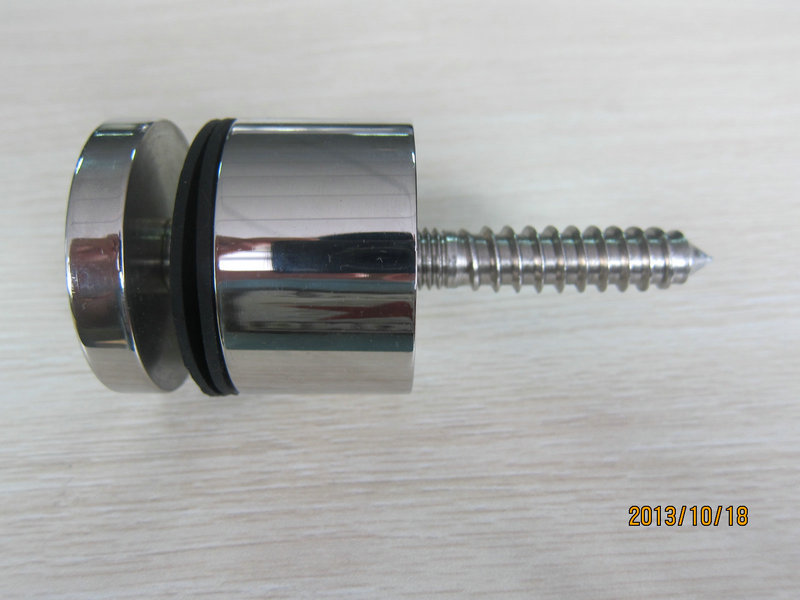

Mounted to wood :
