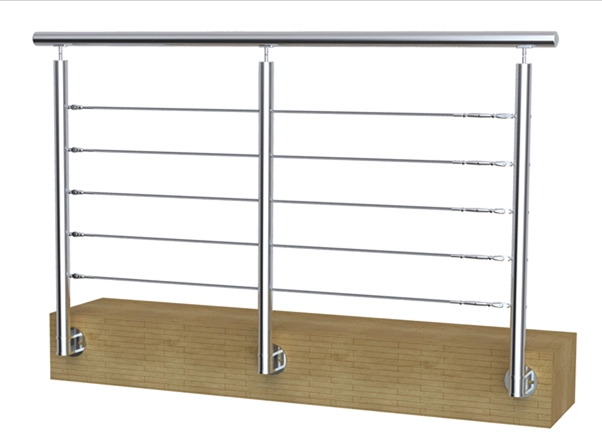

China side fixed cable railing system,side mounted wire rope balustrade system

China side fixed cable railing system,side mounted wire rope balustrade system

  • round post,handrail,pipe size: 50.8mm or 42.4mm diameter ; 1.5mm wall thickness
  • square post,handrail,pipe size:50*50mm or 40*40mm, 1.5mm wall thickness
  • base and cover plate: 100mm in round or square
  • 304 stainless steel or 316 stainless steel
  • satin or mirror finish
  • 3mm,4mm,5mm,6mm,7mm,8mm diameter cable
  • 7*7 rolls or 7*19 rolls cables
  • cable fittings fixed on the posts

China balcony railing design side mounted cable railing system,side fixed wire rope balustrade system


Features:



Components Specifications Material Surface
handrail Φ50.8 (42.4) x 1.5mm SS304/SS316 satin/mirror
cable/wire rope Φ3-8 mm SS304/SS316 no finish
baluster Φ50.8 (42.4) x 1.5mm SS304/SS316 satin/mirror



Custom Made Service
Marine rigging, DIY, architectural tension cables, structural tendons,landscaping cables, horticulture, balustrade tension wire infill, sign hanging and suspension, lifting, catenary cables and more...We have a full range of stainless steel wire rope cable assemblies with any combination of stainless steel swage fittings and hardware - available to order made to measure online above or alternatively ask us for a quote.



Installation



DIY innovation, just screws + bolts fixing. No welding, also if needed, we are ready to provide installation work for you.



 1.  stainless steel cable railing system is easy to install, just screw, no welding.



 2. Detailed installation drawing and instruction of the glass railing will be provided



Packaging & Delivery



Packaging Detail: plastic bag for every single one, two with a larger bubble bag, six pieces in a carton box, or packed in accordance with clients' needs



 1. cables & handrails: plywood cases and pallets



 2. Baluster: pearl cotton inner, 1pcs/box, 4-6boxes/carton



 3. Others: pearl cotton/bubble bag inner, outer carton

3mm,4mm,5mm,6mm,7mm,8mm stainless steel cable railing design,wire rope balustrade design
