How to install the cable fittings fixed on the posts ?
We show you how to install the cable fittings on the posts with hydraulic crimper.
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/e5/20140911112017490.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/7e/20140911112834744.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/4c/20140911112901636.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/04/20140911112146243.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/b8/20140911113258235.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/99/20140911113329828.jpg.webp)
We show you how to install the cable fittings on the posts with hydraulic crimper.

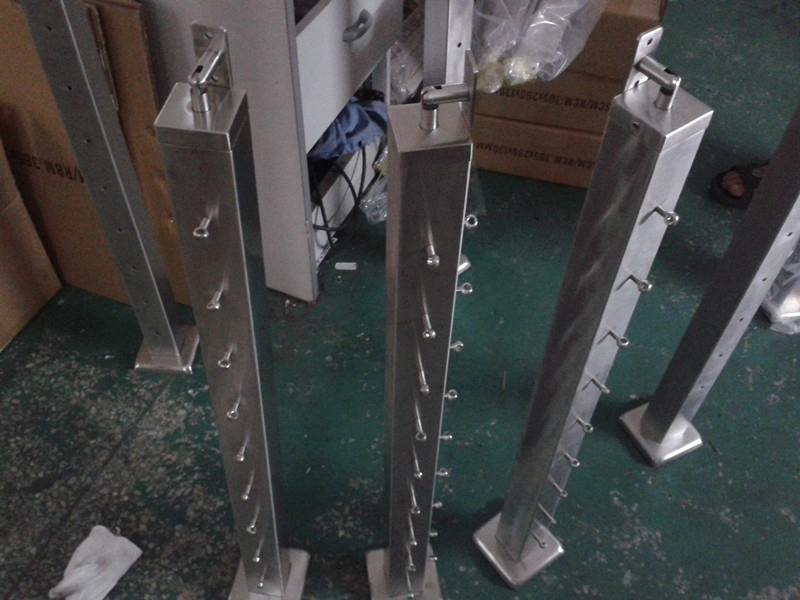

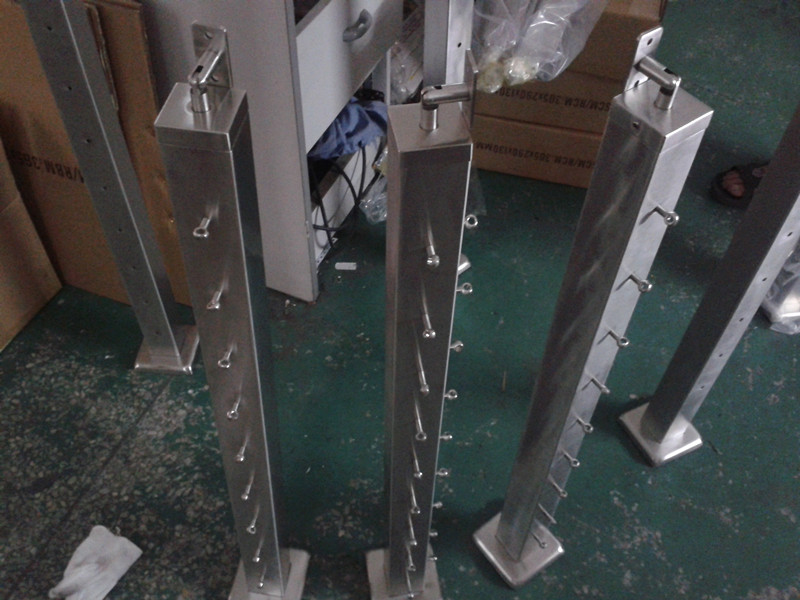

Step 1:Posts with holes drilled in advance, screw the eye screw on the posts.
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/e5/20140911112017490.jpg.webp)

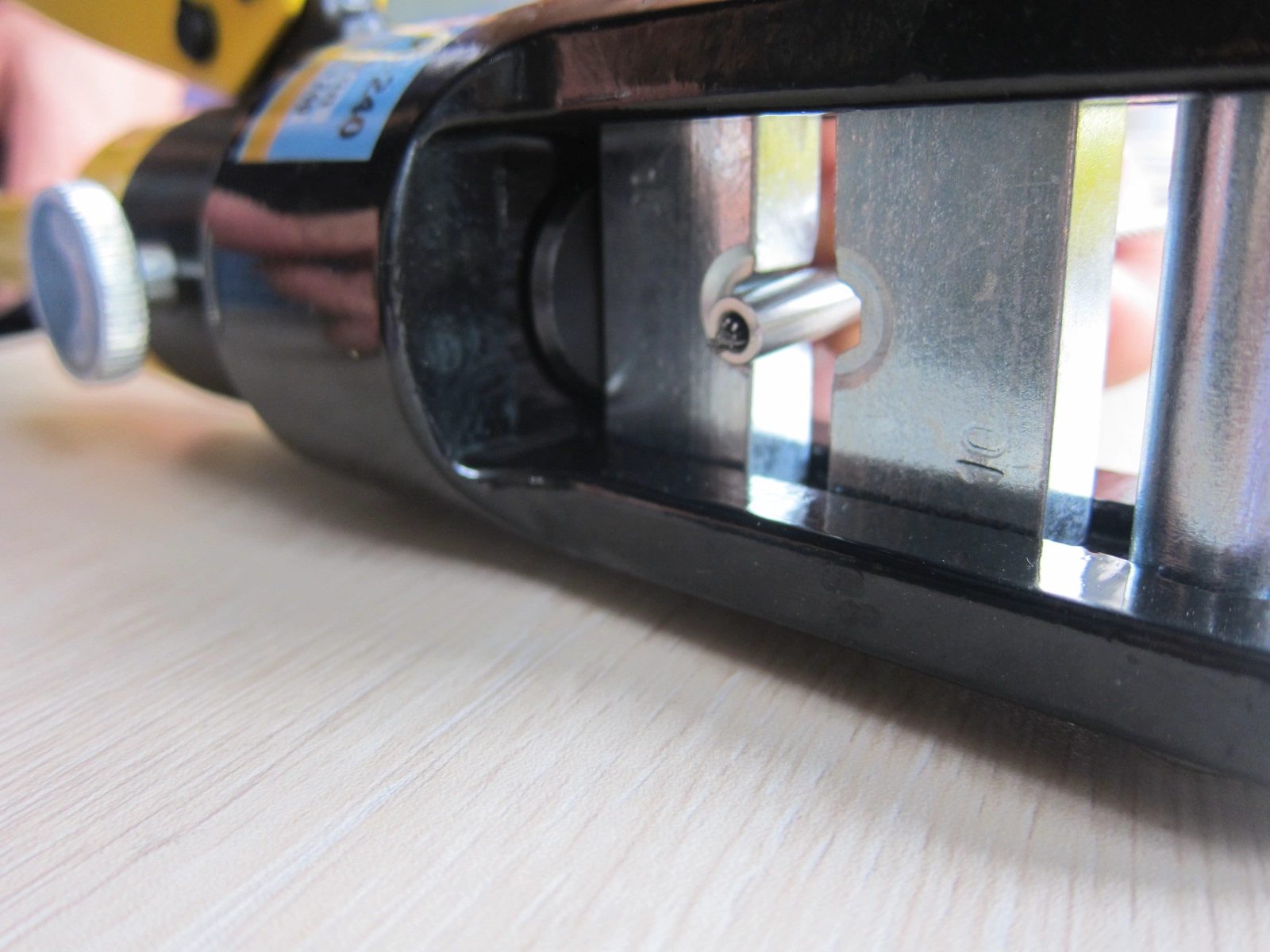

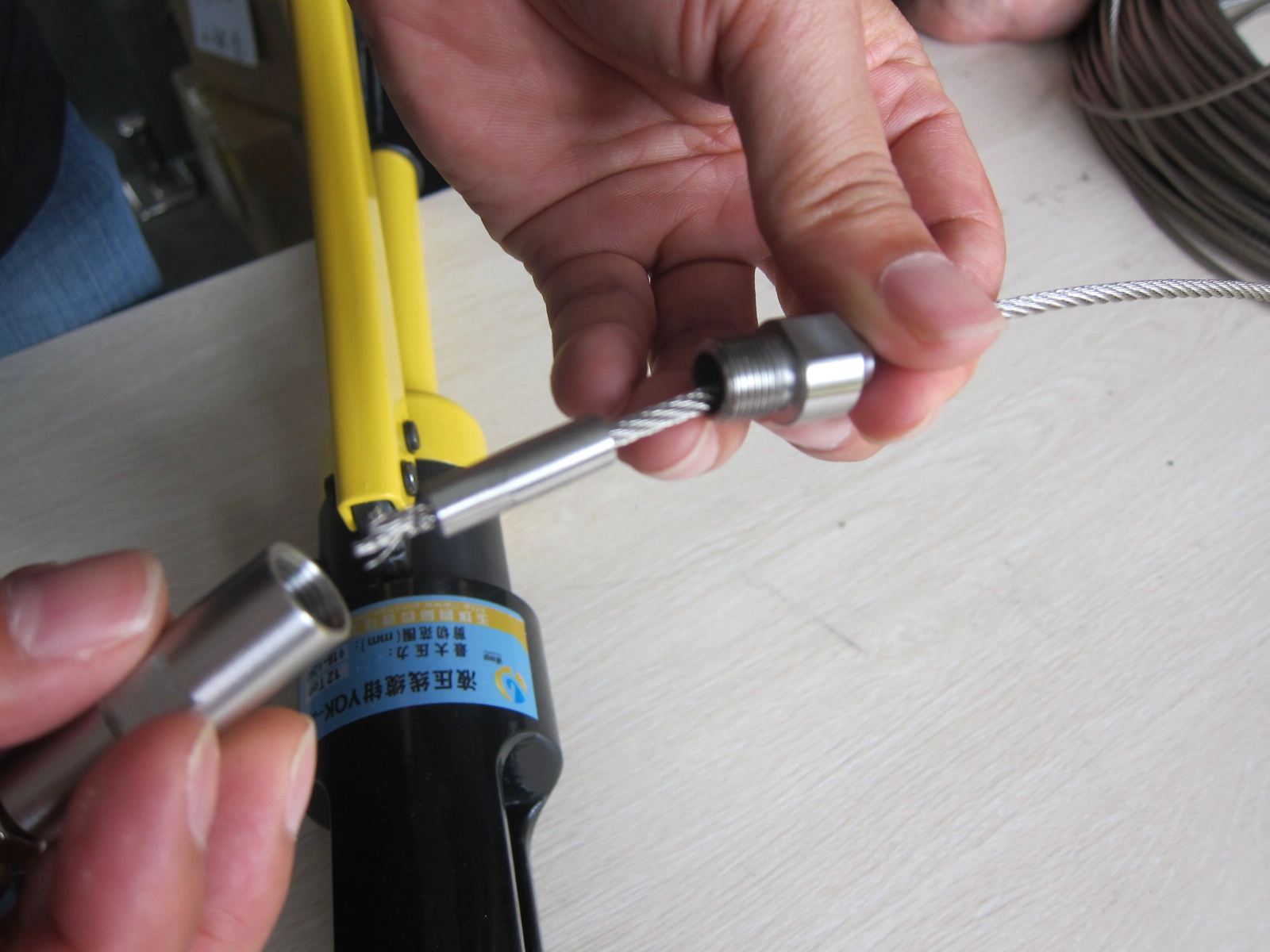

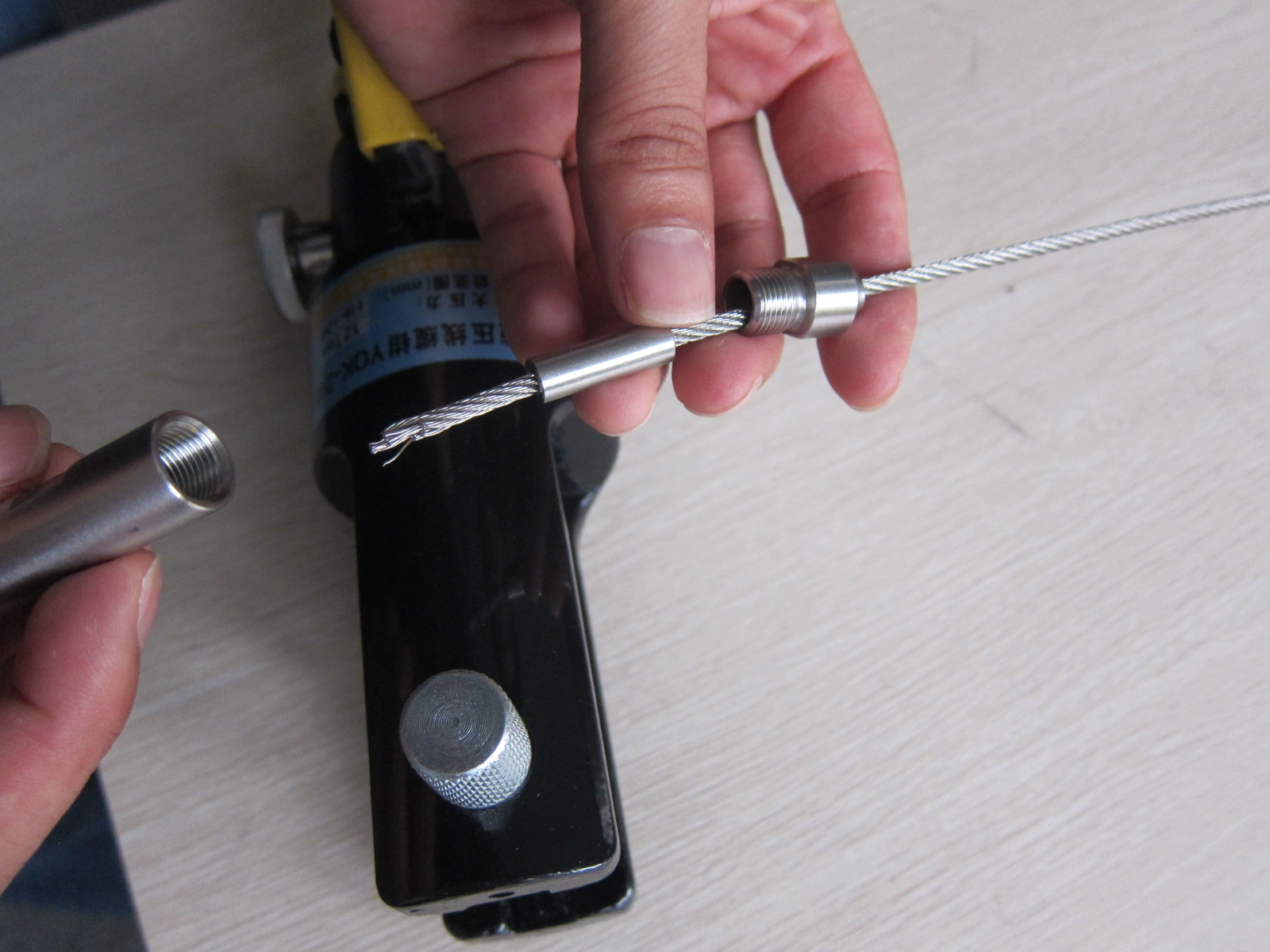

Step 2:open the cable tensor end cap , then insert the cable into the small tube, and use hydraulic crimper to press the small tube to fix the cable tightly, then close the tensor end cap.
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/96/20140911112355753.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/7e/20140911112834744.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/4c/20140911112901636.jpg.webp)

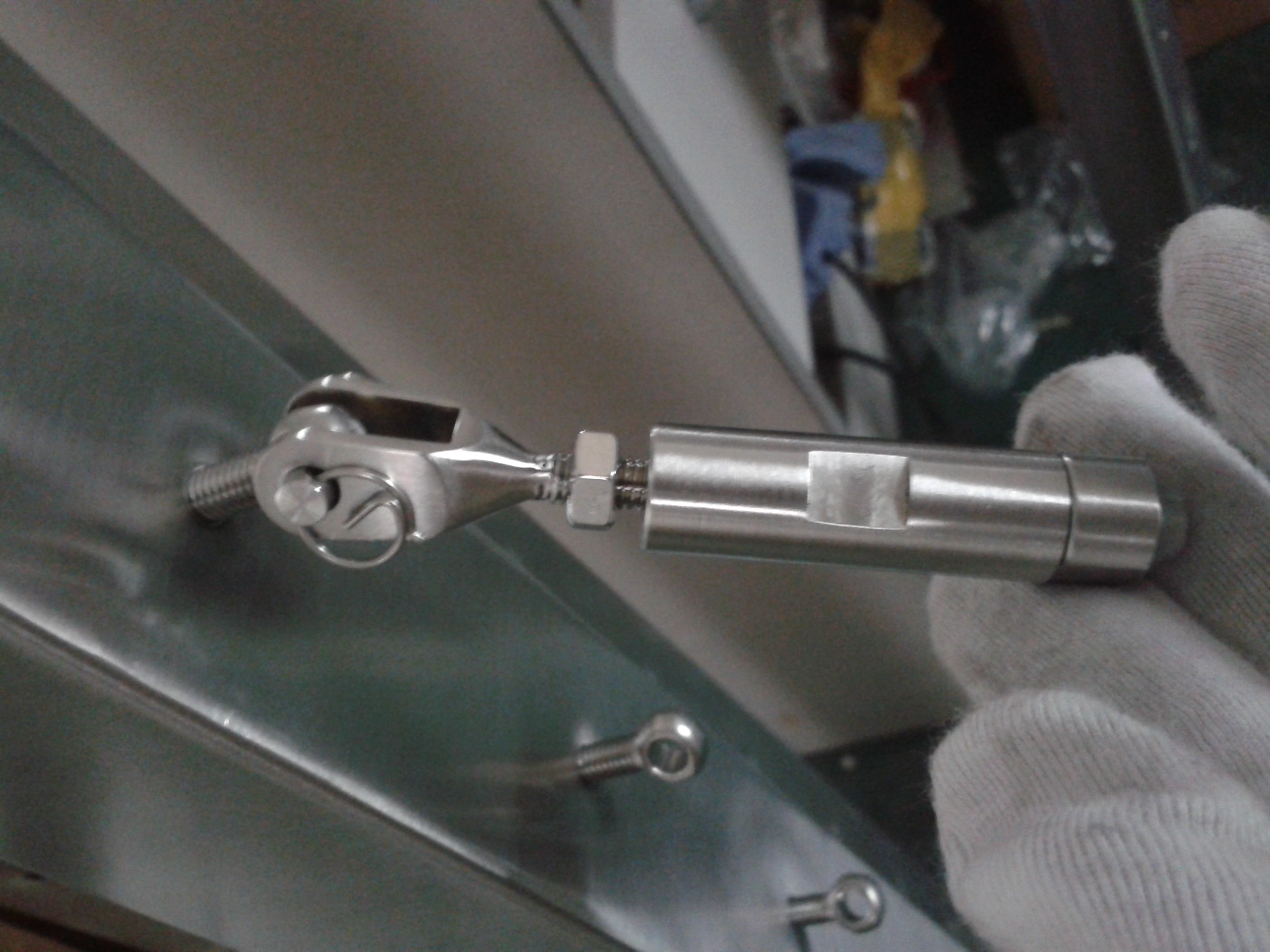

Step 3 : connect the cable tensor and eye screws on the posts
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/04/20140911112146243.jpg.webp)

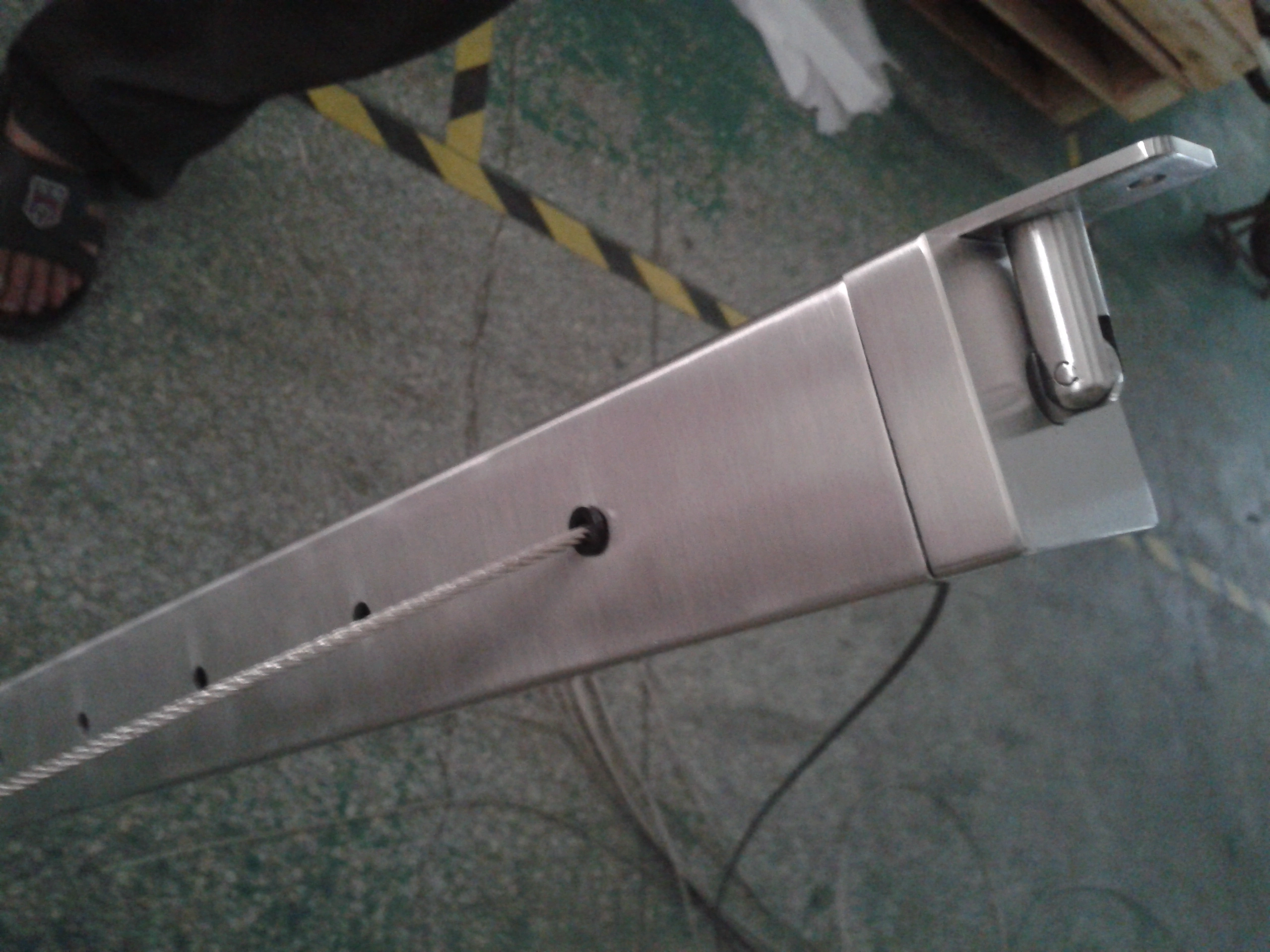

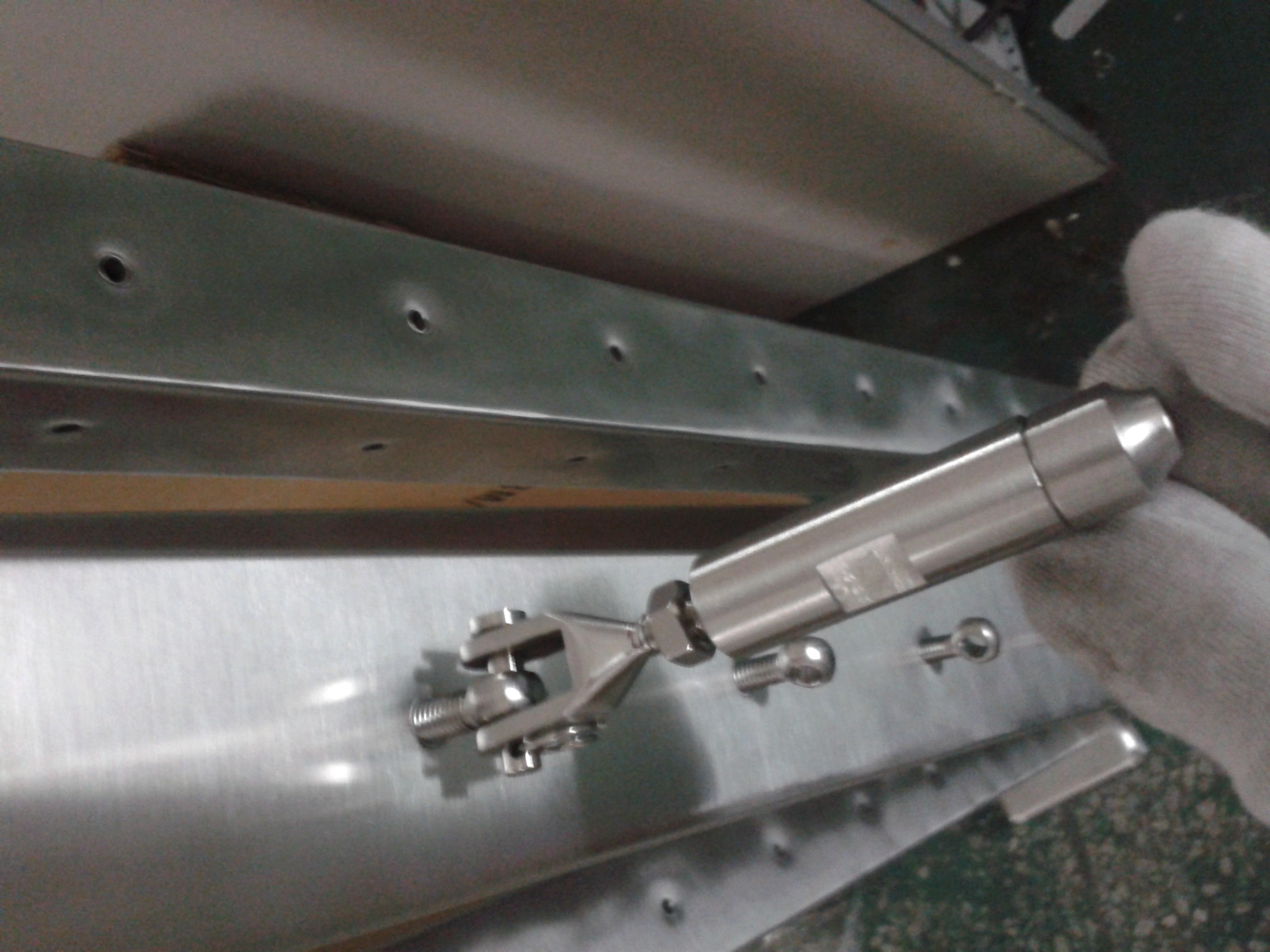

Step 4: the cable and tensors are already fixed on the end posts, and then pass the cable through the middle posts with rubber insert in the holes , lastly fix the cable and tensors on the end posts like previous steps.
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/b8/20140911113258235.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/100/images/99/20140911113329828.jpg.webp)
