CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
- CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
- Compact Design with Base, Cap, and Mounting Stud
- For Use with 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using DuPont® SentryGlas® Interlayers
- High Grade Alloy 316 Stainless Steel Standard
- For Mounting to Steel, Concrete, or Wood Substrate
- These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) in diameter with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary rubber washers and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with Alloy 316 grade stainless steel in brushed or polished finishes.
CRL Brushed Stainless Glass Rail Standoff Base and Cap - 1-3/4" Projection
1. CRL Brushed Stainless Glass Rail Standoff specifications :
- High Grade Alloy 316 Stainless Steel Standard
- Finish: Brushed (Mirror polished also available)
- Compact Design with Base, Cap, and Mounting Stud
- For Use with 1/2" or 3/4" (12 or 19 mm) glass
- For Mounting to Steel, Concrete, or Wood Substrate
These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) in diameter with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary rubber washers and grommet. Fabricated with Alloy 316 grade stainless steel in brushed or polished finishes.

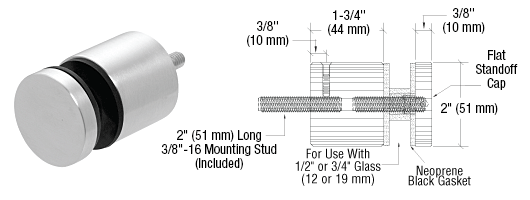

2. Design measurements drawing :
C.R. LAURENCE design drawing :
We actually production drawing, as customer request, which fitting for 12mm glass :

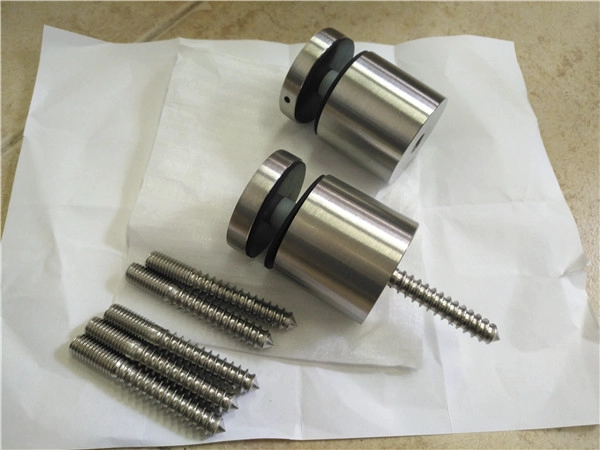

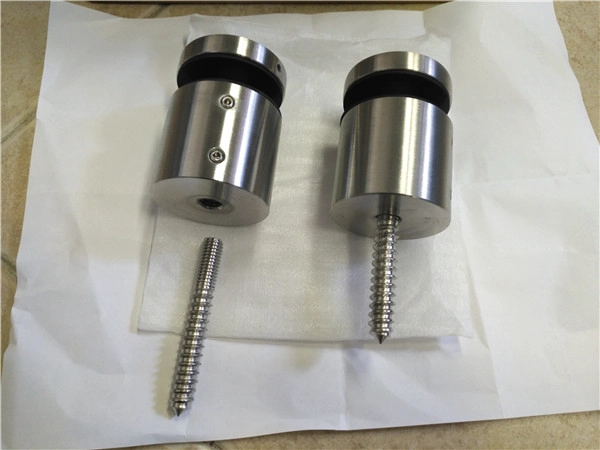

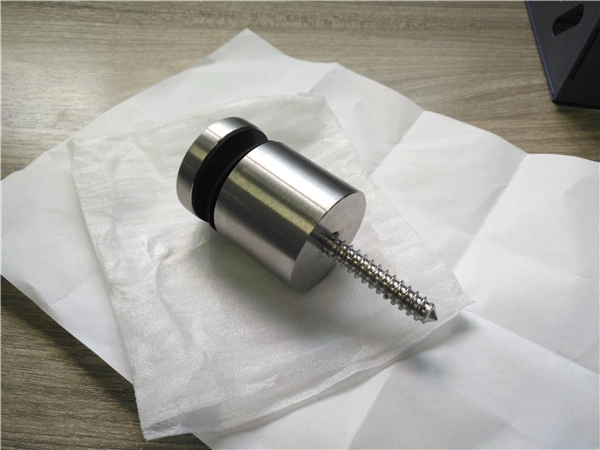

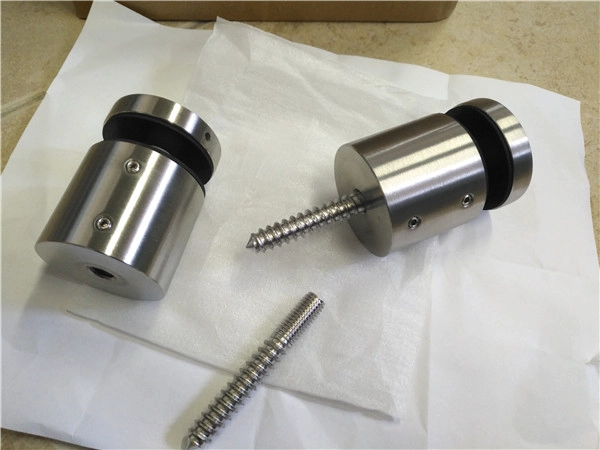

3. The Glass Standoff photos We completed :

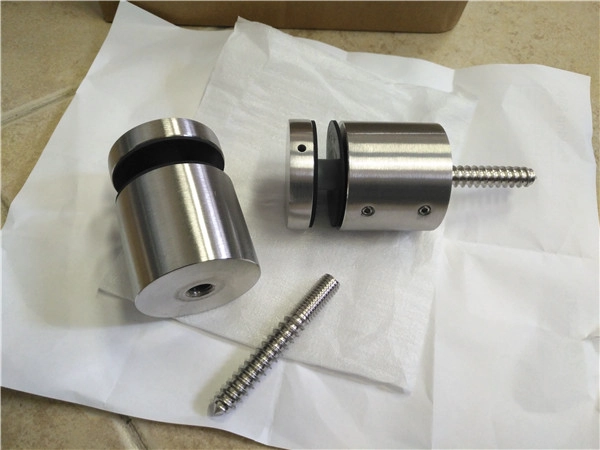

Back section Screw in separately packaging :

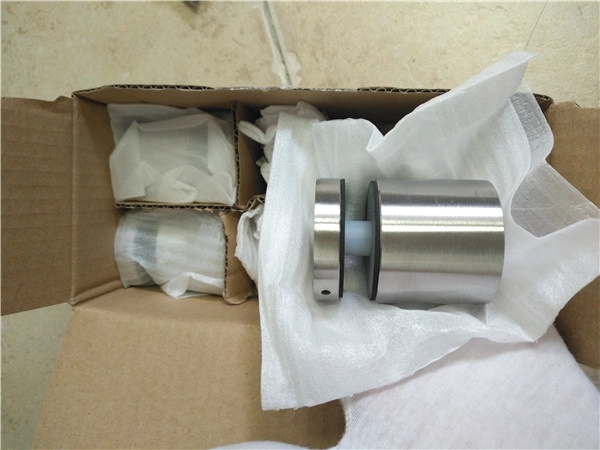

Each Glass Standoff wrapped with soft bag packaing :

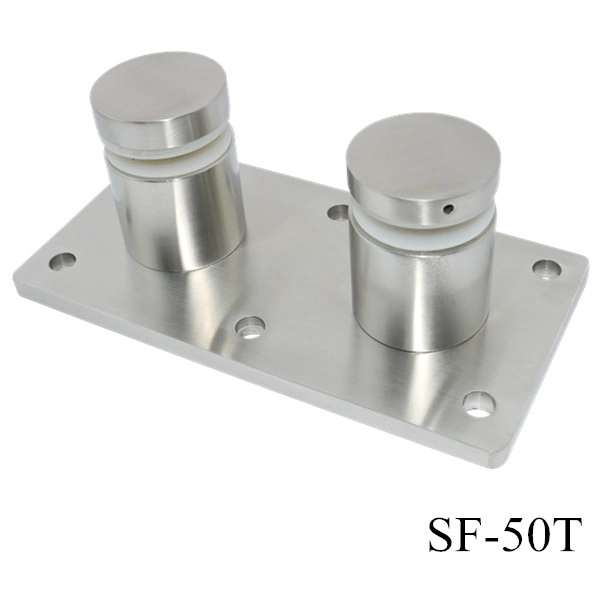

4. For CRL 316 Brushed Stainless Steel Standard 2" Glass Rail Standoff Fitting with Mounting Plate , please refer to :
Click the photo or link know details:
http://www.chinabalustrade.com/products/frameless-glass-balustrade-stainless-steel-standoff-bracket-accessories.html
Please contact us freely if any ineterest, we will reply you ASAP in 24 hours .
