DIY frameless glass pool fencing 180 degree spring loaded hingeDIY frameless glass pool fencing 180 degree spring loaded hinge

DIY frameless glass pool fencing 180 degree spring loaded hinge

  • 180 degree spring loaded hinge
  • for 8-12mm glass gates
  • 316 SS
  • Matte black powder coating ; satin ; mirror

DIY frameless glass pool fencing 180 degree spring loaded hinge 316 stainless steel matte black finish .

Features-

  • Model No. G-G
  • Material . 316 stainless steel
  • Max. door leaf weight 30kg per pair of hinge
  • Max. door leaf width 900mm
  • Spring can be adjusted for closing speed control
Glass weight for reference -
 Glass thickness  8mm  10mm 12mm   14mm
 weight (kg/㎡)  18.2 22.7   27.3 31.8

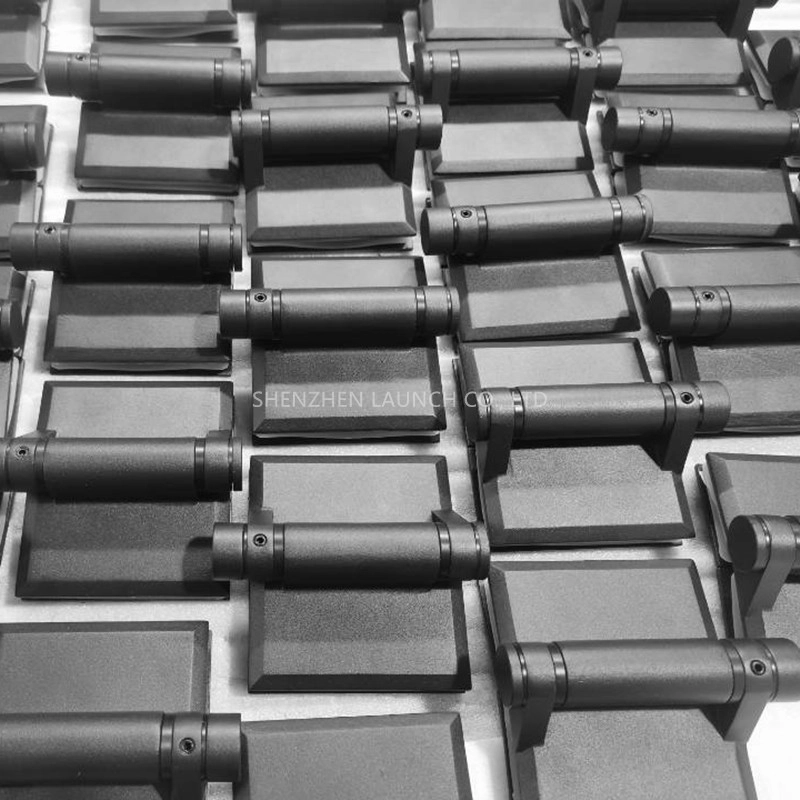

Matte Black powder coating finish for G-G spring loaded hinge-

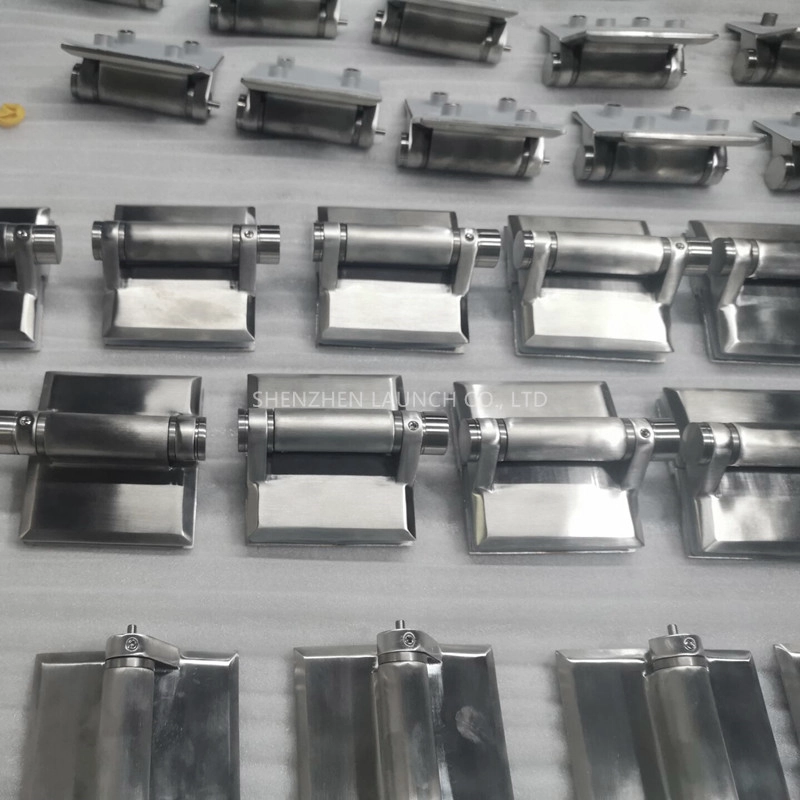

satin finish for G-G spring loaded hinge-

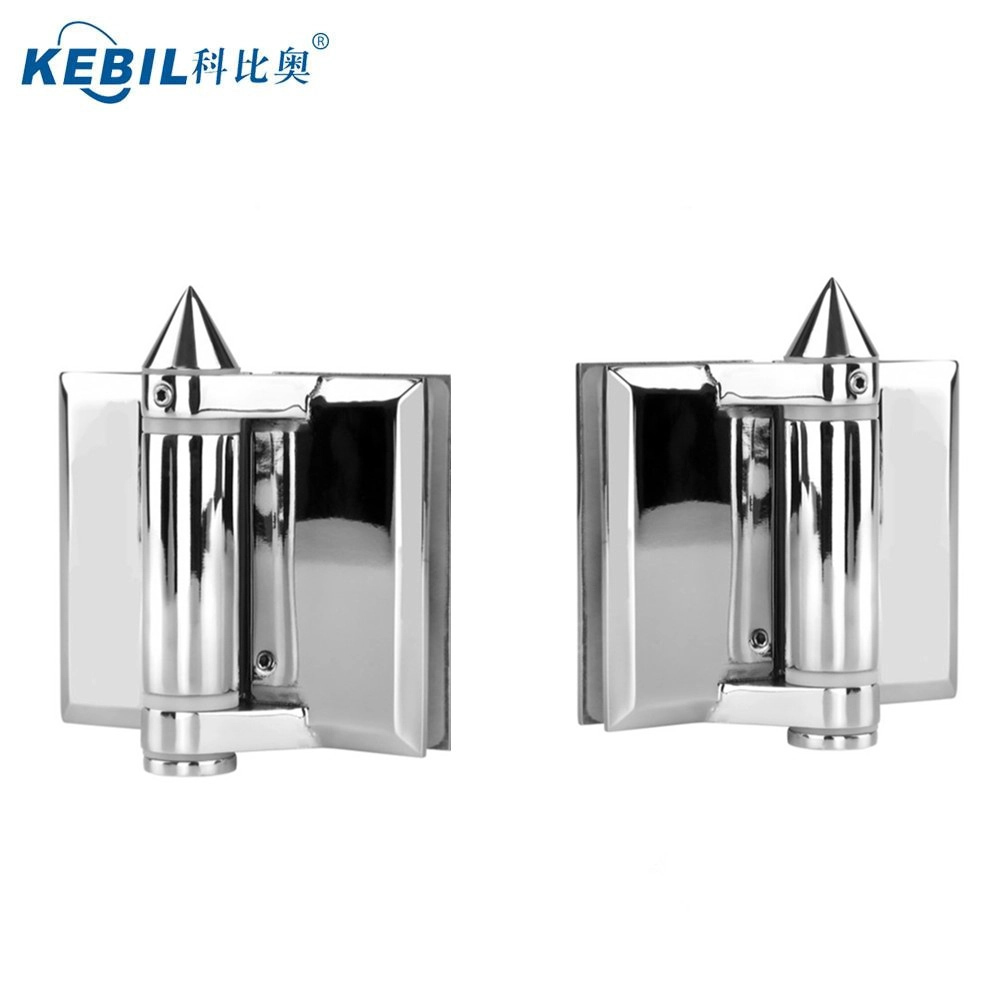

Mirror finish spring loaded hinge G-G

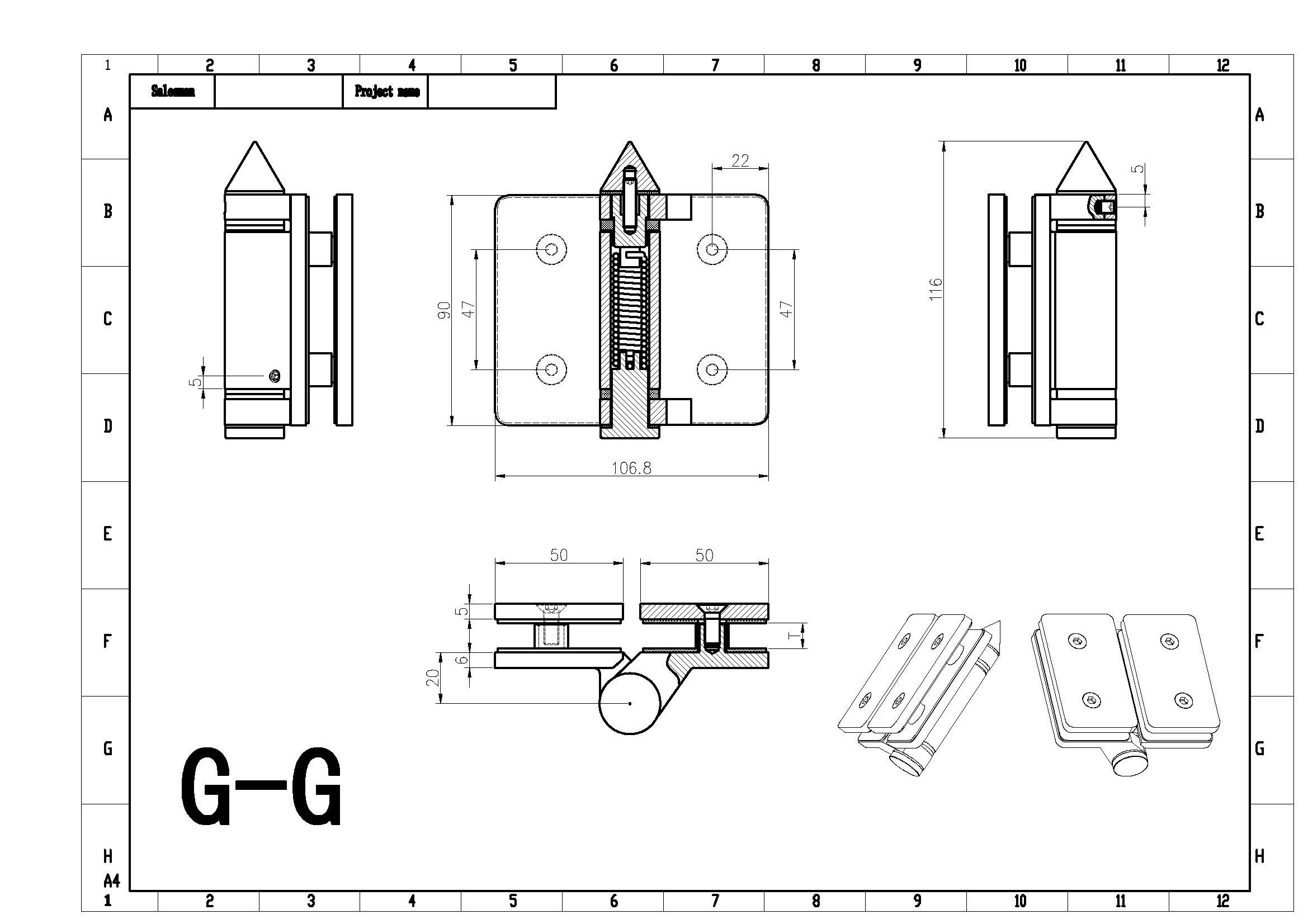

Dimension drawing for G-G glass hinge-

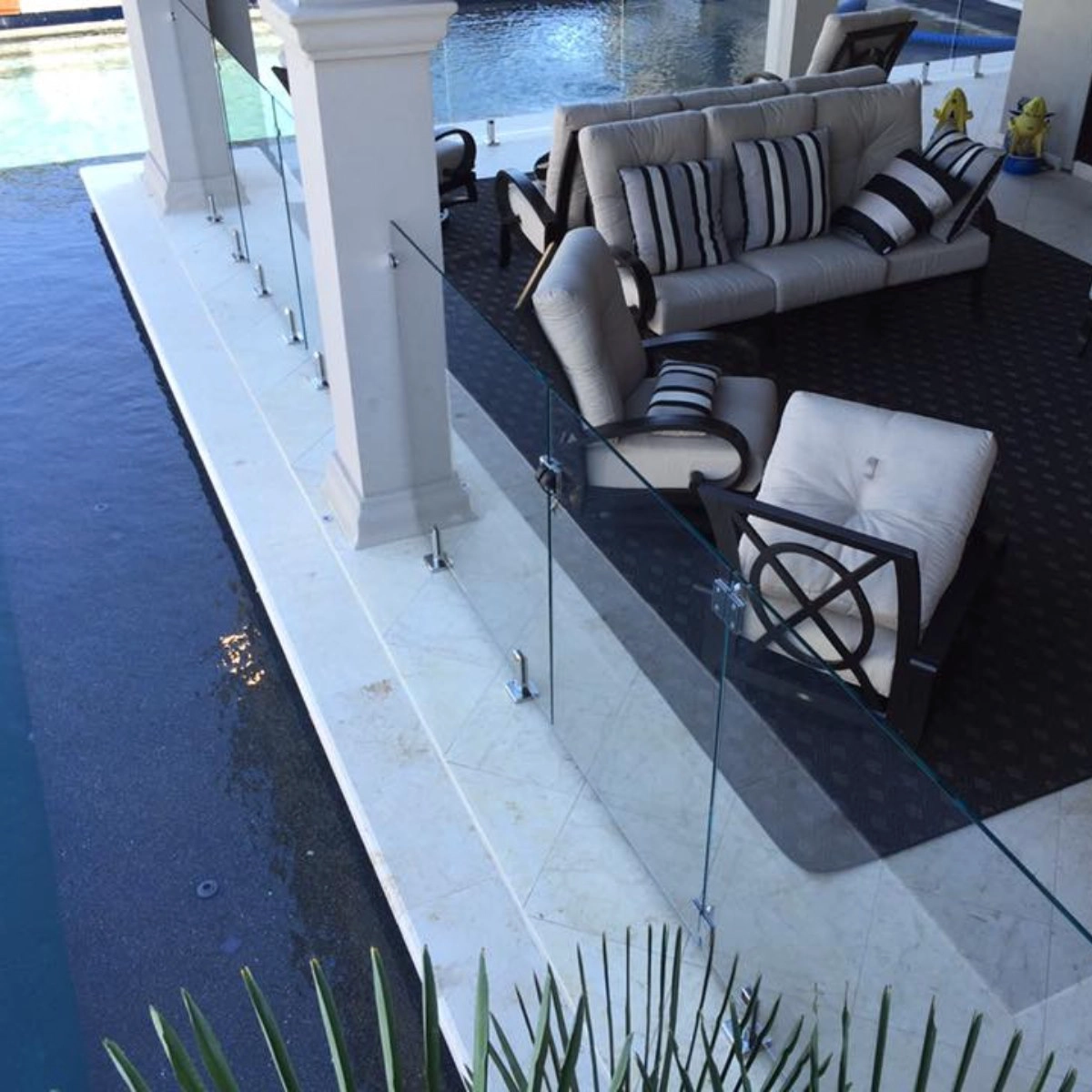

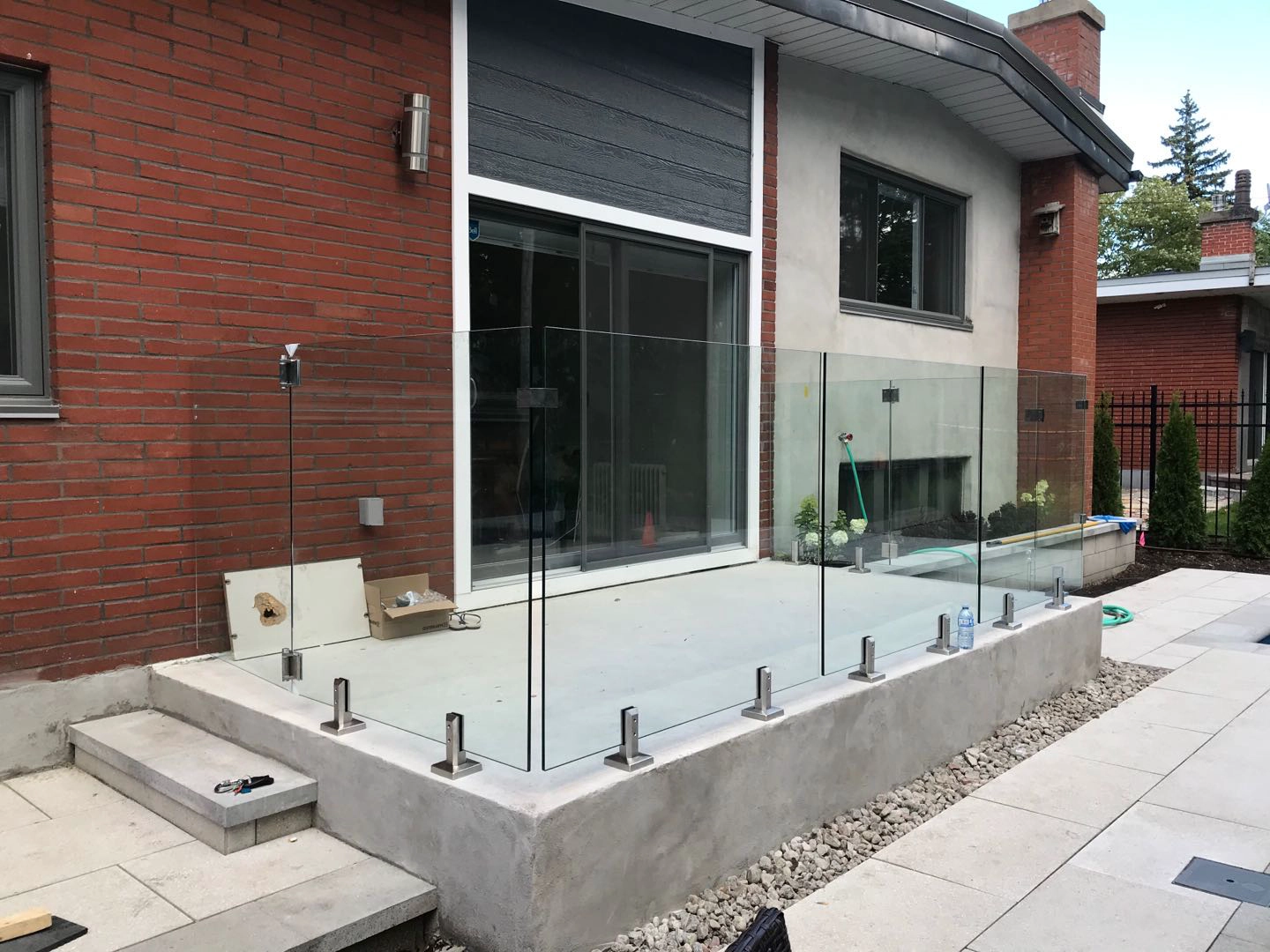

Project photos with G-G spring loaded glass hinges-
