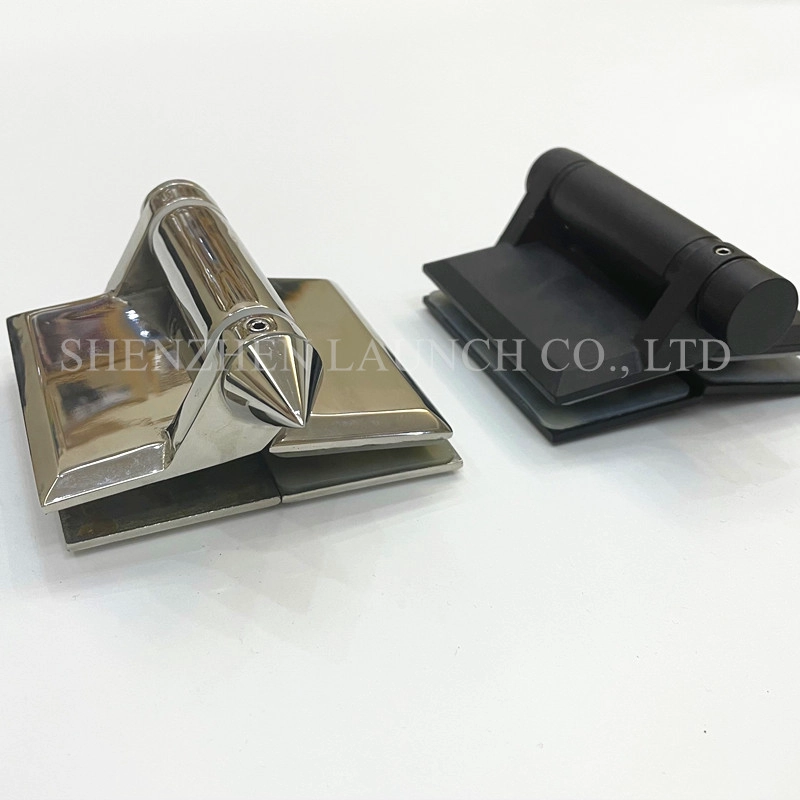

Door hinges for frameless glass swimming pool fencing glass doors
- Item no. G-G
- Coned cap on one end , or flat cap on both ends
- Made of SS316
- Mirror , satin , black powder coating
Glass door hinges for frameless glass swimming pool fencing glass gate 8mm to 12mm thick heavy duty spring loaded type door hinge .
Features door hinges--
Type | Spring loaded type glass door hinge |
Function | to work with glass latch on pool fencing gate , not hydraulic type door hinge |
Model No. | G-G |
Material | 316 stainless steel |
Finish | satin , mirror , powder coating , electro plating |
For glass thickness | 8mm 10mm 12mm |
Max. door leaf weight | 30kg |
hinge cap | flat caps or coned caps |
MOQ | 1 pair |
Other hardwares available for pool fence | glass door latch , base mount/core drill glass spigot |
Three models of glass door hinges -

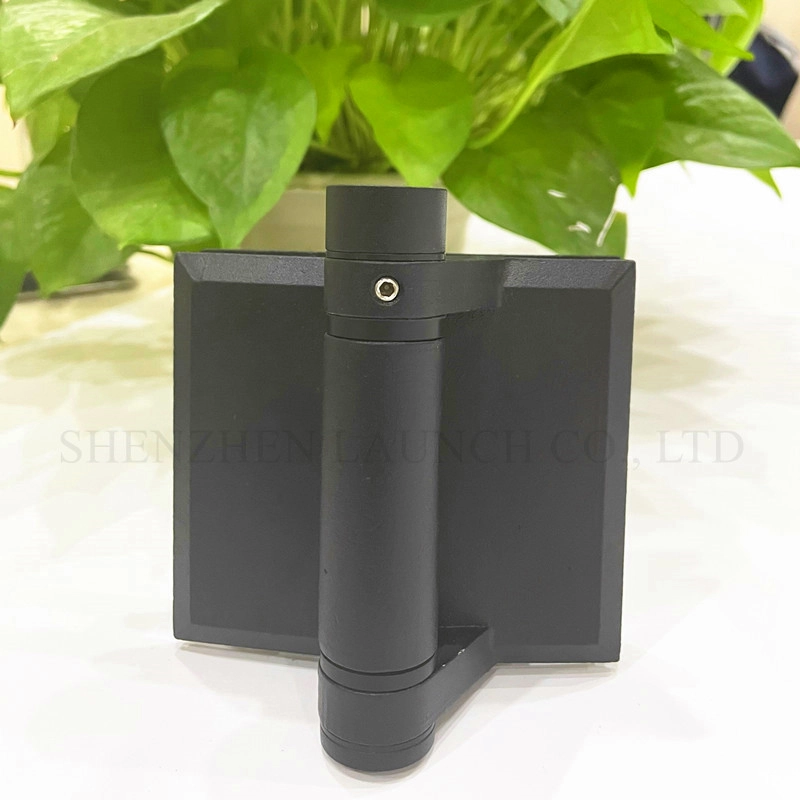

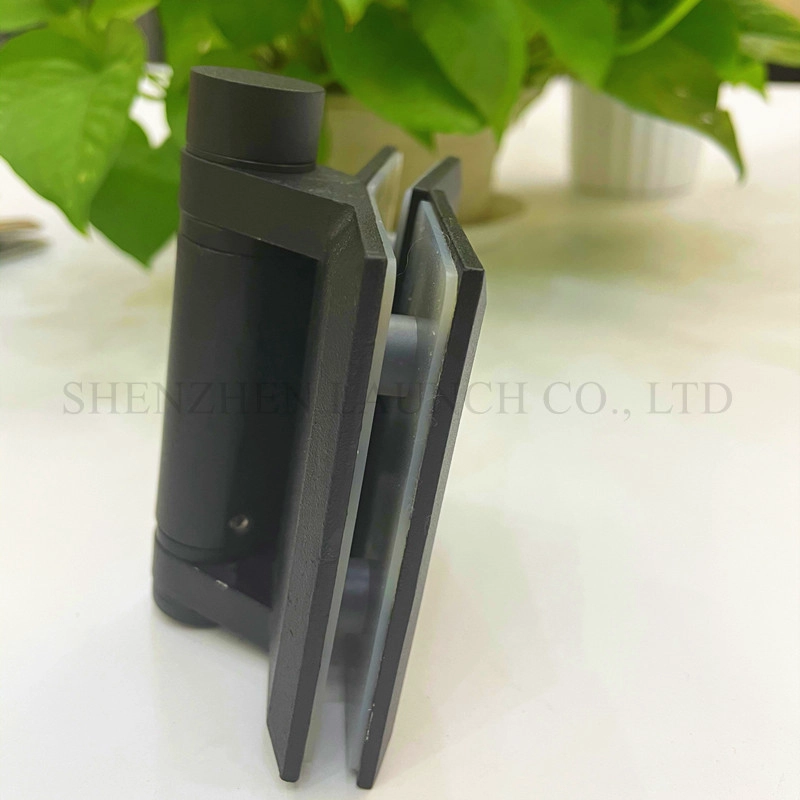

#G-G Glass to glass hinge photo , matt black powder coating-

Dimensions for glass to glass hinge -






Dimensions for glass to glass hinge -

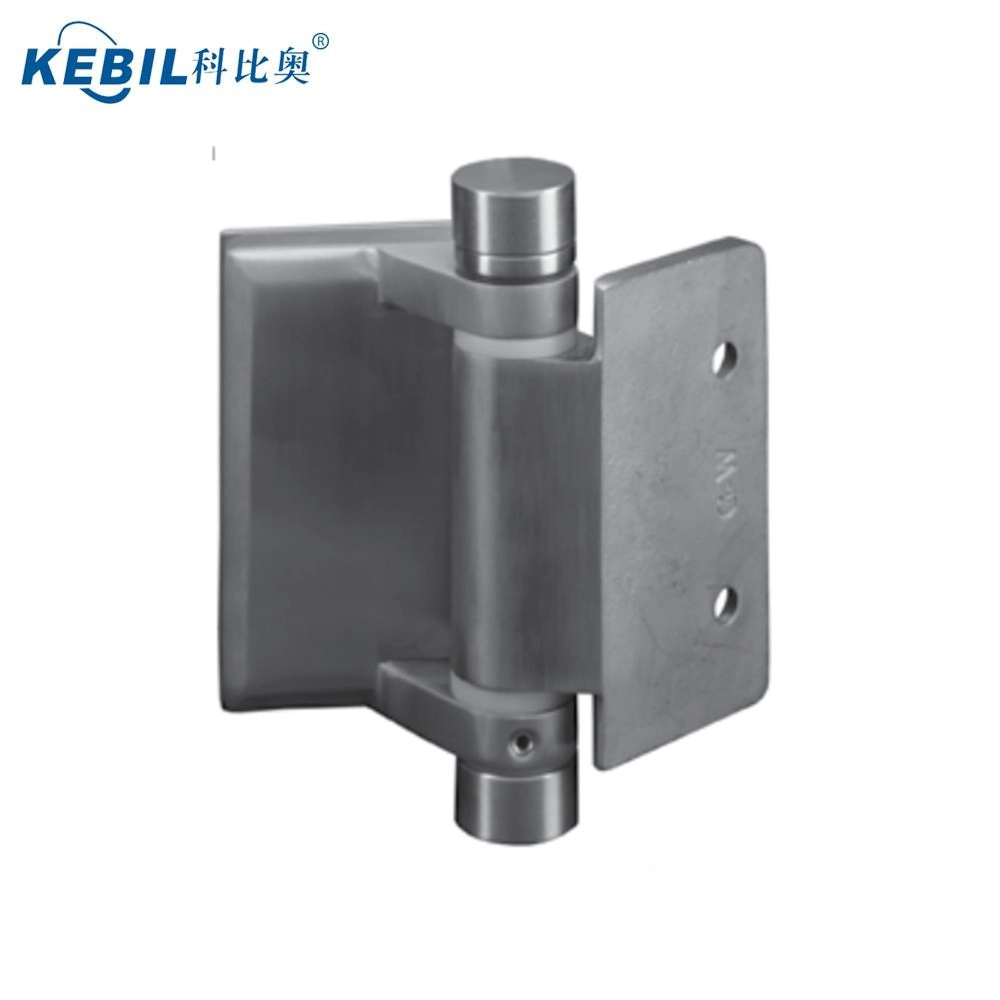

#G-W Glass to wall hinge photo -

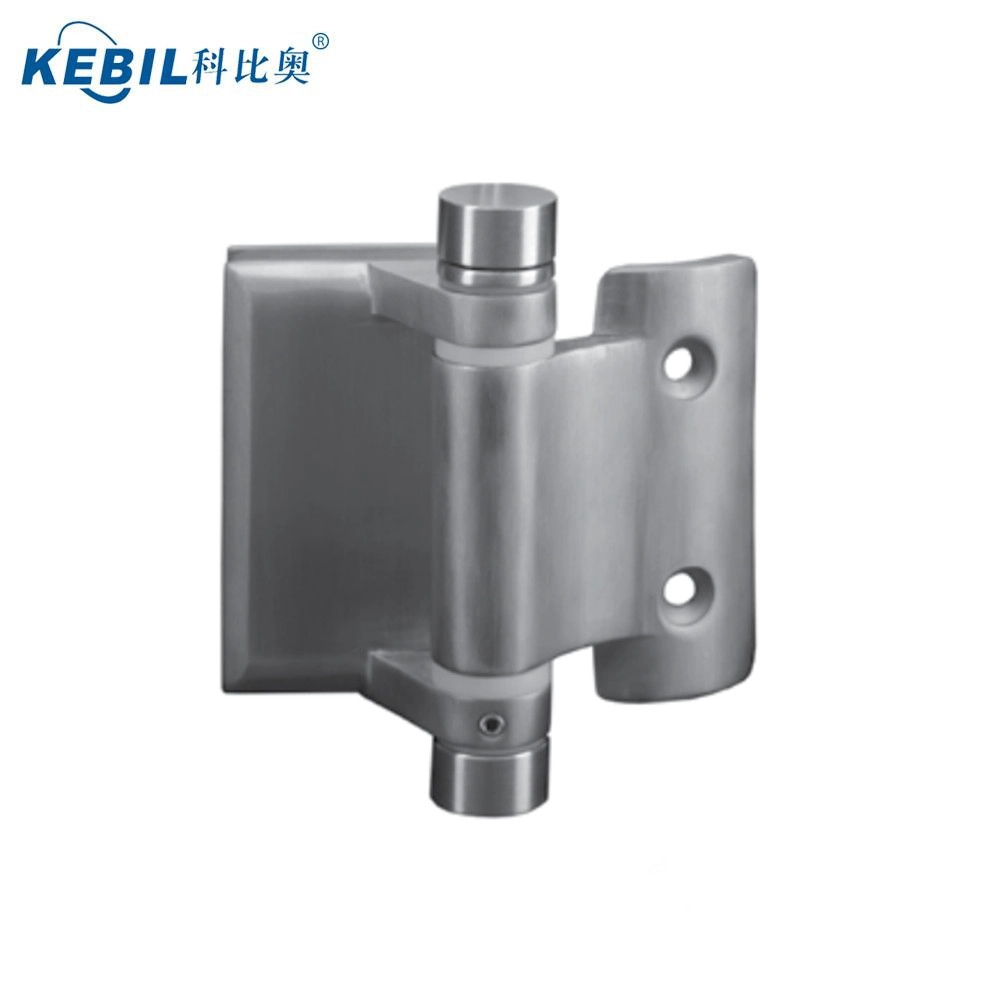

#G-R glass to round post hinge-

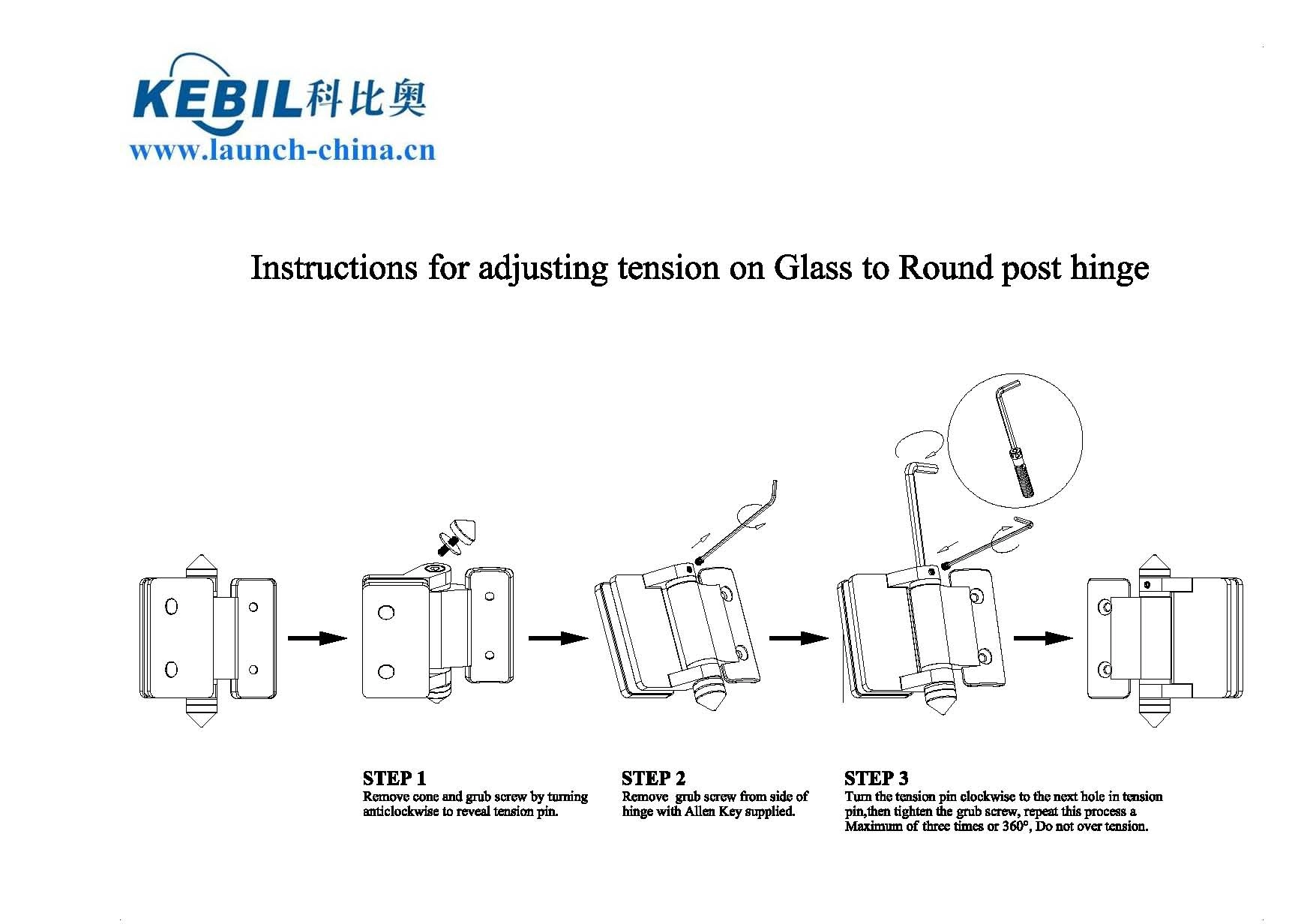

Installation instructions for glass to glass hinge-

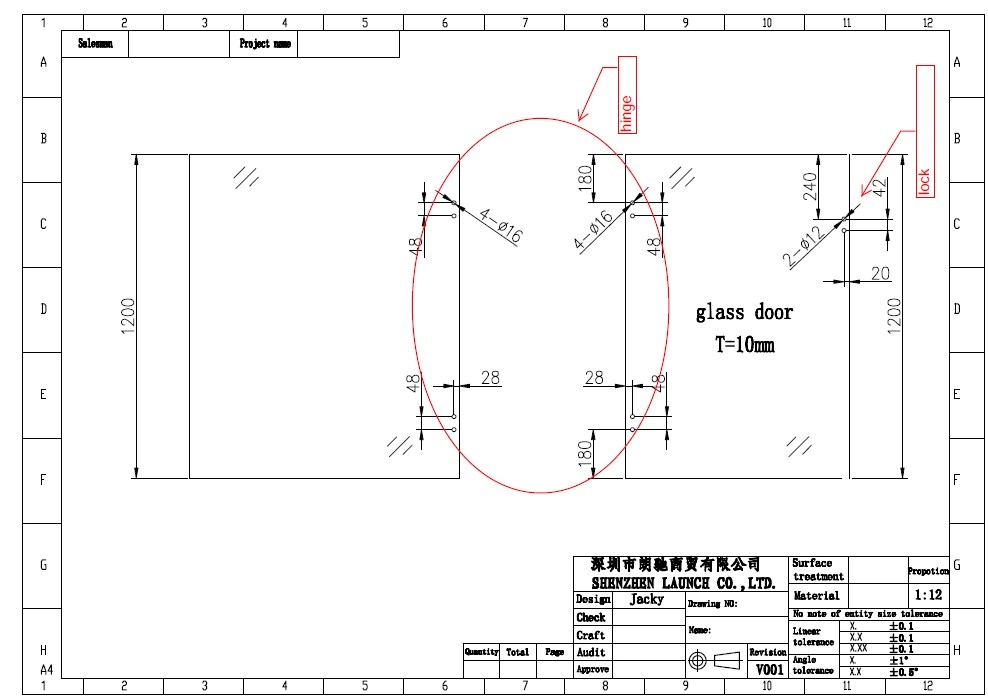

Glass hole drawing for glass door hinge & latch-

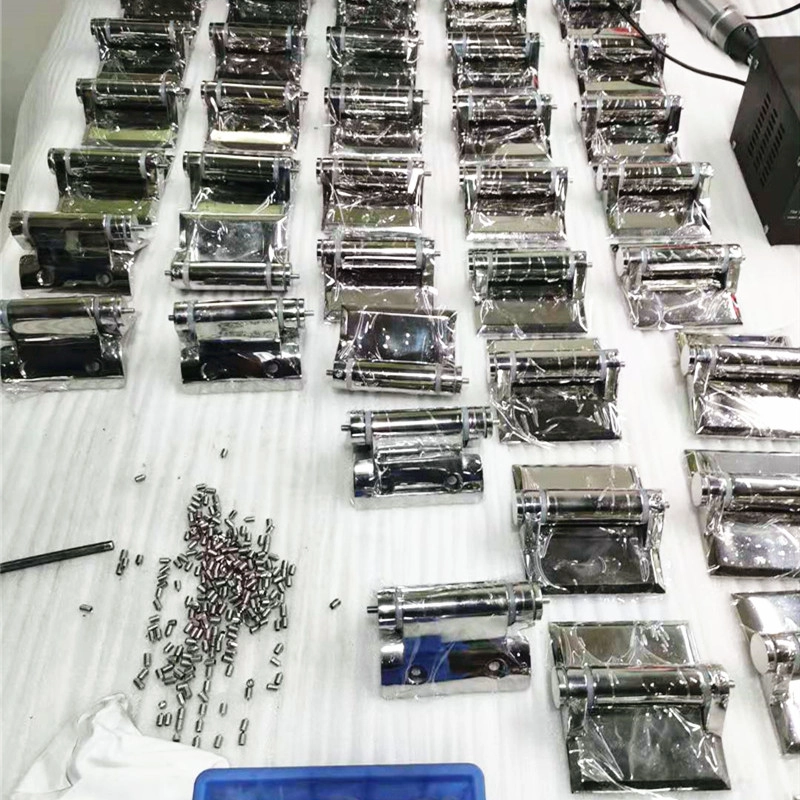

Production photos of glass door hinges-

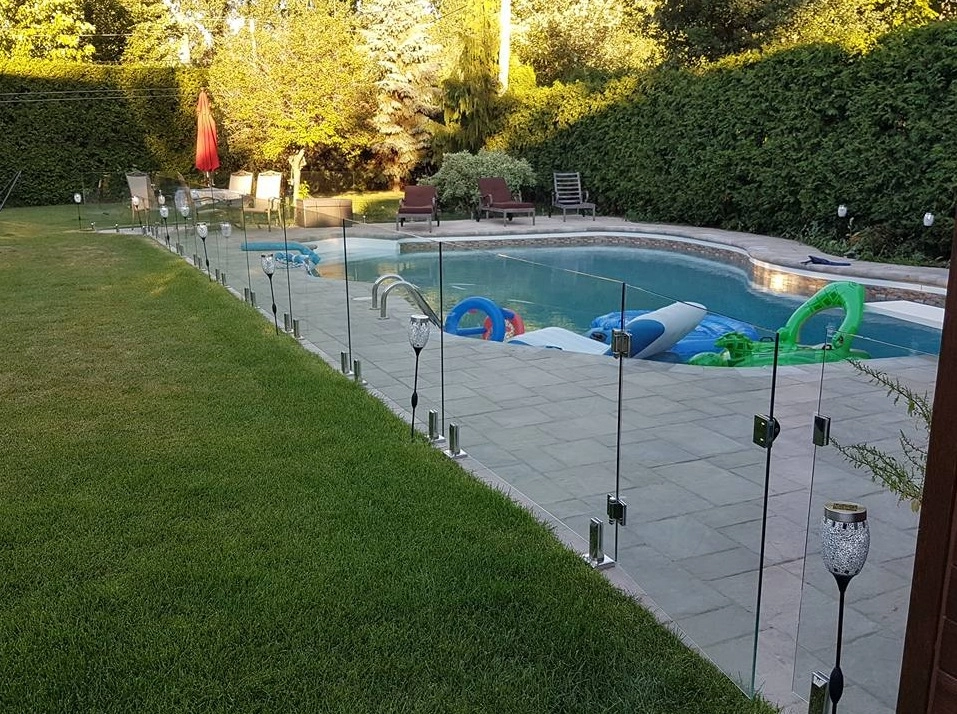

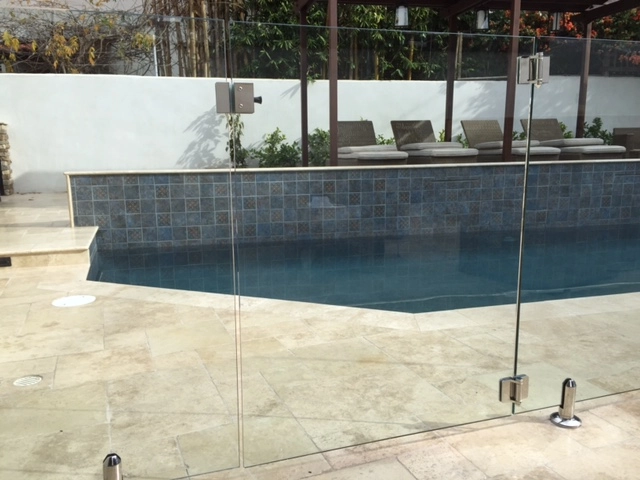

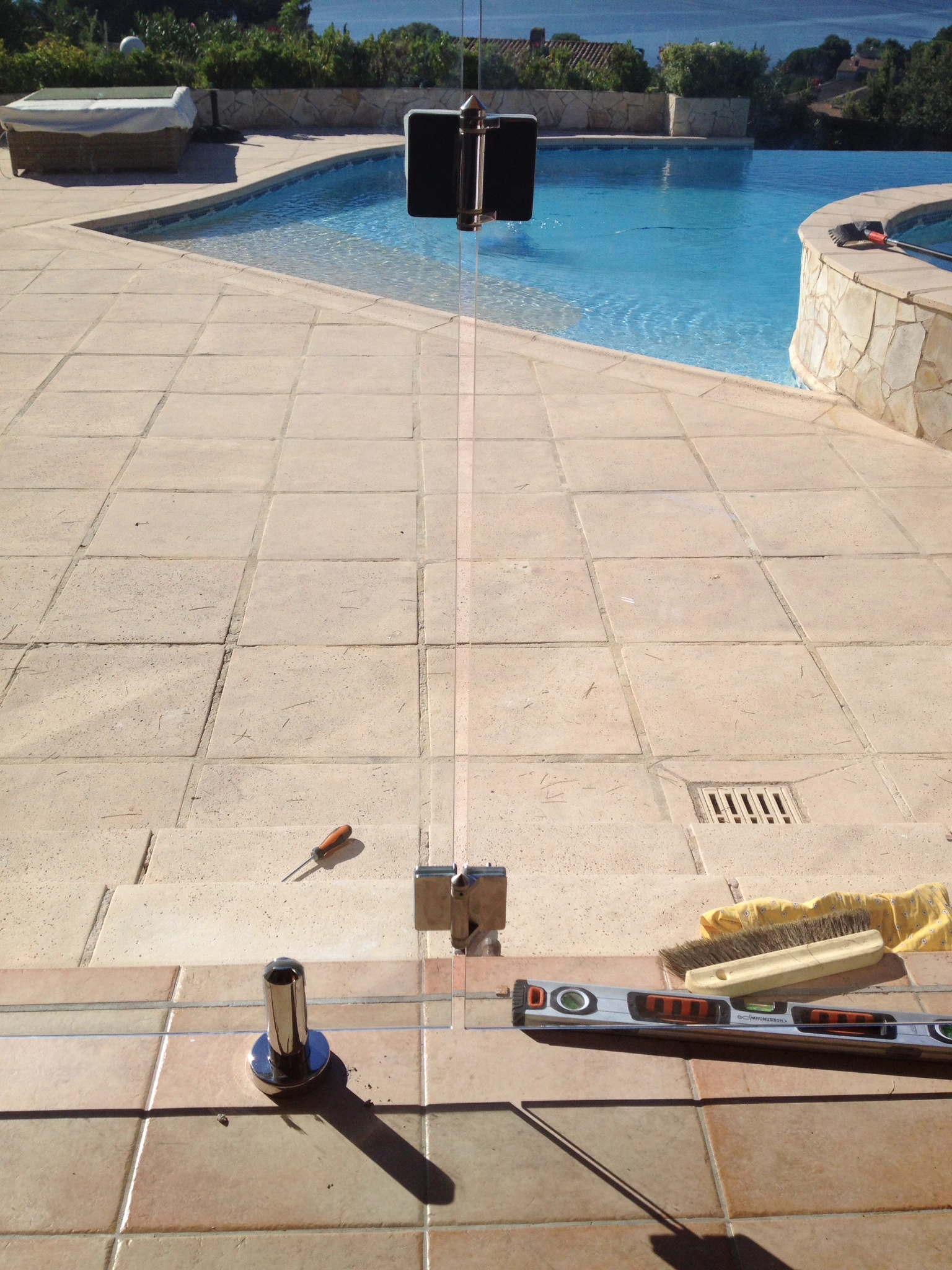

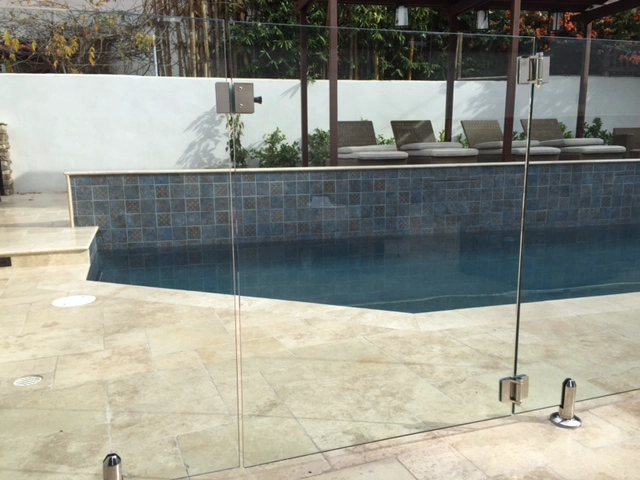

Project photos of swimming pool fence-
