Glass Fencing Pool Gate Fittings Self-closing Heavy Duty Glass to Glass Hinge
- model # G-G
- Material: stainless steel 304/316
- Finish: mirror/satin/black
- For swim pool fence or deck railing glass to glass gate
- For glass thickness: 8-12.76mm
- Maximum door leaf weight : 30 kg /pair
- Maximum door leaf width : 900mm
- Spring can be adjusted for closing speed control
Glass Fencing Pool Gate Fittings Self-closing Heavy Duty Glass to Glass Hinge
Description of stainless steel glass hinge-
--Glass to glass door heavy duty hinge, spring loaded type
--Model No.:G-G
--Material: stainless steel 304/316
--Finish: mirror/satin/black
--For glass thickness: 8-12.76mm
--Maximum door leaf weight : 30 kg /pair
--Maximum door leaf width : 900mm
--Spring can be adjusted for closing speed control
--Manufacture method:casting
--Rquired drill glass hole size: diameter 16mm
--Packaging: one pc into one plastic bag, then into one box. 12 pcs into one carton.
--For both commerical and modern house home design
--For both wholesale and retail (We are factory)

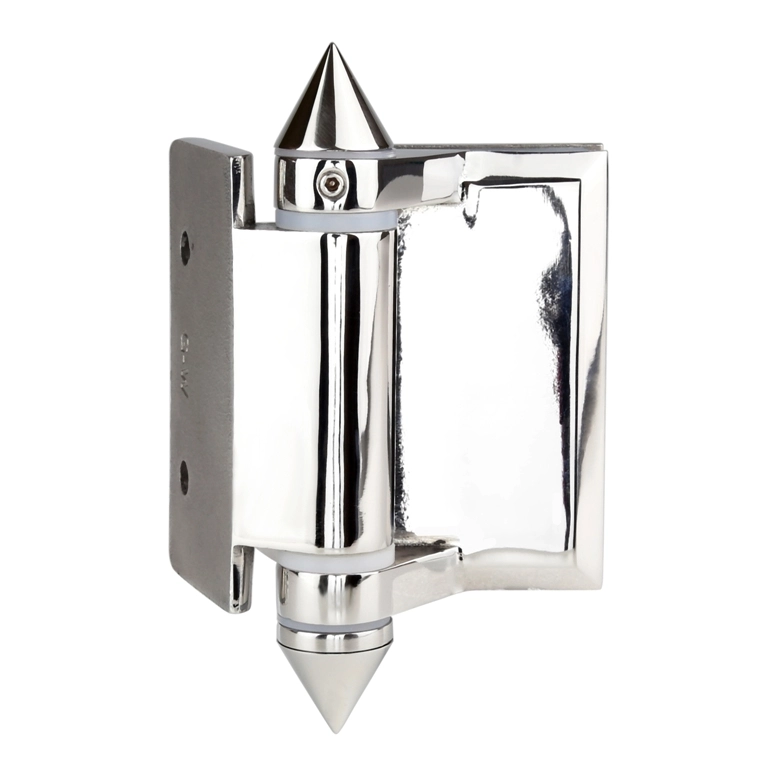

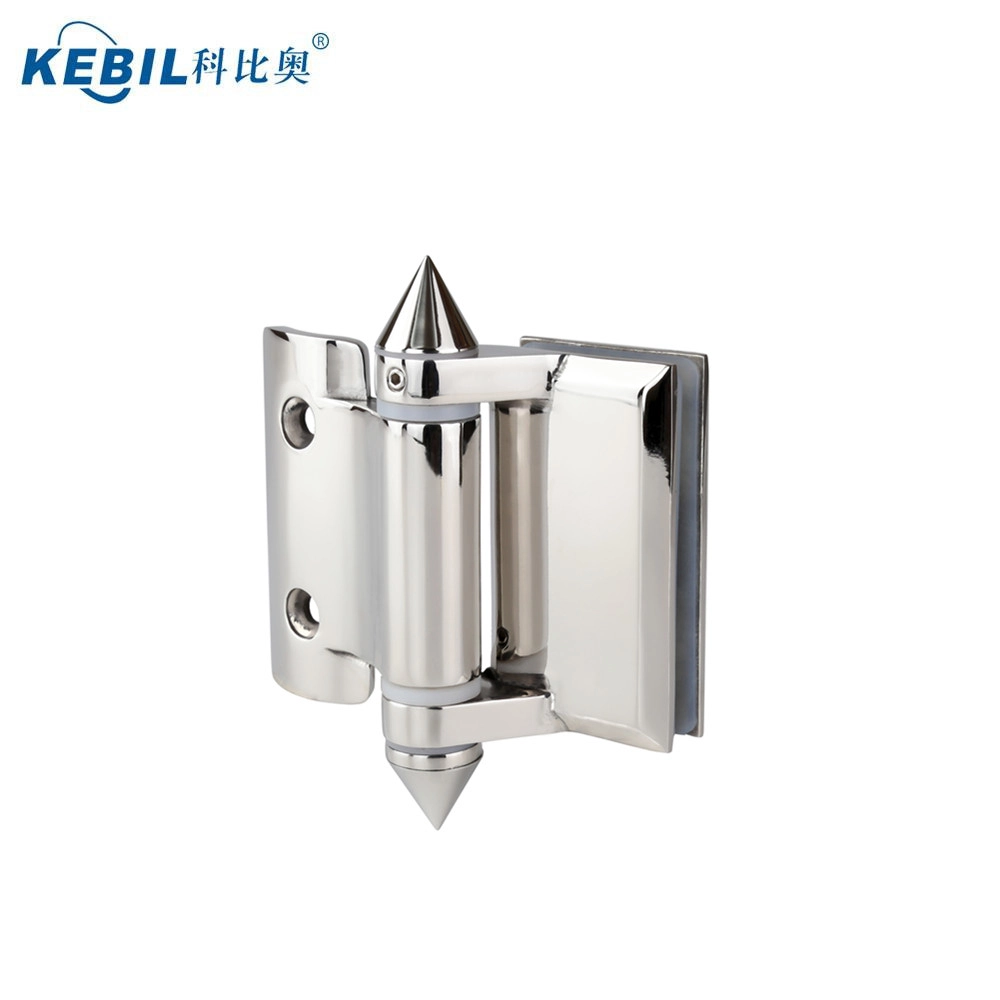

Photos of glass hinge , G-G
with coned cap on the ends in satin finish
with coned cap on the ends in mirror finish
with flat cap on the ends in satin finish
with flat cap on the ends in mirror finish
with flat cap on the ends in black powder coating
Other models for glass hinge

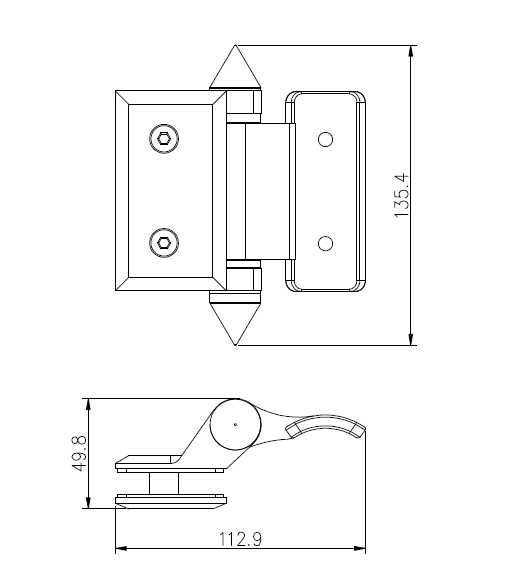

Glass to round post hinge
