Glass Fencing Pool Gate Hardware Stainless Steel Glass Hinge

  • model # G-W
  • Material: stainless steel 304/316
  • Finish: mirror/satin/black
  • For swim pool fence or deck railing
  • For glass thickness: 8-12.76mm
  • Maximum door leaf weight : 30 kg /pair
  • Maximum door leaf width : 900mm
  • Spring can be adjusted for closing speed control

Glass Fencing Pool Gate Hardware Stainless Steel Glass Hinge

Description of stainless steel glass hinge-

--Glass to glass heavy duty hinge, spring loaded type

--Model No.:G-W, G-G, G-R

--Material: stainless steel 304/316

--Finish: mirror/satin/black

--For glass thickness: 8-12.76mm

--Maximum door leaf weight : 30 kg /pair

--Maximum door leaf width : 900mm

--Spring can be adjusted for closing speed control

--Manufacture method:casting

--Rquired drill glass hole size: diameter 16mm

--Packaging: one pc into one plastic bag, then into one box. 12 pcs into one carton.

--For both commerical and modern house home design

--For both wholesale and retail (We are factory)

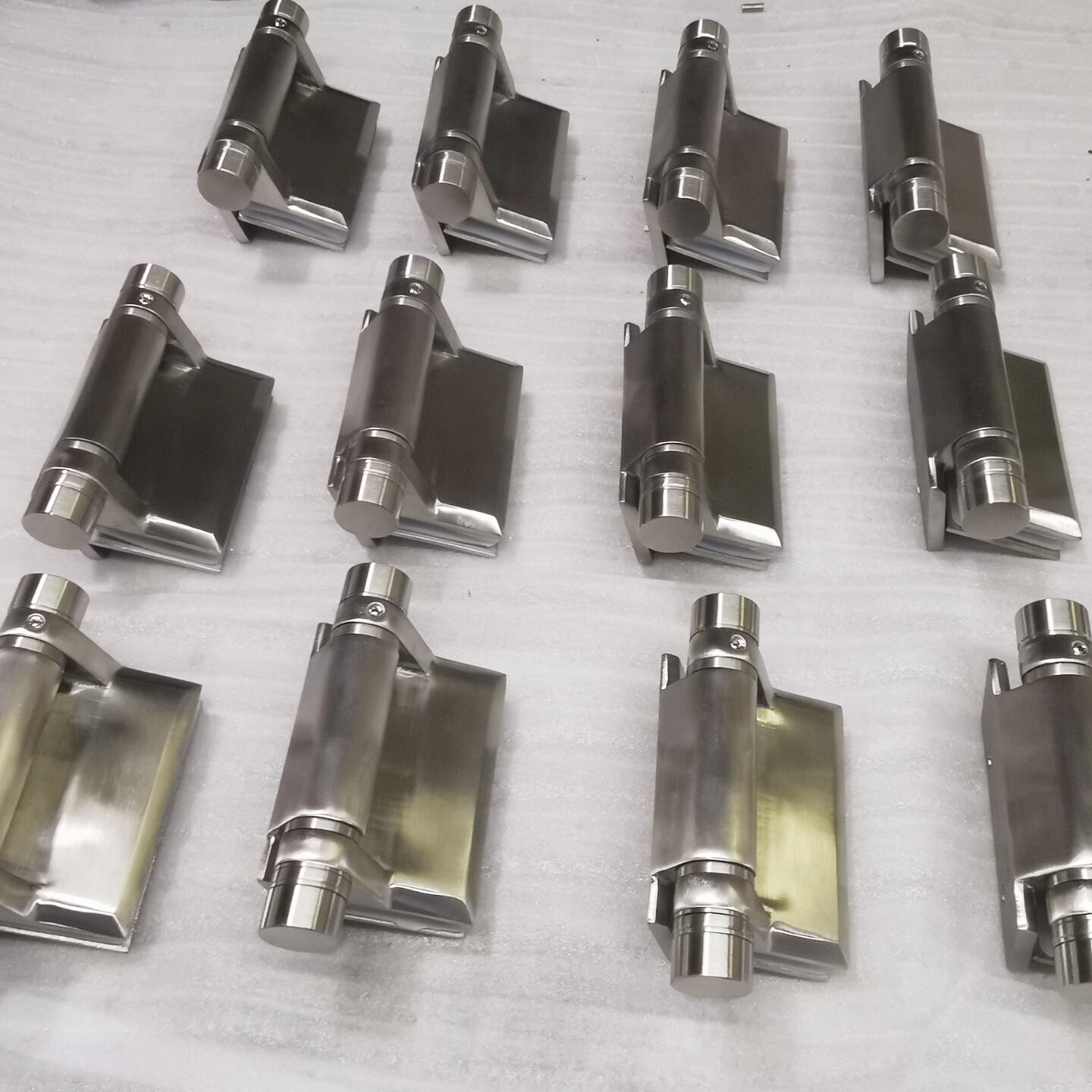

Photos of glass hinge 

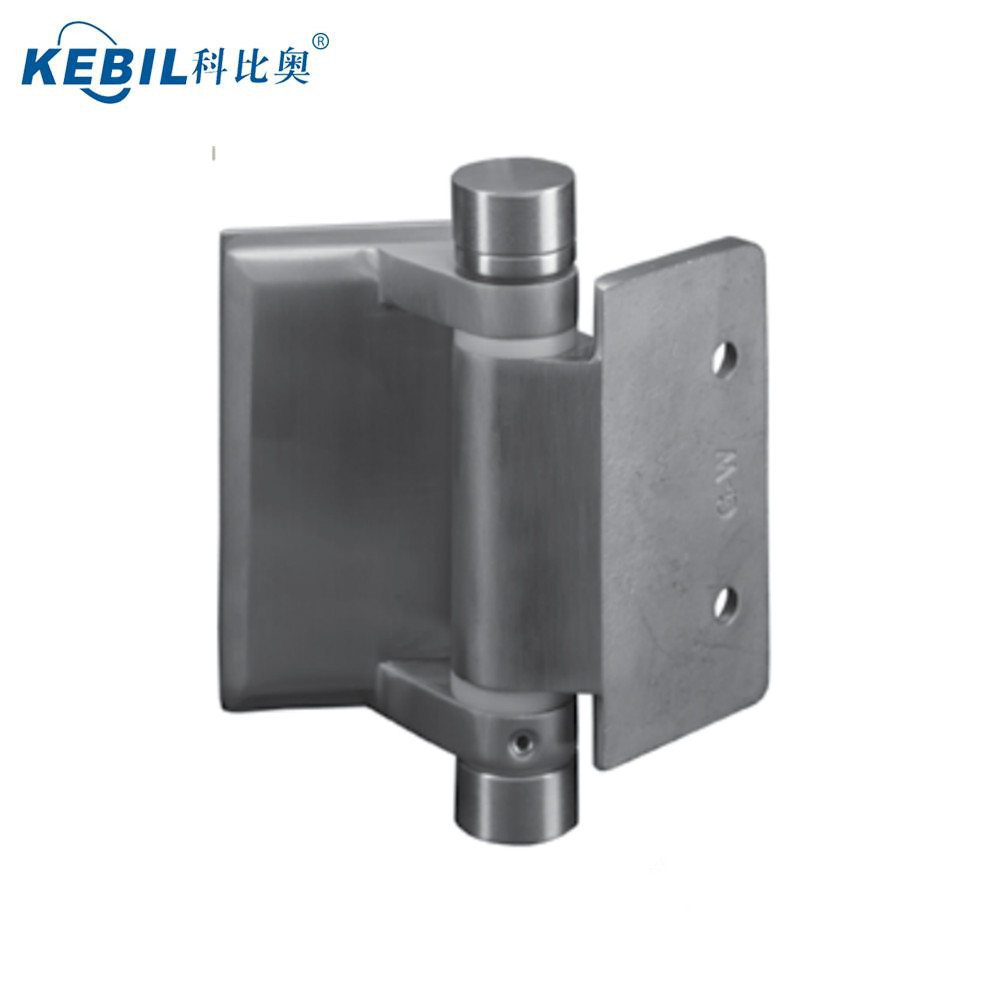

Glass to square post/wall hinge, G-W, with flat cap on the ends 

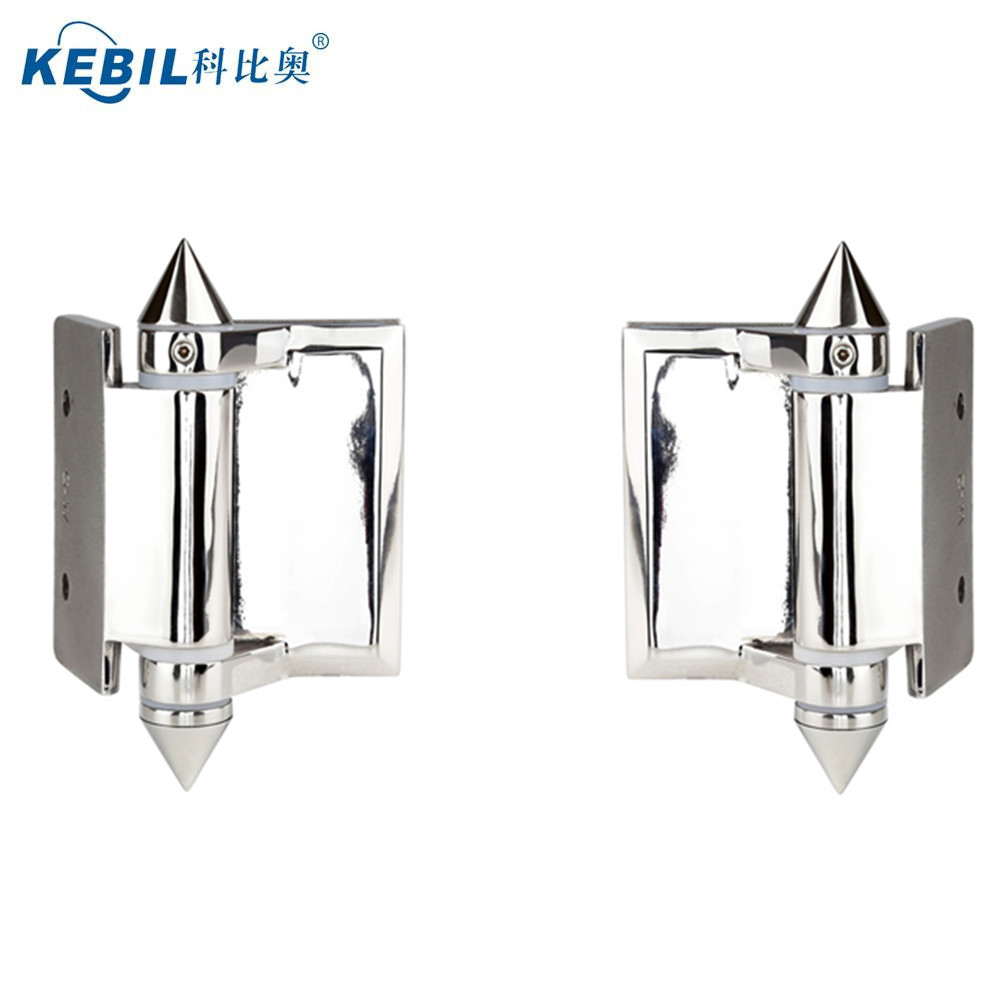

Glass to square post/wall hinge, G-W, with coned cap on the ends 

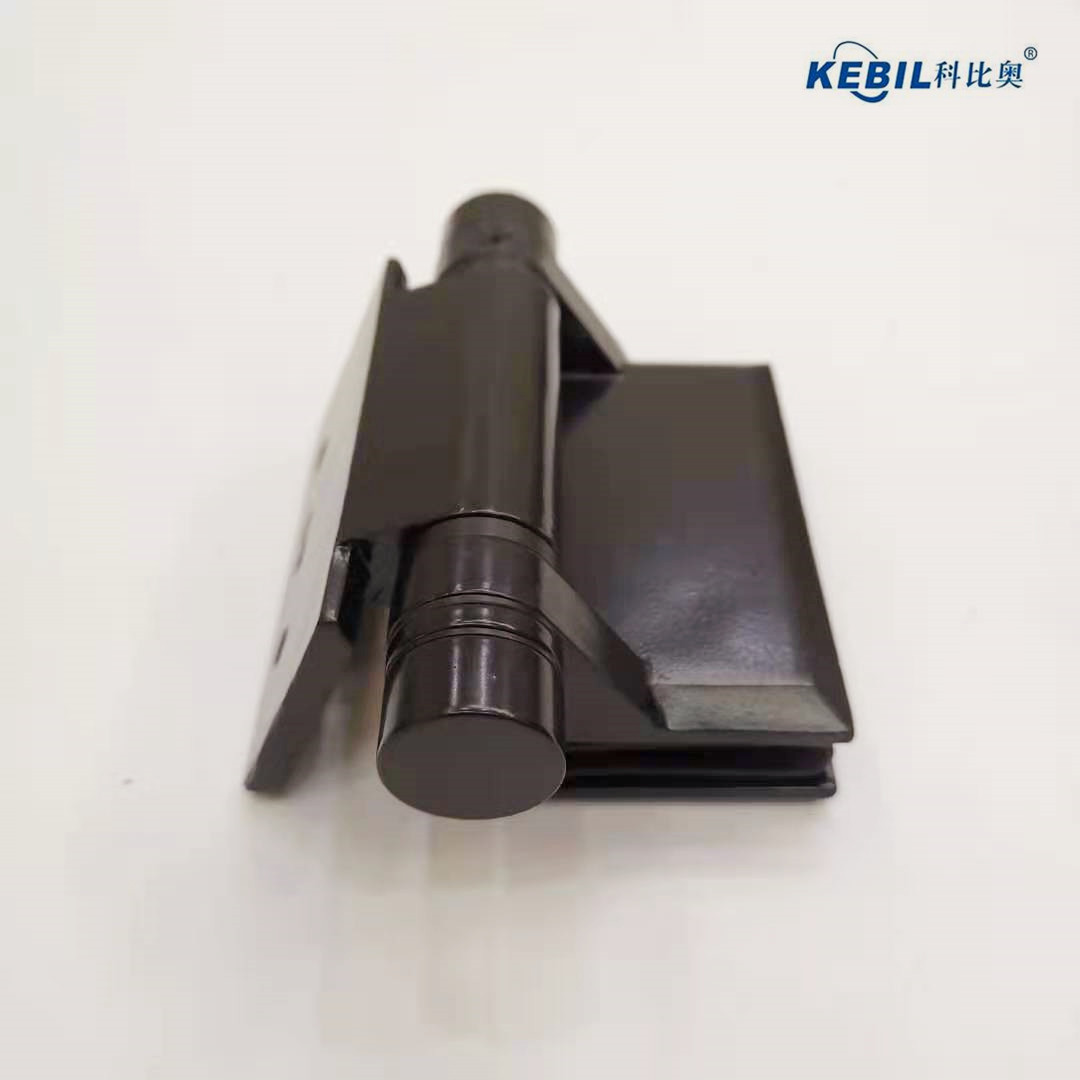

Glass to square post/wall hinge, G-W, black powder coating


Photos of glass hinge , G-R

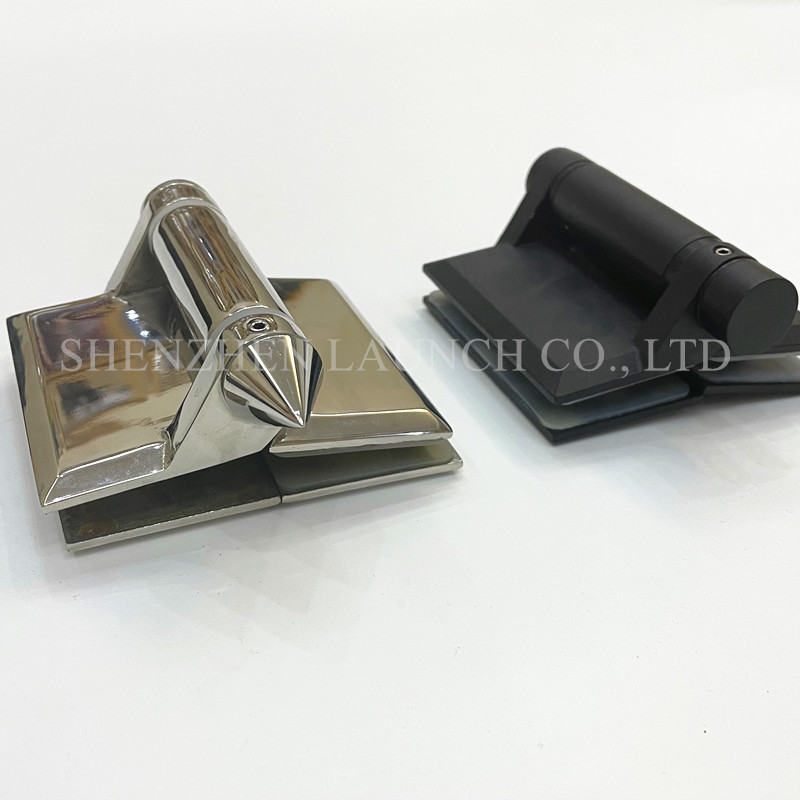

Glass to glass hinge, with coned cap on the ends 

Glass to glass post hinge, with flat cap on the ends 

Glass to glass post hinge, with flat cap on the ends, in black powder coating

Glass to round post hinge, G-R, with flat cap on the ends

Glass to round post hinge, with coned cap on the ends 

Glass holes drawings required for glass hinge and glass latch-

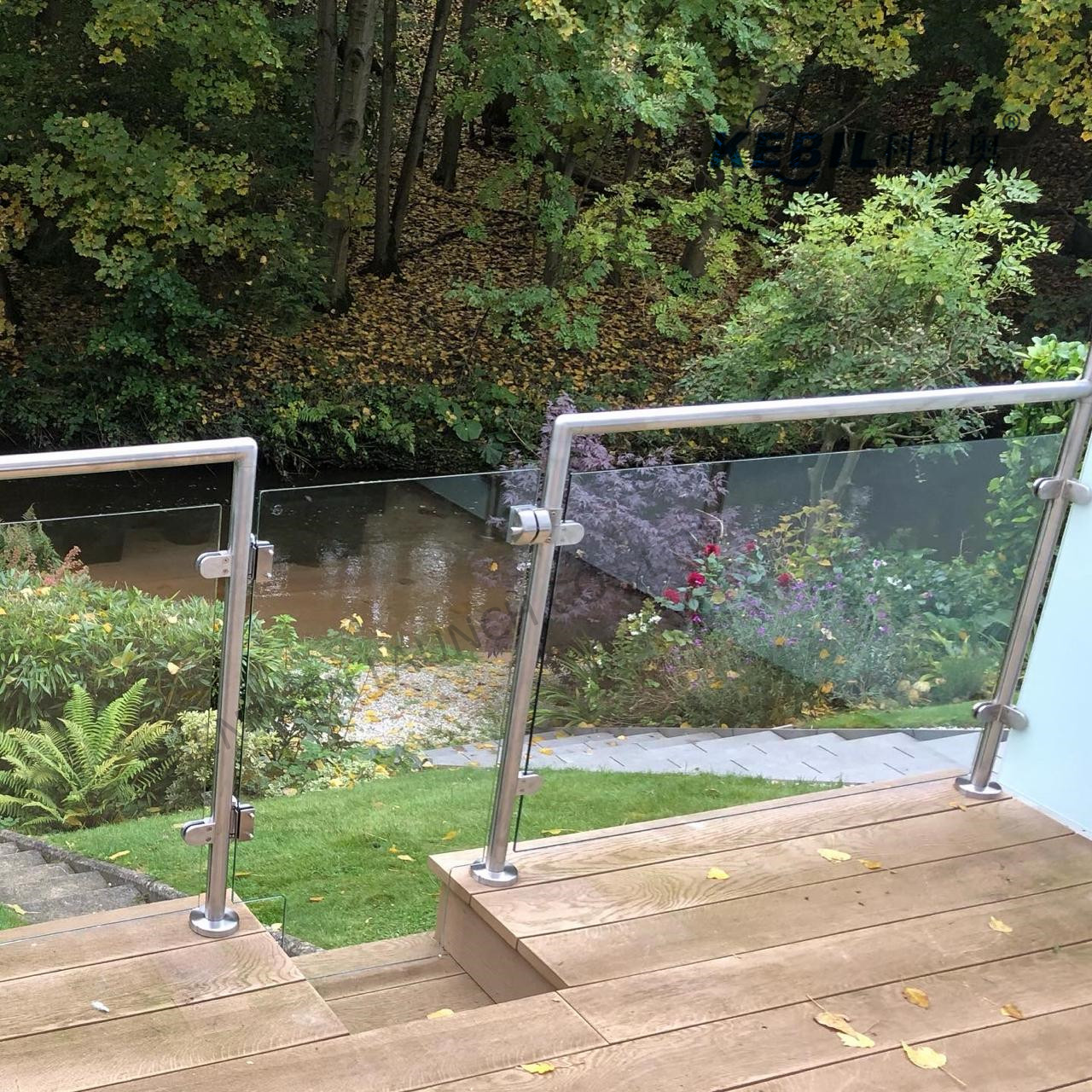

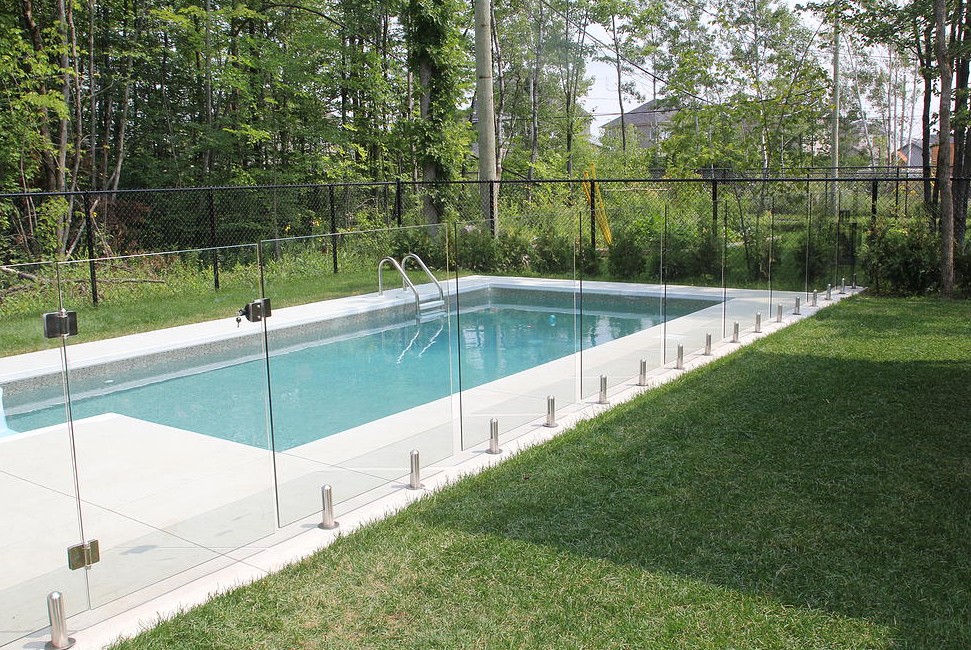

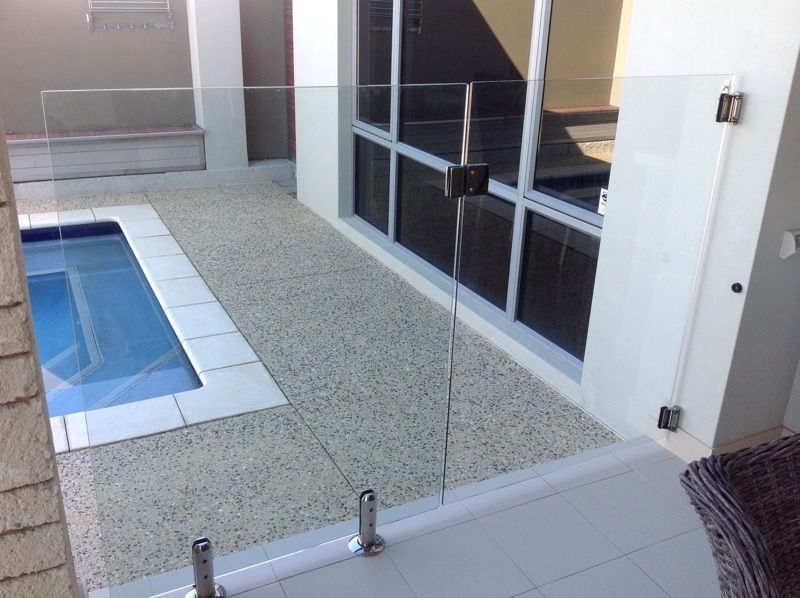

project photos of glass pool fence and glass balcony railing -
