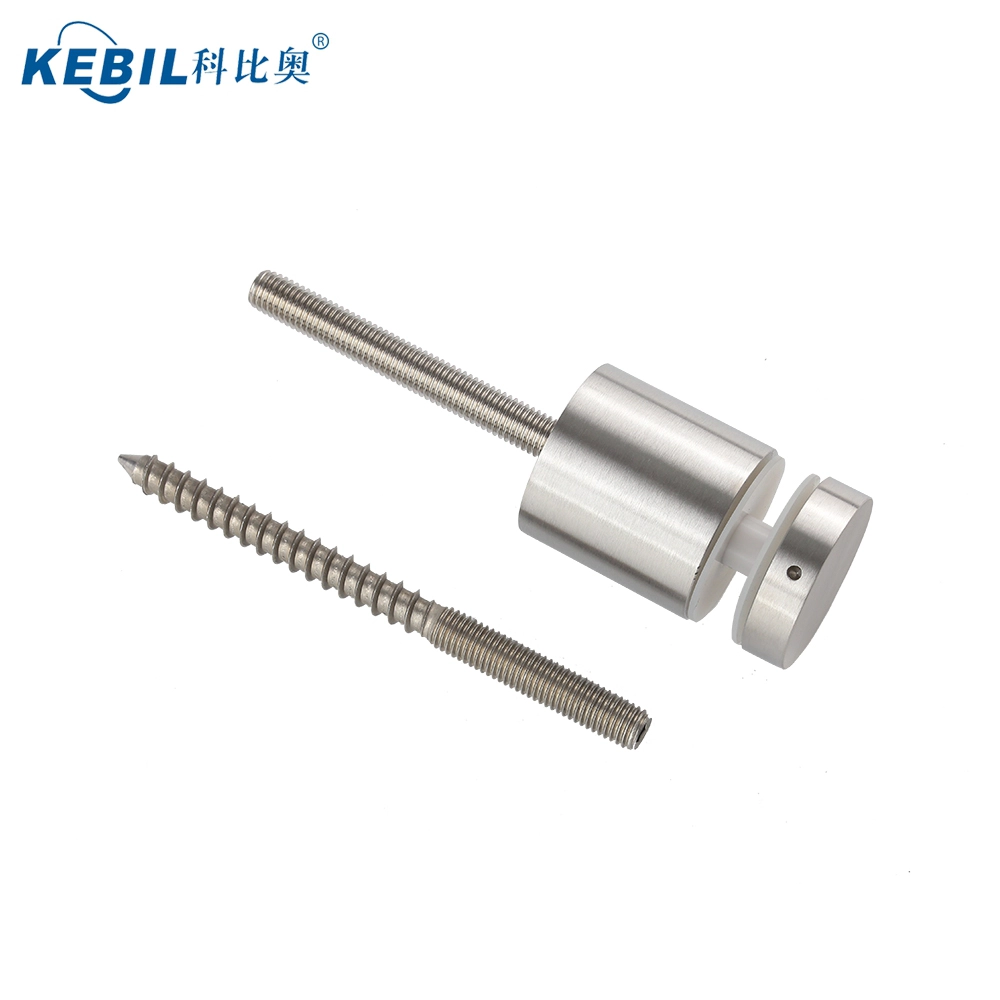

Glass Standoff Bracket, Glass Standoff Bolts ,Glass Wall StandoffGlass Standoff Bracket, Glass Standoff Bolts ,Glass Wall StandoffGlass Standoff Bracket, Glass Standoff Bolts ,Glass Wall Standoff

Glass Standoff Bracket, Glass Standoff Bolts ,Glass Wall Standoff

  • Material: Stainless steel 304/316
  • Surface treatment: Satin brushed or mirror polished
  • Dimension: 50*12mm cap, 50*30mm body, M12*120 bolt
  • Silicon rubber gasket: included
  • For glass thickness: 10-19mm glass panels
  • Type: heavy duty
  • Other dimensions available: Diameter 25mm, 30mm, 38mm, 40mm
Glass Standoff Bracket, Glass Standoff Bolts ,Glass Wall Standoff
Specifications:
Product Name

  Glass Standoff Bracket, Glass Standoff Bolts ,Glass Wall Standoff

Material
Stainless Steel 304/316
Other Name
glass standoff, standoff glass railing
Finish
Mirror polished, or satin prushed
Glass standoff size
50x12mm cap, 50x30mm body, M12*120mm bolt, silicon rubber gasket included
For glass thickness
12-19mm, or as per customers' requirements
Drilled Glass Hole
Diameter 14mm required in glass
Net weight
750g/piece
Mounting
wall mounting/side mounting/fascia mounting
MOQ
10 pieces
Sample
Available
OEM & ODM service
Acceptable
Application
Indoor and outdoor staircases design,balcony railing,deck frameless glass railing, Juliet balcony design, floating staircase
Factory Inspection
Available

Dia 50mm

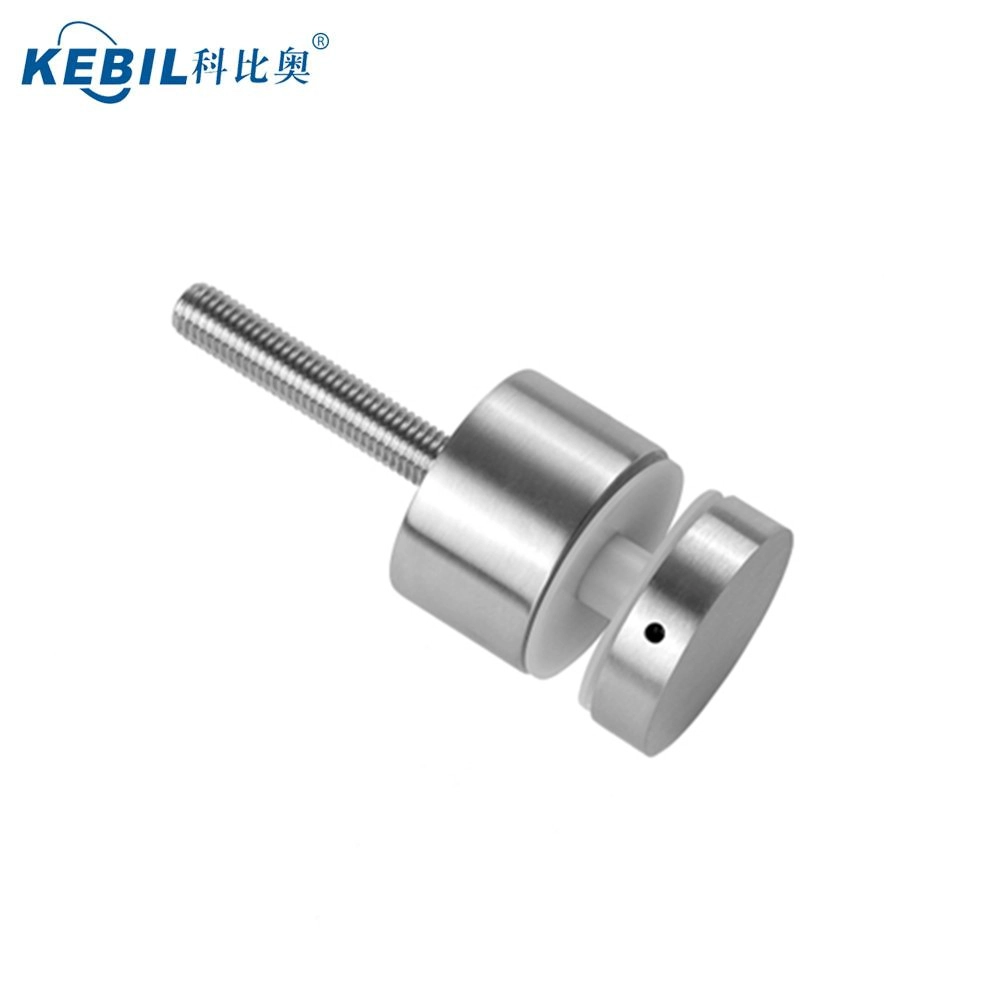

 Glass Standoff/Button in Satin Finish:

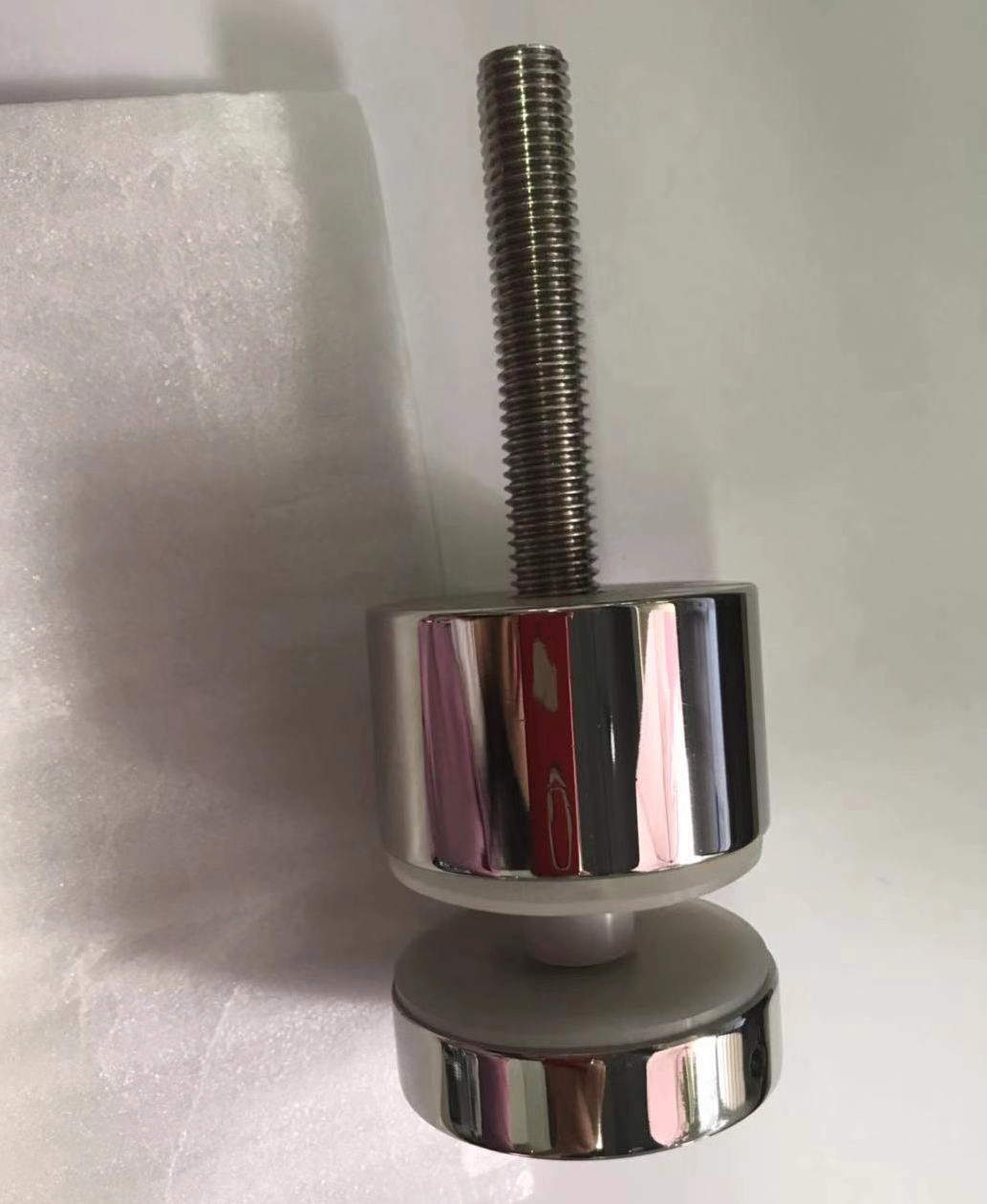

Dia 50mm Glass Standoff/Button in Mirror Finish:

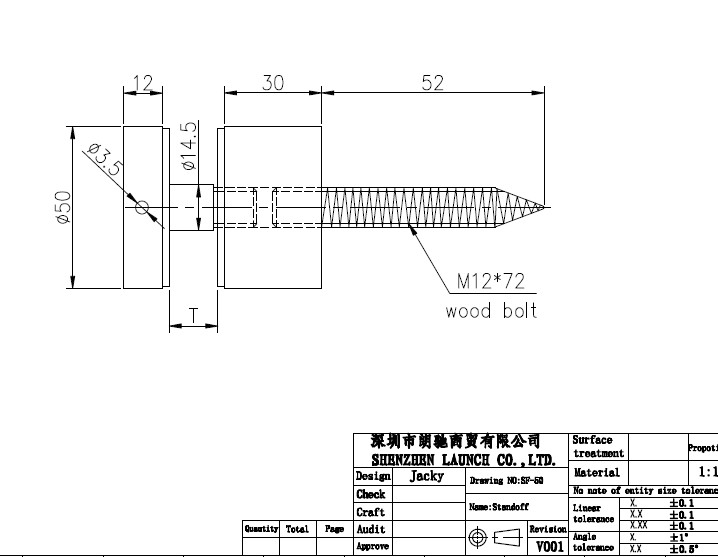

With wood screw for mounting to wooden substrate:

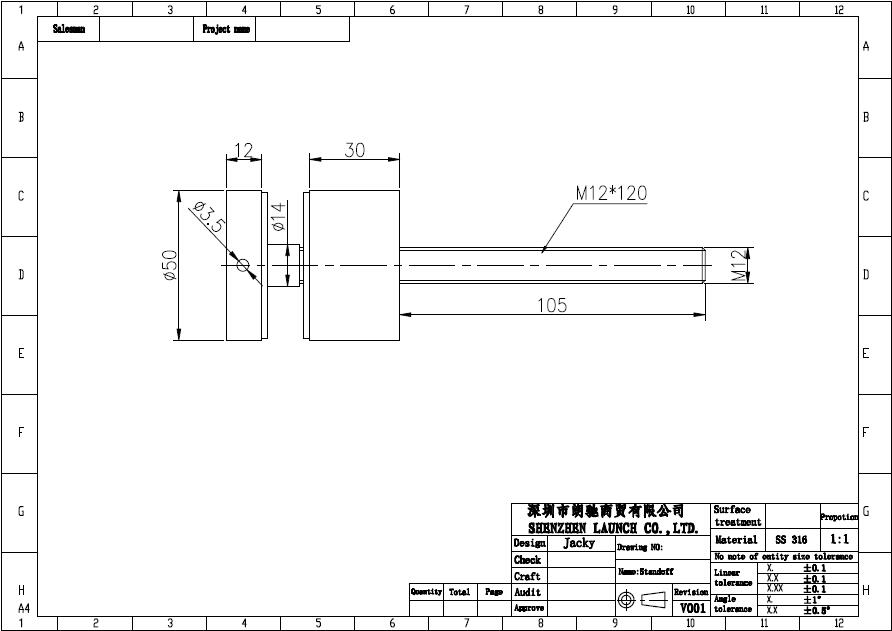

Technical Drawing:

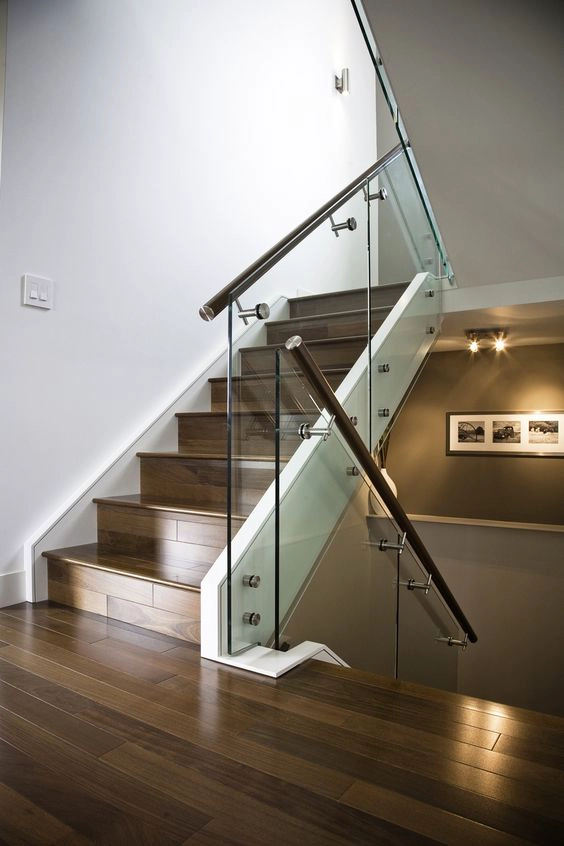

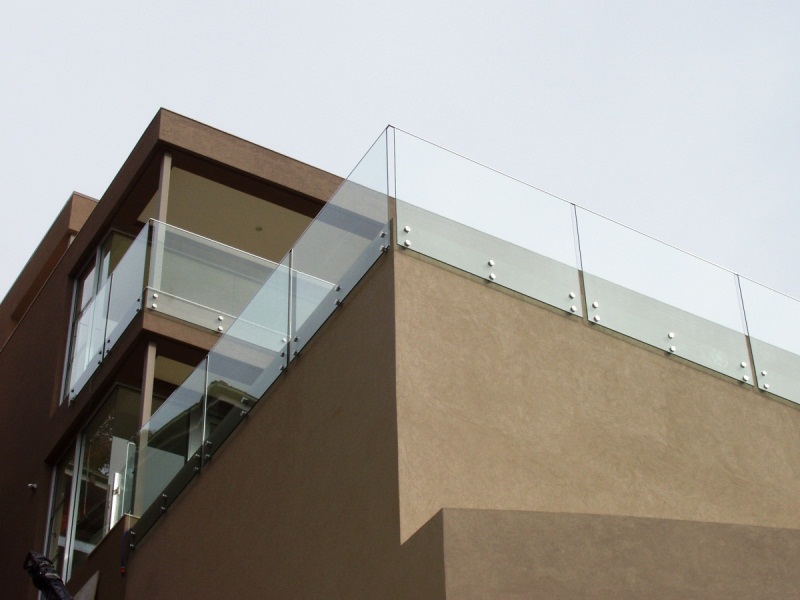

Project Photos:
Glass Button Balustrade System Stainless Steel Balustrade
