Glass rail standoff 50mm diameter for 10mm to 19mm tempered glass

Glass rail standoff 50mm diameter for 10mm to 19mm tempered glass

  • Model no. SF-50
  • glass standoff Model:SF-50
  • for 10-19mm thick glass railing
  • available in brushed and mirror finish
  • material:stainless steel 304 and 316
  • net weight:0.6kg
  • MOQ : 20 pcs
  • country of origin:China
Glass rail standoff bracket (model no. SF-50) for 10-19mm tempered glass , mounted into concrete .

detailed information about glass railing with standoff
1.specification of glass standoff:
cap:50*10mm,body:50*30mm,M12*120 thread bolt.silicon rubber gasket included
2.OEM design is available
3.for 10-19mm tempered glass
4.net weight:0.6kg
5.material:stainless steel 304/316
6.finish:brushed and mirror finish
7.easy for installation

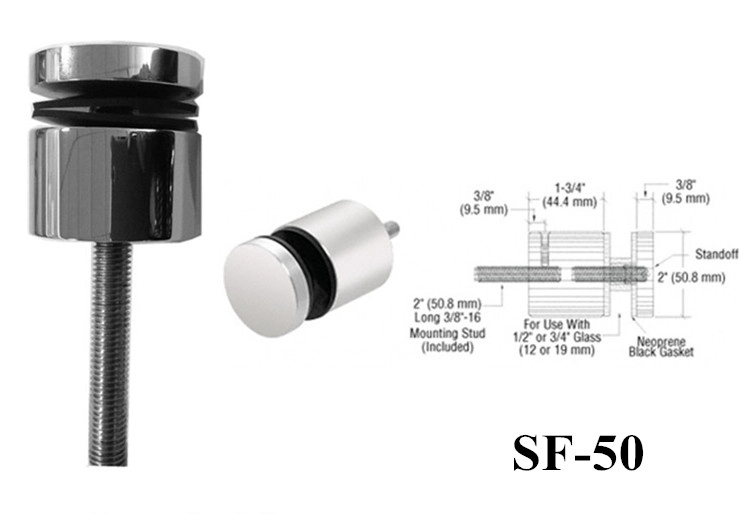

Dimensions of glass rail standoff bracket :


Glass rail standoff

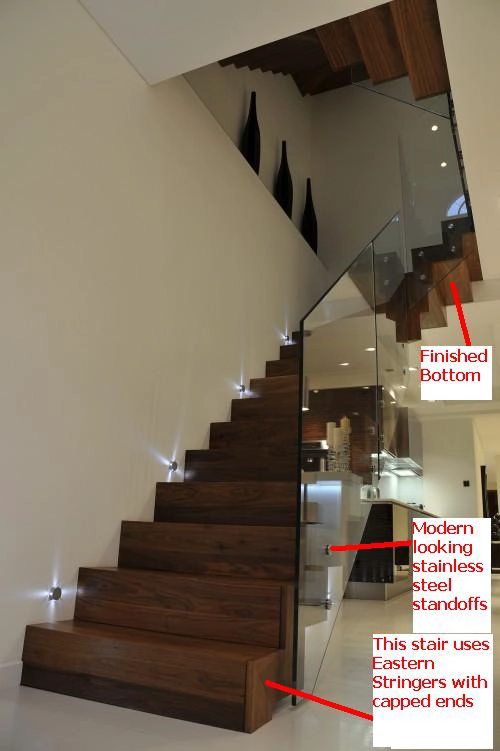

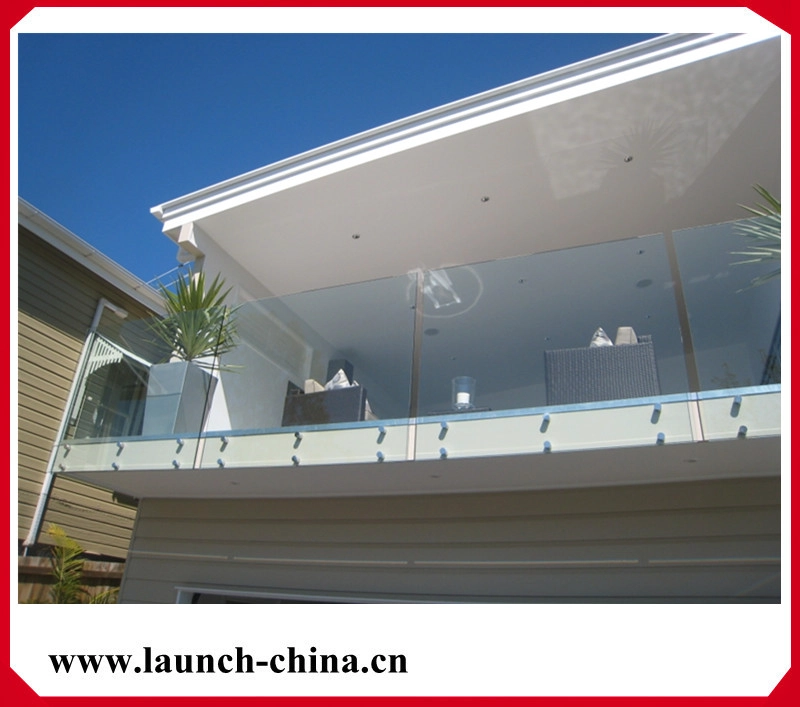

More project photos for glass rail standoff after installation :
