Glass to glass hinge heavy duty glass door hinge design

Glass to glass hinge heavy duty glass door hinge design

  • stainless steel 316
  • satin brushed and chrome(mirror) polished
  • 8-12mm toughened glass use
  • soft self closing
  • Australian & New Zealand standard
  • MOQ: 1 set(including 2 pieces)
  • Item No: G-G1, G-G2, G-G
  • frameless glass pool fencing stainless steel square tube hinge fittings
  • glass to glass hinge frameless heavy duty glass door hinges
  • heavy duty gate hinges
glass to glass hinge frameless heavy duty glass door hinges

Three models heavy duty glass hinge specifications,
1.Material: stainless steel 304 or 316
2.Finish: Brushed or mirror polished
3.Glass to glass 180 degree
4.Suitable for 8-12mm thickness glass
5. Three models available,
1). Model No.G-G1, sheet metal made, net weight around 435g/pc
2). Model No.G-G2, casting made, net weight around 845g/pc
3). Model No.G-G, casting made, net weight around around 1225g/pc


1. Model No. G-G1, sheet metal glass to glass hinge,

  • Usually for use with 8 - 10mm glass
  • Maximum door leaf weight: 20kgs/pair
  • Maximum door leaf width: 900 - 1000mm.
  • Spring can be adjusted for closing speed control





2. Model No. G-G2, casting made glass to glass hinge,

  • Usually for use with 8 - 10mm glass
  • Maximum door leaf weight: 20kgs/pair
  • Maximum door leaf width: 900 - 1000mm.
  • Spring can be adjusted for closing speed control






3. Model No. G-G, casting made glass to glass hinge,

  • For use with 8 - 12.7mm glass
  • Maximum door leaf weight: 30kgs/pair
  • Maximum door leaf width: 900 - 1100mm.
  • Spring can be adjusted for closing speed control

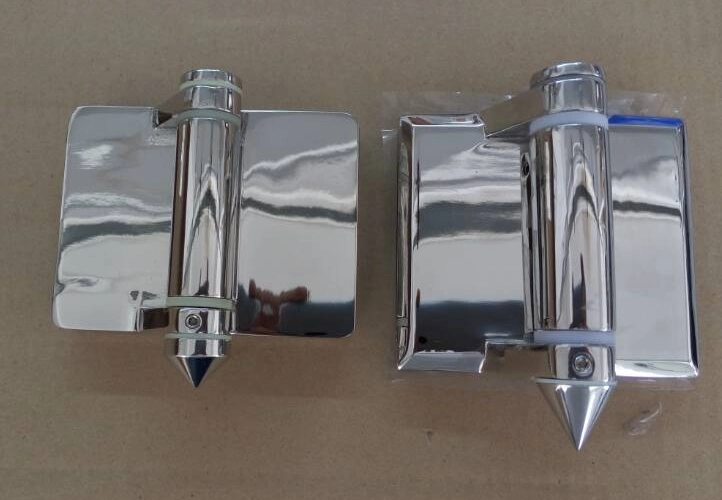

The left is Model No.G-G2 , and the right one is G-G :

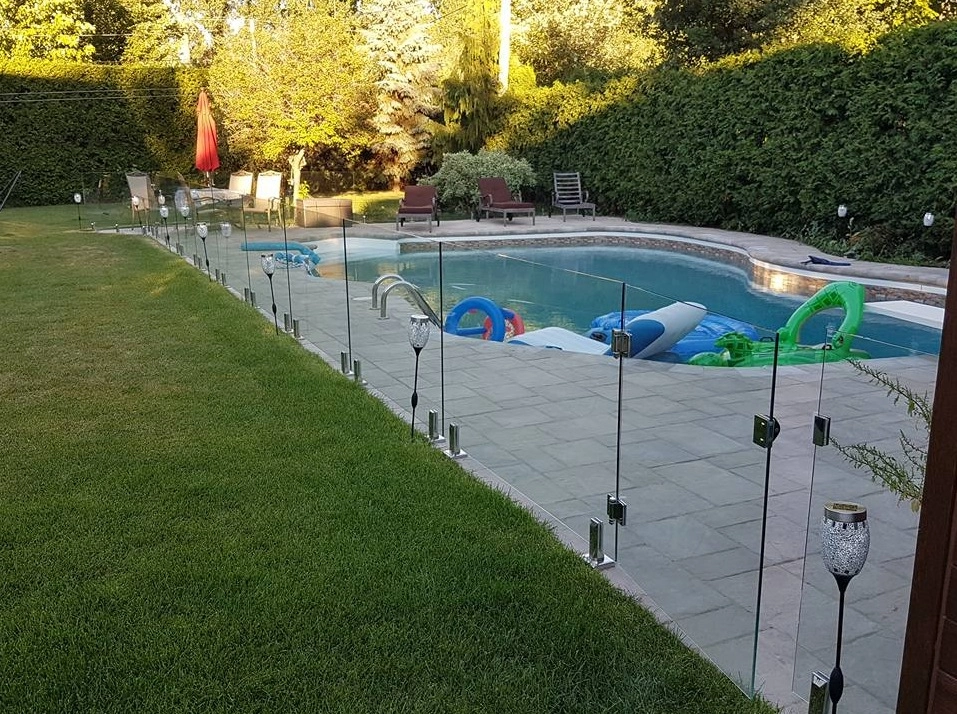

Glass pool fencing Project finished photos for your reference :


Thanks for your visiting, Any interested or needs, please contact with me freely :
