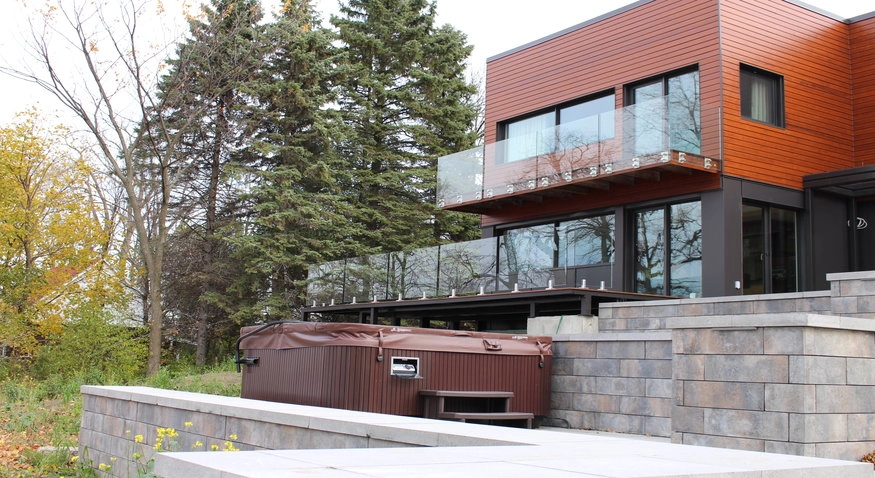

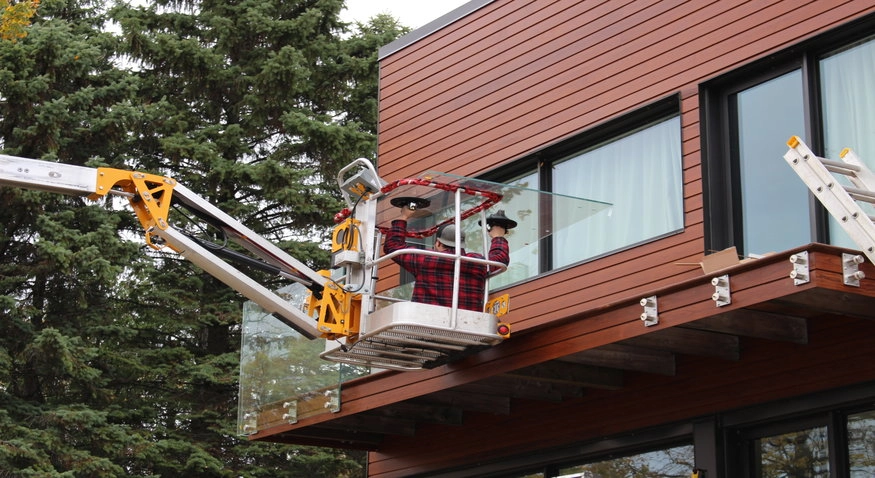

Latest house glass railing project for canada

Check out the our latest house glass railing project for Canada . Round stainless steel glass railing post with 12mm thick clear tempered glass , top ...

Ready Stainless Steel Bollards for Shipping to UAE

Ready Stainless Steel Bollards for Shipping to UAE Diameter 114mm round stainless steel bollards with 3.4mm thickness Please contact us for more infor...

Powder coated aluminum fence for metro station in Melbourne

Powder coated aluminum fence for metro station in Melbourne OEM & ODM SERVICES AVAILABLE. Welcome to contact: sales03@launch-china.cn HP/WhatsApp/WeCh...

Welcome to Visit our Booth at the 123rd Spring Canton Fair 2018

Canton Fair(China Import and Export Fair) is the largest trade fair with the largest scale, the most complete exhibit variety, the broadest distributi...
Certifications
CCC Certificate
Contact us
Shenzhen Launch Co., Ltd Office add : B5-003, 5/F-Block 3, Yilida Building, No. 1092 Nanshan Road, NanshanDistrict,Shenzhen , China , postal code 518...Contact Now
Heavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50THeavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50THeavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50THeavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50T

Heavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50T

  • Heavy duty glass rail standoff fitting with mounting plate.
  • Material: Stainless Steel 316.
  • For 1/2”-3/4” (12-19mm) tempered glass.
  • Glass fabrication: Glass cutting required.
  • For mounting to steel, concrete or wood.
  • Finish: Satin.
Heavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50T

Product Name

 Heavy Duty Glass Rail Standoff Fitting with Mounting Plate SF-50T

  Model No.
  SF-50T
Material
Stainless Steel 304/316
Finish
Mirror polished, or satin prushed
Glass standoff size
50x12mm cap,50x44mm body,200*100*10 base
For glass thickness
12-19mm, or as per customers' requirements
Drilled Glass Hole
Diameter 14mm required in glass
Net weight
3236g/piece
Mounting
wooden, steel or concrete substrate
MOQ
One piece
Sample
Available
OEM & ODM service
Acceptable
Application
Indoor and outdoor staircases design,balcony railing,deck frameless glass railing, Juliet balcony design, floating staircase
Factory Inspection
Available

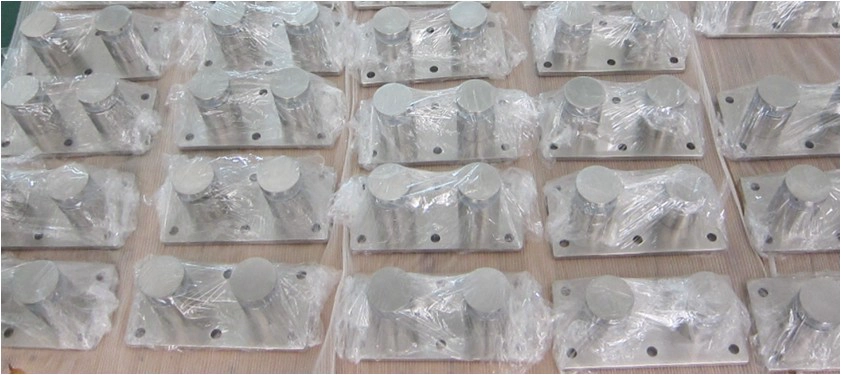

Standoff packing
One piece into one bubble bag, then into one white box, 12 pieces into one cardboard carton
or packing as per customers' requorements

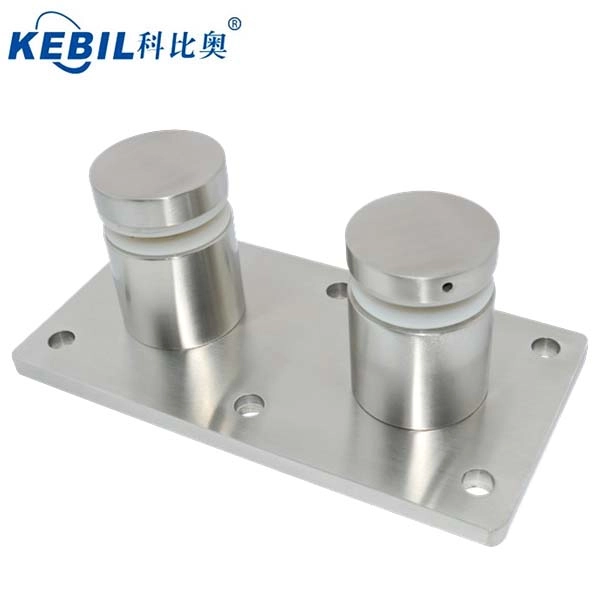

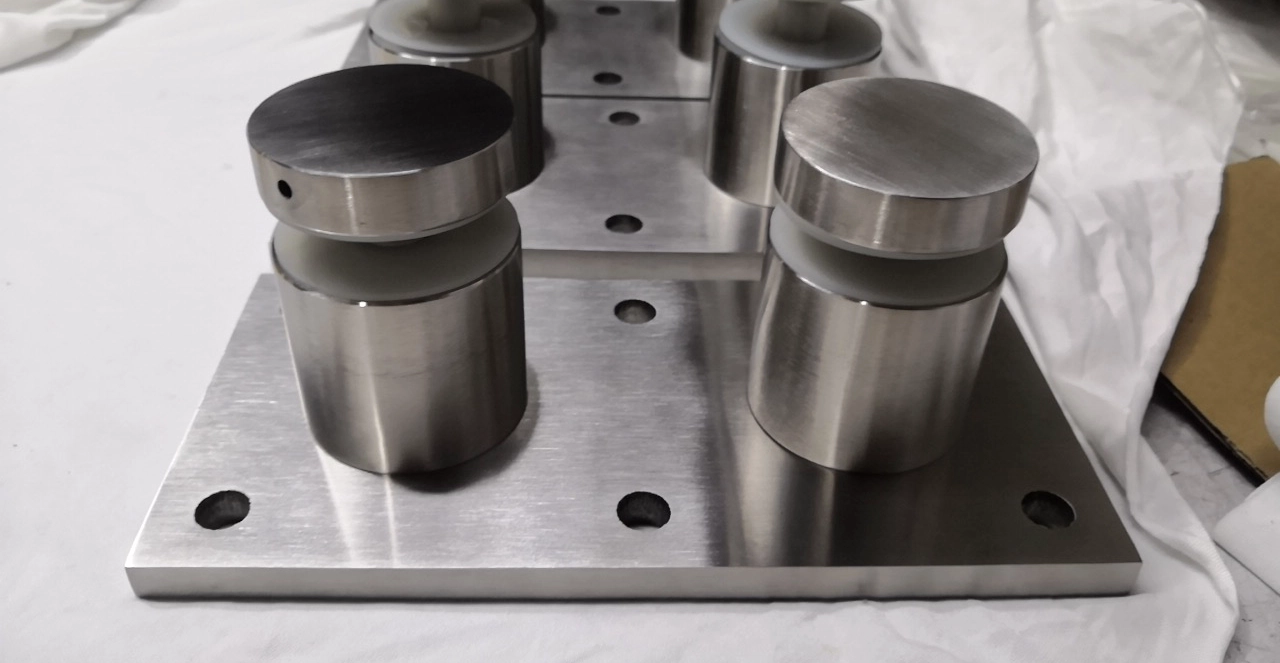

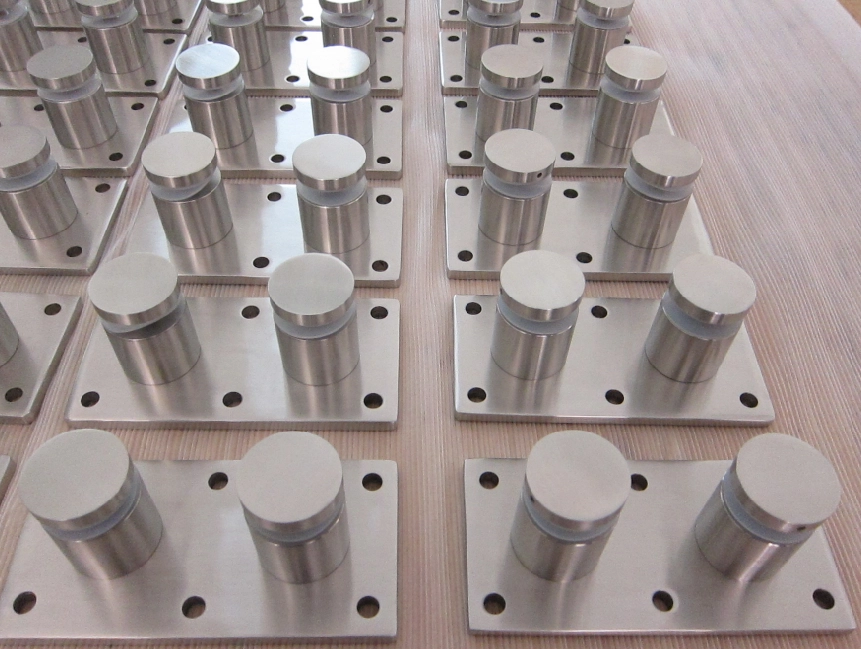

Product Show:

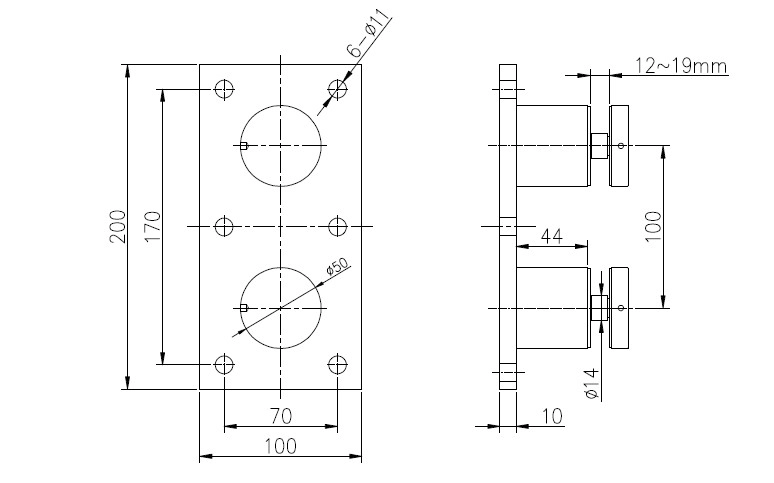

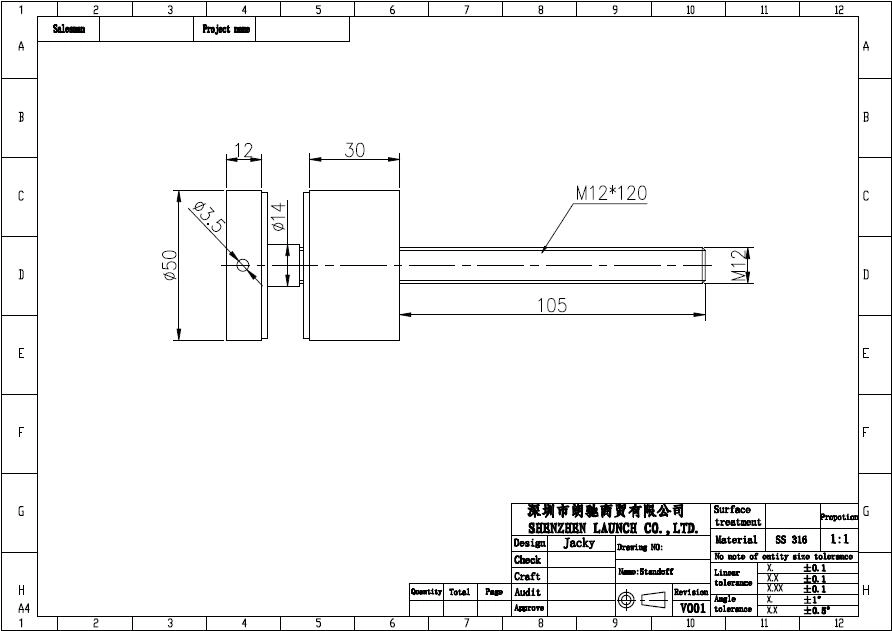

Technical Drawing:

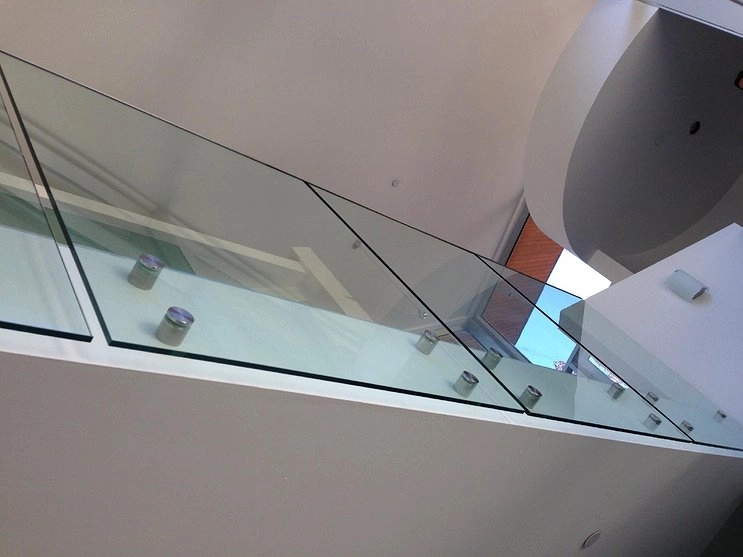

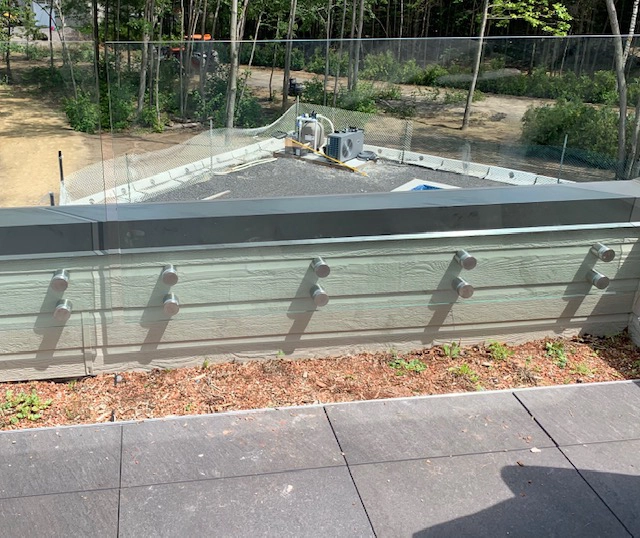

Project Photos:

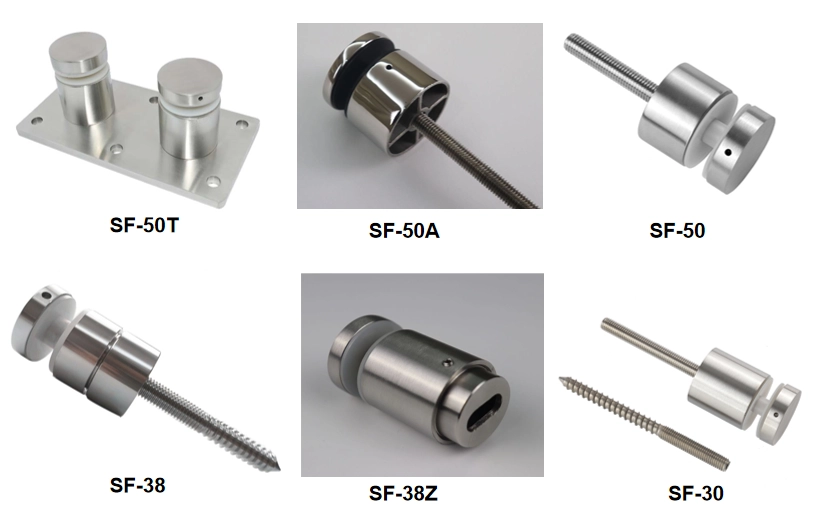

OTHER TYPES GLASS RAILING STANDOFFS AVAILABLE:

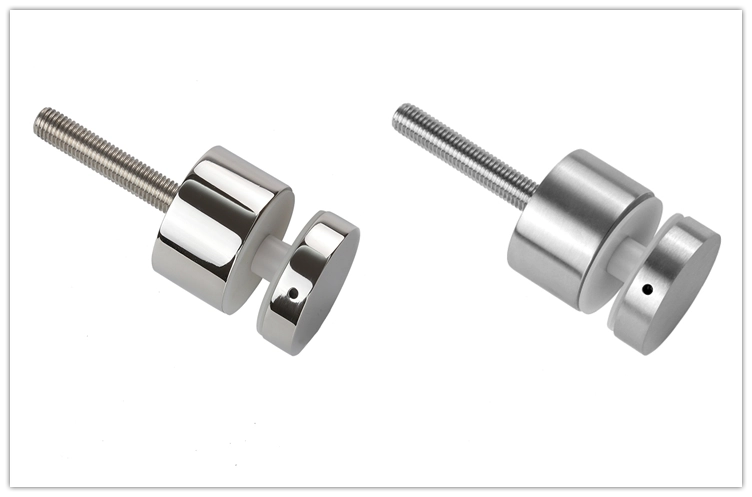

Dia 50mm Glass Standoff in Mirror / Satin Finish Model SF-50:

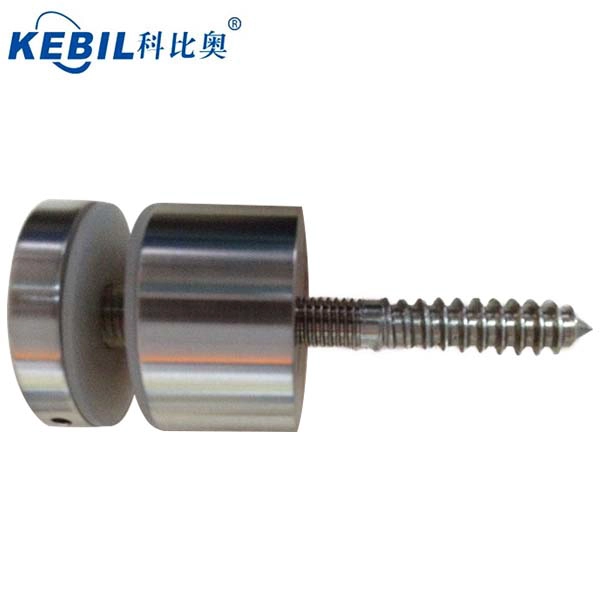

With concrete bolt & wood screw Model SF-50W:

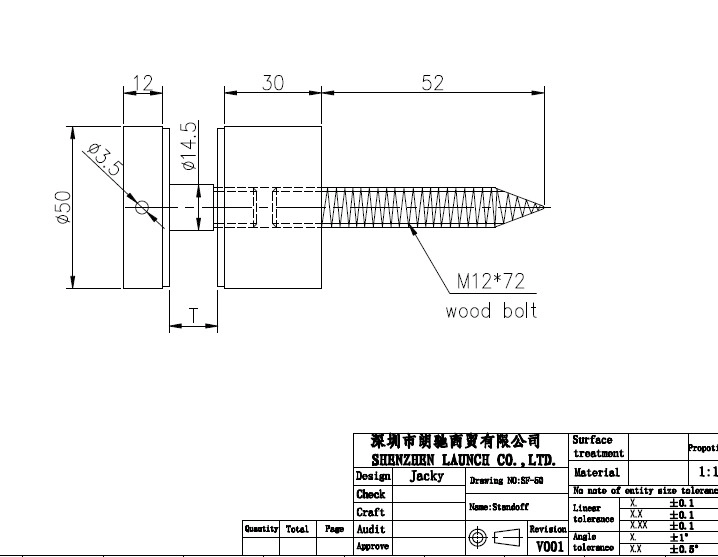

Technical drawing:

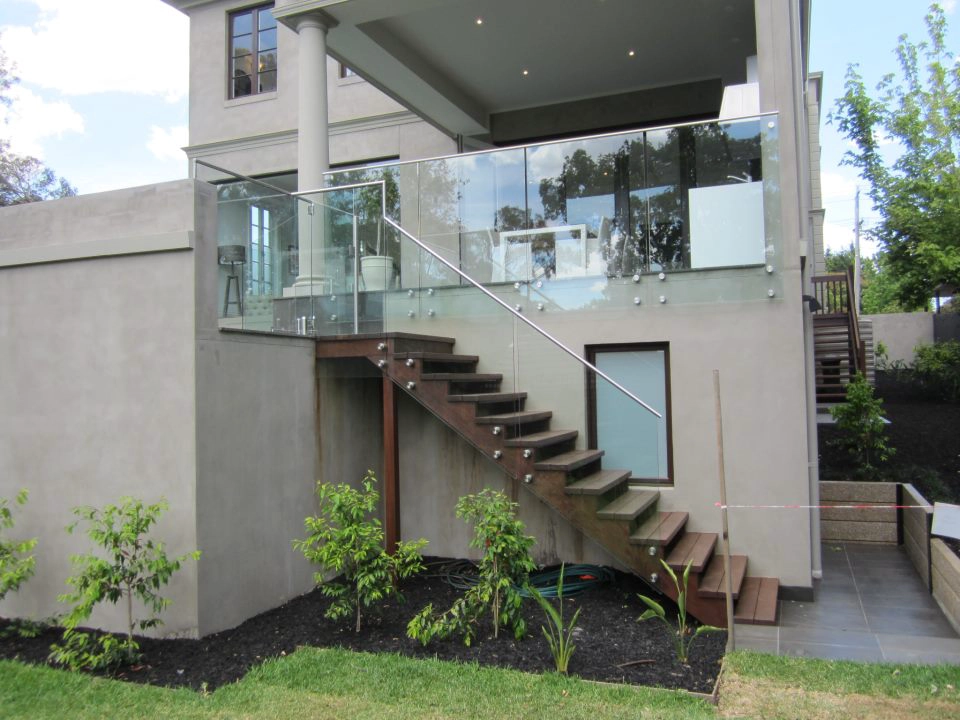

Project Photos:
outdoor and indoor glass standoff, frameless standoff glass railing design, stainless steel glass standoff bracket, glass standoff pin
