Modern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade HandrailModern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade HandrailModern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade Handrail

Modern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade Handrail

  • Material: stainless steel 304 (V2A) / 316 (V4A)
  • Finish: brushed satin or mirror polished
  • Cable diameter: 3 mm, 4 mm, 5mm or 6mm
  • Application: balcony/deck/stair/porch/bridge railing systems
  • Sample available for quality testing
  • Origin: Shenzhen, China


Modern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade Handrail


Technical specifications:
Product Name
Modern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade Handrail
Material
Stainless steel 304 or 316
Surface Treatment
Mirror polished or satin brushed
  For cable diameter   3mm, 4mm, 5mm or 6mm
Dimension of round post
Diameter 50.8mm, tube wall thickness 1.5mm
Dimension of square post
50*50(mm), tube wall thickness 1.5mm
Handrail
Round diameter 50.8mm, square 50*25(mm)
Installation
Self tapping / Explosion bolts / Screws
Mounting
Floor mounted / side mounted
Application
Balcony, deck, porch, terrace, stair, mall handrail / railings
Accessories
Full set accessories available

Modern Design Stair Railing Stainless Steel 304/316 Outdoor Balustrade Handrail with Doors:

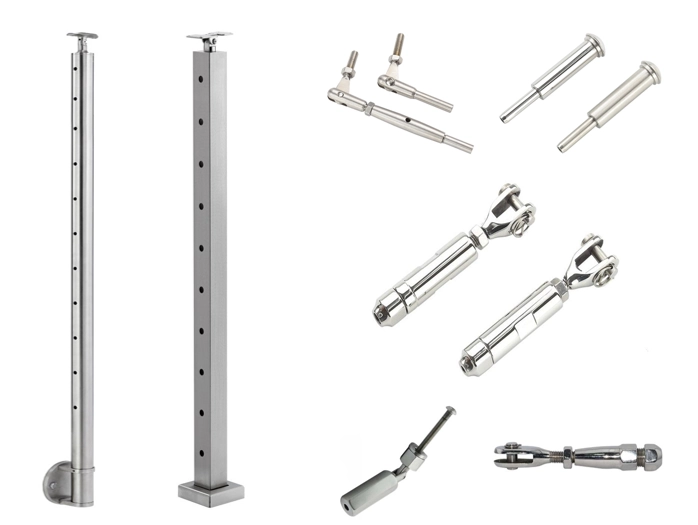

Cable railing fitting designs:
Model 
T803, Swageless design stainless steel cable tensioner for diameter 4mm and 5mm cable:

Model T804, Swage design stainless steel cable tensioner for diameter 5mm and 6mm cable:


Model T801, stainless steel cable tensioner for diameter 3mm and 4mm cable:

Model T802, stainless steel cable tensioner for diameter 5mm and 6mm cable:

Model T807A, stainless steel cable tensioner for diameter 3mm cable:

More information:

Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It is resistant to corrosion and corrosion of most chemicals and is particularly resistant to salt water corrosion.

These can be used for a variety of applications. Sailboats and yachts, cable railings and shade sails.
1) Material: 316 stainless steel or 304 stainless steel
2) Surface finish: mirror polished or satin finish
3) Standard: metric and UNF
4) Customer design: our team of experienced engineers can develop products and manufacture according to samples, drawings or just ideas
5) Delivery: by sea, by air or by express service
6) Price term: FOB or CIF
7) Dimensions: from 3mm to 6mm or according to your requests
8) Type: countersunk flared head, flared flat head and rounded head
9) Packing: clean poly bags and cartons and pallets or as per requests
10) For further cable railing fitting designs, send an e-mail for the complete catalog
