Self closing heavy duty spring loaded stainless steel 316 pool fence glass door hinge
- Material: stainless steel 316
- Finish: satin or mirror polished
- For glass thickness: 8-12mm
- Loading capacity: 30-32kg
- Net weight per piece: 1250g
- Types available: Glass to wall / square post model G-W, 180 degree glass to glass model G-G, Glass to round post model G-R
Self closing heavy duty spring loaded stainless steel 316 pool fence glass door hinge
Pool fencing spring loaded stainless steel 316 glass door hinge Description:
Material: stainless steel 316Finish: satin brushed or mirror polished
For glass thickness: 8-12mm
Loading capacity: 30-32kg
Types available: Glass to wall / square post model G-W, 180 degree glass to glass model G-G, Glass to round post model G-R

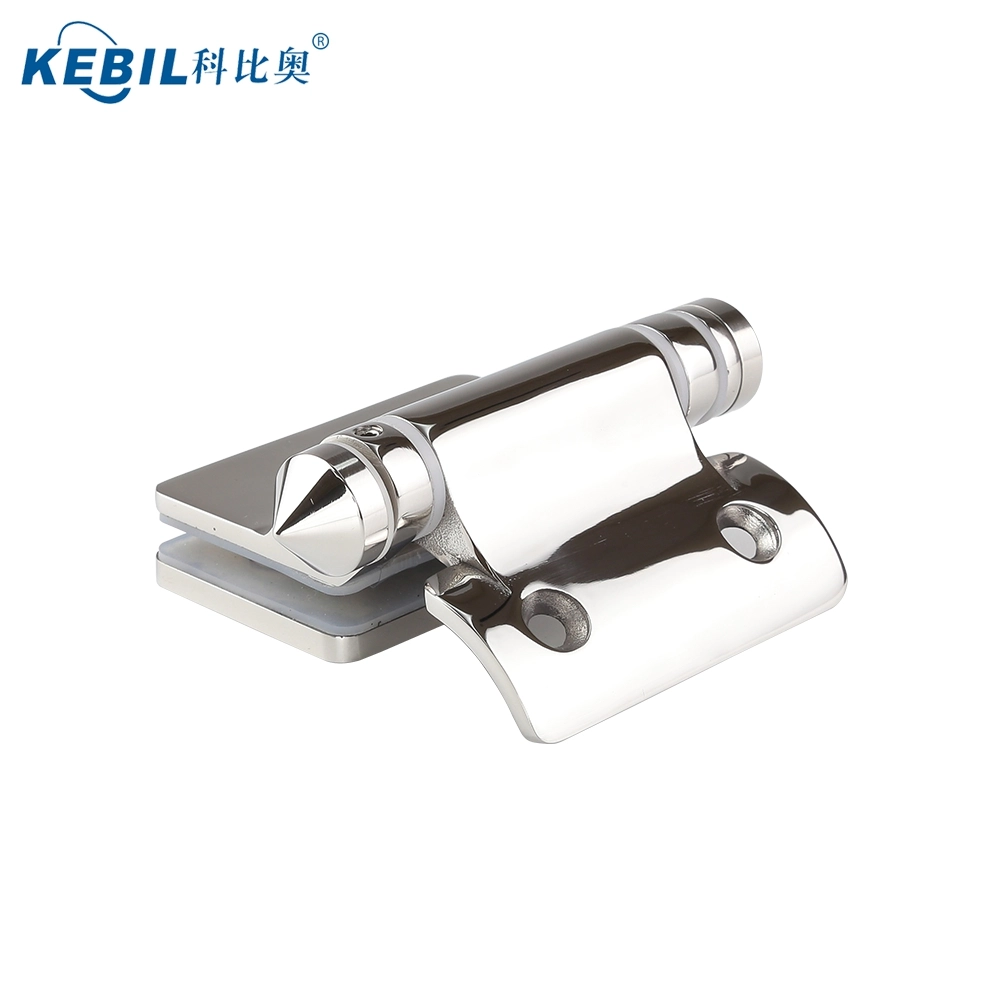

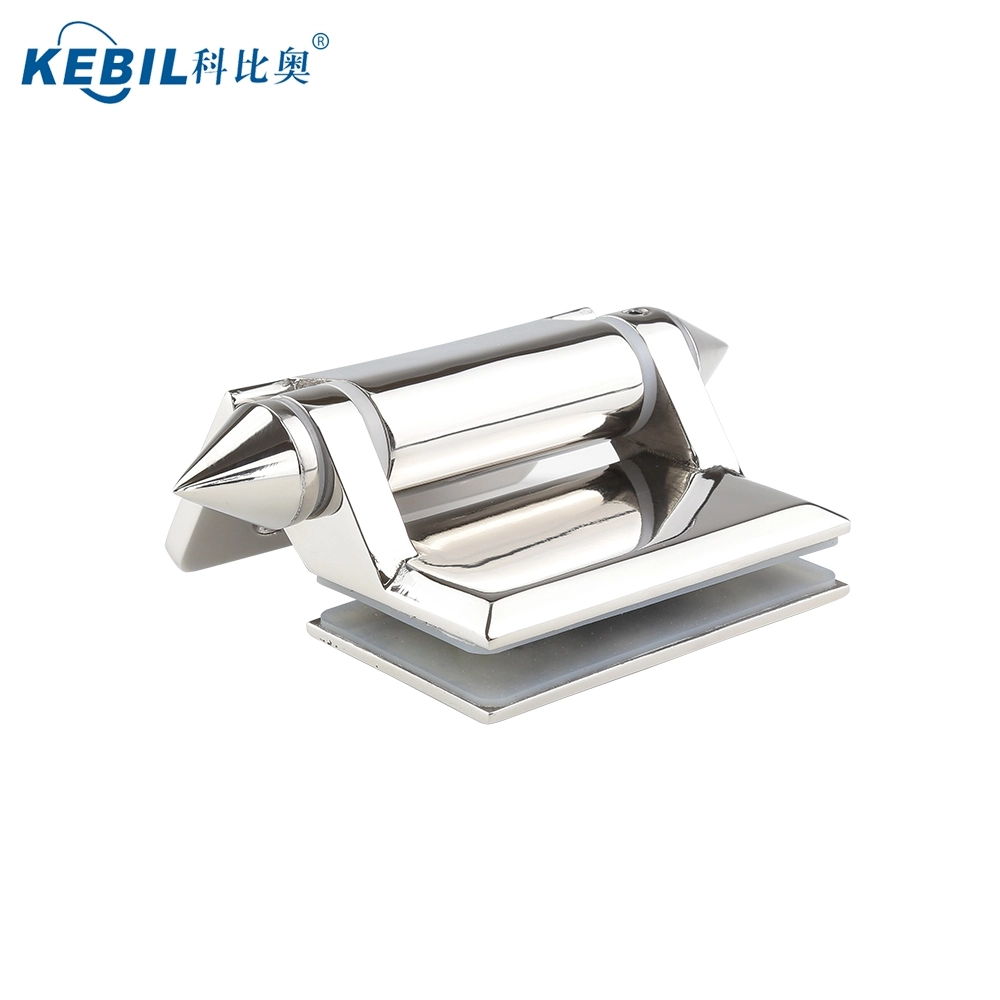

Model No. G-G, glass to glass hinge

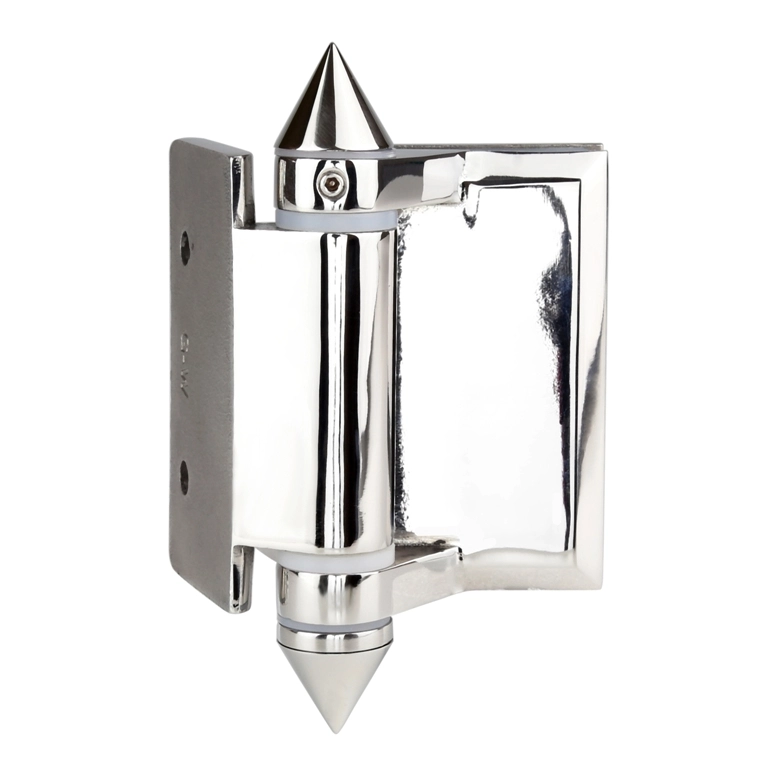

Model No. G-W2, glass to square post / wall hinge

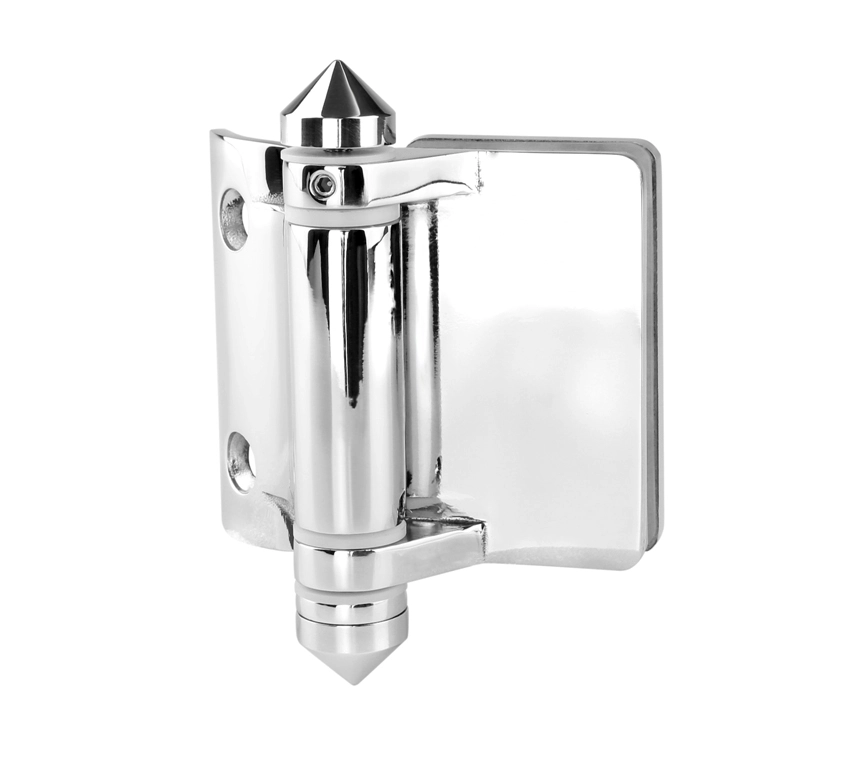

Model No. G-R, glass to square post / wall hinge

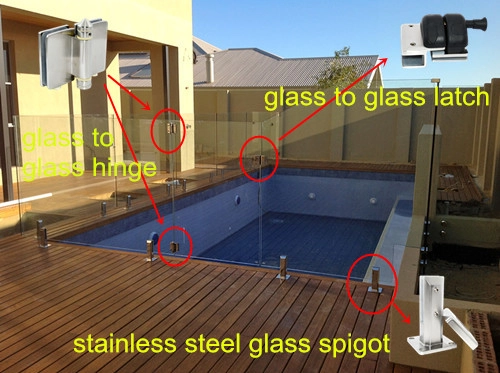

pool fencing spring loaded stainless steel 316 glass door hinge installed

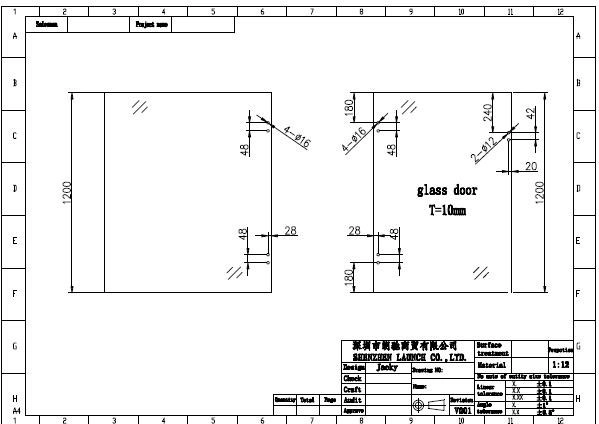

glass door hinge standard glass panel holes position drawing

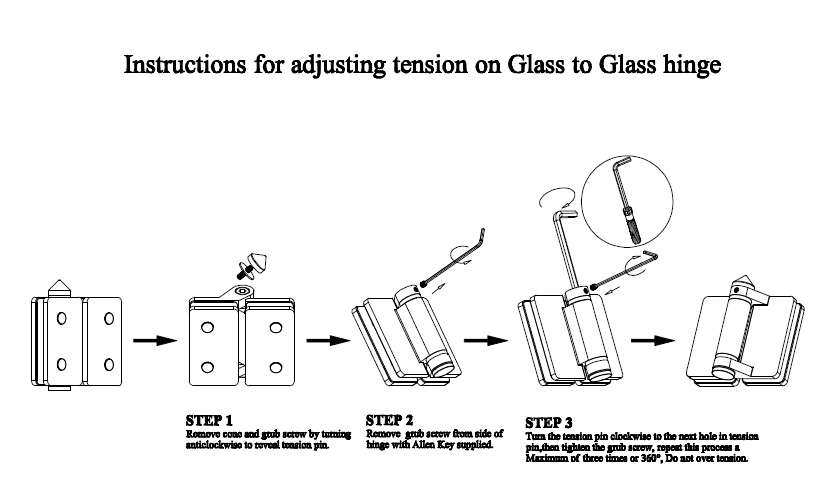

Stainless steel 316 pool fence glass door hinge installation instruction:

Contact us for more information now!
