Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge
- model G-G
- for 8-12mm glass gates
- 316 SS
- Matte black powder coating ; satin ; mirror
Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge
Features-
- Model No. G-G
- Material . 316 stainless steel
- Max. door leaf weight 30kg per pair of hinge
- Max. door leaf width 900mm
- Spring can be adjusted for closing speed control
Glass weight for reference for Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge
-
-
| Glass thickness | 8mm | 10mm | 12mm | 14mm |
| weight (kg/㎡） | 18.2 | 22.7 | 27.3 | 31.8 |

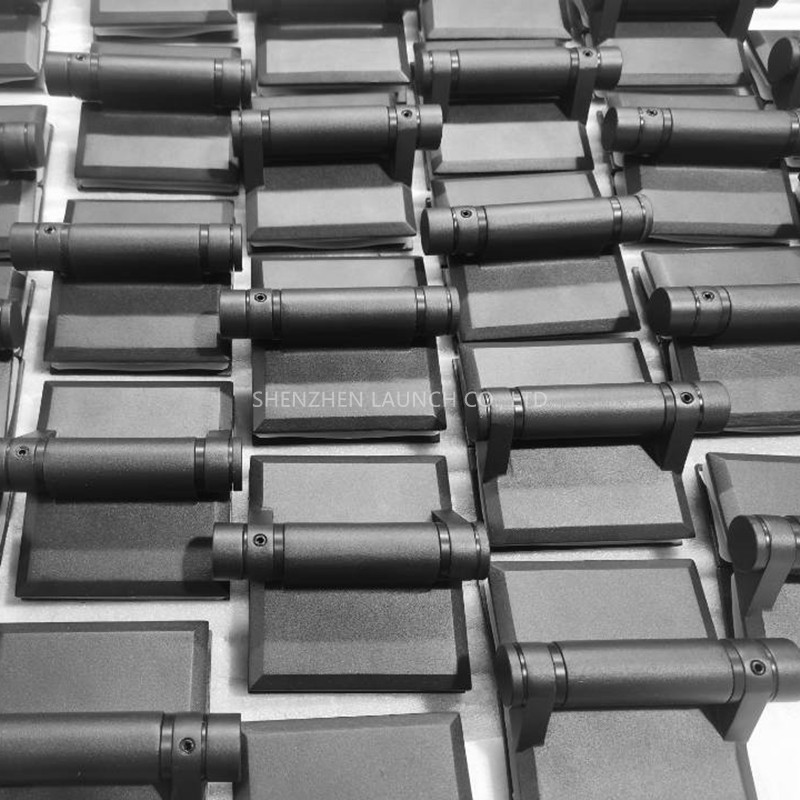

Matte Black powder coating finish for G-G Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge
-
satin finish for G-G
Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge

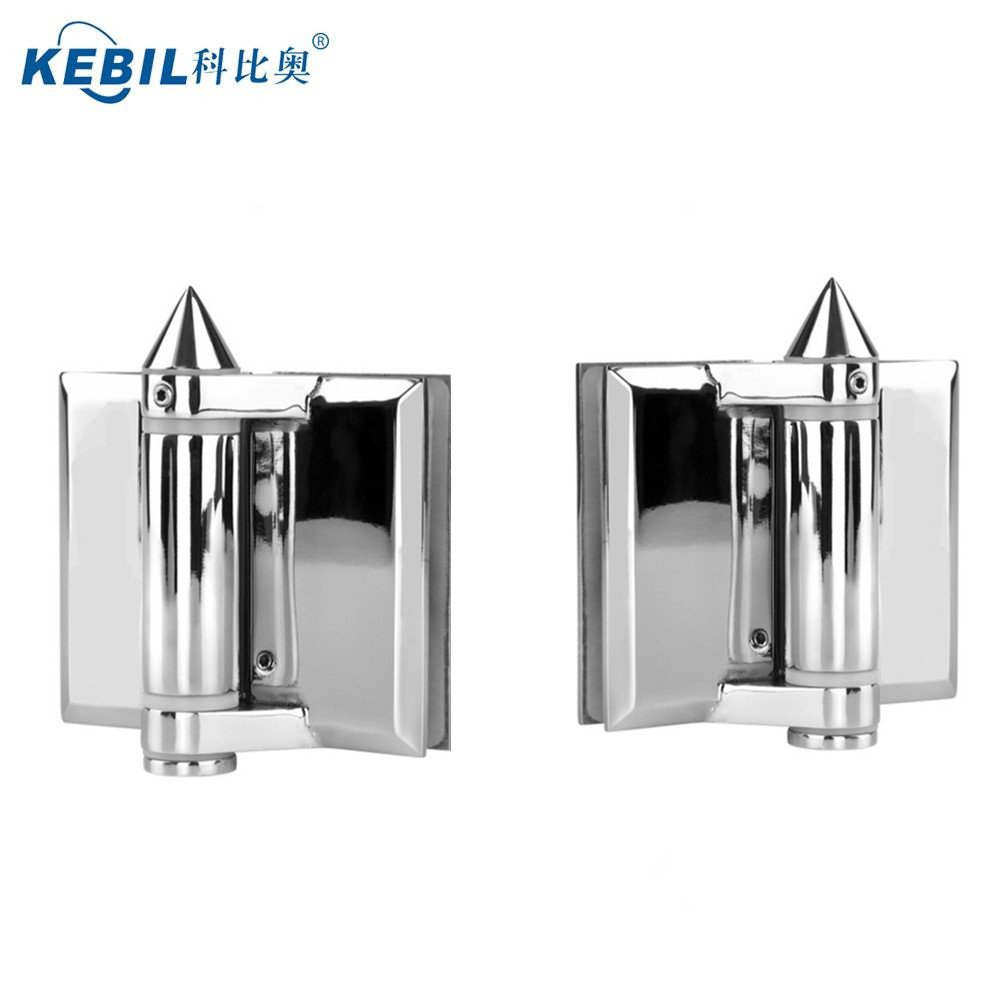

Mirror finish Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge-

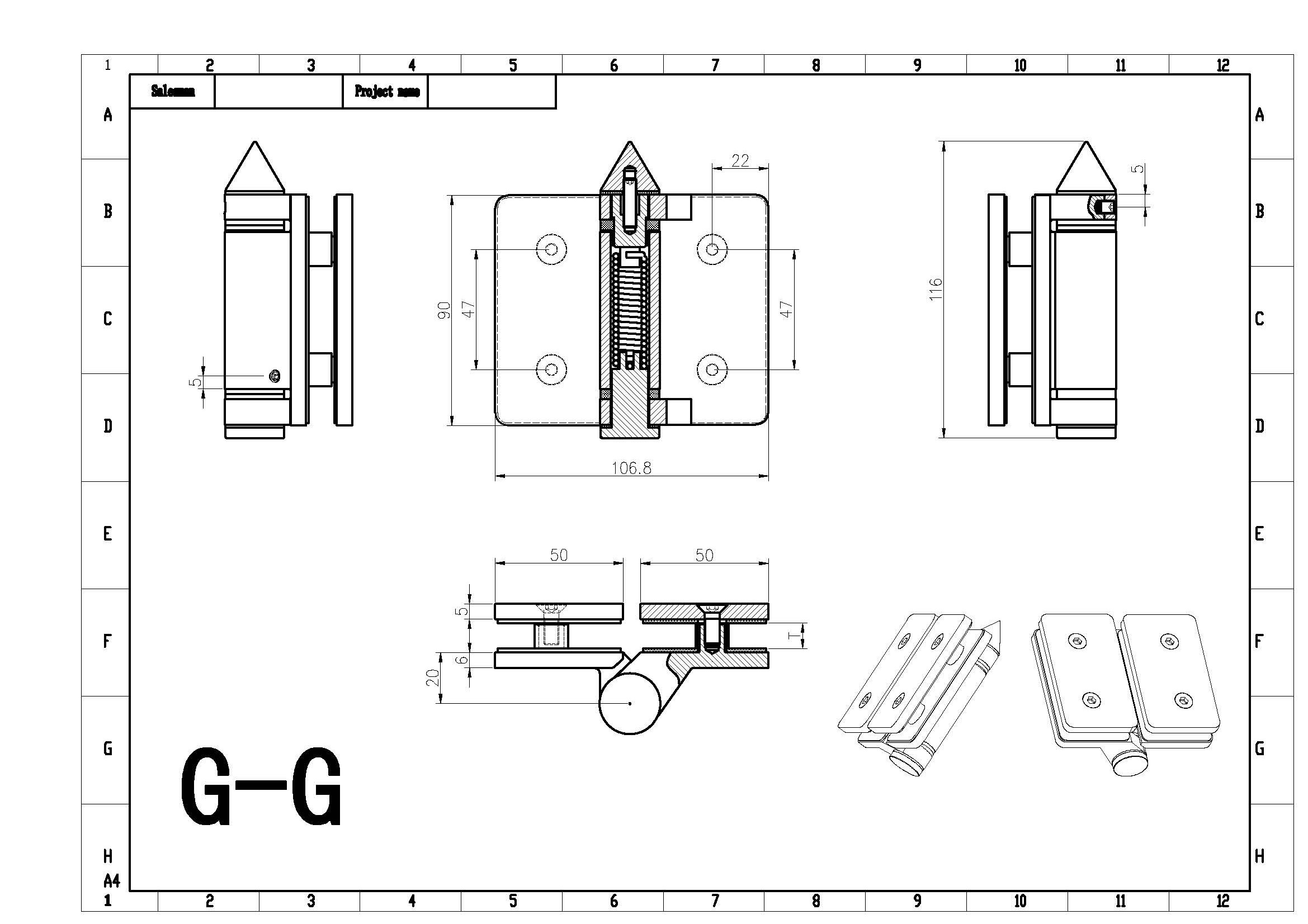

Dimension drawing for G-G Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge

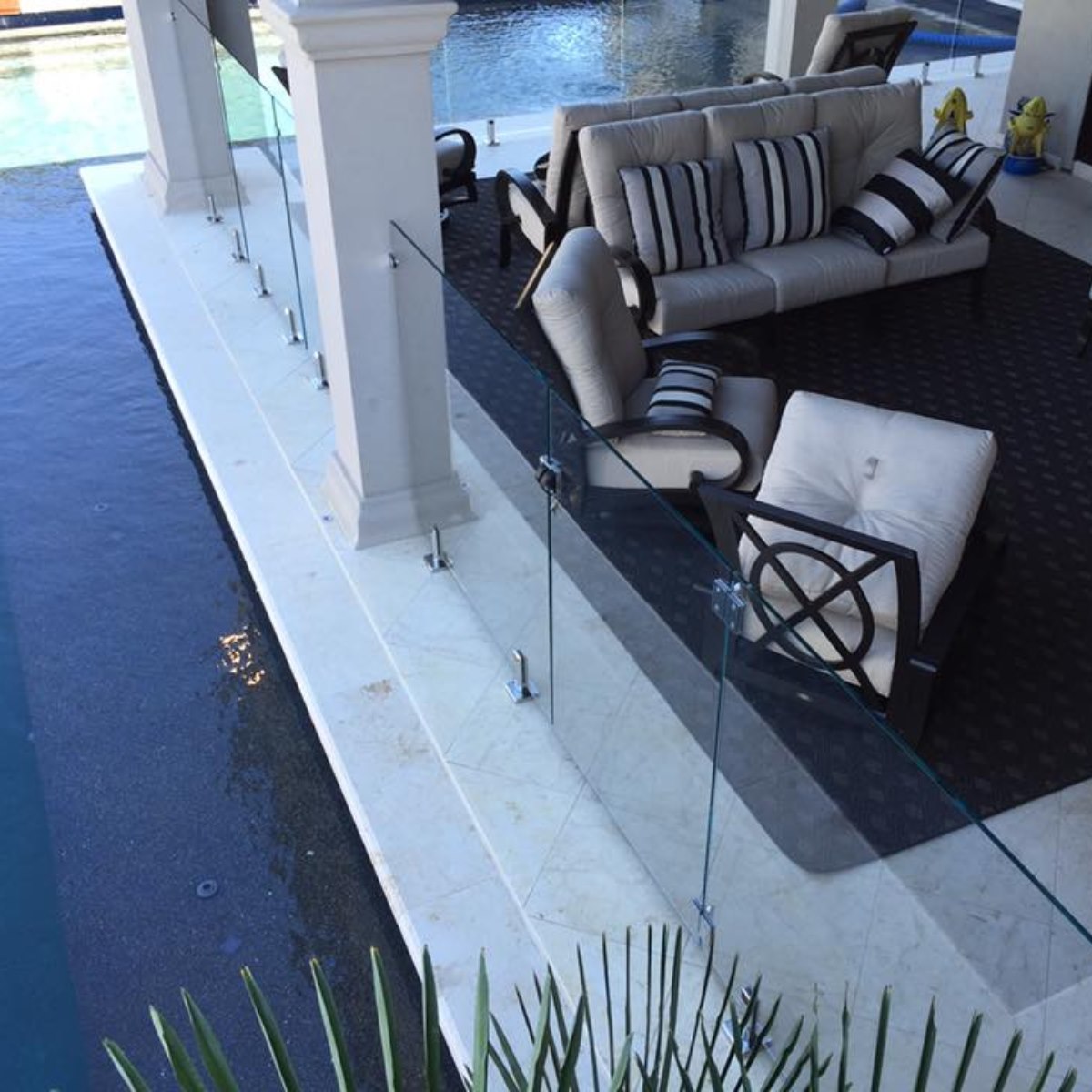

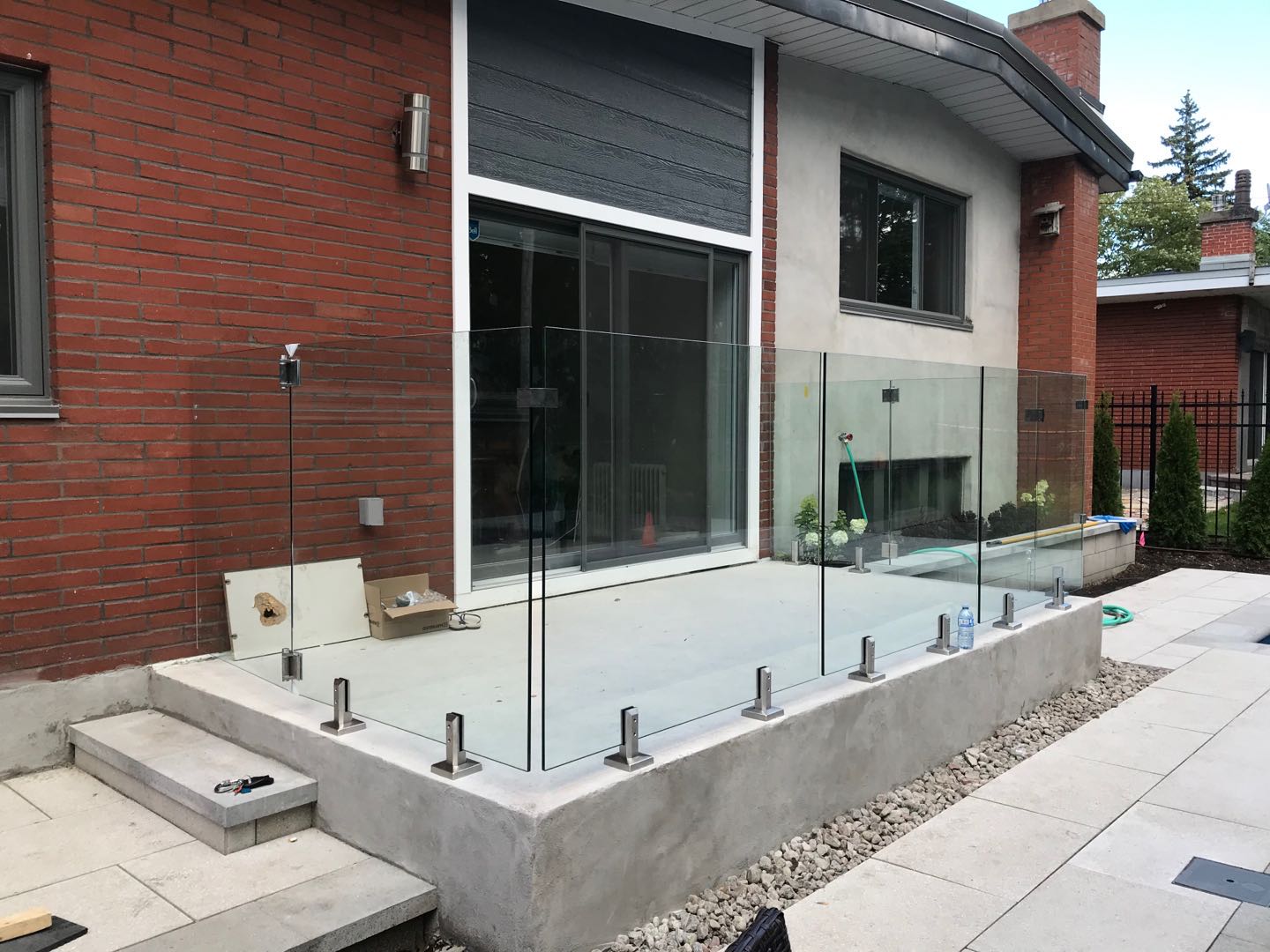

Project photos with G-G
Spring-loaded Adjustable 180° Glass-to-Glass Pool Hinge
