Square tube connector for 51*51*3.2mm 2"*2"*0.125” tube with screw holes
- Product name: Square Tube Connector
- Types: 2 way, 3 way, 4 way, 5 way tube connector
- Material: 304SS/316SS
- Surface finish: Satin/Mirror/Gold
- Tube size: 40*40*1.5mm, 51*51*3.2mm, or customized size
- MOQ: 10PCS
Launch China is manufacturer for glass railing, cable railing, aluminum railing products for more than 16 years. So our tube connector are used to connect the handrail when it's not longer enough, or connect in corner, end place, etc. Below are some types of our square tube connector, with drawing attached. Should you have any needs, please feel free to contact us.

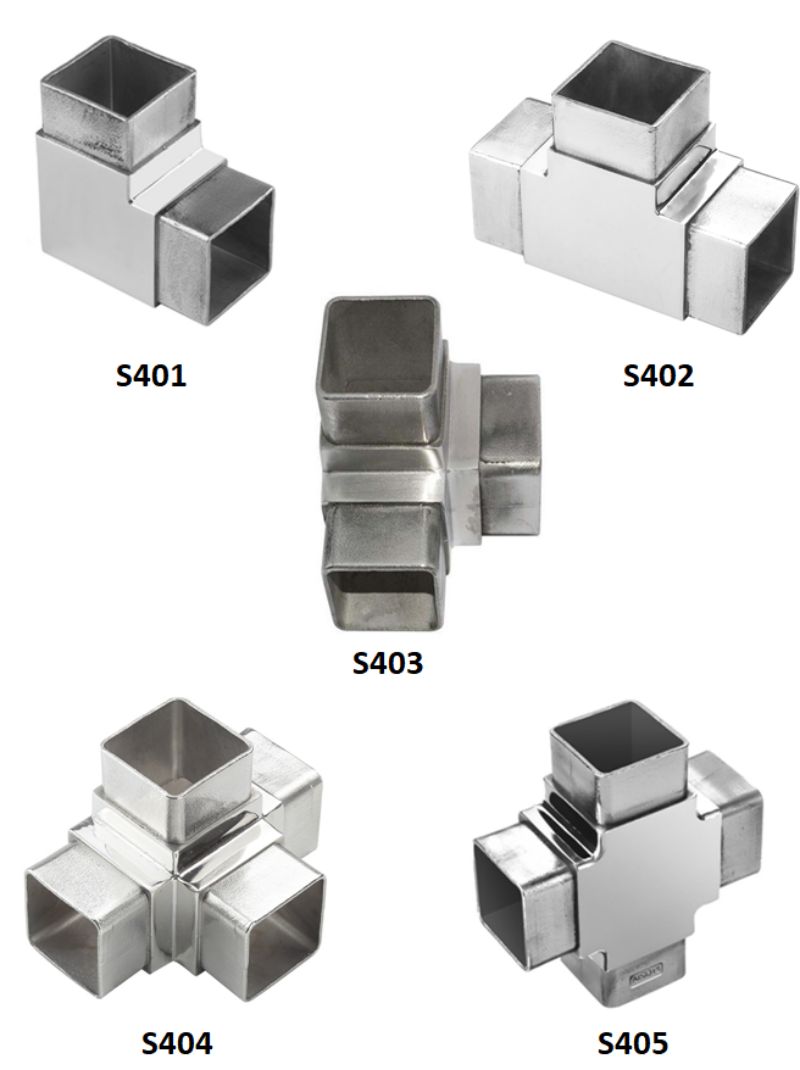

Product show

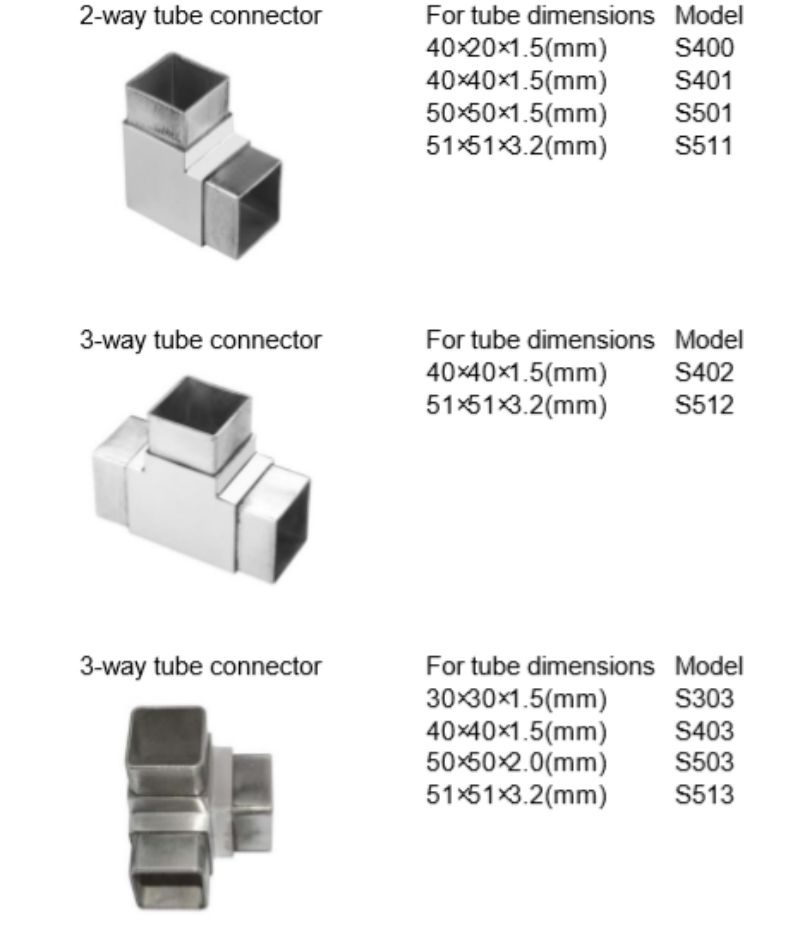

2-way tube connector
Model No.: S401
3 way tube connector
Model No.: S402, S403

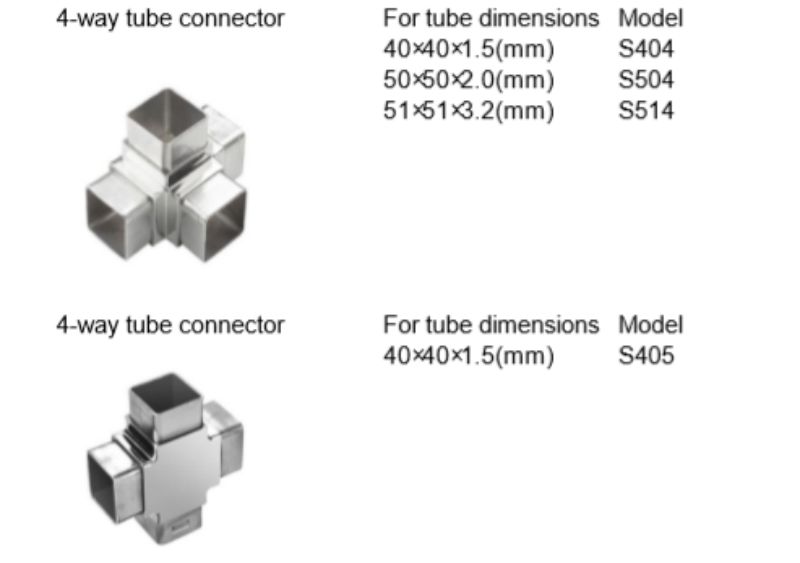

4 way tube connector
Model No.: S404, S405

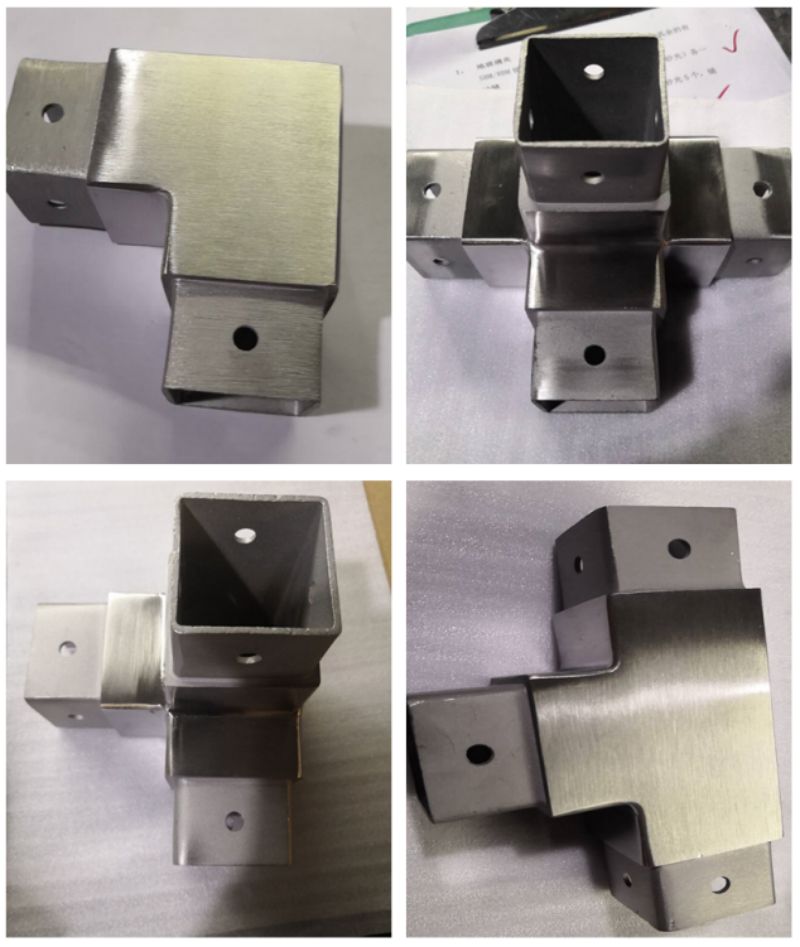

Square tube connector for 51*51*3.2mm, 2"*2"*0.125" tube with screw holes

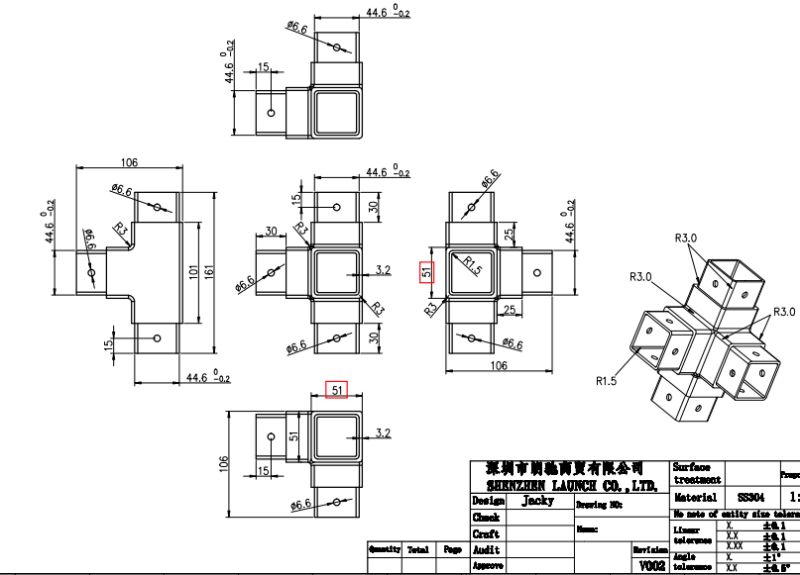

Technical drawing

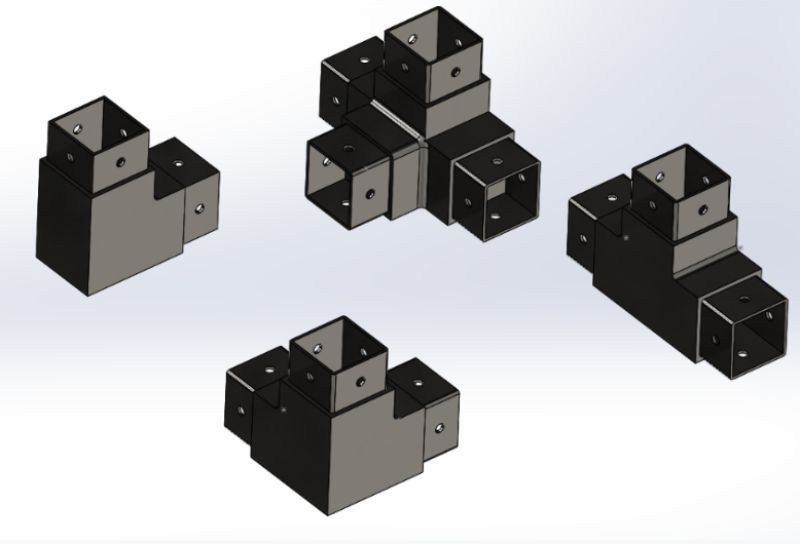

Other types tube connector are also available
Square tube connectors

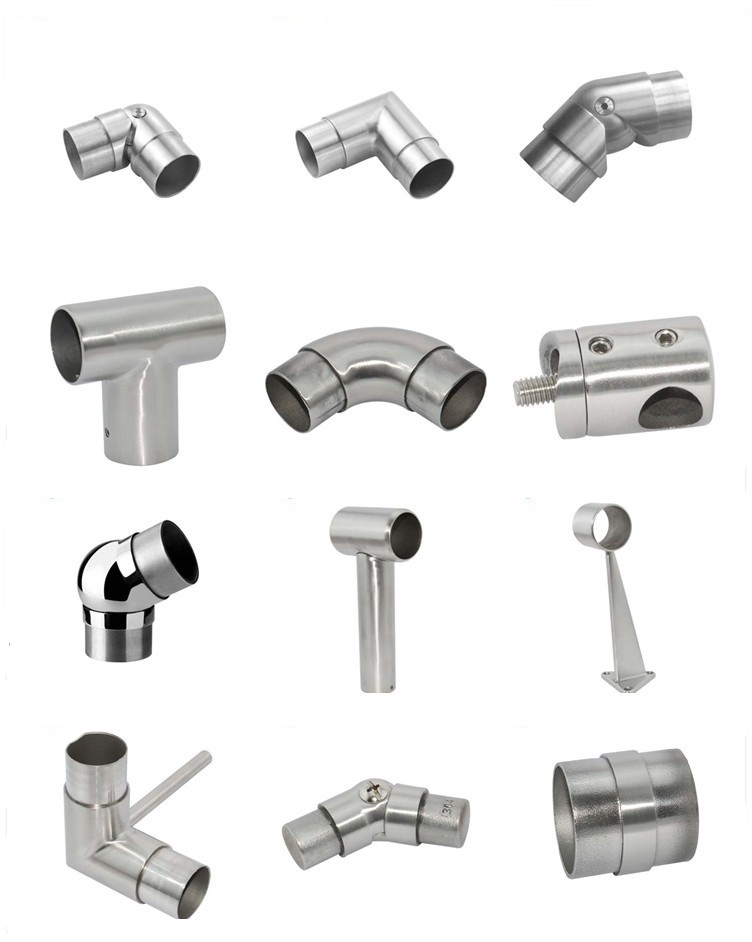

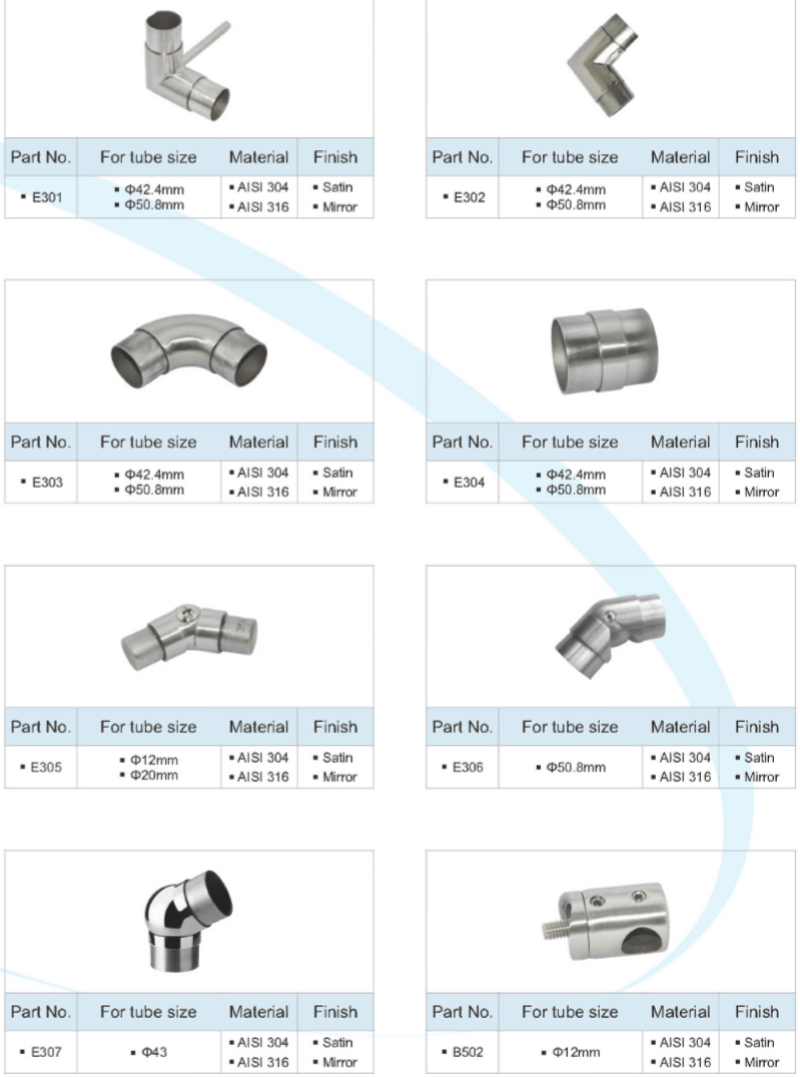

Round tube connectors

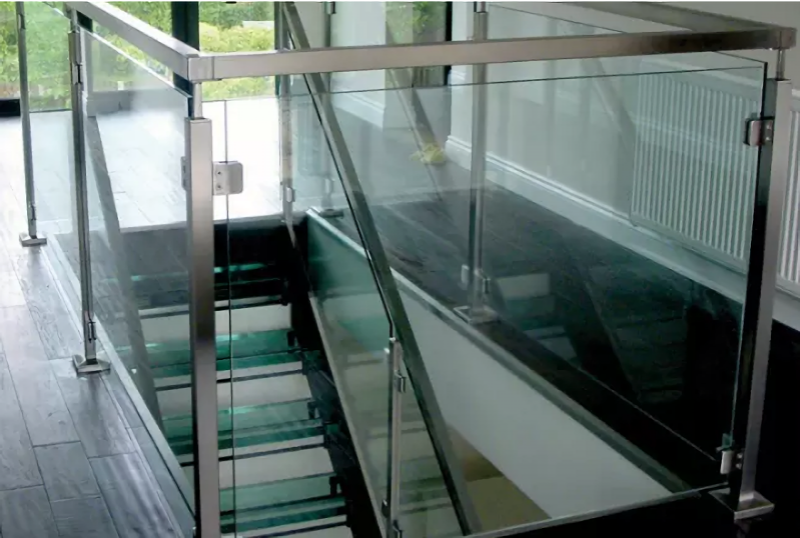

Project picture
Should you have any inquiries, please feel free to contact us.
Frank Fang
Email: sales02@launch-china.cn
Phone/WhatsApp/Wechat: +8615906261741
