Stainless Steel Glass Hinge Glass To Glass Spring Hinge Pool Fencing HingeStainless Steel Glass Hinge Glass To Glass Spring Hinge Pool Fencing HingeStainless Steel Glass Hinge Glass To Glass Spring Hinge Pool Fencing Hinge

Stainless Steel Glass Hinge Glass To Glass Spring Hinge Pool Fencing Hinge

  • model # G-G
  • Material: stainless steel 304/316
  • Finish: mirror/satin/black
  • For swim pool fence or deck railing glass to glass
  • For glass thickness: 8-12.76mm
  • Maximum door leaf weight : 30 kg /pair
  • Maximum door leaf width : 900mm
  • Spring can be adjusted for closing speed control

Stainless Steel Glass Hinge Glass To Glass Spring Hinge Pool Fencing Hinge

Description of stainless steel glass hinge-

--Glass to glass heavy duty hinge, spring loaded type

--Model No.:G-G

--Material: stainless steel 304/316

--Finish: mirror/satin/black

--For glass thickness: 8-12.76mm

--Maximum door leaf weight : 30 kg /pair

--Maximum door leaf width : 900mm

--Spring can be adjusted for closing speed control

--Manufacture method:casting

--Rquired drill glass hole size: diameter 16mm

--Packaging: one pc into one plastic bag, then into one box. 12 pcs into one carton.

--For both commerical and modern house home design

--For both wholesale and retail (We are factory)

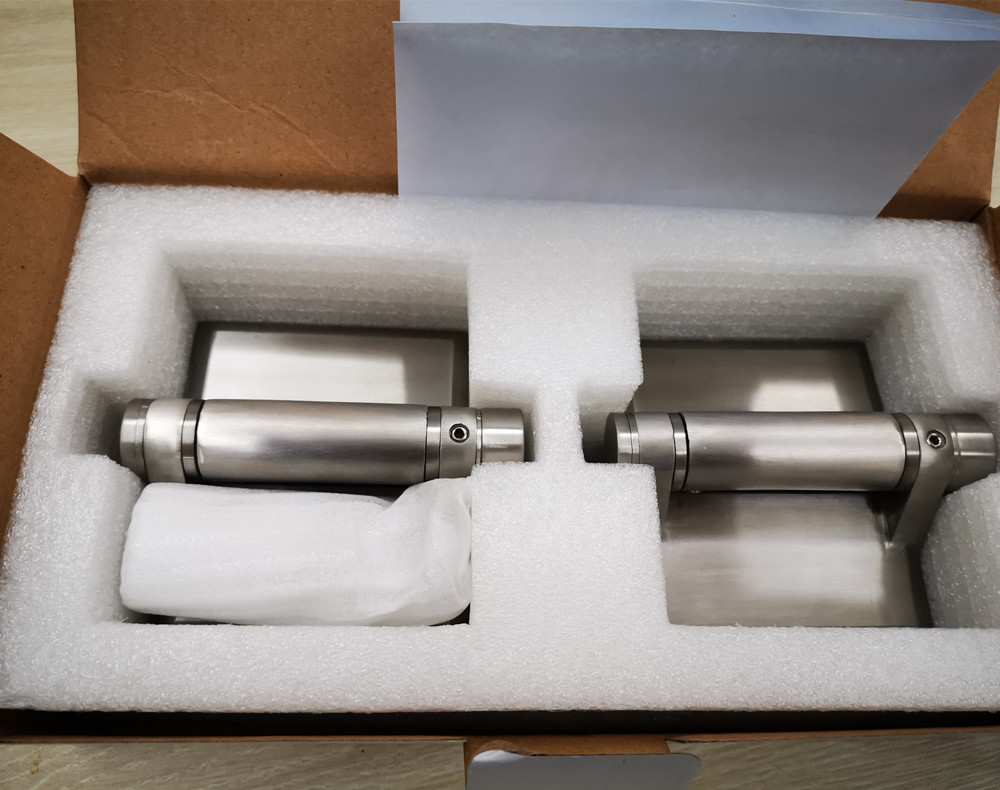

Photos of glass hinge , G-R

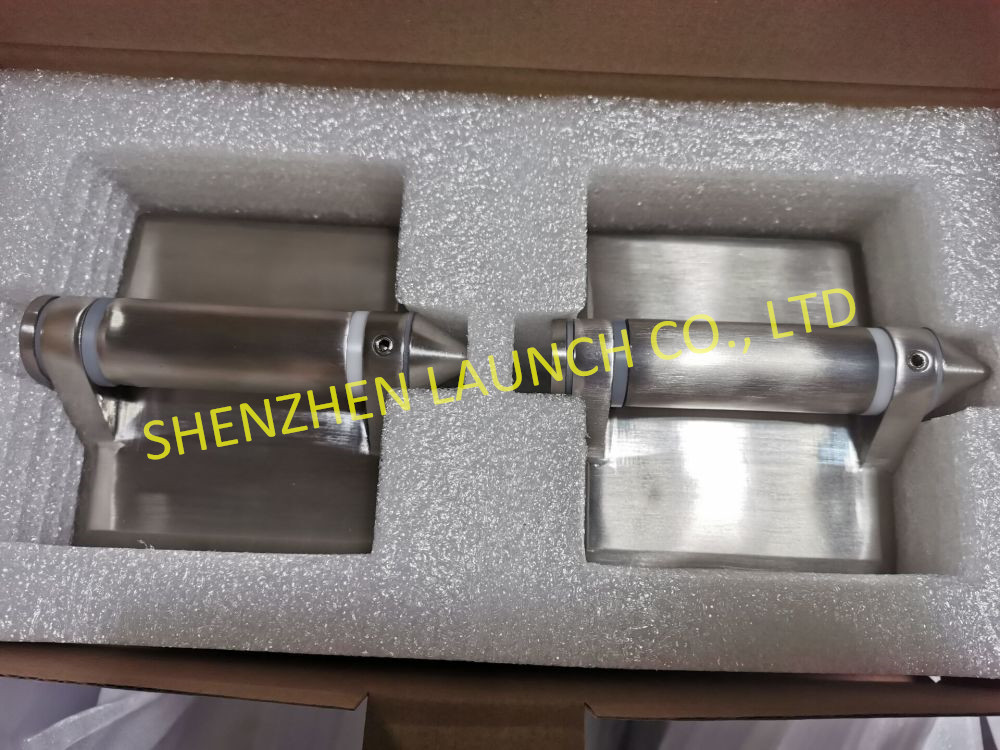

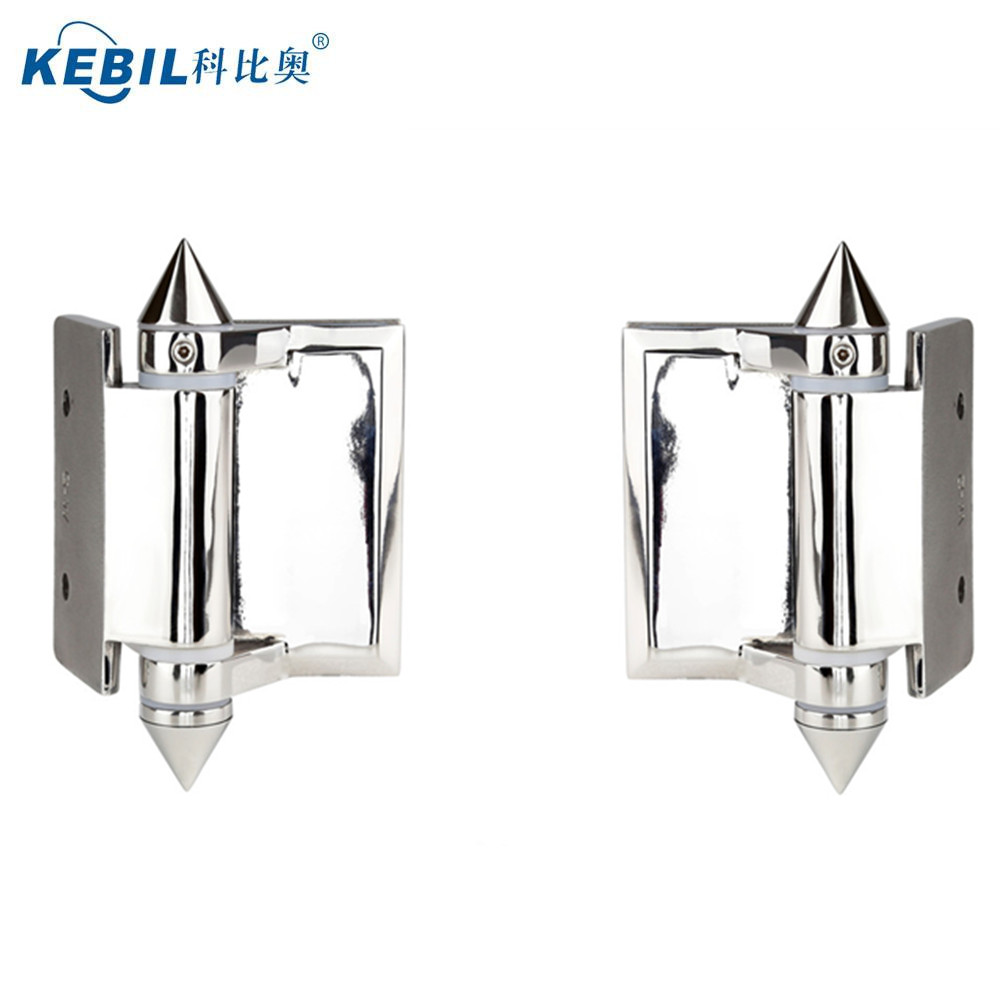

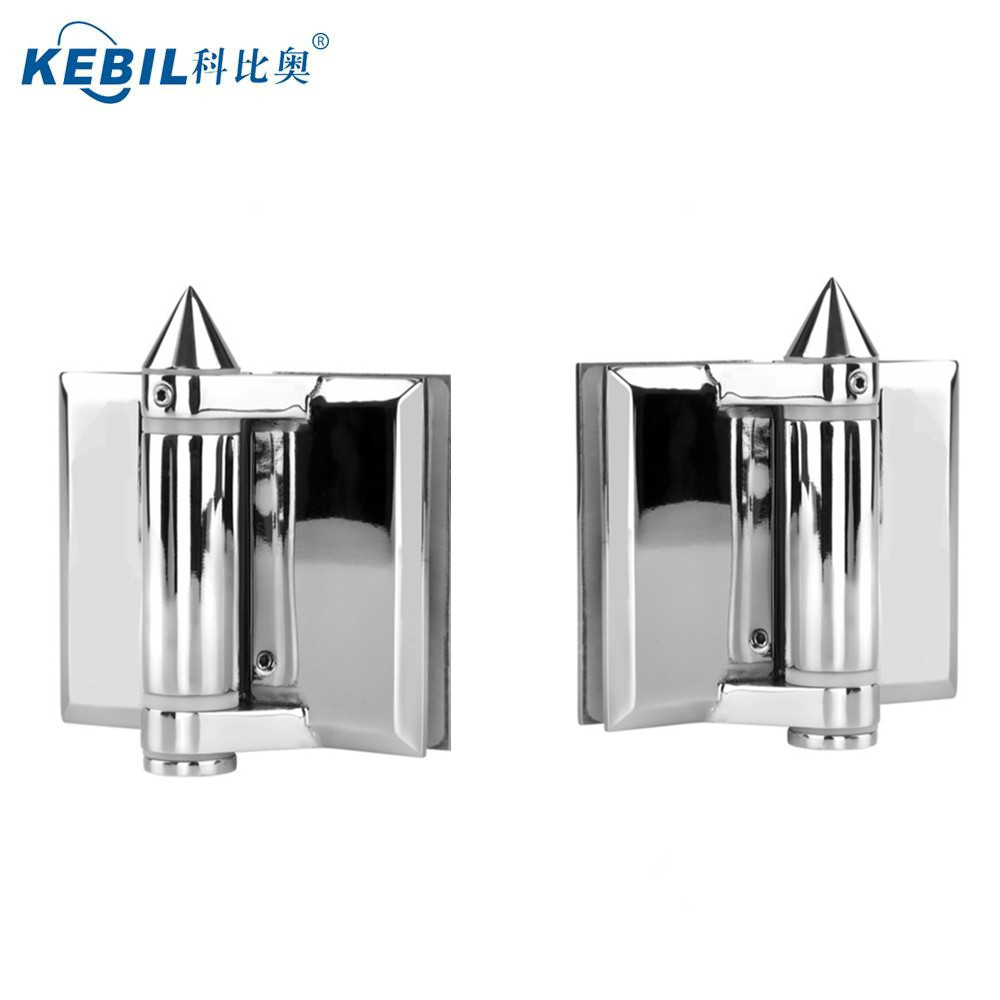

Glass to glass hinge, with coned cap on the ends 

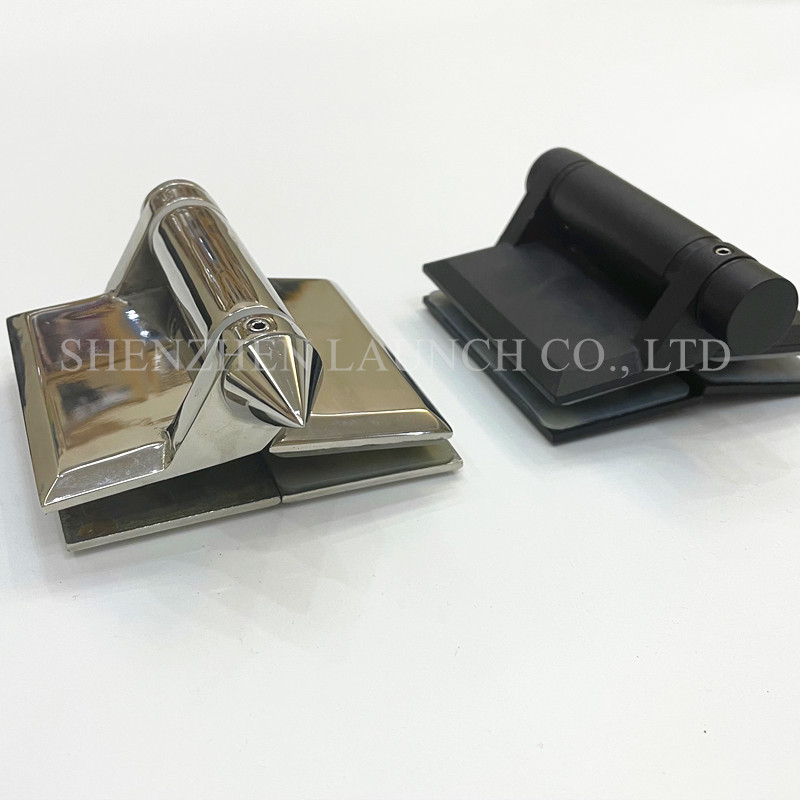

Glass to glass post hinge, with flat cap on the ends 

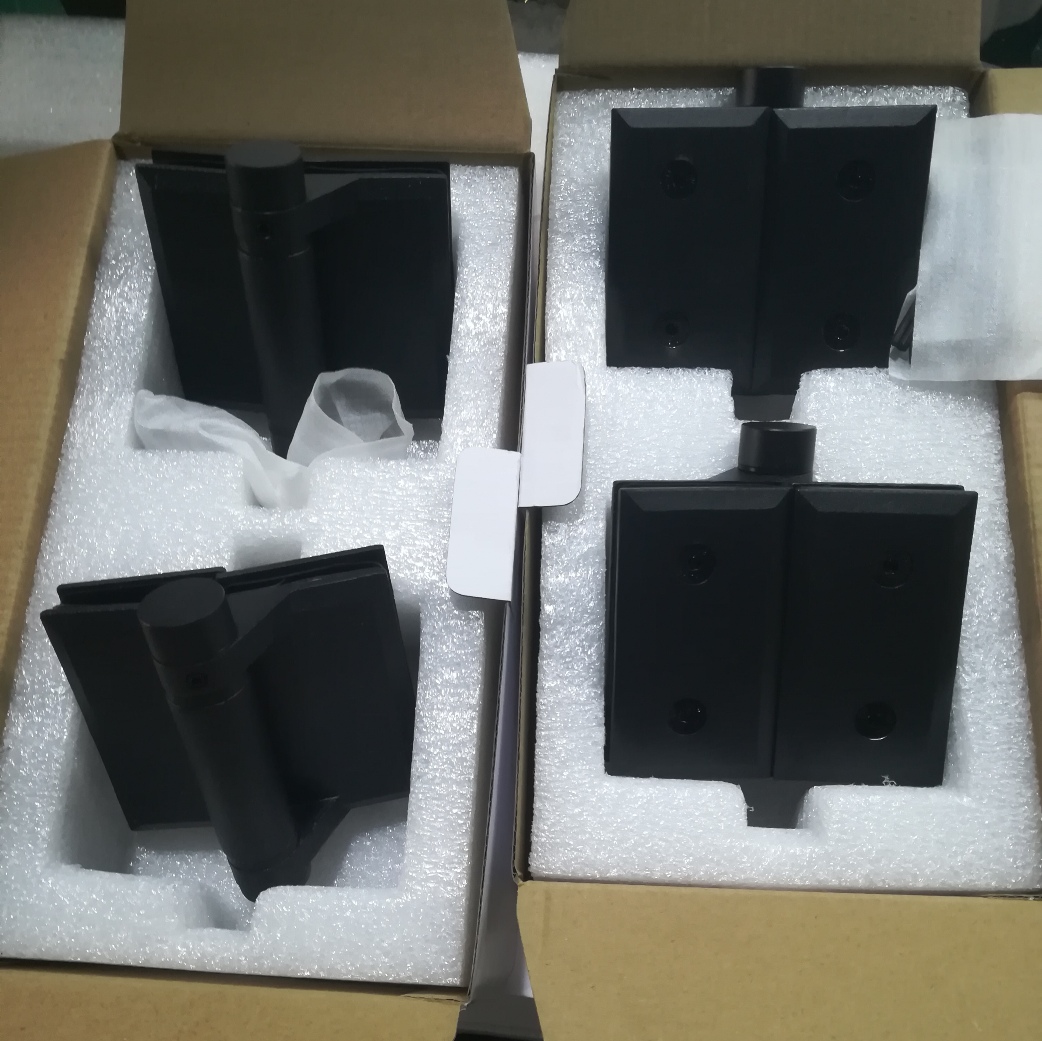

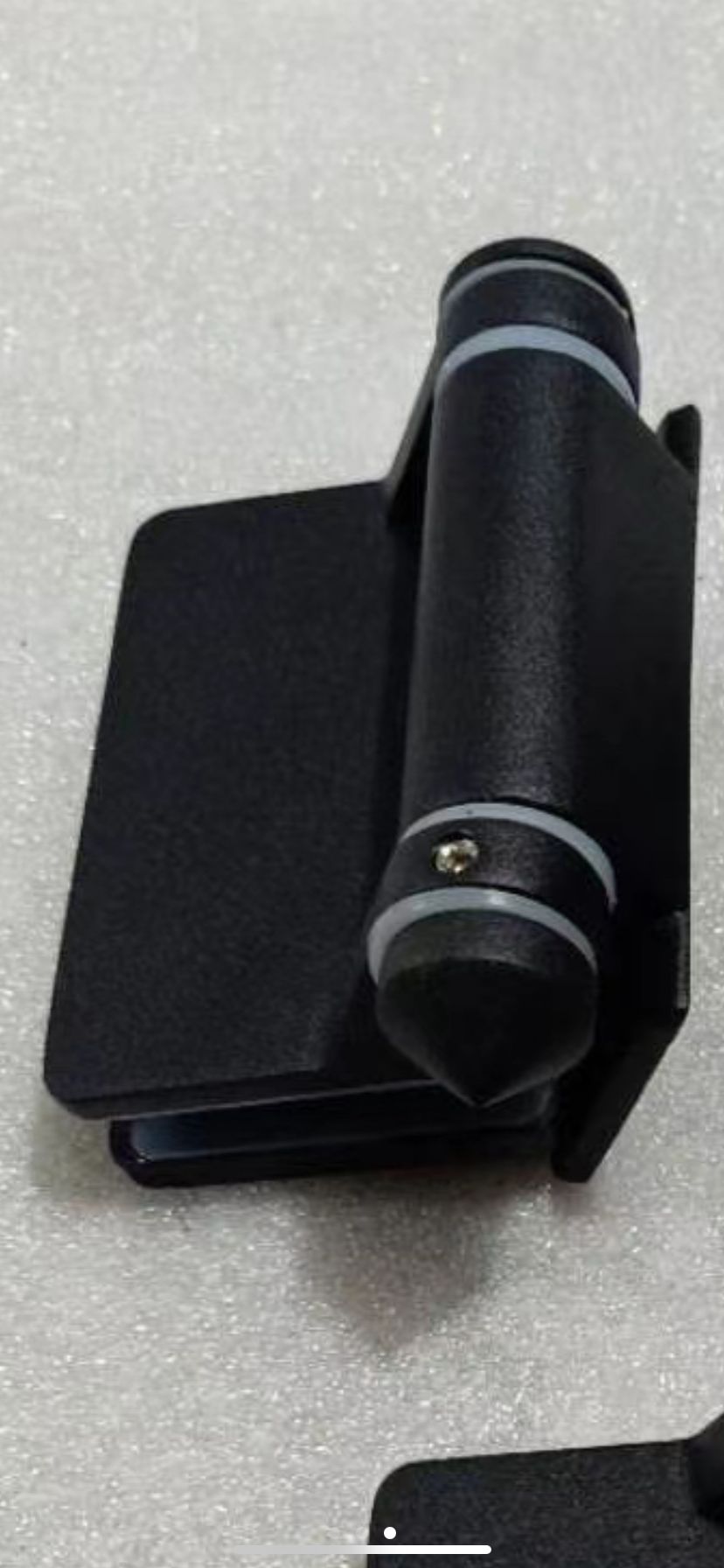

Glass to glass post hinge, with flat cap on the ends, in black powder coating

Other models for glass hinge

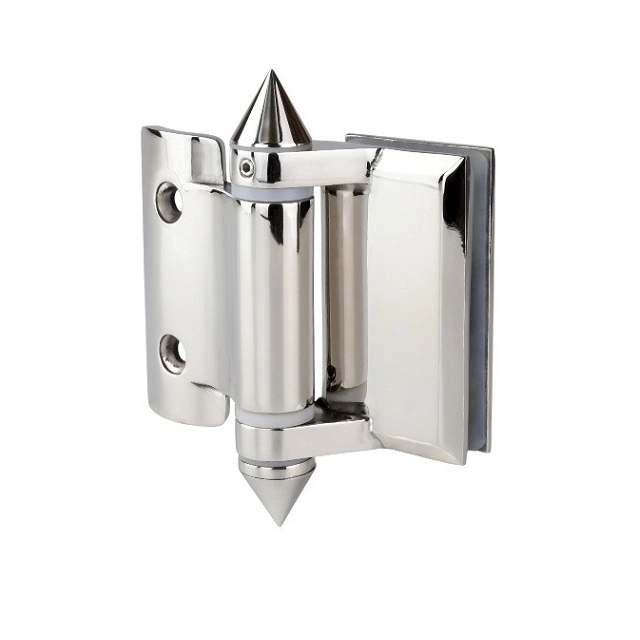

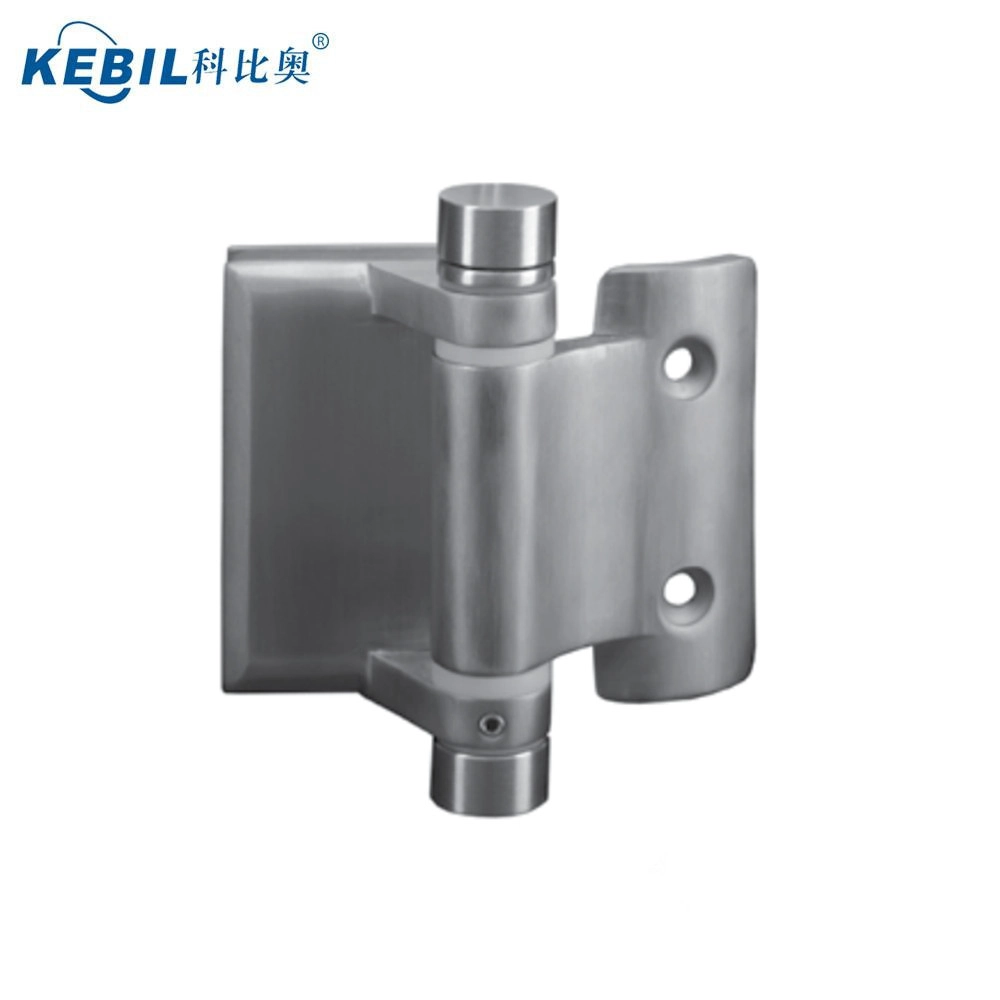

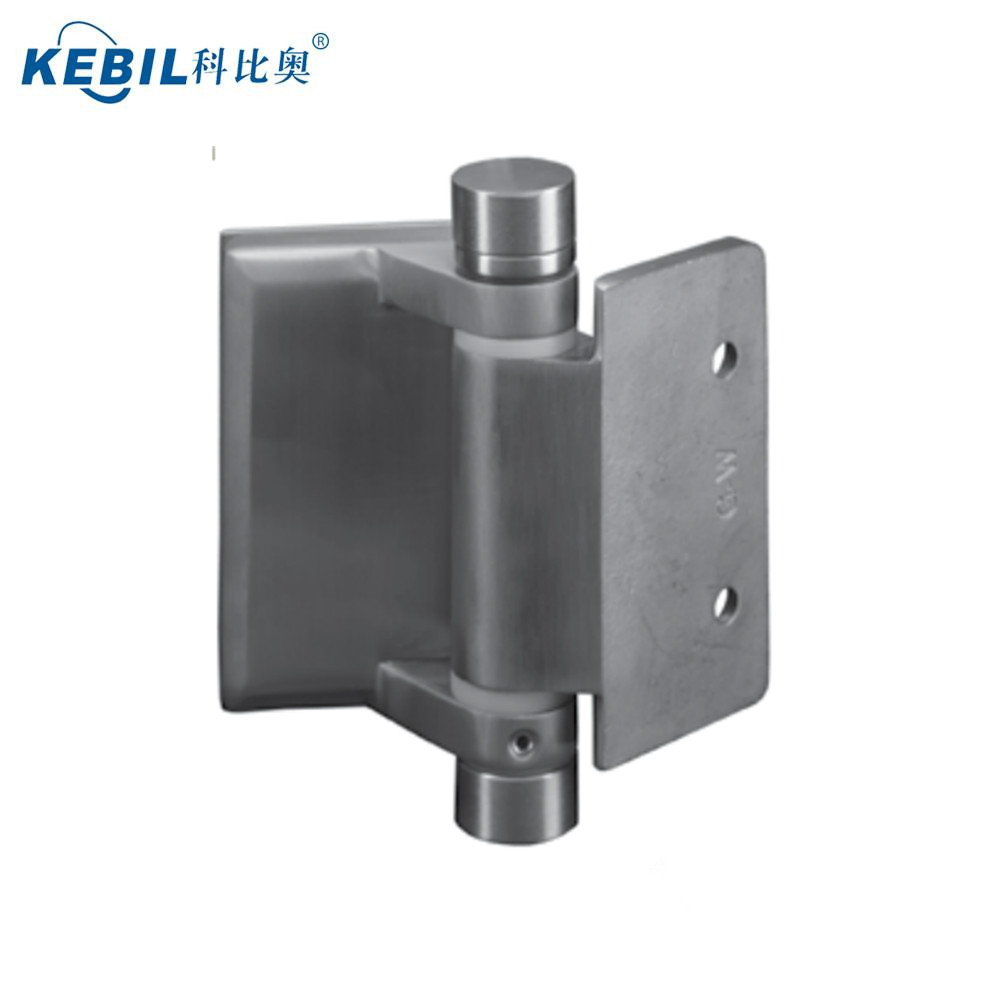

Glass to square post/wall hinge, G-W

Glass to round post hinge, G-R

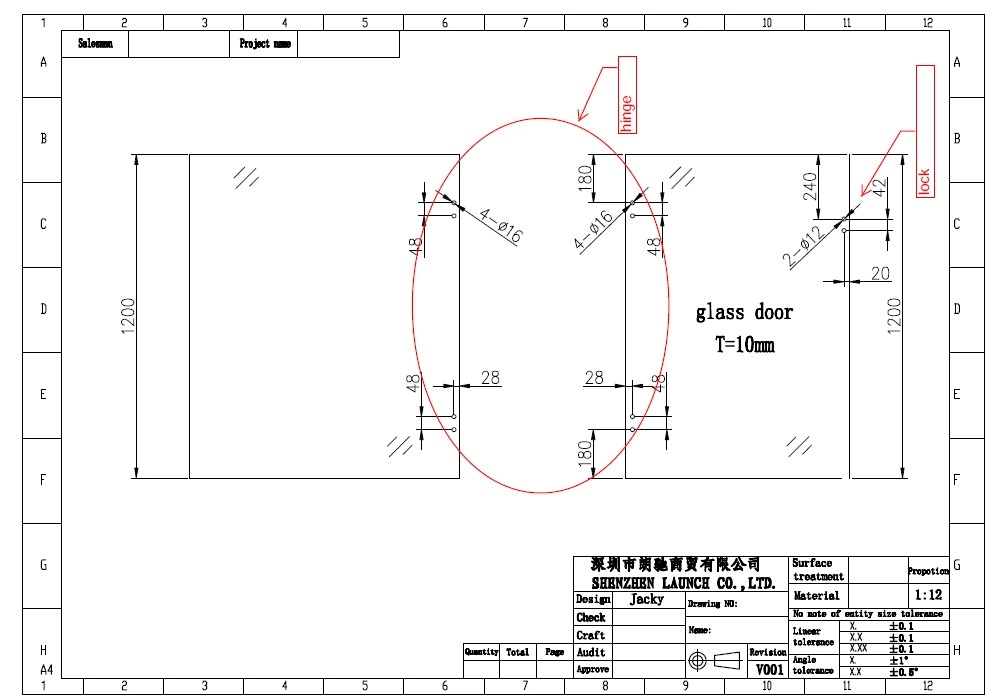

Glass holes drawings required for glass hinge and glass latch-

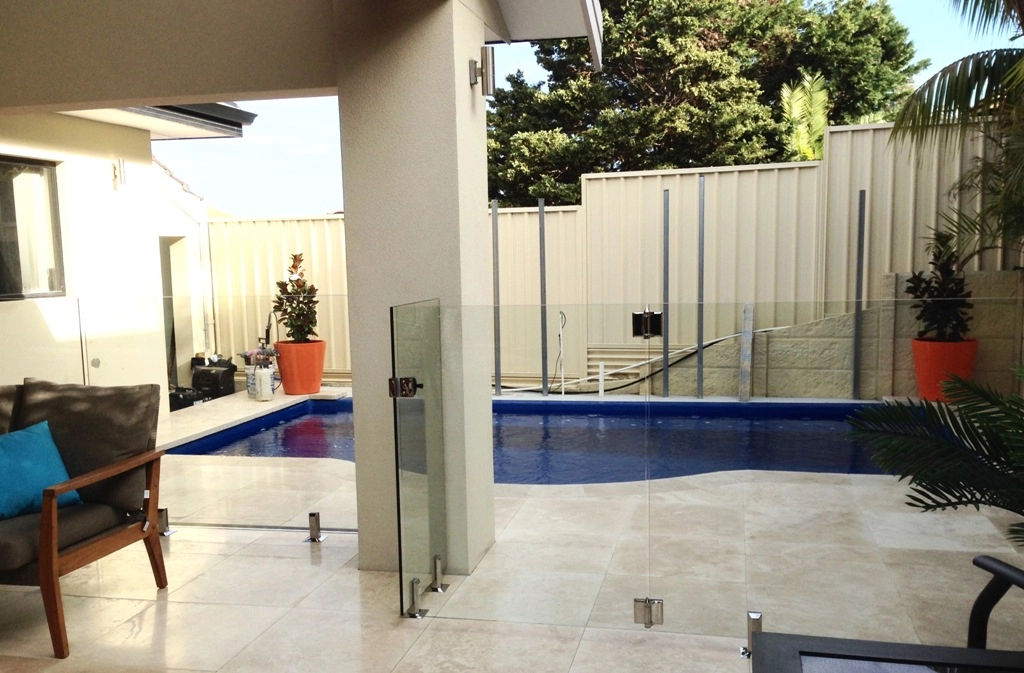

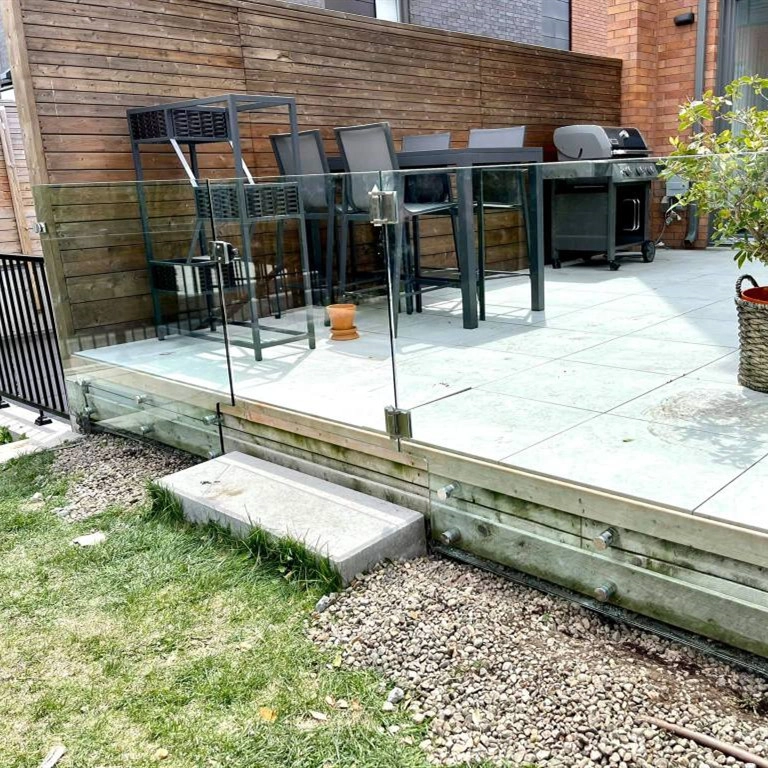

project photos of glass pool fence and glass balcony railing -
