Swimming Pool Fencing Stainless Steel Glass Hinges Spring Hinges for Glass DoorSwimming Pool Fencing Stainless Steel Glass Hinges Spring Hinges for Glass Door

Swimming Pool Fencing Stainless Steel Glass Hinges Spring Hinges for Glass Door

  • model # G-G
  • Material: stainless steel 304/316
  • Finish: mirror/satin/black
  • For swim pool fence or deck railing glass to glass
  • For glass thickness: 8-12.76mm
  • Maximum door leaf weight : 30 kg /pair
  • Maximum door leaf width : 900mm
  • Spring can be adjusted for closing speed control

Swimming Pool Fencing Stainless Steel Glass Hinges Spring Hinges for Glass Door

Description of stainless steel glass hinge-

--Glass to round post heavy duty hinge, spring loaded type

--Model No.:G-R

--Material: stainless steel 304/316

--Finish: mirror/satin/black

--For glass thickness: 8-12.76mm

--Maximum door leaf weight : 30 kg /pair

--Maximum door leaf width : 900mm

--Spring can be adjusted for closing speed control

--Manufacture method:casting

--Rquired drill glass hole size: diameter 16mm

--Packaging: one pc into one plastic bag, then into one box. 12 pcs into one carton.

--For both commerical and modern house home design

--For both wholesale and retail (We are factory)


Photos of glass hinge , G-R

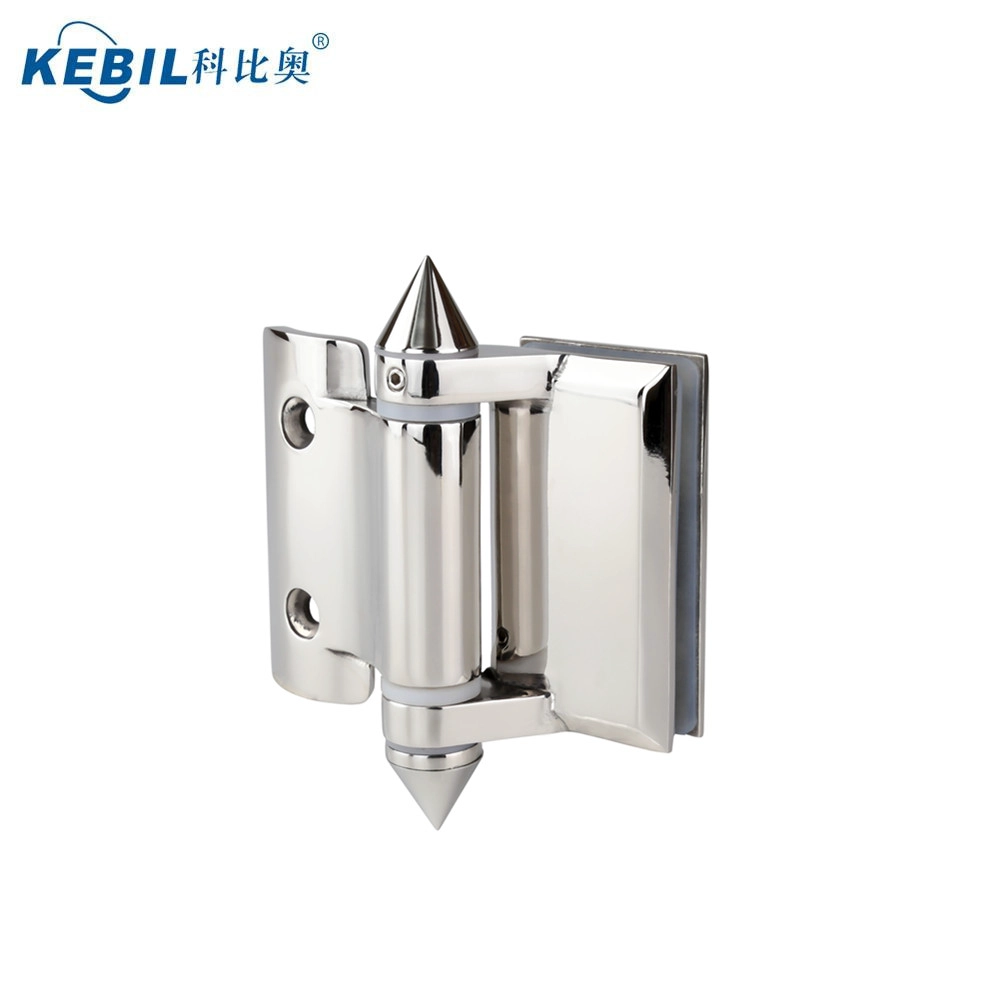

Glass to round post hinge, with coned cap on the ends 

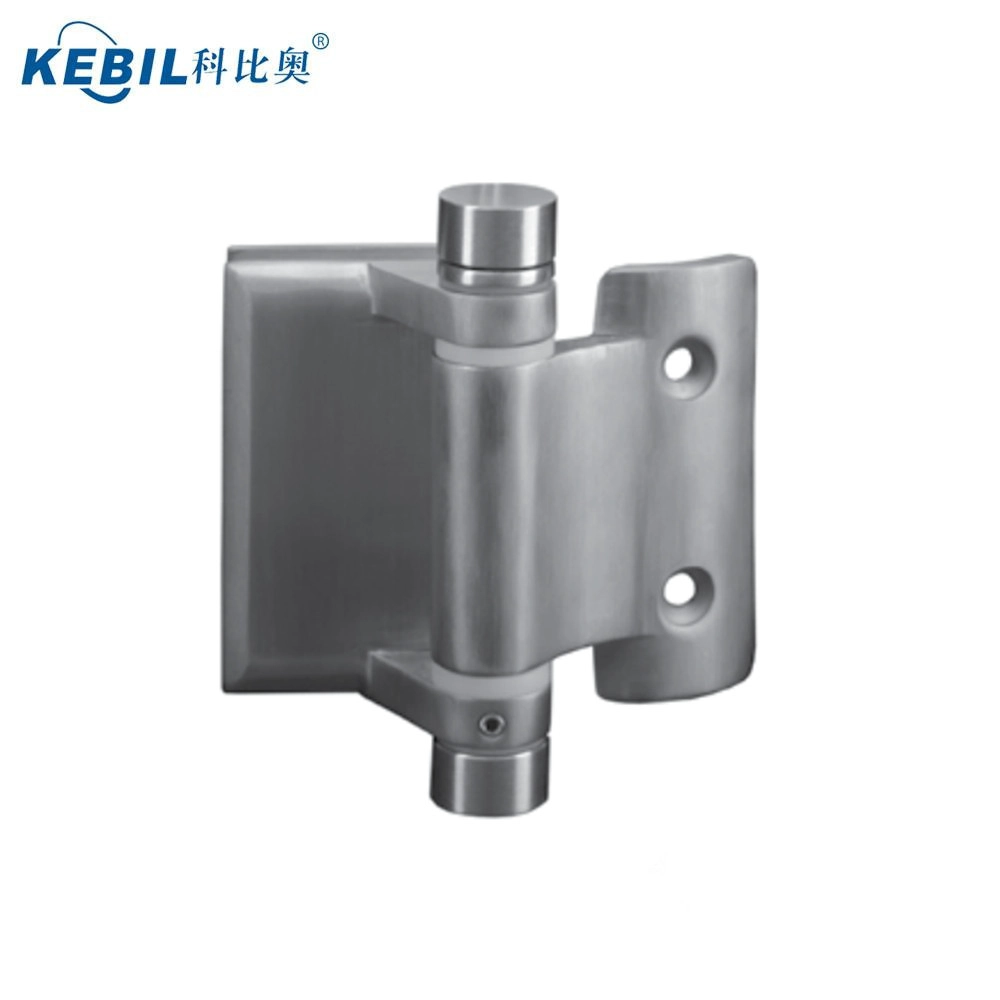

Glass to round post hinge, with flat cap on the ends 

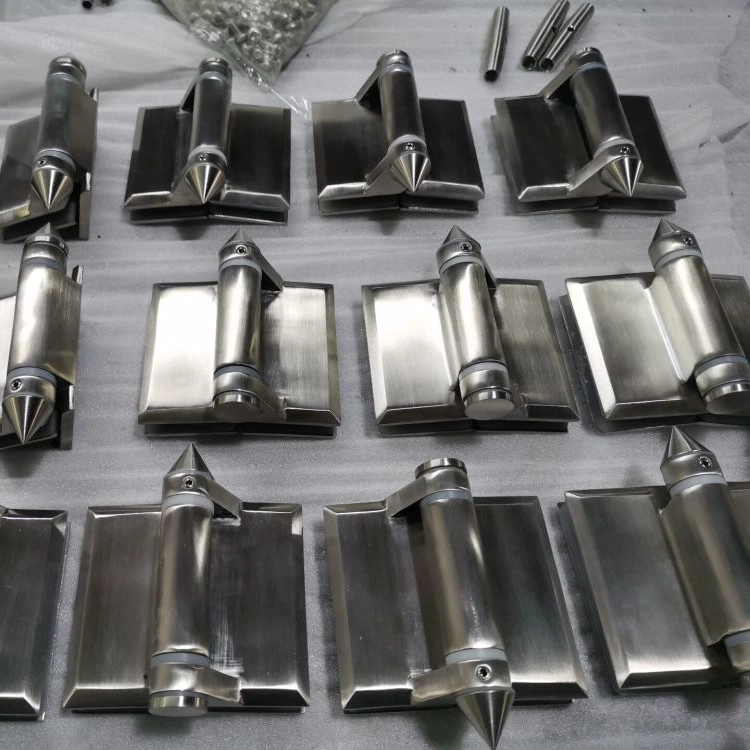

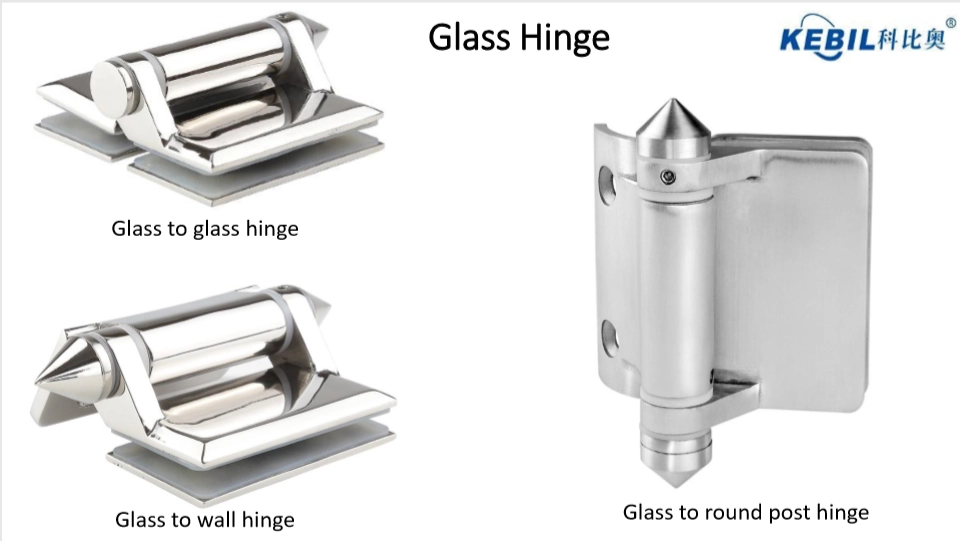

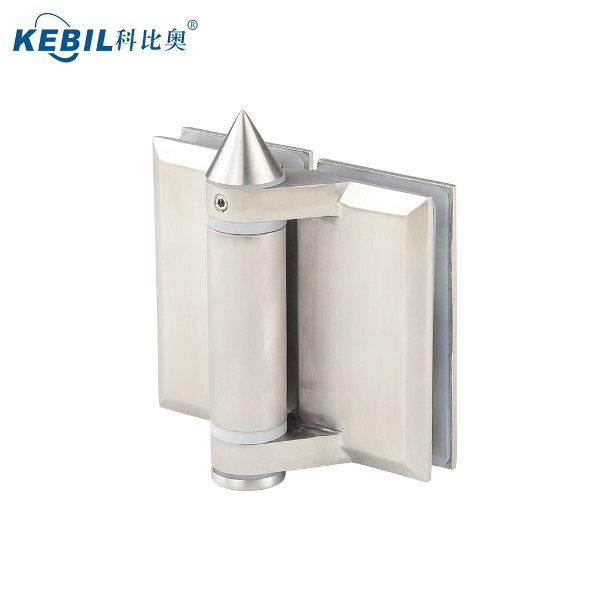

Other models for glass hinge, G-G

with coned cap on the ends in satin finish

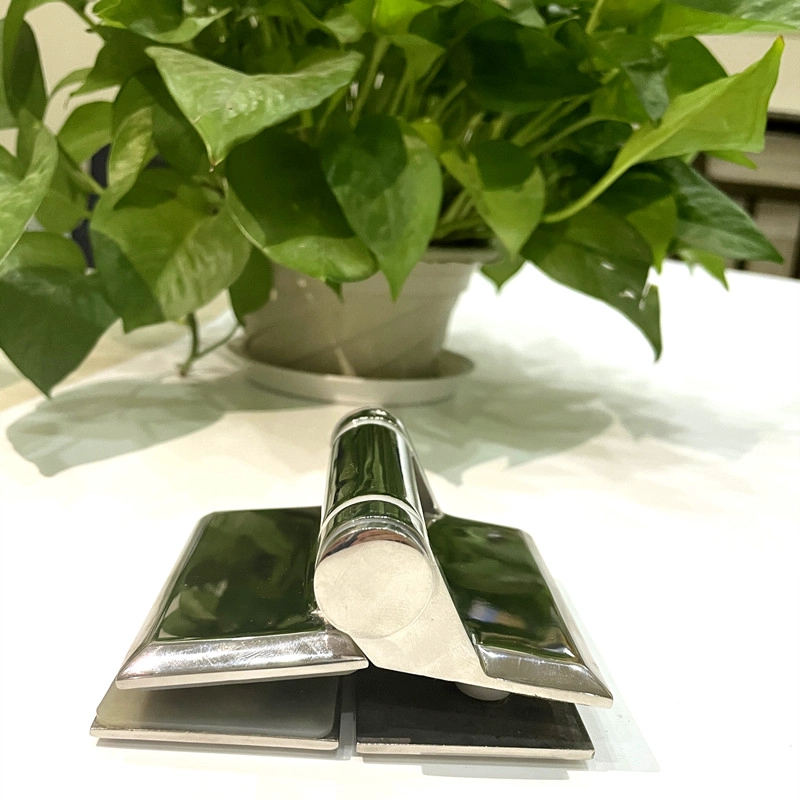

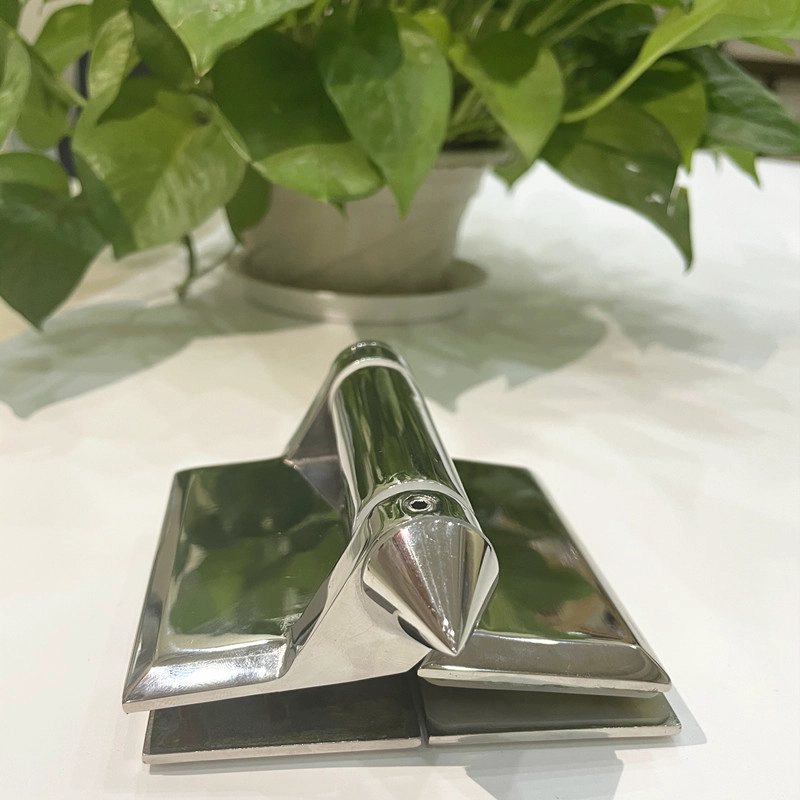

with coned cap on the ends in mirror finish

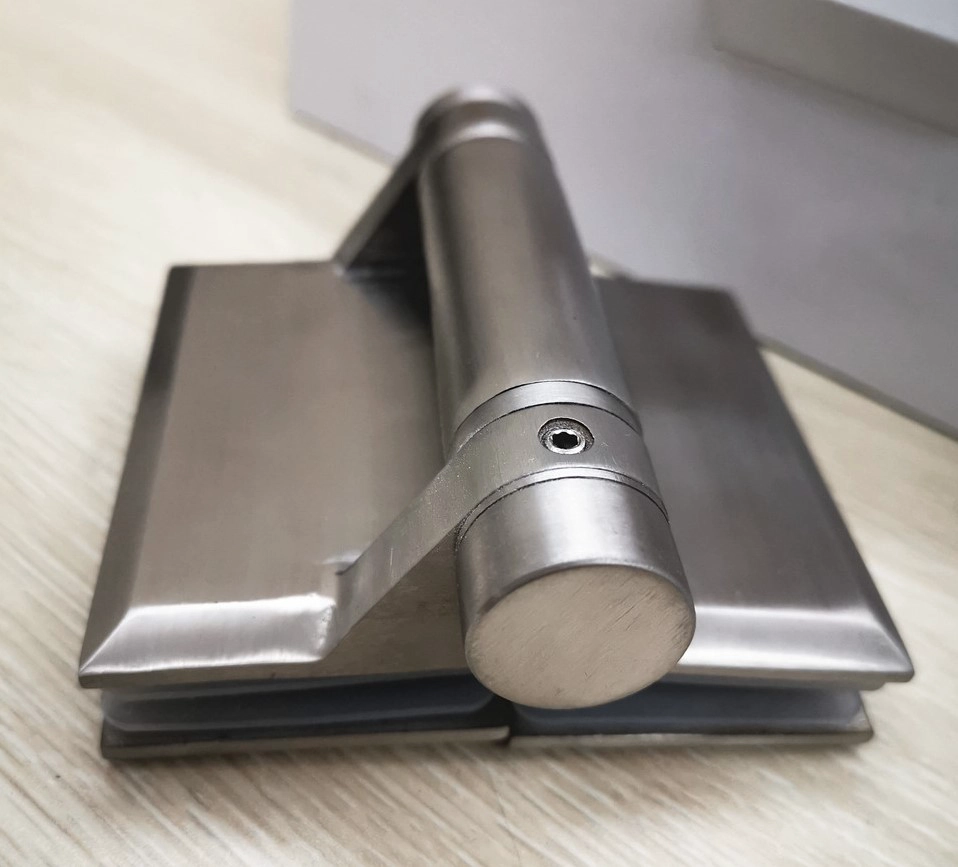

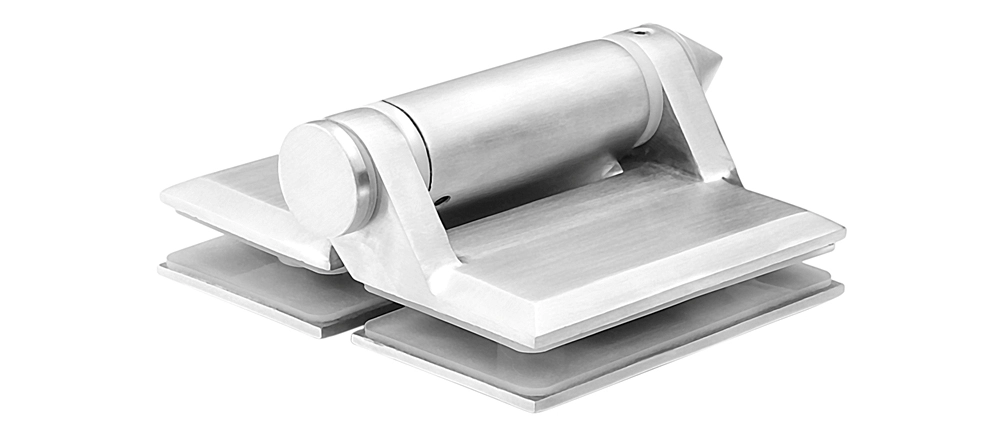

with flat cap on the ends in satin finish

with flat cap on the ends in mirror finish

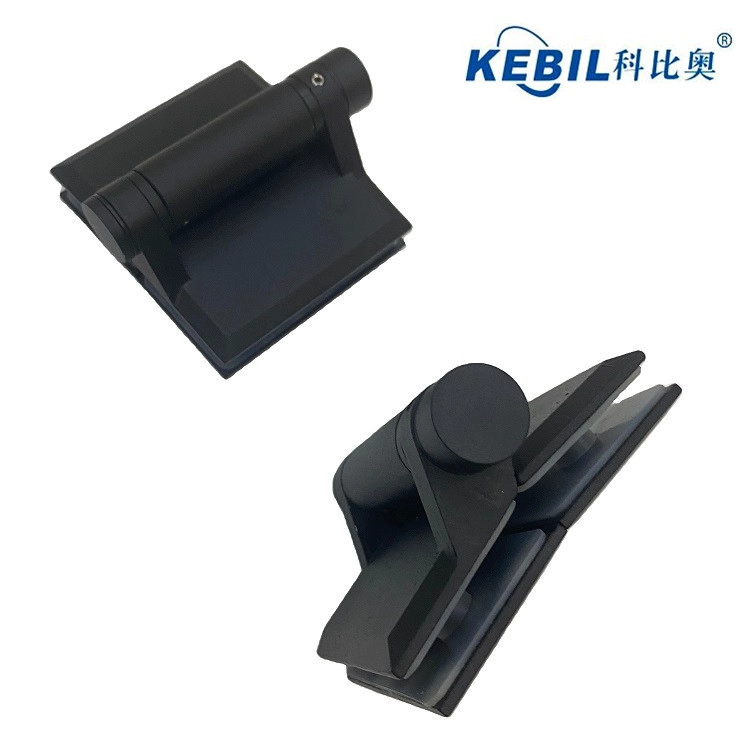

with flat cap on the ends in black powder coating

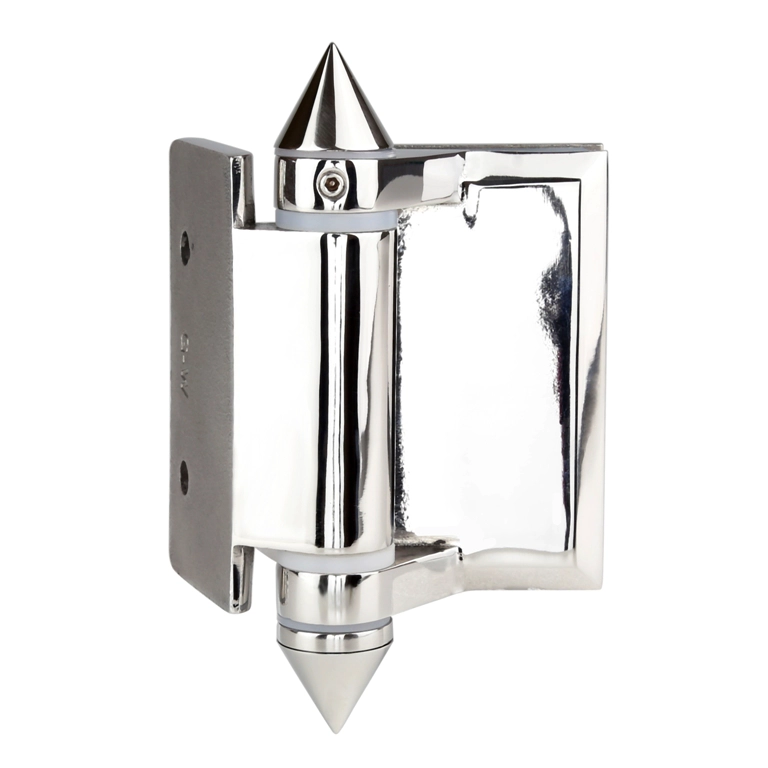

Glass to square post/wall hinge, G-W






Stainless steel glass hinge drawing-
G-G glasss to glass
G-W glass to square post/wall hinge

G-R glass to round post hinge

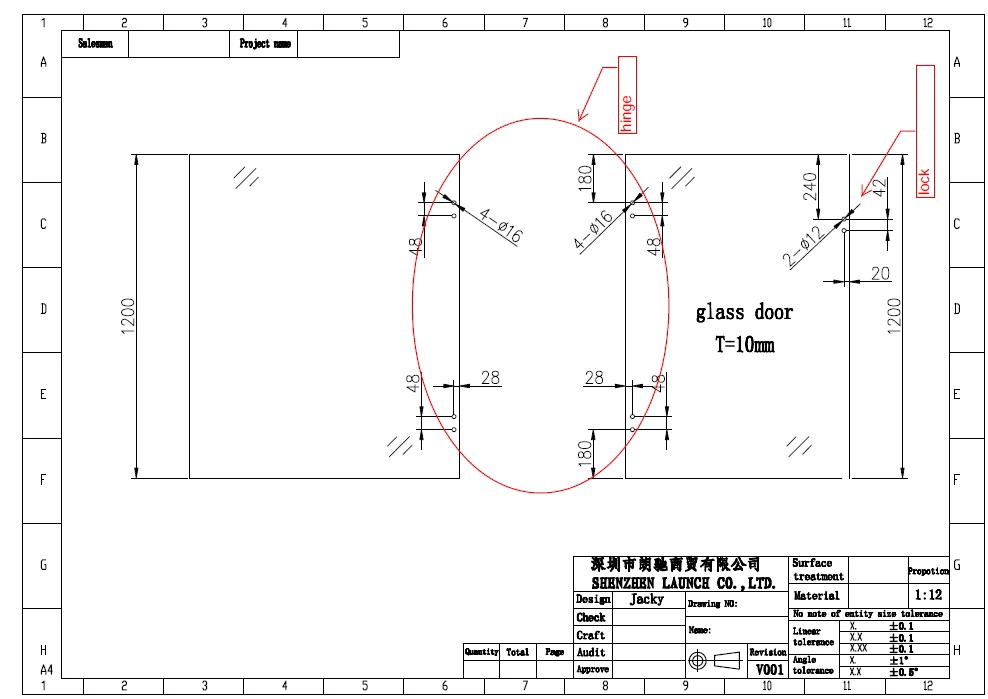

Glass holes drawings required for glass hinge and glass latch-

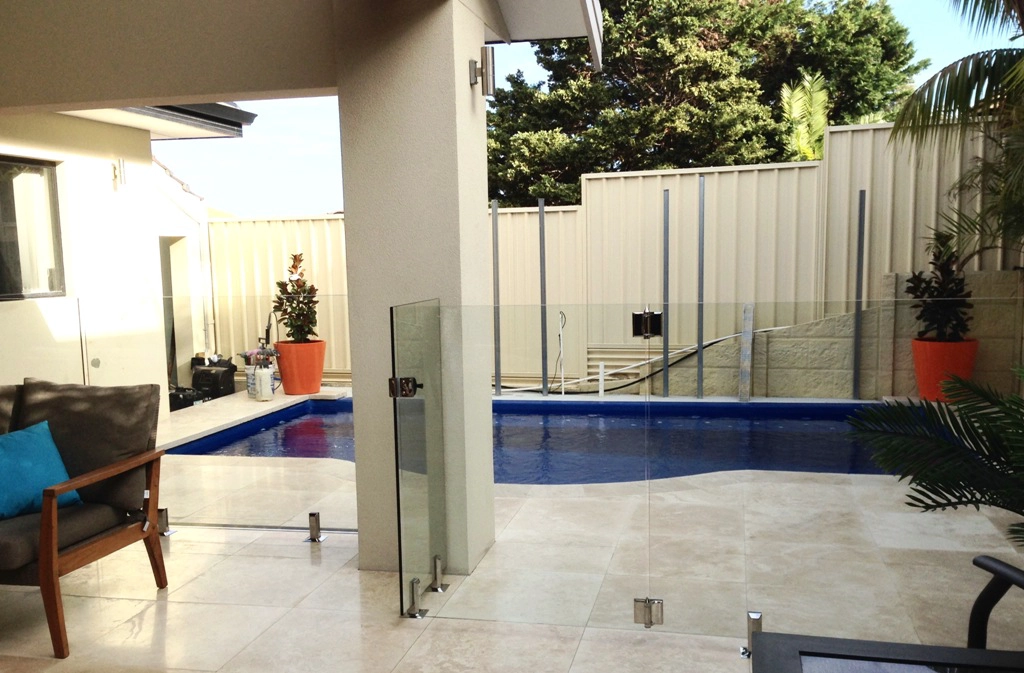

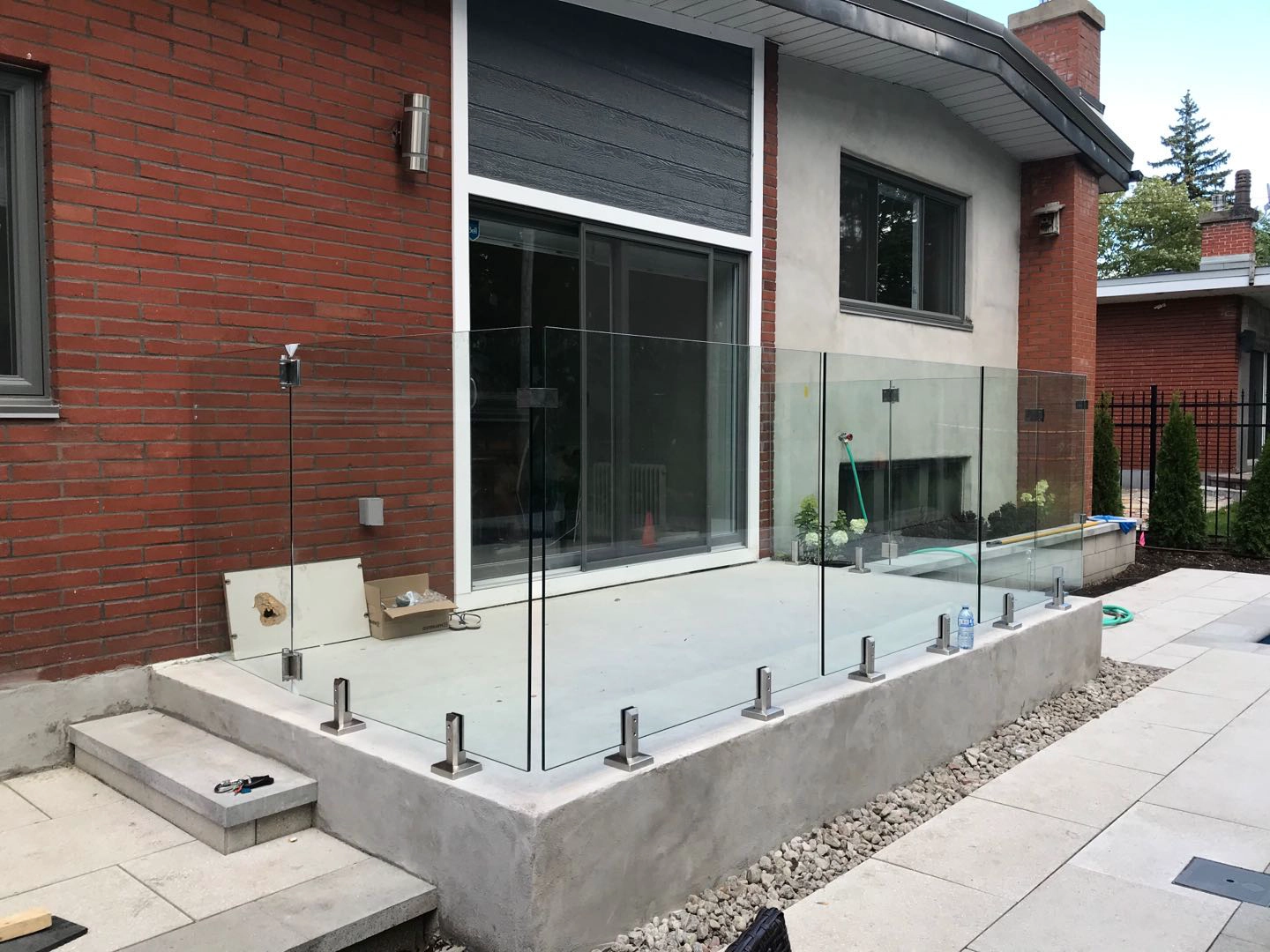

project photos of glass pool fence and glass balcony railing -
