mini post round base plate frameless glass balcony 12mm clear tempered glass

mini post round base plate frameless glass balcony 12mm clear tempered glass

  • stainless steel 316/ 2205
  • mirror or satin polished
  • for 12-13.52mm glass
  • mini post ,round base plate spigot
Mini post , or glass spigot is often used around swimming pool fencing, balcony or staircase . The frameless look give you clear views .

Specifications of mini posts :

- Material : stainless steel 316 / duplex 2205
- Finish : elegant satin , or shining mirror
- Overall dimensions for mini post : 50*168mm
- For glass thickness : 10 mm to 13.5 2mm
- No holes in glass required
- each glass panel requires 2 pcs of mini posts
- we have 4 types of mini posts for your selection :

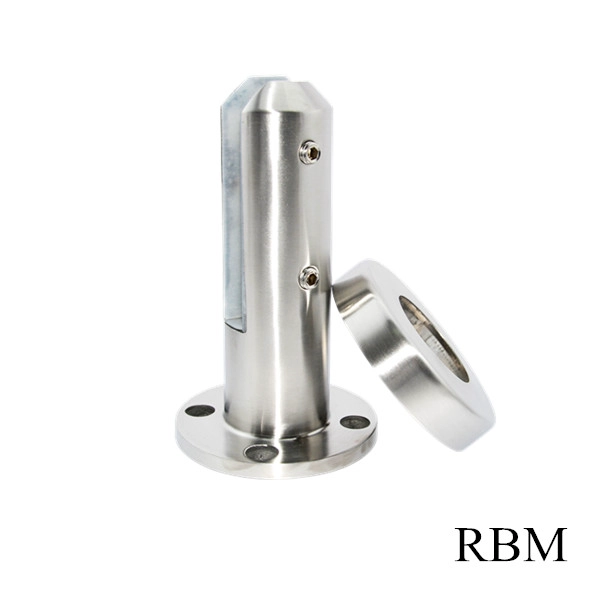

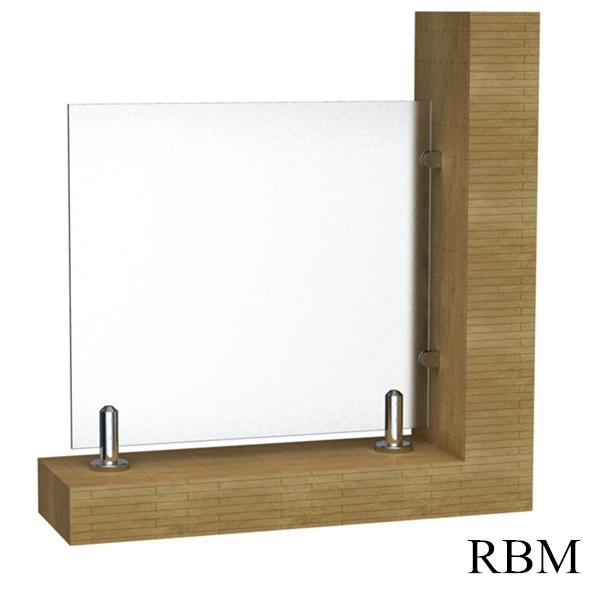

Round base plate mini post , model no. : RBM
It is base plate type , mounted on the ground with 4 concrete screws or wood screws if your ground is wood .

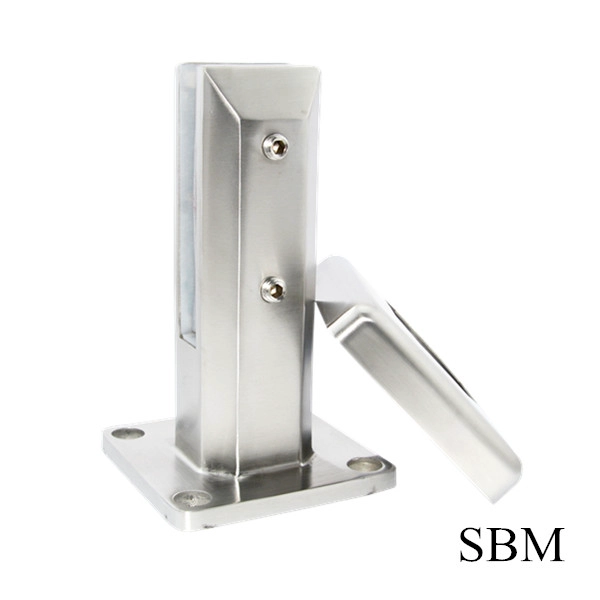

Square base plate spigot , model no : SBM

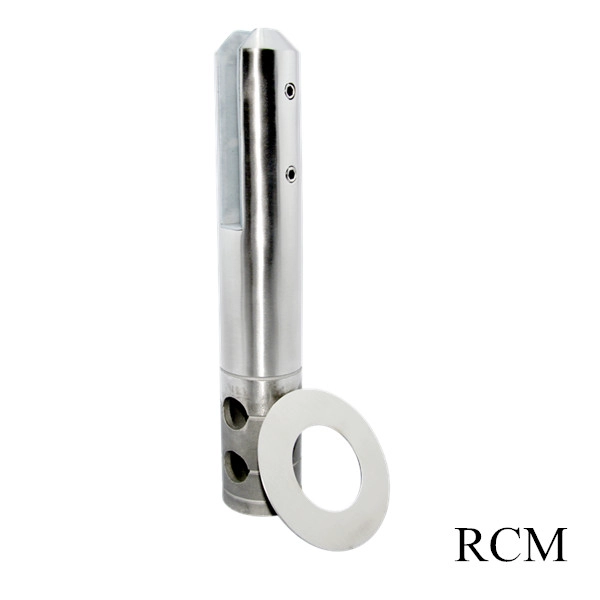

Round core drill mini post , model no. RCM
It is inground spigot , first you need to dig a hole on the ground , then put spigot down under , then fix with grouts.

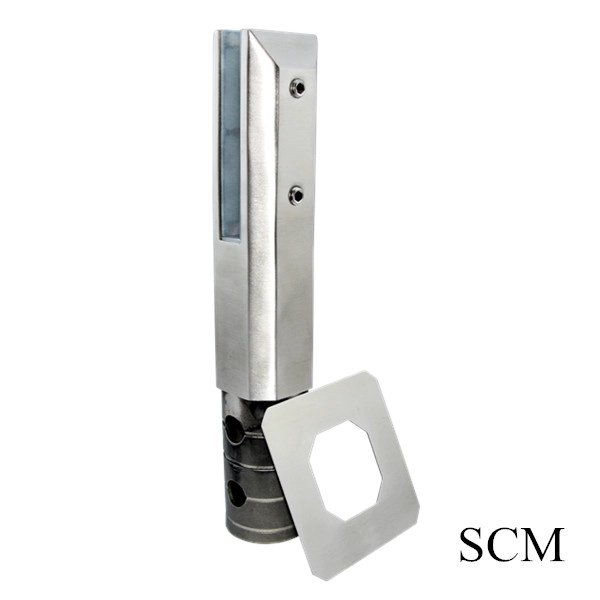

Square core drill spigot , model no. SCM

Tag: pool fence
