square base plate glass spigot SBM-2 for swimming pool frameless glass fence
- Model No.: SMB-2
- Material: stainless steel 316,316L, duplex 2205
- Finish: mirror or satin polished
- For glass thickness: 10-13.52mm
- Size: 168mm height
- Square base diamention: 100x100mm
- To hold 1500mm wide glass, hight ≤1200mm
- Weight: 2.1kg
- Payment: T/T, PayPal, Western Union
- Seaport: Shenzhen seaport
Model SBM-2, square base plate spigot is very popular design in Australia, NZ, Norway, Canada. It is used as support brackets to hold 10-13.52mm tempered glass panels for swimming pool fencing, or balconies.
Specifications :
-stainless steel 316,316L , duplex 2205
-satin or mirror polished
-for 10-13.52mm tempered glass
- square base plate spigot
-AS/NZS standard
-168mm height+100*100mm dress ring cover
-Weight : 2.1kg
-Fitting included : cover,screws,rubber gaskets
-Application : 2 spigots support 1 glass panel
Different Models of spigot available :
- Square base plate spigot SBM
-Round base plate spigot RBM
-Square core drill spigot SCM
-Round core drill spigot RCM
-Square core drill spigot with added length SCM-1
-Round core drill spigot with added length RCM -1
Packing Details :
plastic bag+small white box+carton
1 spigot into a plastic bag, then into a white box ;
10 or 12 spigots into a carton

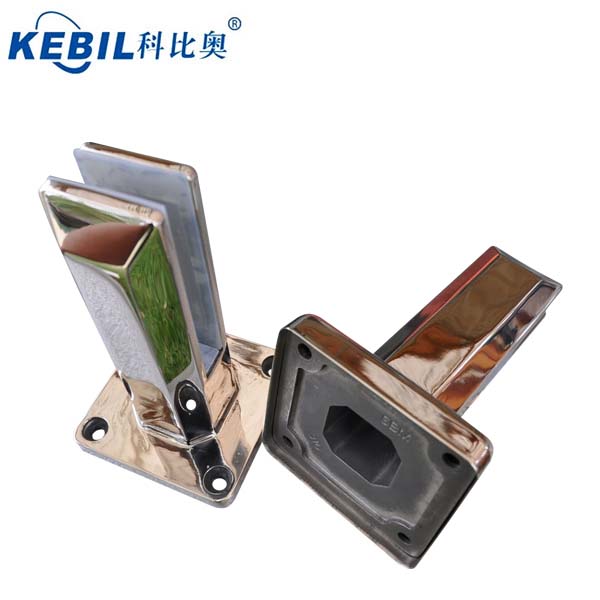

Products details

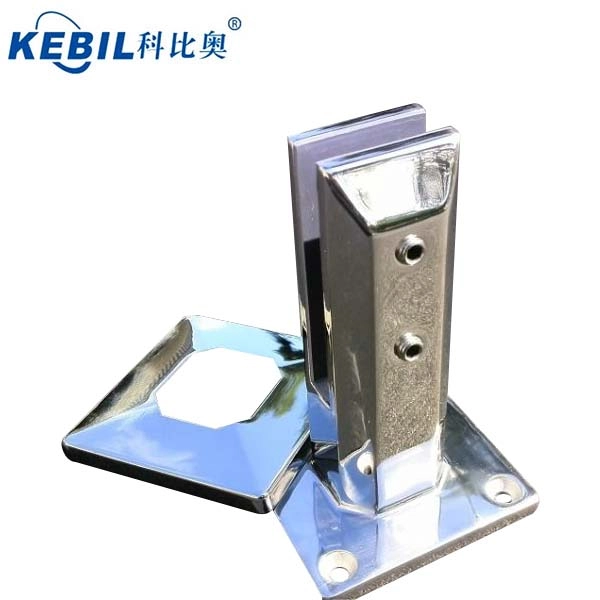

mirror surface

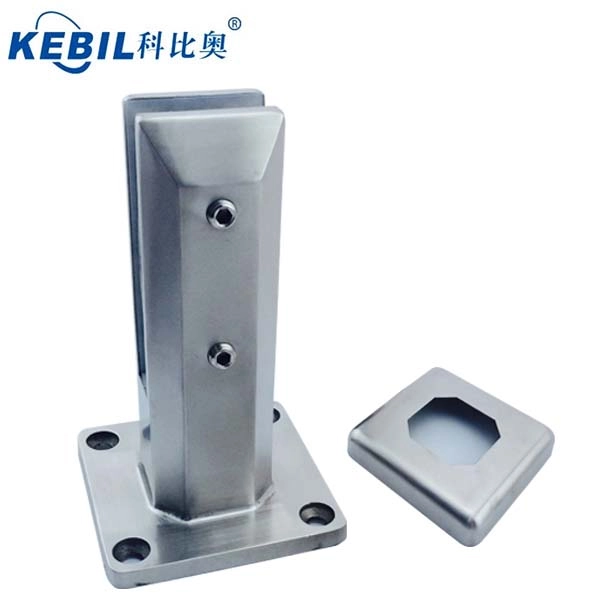

satin surface

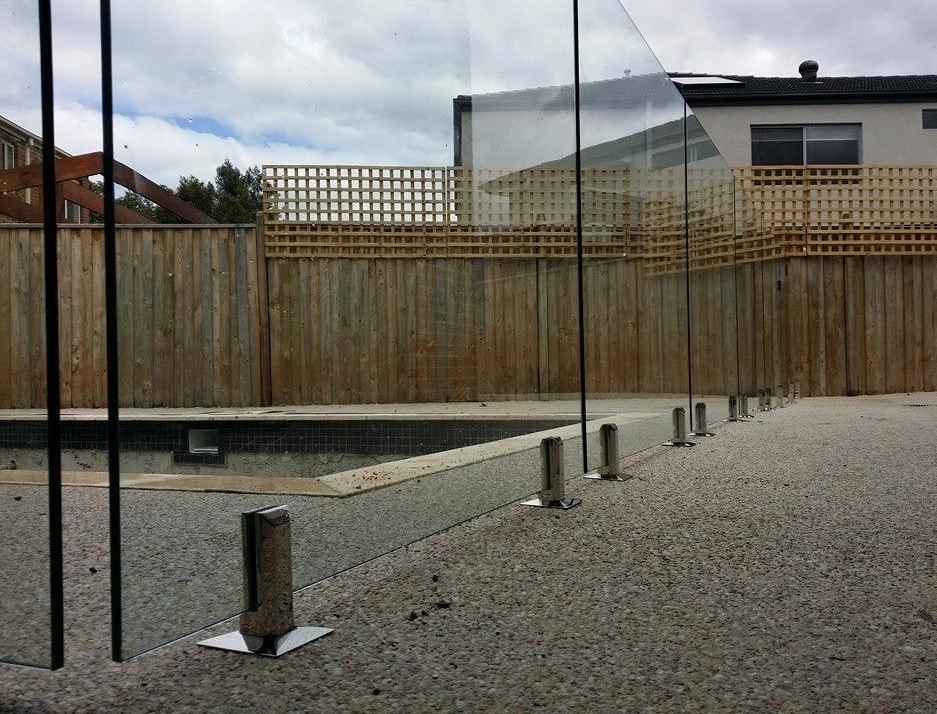

Project photos

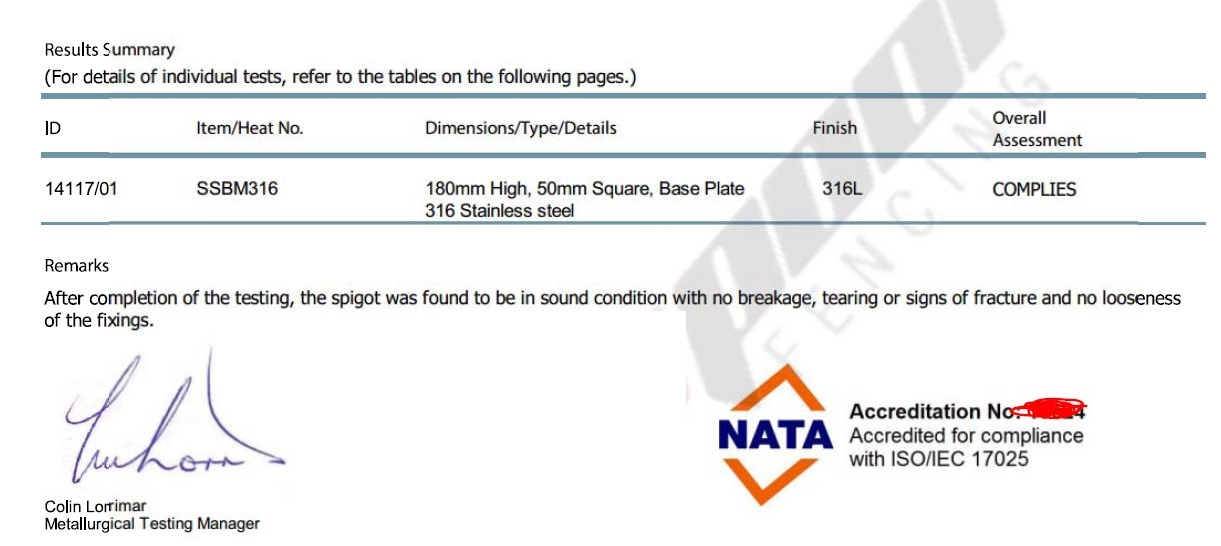

Strength test report

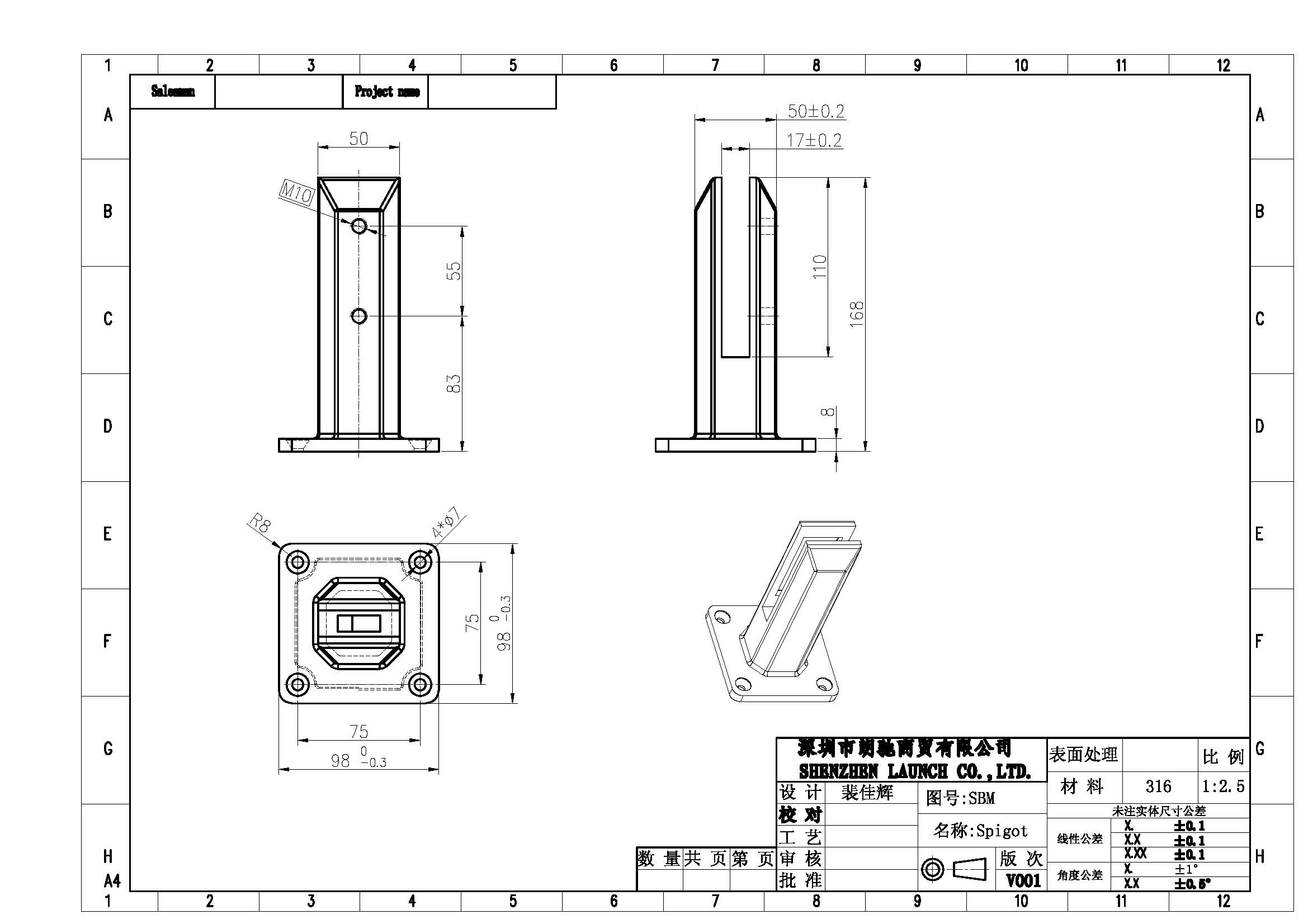

Dreawing

Certification

Need a quote or any questions, please leave a message.
Or contact me as below info. will get back to you ASAP!
