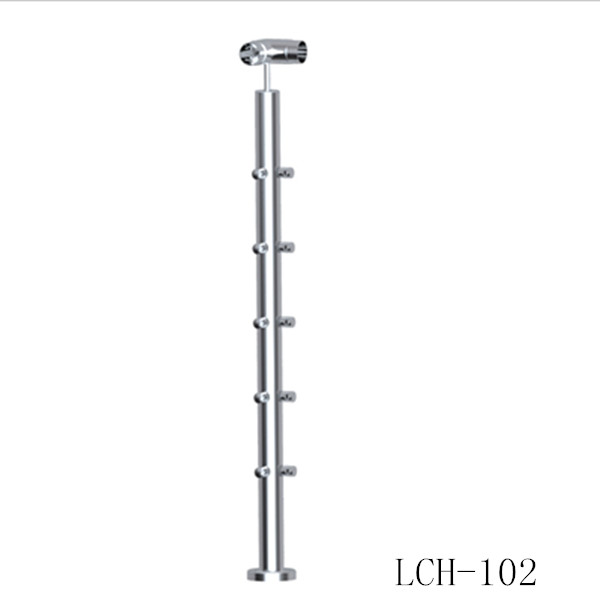

stainless steel cross bar railing post 90 degree

stainless steel cross bar railing post 90 degree

  • both stainless steel 304 & 316 material available
  • either satin or mirror finish
  • a whole set of one way post including fittings : a base ,a cover plate,a pole,a post connection,a post bracket ,2 glass clamps with rubbers and screws
  • pole diameter: 42.4mm or 50.8mm
  • pole height: usually 900-1000mm , also can be cut at any height as requested
  • base:diameter 100mm
  • cover plate: diameter 101mm
  • post connection: used for connecting pole and bracket
  • post bracket: for supporting top handrail

Railing posts common features:

Firstly, we have two types in posts:

Square baluster: 40*40mm and 50*50mm in square

Round baluster: 42.4mm and 50.8mm in diameter

Fittings attached on balusters, details as follows:

balustrade clamps

stainless steel brackets

Top Rails

Joiners, connectors

Base plate, base cover, end cap




Balustrade clamps

For 6/8/10/12/12.76mm glass


Stainless steel bracket

For 38.1/42.4/50.8mm round tubing

40/50mm square tube

Top railings

38.1/42.4/50.8mm round tubing

40/50mm square tube


180 degree and 90 degree joiners

Base plate, base cover and end cap

For 42.4/50.8mm round tube

40/50mm square tube

Stainless steel glass balustrades or railings:

The posts we use are heavy duty structural grade stainless steel and your choice in 50mm and 40mm round or square, which are brushed or polish of your choice.

The glass is 8-12mm thick toughened safety glass, and engineered & designed to meet all Australian standards.

We can also custom tailor posts, glass and fittings to suit any application.

Available in 316 marine grade stainless steel in mirror or satin finish.

We use High strength structural glazing posts

Your choice of Square or Round

Glass height 1200mm

Maximum glass width 2000mm

Custom architectural designs available

Glass is 8-12 mm thick toughened tempered safety glass

Custom architectural designs available for all applications.
