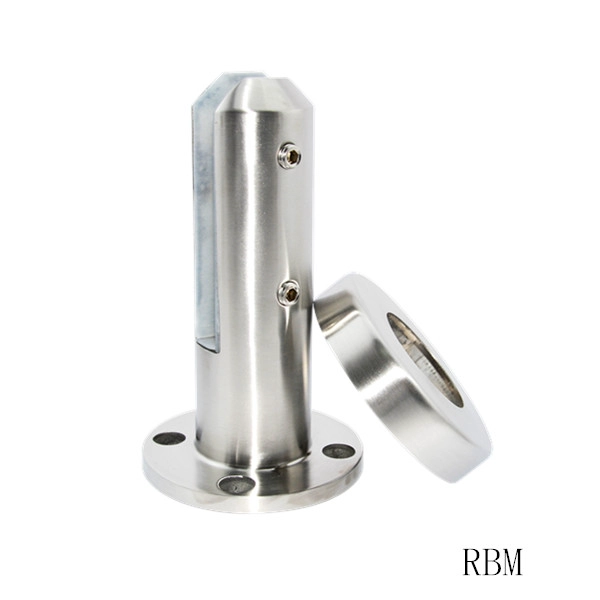

stainless steel glass fencing spigots
- Model:RBM
- round base plate spigot
- diameter:50mm
- height: 168mm
- base: 98mm
- cover:100mm
- opening:16mm
- bottom to groove:58mm
- base hole:4 holes
- each hole:diameter 8mm
- bolt for base holes:M8*100mm
- for deck mount or concrete mount
- for pool fence or balcony or terrace or decking etc
round base plate spigots for glass swimming pool fence
to fix 10mm/12mm/12.76mm/13mm thick glass panel
glass gate 10mm/12mm
glass standard height:1200mm
glass width:1000mm-1500mm
glass spigots with base 4 holes for bolts M8*100mm
for deck and concrete mounting

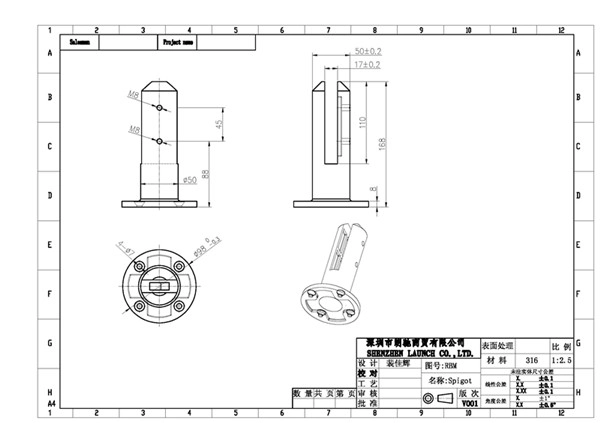

dimension please refer to below drawing:

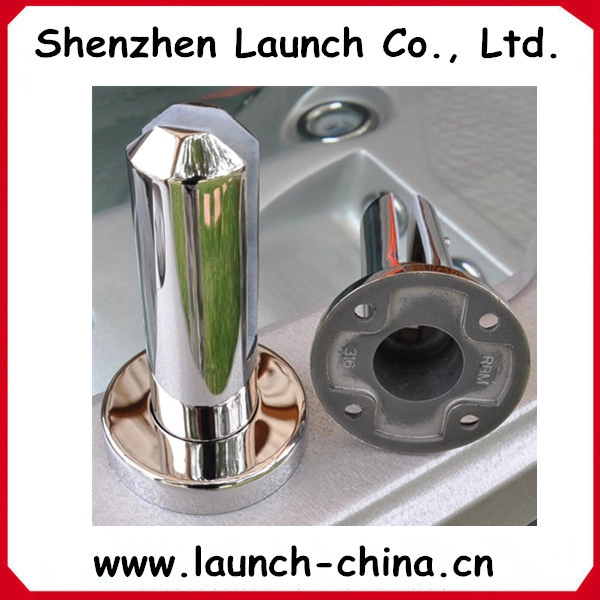

spigots photos as below:

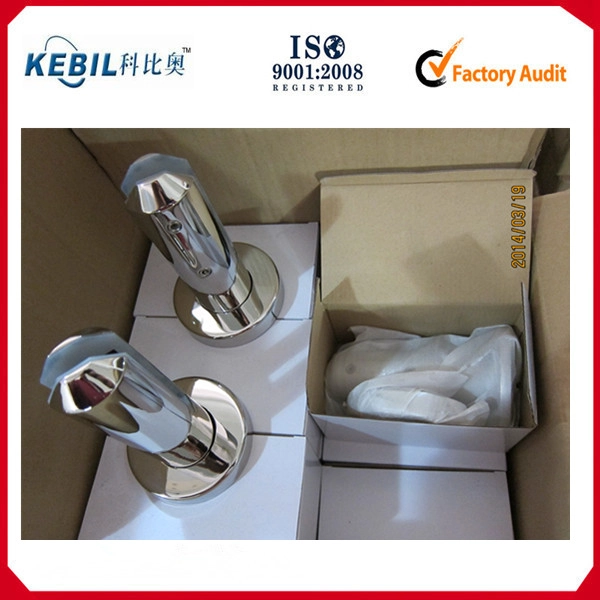

spigots packaging:

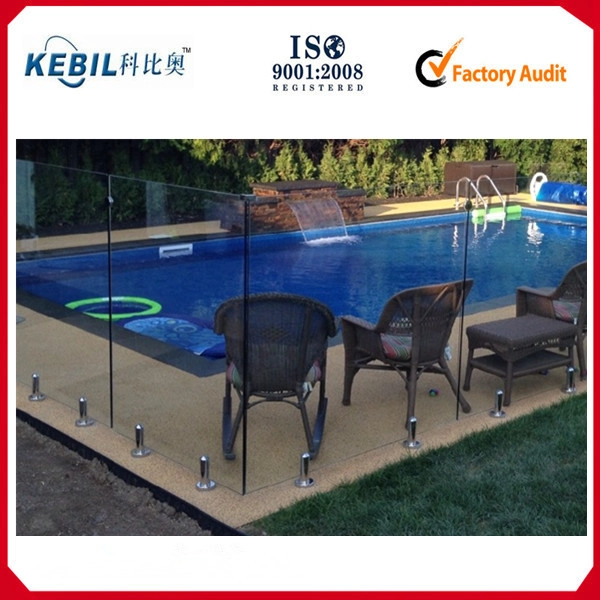

spigots were installed for pool fence:

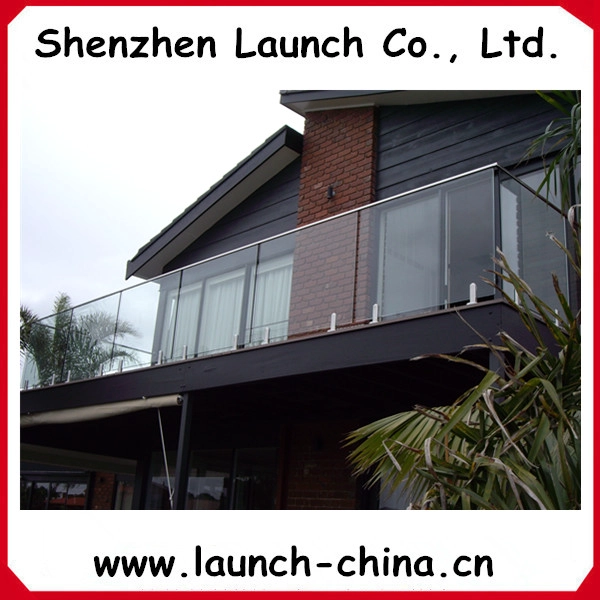

spigots were installed for balcony:
