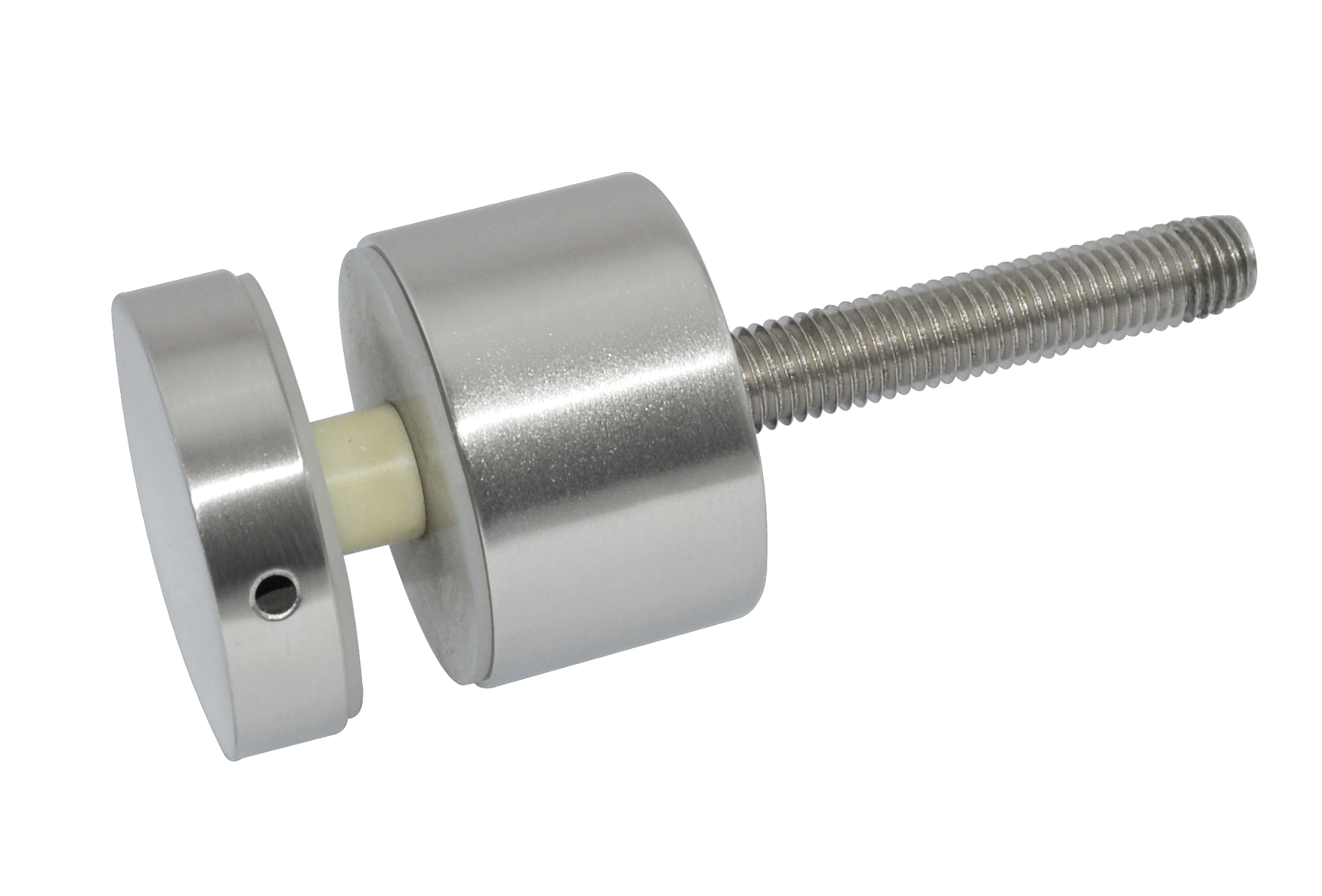

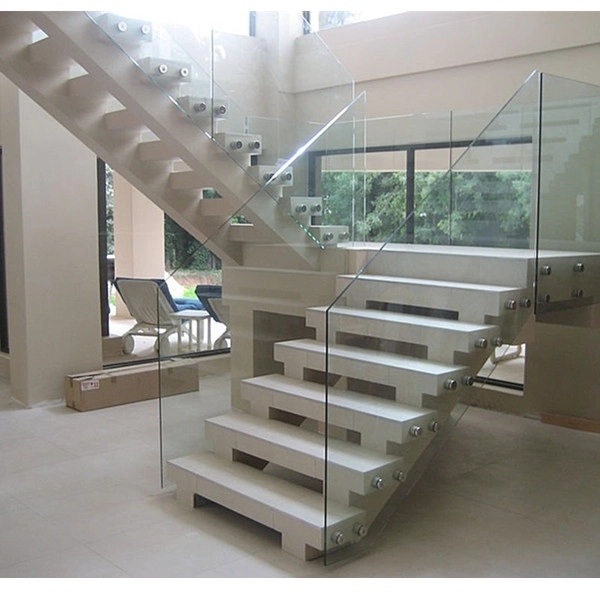

wall-mounted standoff for stairs glass railing

wall-mounted standoff for stairs glass railing

  • material: stainless steel 304/316
  • finish: satin or mirror polished
  • model No.: SF-30; SF-50; SF-50T
wall-mounted standoff for stairs glass railing

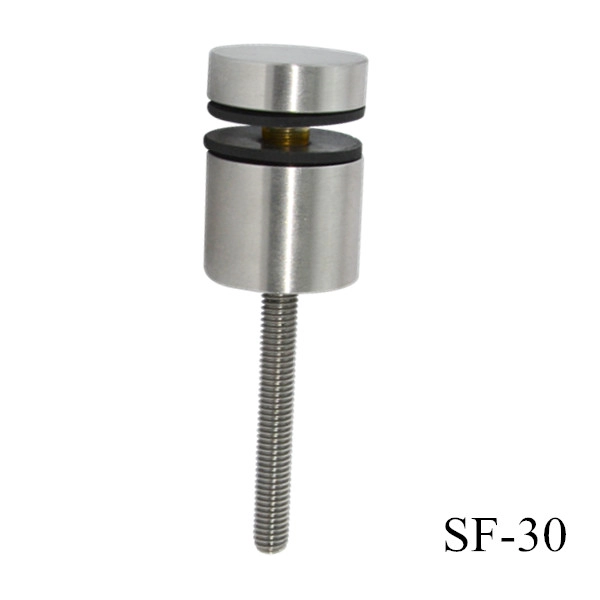

Model No.: SF-30
material: stainless steel 304/316
finish: satin or mirror polished
size: 30*10mm cap, 30*25mm body,
M8*100 bolt, mount to concrete/ M12*72 bolt, mount to wood

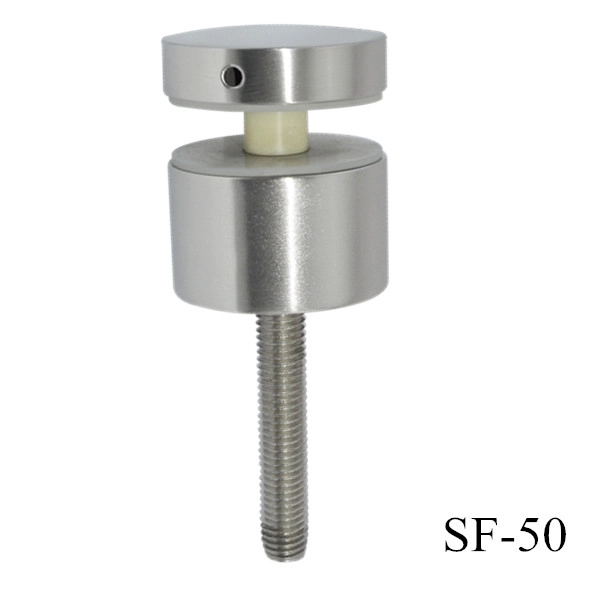

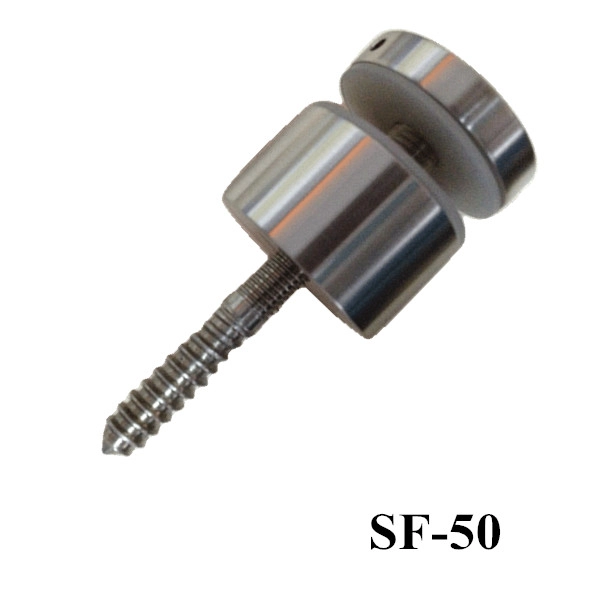

Model No.: SF-50
material: stainless steel 304/316
finish: satin or mirror polished
size: 50*10mm cap, 50*30mm body

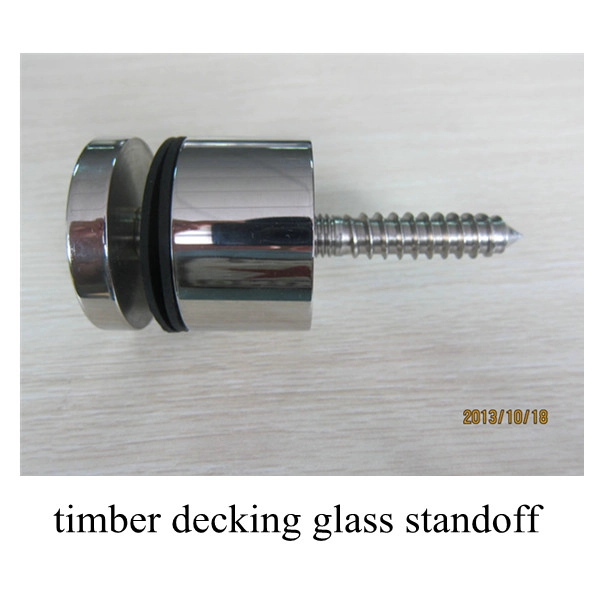

M12*120 bolt, mount to concrete / M12*72 bolt, mount to wood

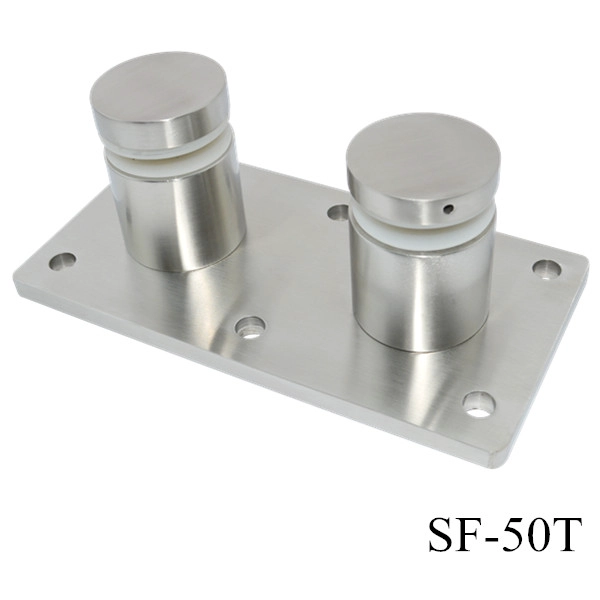

Model No.: SF-50T
material: stainless steel 304/316
finish: satin or mirror polished
size; 50*10mm cap, 50*30 mm cap
mounting plate size; 200*100*10mm
